Overview of EKCNE Guide Rail Lift Platforms

Guide rail lift platforms are widely used cargo lifting equipment nowadays. The transportation height can range from 2-30 meters, with load capacity from 100 kg to 10 tons. They are used for cargo transportation in industrial plants, lofts, and warehouses. Guide rail lift platforms operate stably, are simple to operate, energy-saving and environmentally friendly with long service life, making them ideal equipment for vertical cargo transportation.

Guide rail hydraulic freight elevator is equipment used for cargo lifting and lowering. It is powered by electric motor, with the motor driving gear pump through chain transmission to ensure safe machine operation. No machine room is required above, with no restrictions on installation environment and site, and no annual inspection required. It features convenient installation and maintenance, aesthetic appearance, safety, and simple operation.

Detailed Product List

Product Model	Rated Load (kg)	Lifting Stroke (mm)	Platform Size (mm)	Bridge Car Total Height (mm)	Lifting Speed (m/min)	Motor Power (kw)
SJT1-3	1000	3000	2000×2000	2000	6.5	2.2
SJT2-3	2000	3000	2000×2000	2000	6	3.7
SJT1-4	1000	4000	2000×2000	2000	6.5	3.7
SJT2-4	2000	4000	2000×2000	2000	6	3.7
SJT1-5	1000	5000	2000×2000	2000	6.5	3.7
SJT2-5	2000	5000	2000×2000	2000	6	3.7
SJT1-6	1000	6000	2000×2000	2000	6.5	3.7
SJT2-6	2000	6000	2000×2000	2000	6	3.7
SJT1-7	1000	7000	2000×2000	2000	6.5	3.7
SJT2-7	2000	7000	2000×2000	2000	6	3.7
SJT1-8	1000	8000	2000×2000	2000	6.5	5.5
SJT2-8	2000	8000	2000×2000	2000	6	5.5
SJT1-9	1000	9000	2000×2000	2000	6.5	5.5
SJT2-9	2000	9000	2000×2000	2000	6	5.5
SJT1-10	1000	10000	2000×2000	2000	6.5	5.5
SJT1-12	1000	12000	2000×2000	2000	6.5	5.5

Guide Rail Type Hydraulic Lifting Platform

Guide Rail Lift Platform

Guide rail lift platform is a non-scissor type hydraulic equipment used for material transportation between floors in 2-3 story industrial plants, warehouses, supermarkets, and restaurants. With heights ranging from 150-300mm, it is particularly suitable for work sites where pit excavation is not possible. Specific dimensions and load capacity can be customized according to different user requirements.

Freight Elevator (Guide Rail Lifting Work Platform)

The lifting system is driven by hydraulic pump station, hence it is also called hydraulic freight elevator. Freight elevators are used for vertical transportation of goods between different working levels in buildings, as well as for car lifting in multi-level parking garages and underground parking facilities.

Functions

Heavy load capacity with multi-point control capability
Interactive interlocking between upper and lower floors for safe operation
High lifting height with side-mounted cylinders or dual-side cylinders for smooth, noiseless operation
Easy maintenance with long service life
Manual lowering during power failure and emergency stop button for convenience, efficiency, and practicality

Product Customization

This is a customized product with varying prices depending on load capacity, lifting height, platform dimensions, and installation environment. Please provide these specifications when making inquiries.

Triple Protection System

Explosion-proof Valve: When hydraulic oil pipes accidentally rupture, the explosion-proof valve beneath the cylinder will close to stop the platform from descending.
Anti-fall Wire Rope: When the lifting power chain breaks, the anti-fall wire rope will engage to hold the platform in place.
Anti-fall Cylinder: If the platform descends faster than normal operating speed, this system will activate to prevent accidents.

Safe and reliable, short construction period, direct factory sales, factory price installation and delivery!

Product Advantages:

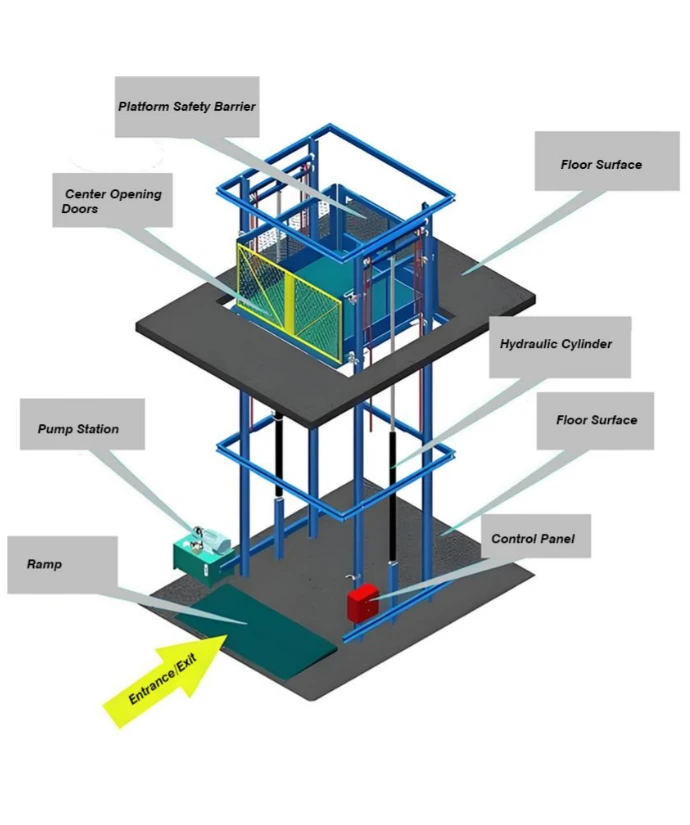

Smooth lifting operation, suitable inter-floor transportation
Stable equipment with long service life and easy maintenance
Equipped with safety mechanical anti-fall device
Safety interlocking system
Multi-point control capability
No pit excavation required (with ramp plate installation)

Product Configuration:
Door Types (Manual doors, electric rolling doors, PVC high-speed doors, elevator doors, etc.)
External Enclosure: Mesh guard or stainless steel plate enclosure (indoor), color steel canopy protection (outdoor) (not required inside shaft)

Standard Equipment:

Emergency lowering device
Overload protection device (optional)
Power failure emergency stop device
Safety alarm system (optional)
Electric push rod addition (optional)
Design Types: Single mast, double mast, four mast

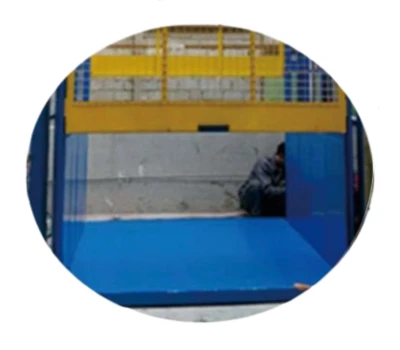

A. Adopts car frame structure with 24 guide wheels clamping the rails to ensure no eccentric loading regardless of cargo position in any corner.

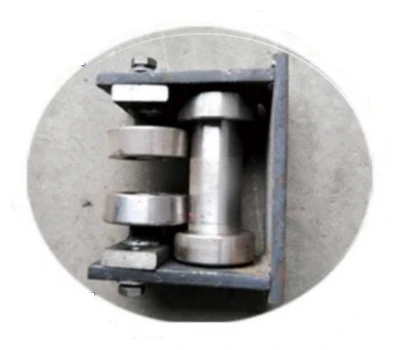

B. Rails use I-beam steel with three-wheel positioning system tightly clamping each corner of the car to the rails, leaving no gaps.

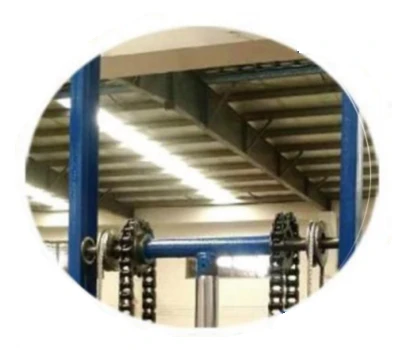

C. Two-stage guidance is installed on both sides of the cylinder top to ensure the traction cylinder moves smoothly upward without cylinder swaying, extending the service life of internal cylinder seals.

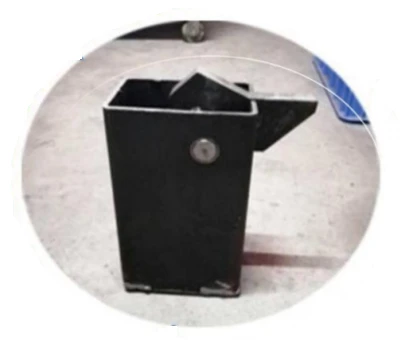

D. Self-developed anti-fall safety system installed on each floor provides safety protection (customizable according to requirements).

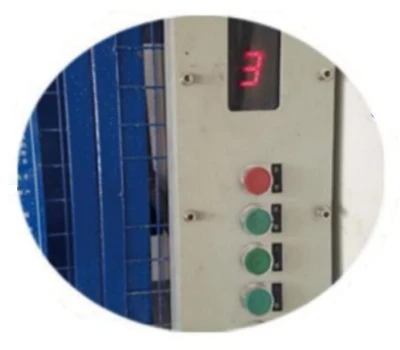

E. Intelligent electrical control with PLC programming system, explosion-proof option available.

Wide Range of Applications

Production Workshop

Efficient vertical lifting solution for moving materials and equipment inside industrial production environments.

Factory Outdoor Area

Weather-resistant guide rail lift platform designed for outdoor cargo transportation and loading operations.

Heavy-duty hydraulic freight lift platform for cargo transportation at port and dock facilities

Port / Dock

Heavy-duty hydraulic lifting system for stable cargo handling in ports, docks, and logistics terminals.

Supermarket

Compact cargo lift platform for transporting goods safely between storage and retail floors.

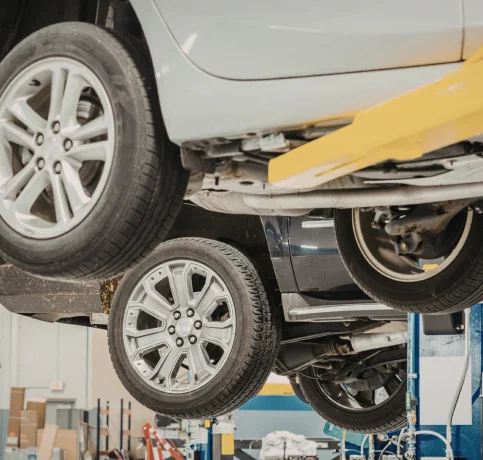

Hydraulic guide rail vehicle lift platform for automotive maintenance and car transportation

Car Lifting

Hydraulic lifting platform designed for vehicle transportation, parking systems, and automotive maintenance areas.

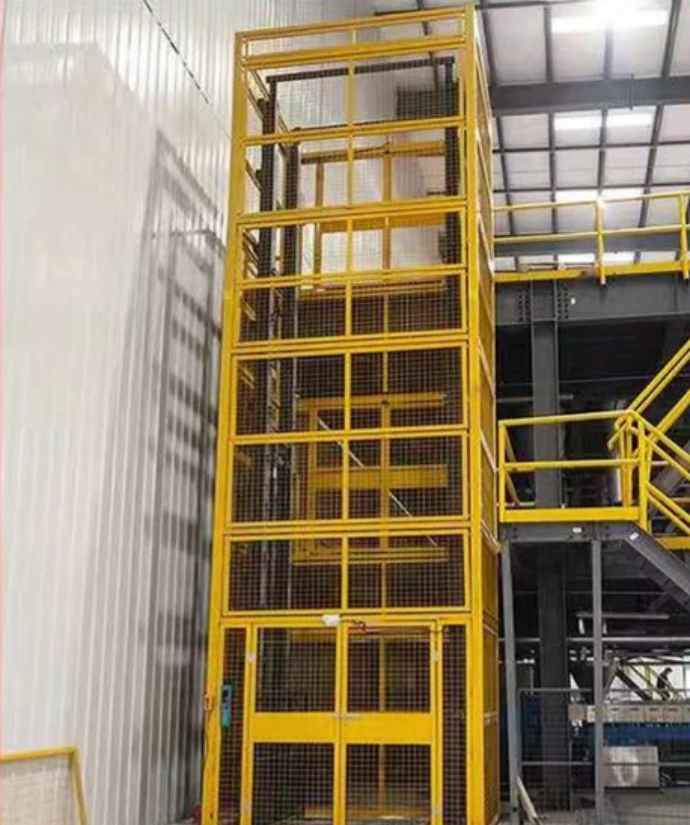

Warehouse

Guide rail hydraulic lift improving vertical pallet movement and warehouse material handling efficiency.

Project Showcase

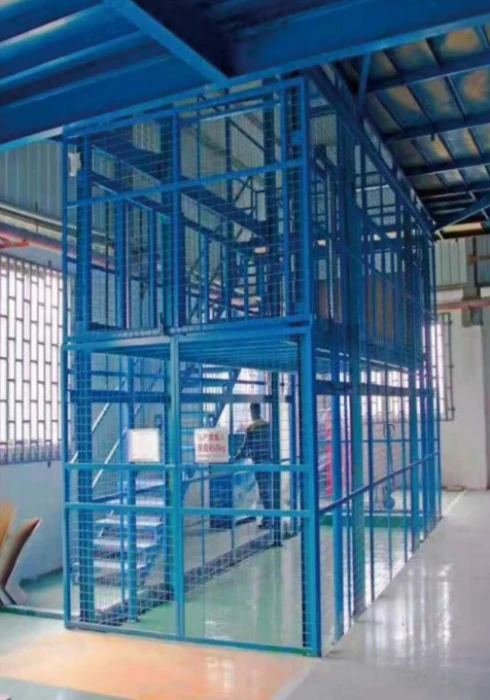

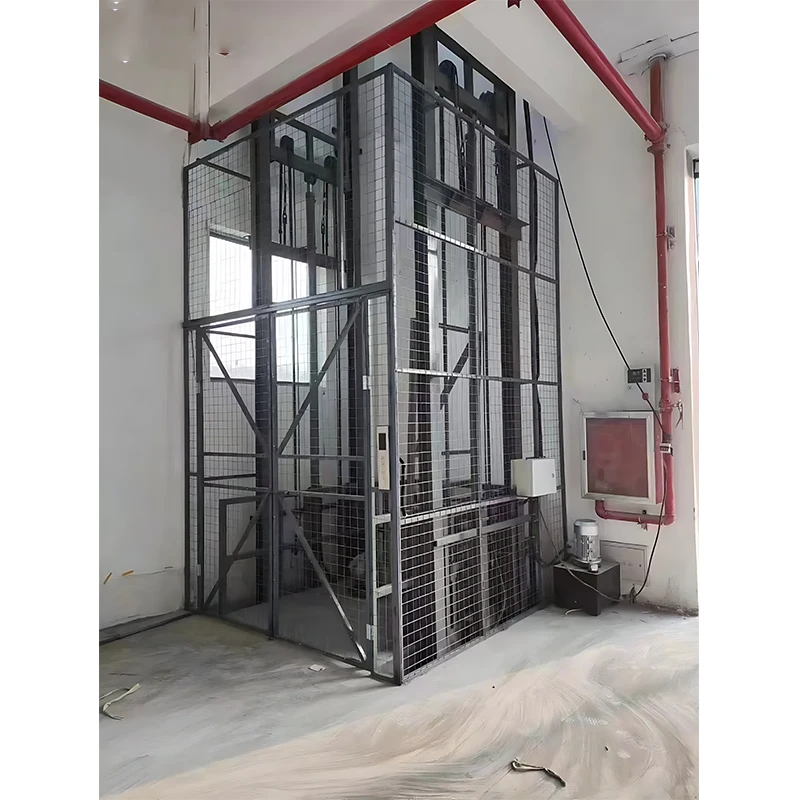

Warehouse/Building Installation of Hydraulic Guide Rail Type Lift

Installation of hydraulic guide rail type lift warehouse building, with two-level electrical control, including ramp, mesh, and door. Convenient for staff to load and unload goods, saving labor, time and manpower.

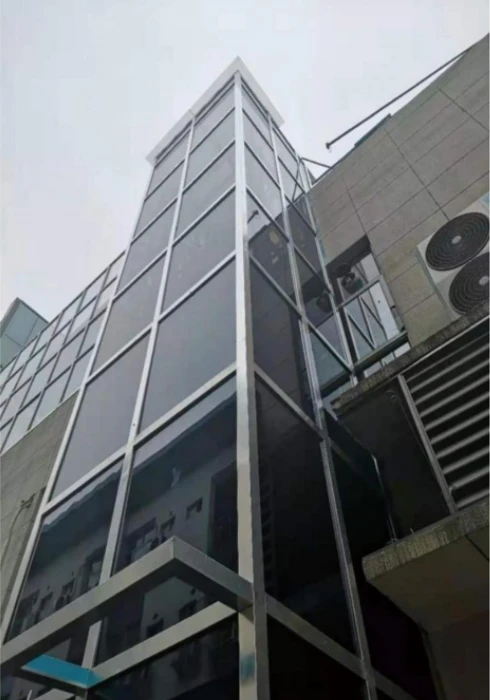

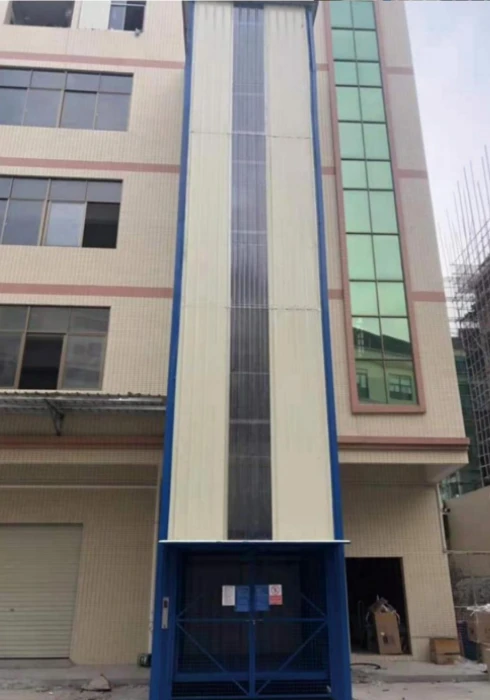

Outdoor Installation of Hydraulic Guide Rail Type Lift

Outdoor installation of hydraulic guide rail type lift with multi-level electrical control, stainless steel and glass protection. Does not change indoor area, aesthetically pleasing and elegant.

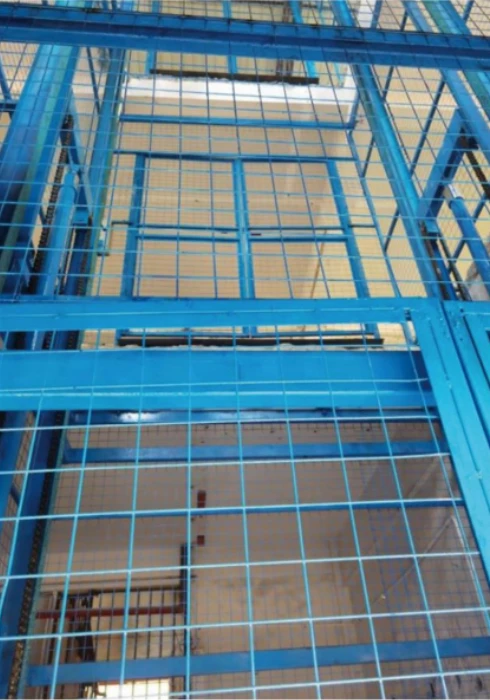

Hoistway Installation of Three-Level Hydraulic Lift Platform

Hoistway installation of three-level hydraulic lift platform with protective mesh. If you can imagine it, we can build the lift for you.

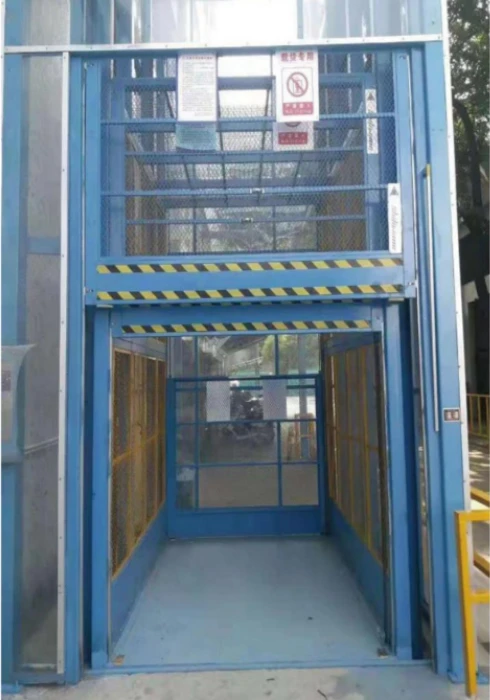

Stainless Steel Glass Protection with Balanced Counterweight Door

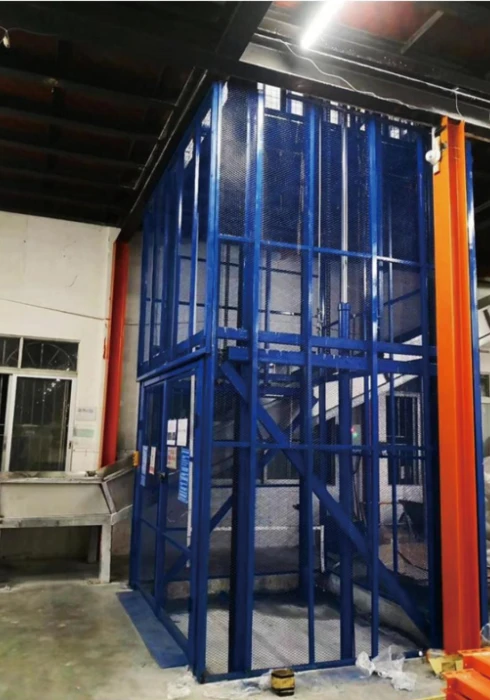

2.0T lifting height 3.2m fixed hydraulic freight elevator with two-level electrical control, through-type entry and exit, gravity-operated paired mesh gate doors, economical and safe.
