Elevator Guide Shoes for Stable Rail Guidance
During elevator operation, guide shoes maintain contact with the guide rail and help control horizontal movement of the car or counterweight.
A properly selected guide shoe helps:
- Keep the car aligned with the guide rail
- Reduce vibration and rail impact
- Support smoother vertical travel
- Limit abnormal lateral movement
- Improve ride comfort
- Reduce wear between the shoe and rail
Guide shoe selection should consider guide rail size, elevator speed, load condition, car frame structure, and ride comfort requirements.
Main Types of Elevator Guide Shoes

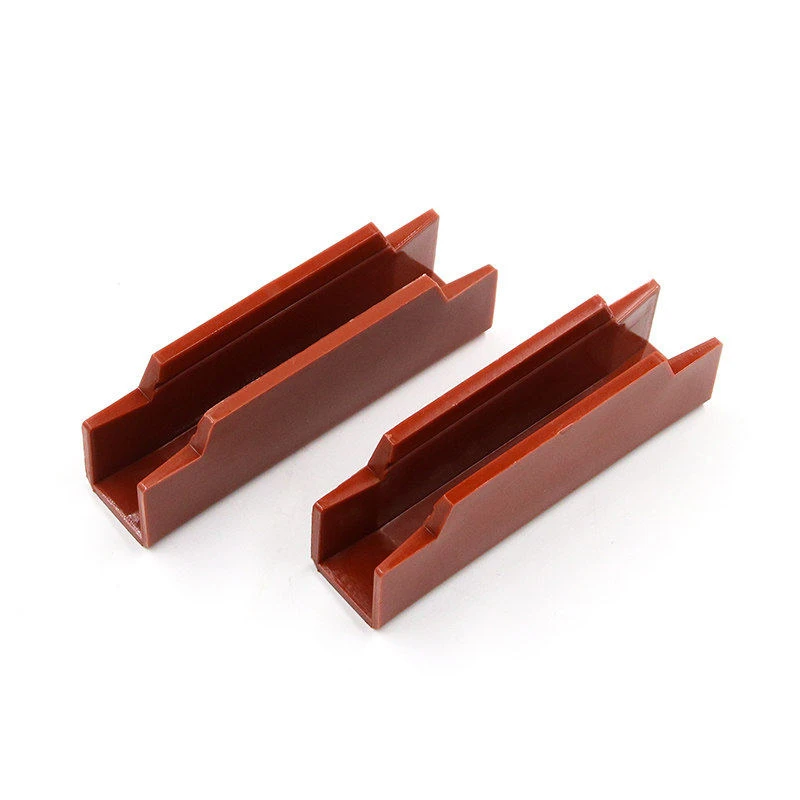

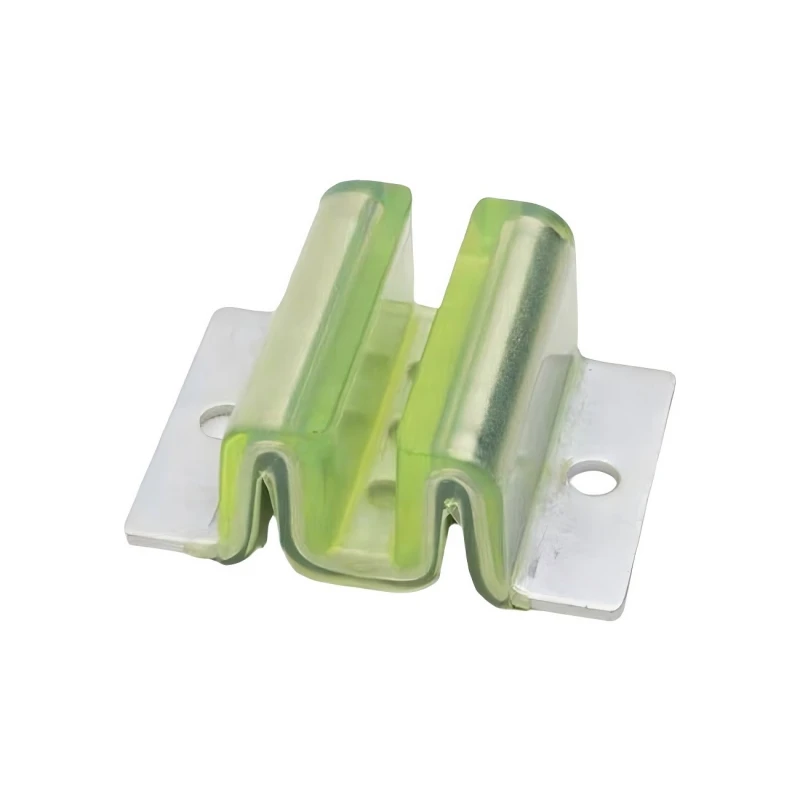

Fixed Sliding Guide Shoes
Fixed sliding guide shoes use a simple structure where the shoe liner slides along the guide rail surface.
They are commonly used in lower-speed elevators, freight elevators, and dumbwaiter applications. Because the shoe base is fixed, a proper clearance must be maintained between the guide shoe and rail to absorb rail spacing deviation.
If the clearance is too small, friction increases. If the clearance is too large, vibration and impact may become more obvious.
Elastic Sliding Guide Shoes
Elastic sliding guide shoes use a spring or rubber elastic structure to provide flexible pressure against the rail surface.
This design helps absorb vibration and impact during operation. The initial pressure of the shoe liner can usually be adjusted, which makes it more suitable for applications requiring better ride stability than fixed sliding guide shoes.
Elastic sliding guide shoes are often used in elevators with moderate speed and higher comfort requirements.
Roller Guide Shoes
Roller guide shoes use rollers to move along the guide rail instead of relying on sliding friction.
A roller guide shoe usually presses its rollers against the front and side working surfaces of the rail under spring force. The roller surface is often made of hard rubber or similar material to reduce friction loss, vibration, and running noise.
Roller guide shoes are widely used in high-speed and ultra-high-speed elevators because they provide smoother contact and lower resistance during travel.
Why Guide Shoe Matching Matters
Guide shoes must be matched with the guide rail structure and elevator operating condition.
Key factors include:
- Guide rail model and rail surface condition
- Elevator rated speed
- Car and counterweight load
- Rail installation accuracy
- Shoe liner material
- Spring pressure adjustment
- Vibration and noise requirements
- Maintenance access
For sliding guide shoes, lubrication may be needed to reduce friction and wear. For roller guide shoes, roller pressure and contact consistency are important for stable operation.
Common Elevator Guide Shoe Problems
Guide shoe problems often appear as ride quality issues rather than obvious part failure.
Common signs include:
- Increased vibration during travel
- Rail rubbing noise
- Unstable car movement
- Uneven shoe liner wear
- Excessive guide rail friction
- Roller wear or looseness
- Poor ride comfort after long-term operation
Regular inspection helps identify worn liners, loose assemblies, incorrect pressure adjustment, and rail-contact problems before they affect elevator performance.
Elevator Guide Shoes for Maintenance and Modernization
In elevator maintenance and modernization projects, guide shoe replacement is often used to improve movement stability and reduce vibration.
Older elevators may require replacement when guide shoes are worn, rail contact becomes uneven, or the elevator produces abnormal noise during travel.
For projects with higher comfort requirements, upgrading from fixed sliding guide shoes to elastic sliding or roller guide shoes may help improve ride smoothness, depending on the elevator speed, rail condition, and system design.
FAQ
What do elevator guide shoes do?
Elevator guide shoes keep the car or counterweight moving along the guide rails. They help control horizontal movement, reduce vibration, maintain rail contact, and support smoother elevator travel.
What is the difference between sliding and roller guide shoes?
Sliding guide shoes move directly against the rail surface, while roller guide shoes use rollers to reduce friction. Roller guide shoes are more common in high-speed elevators because they reduce vibration and running noise.
When should elevator guide shoes be replaced?
Guide shoes should be inspected or replaced when there is abnormal vibration, rail noise, uneven liner wear, unstable movement, or excessive friction between the shoe and guide rail.
Are roller guide shoes better than sliding guide shoes?
Not always. Roller guide shoes are better for higher-speed and comfort-focused elevators, while sliding guide shoes are suitable for many low-speed and freight elevator applications.
Why does guide shoe clearance matter?
Guide shoe clearance affects friction, vibration, and rail contact. Too little clearance increases wear, while too much clearance may cause impact, shaking, or unstable elevator movement.
