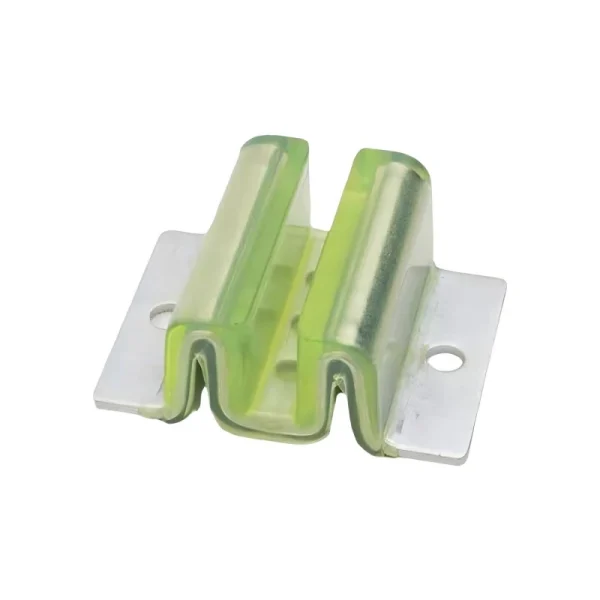

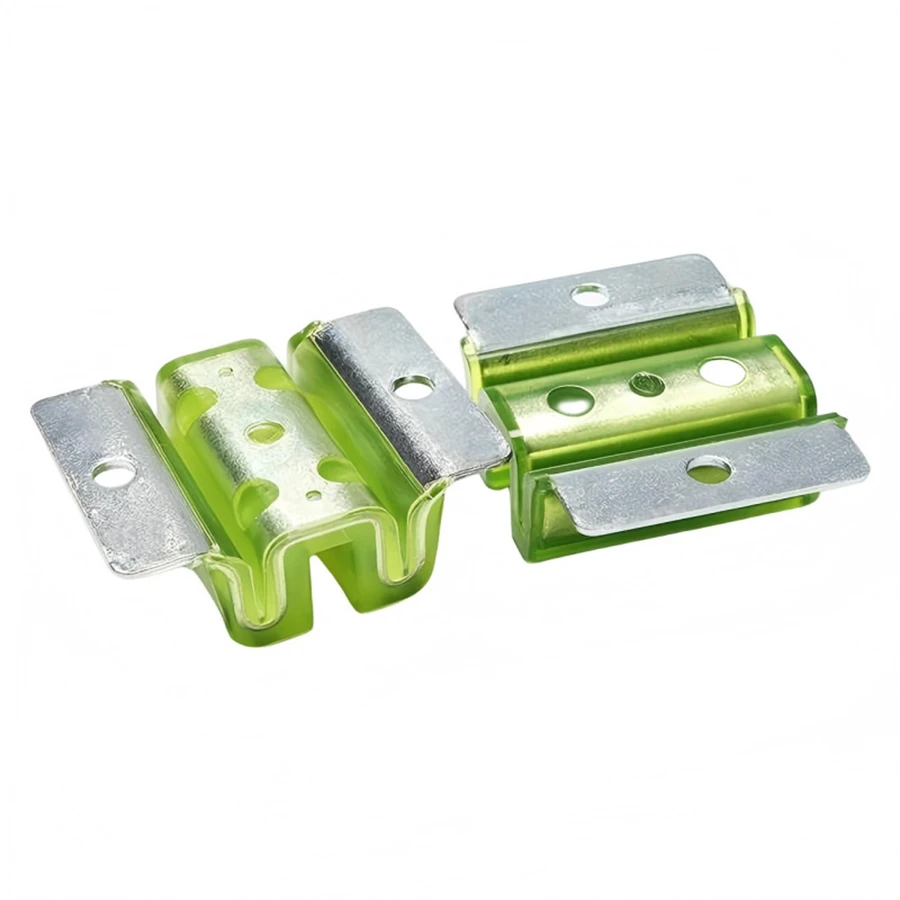

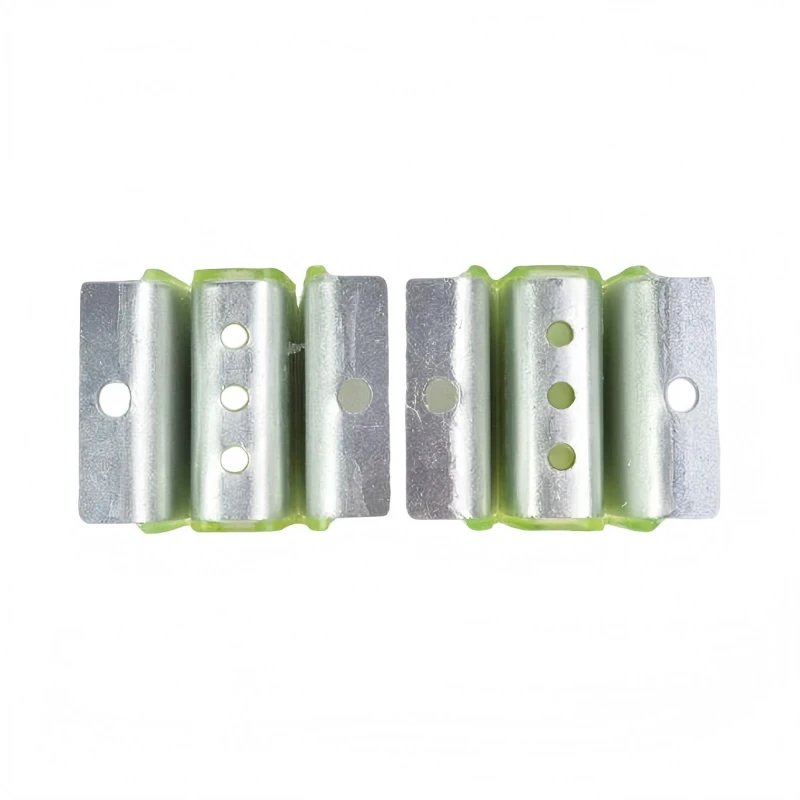

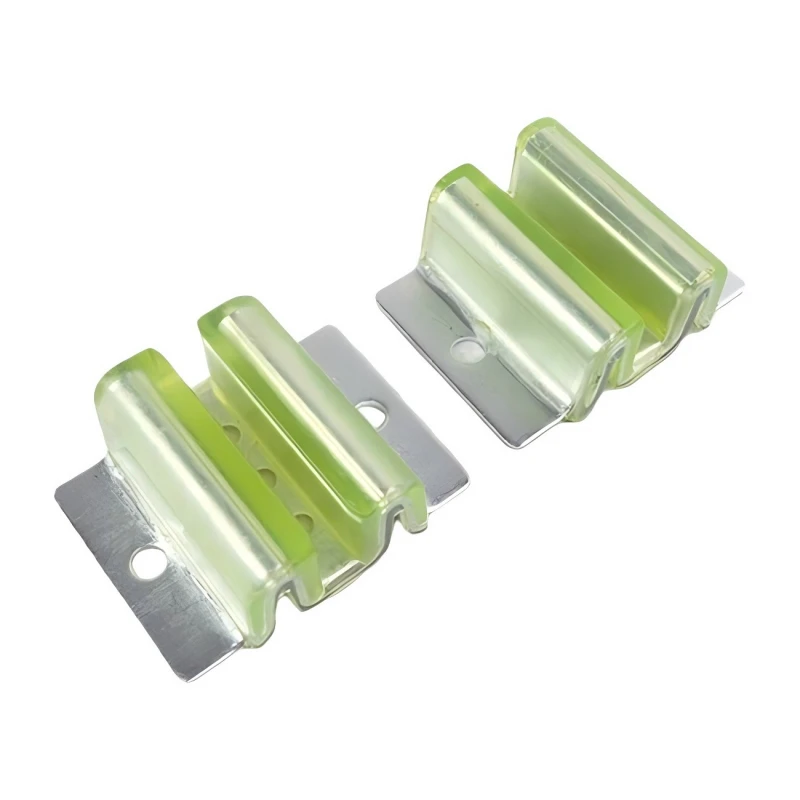

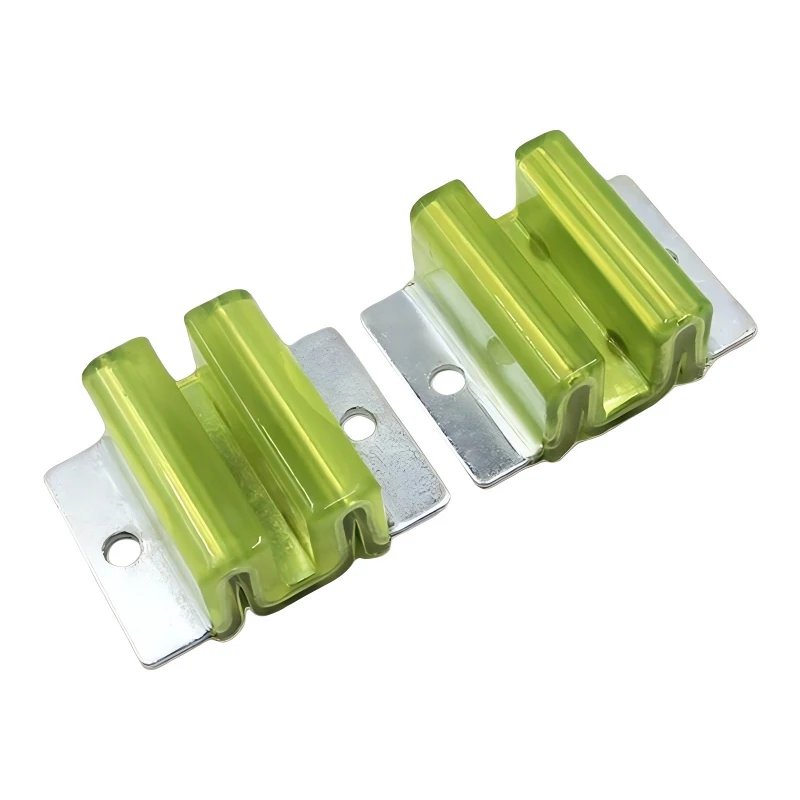

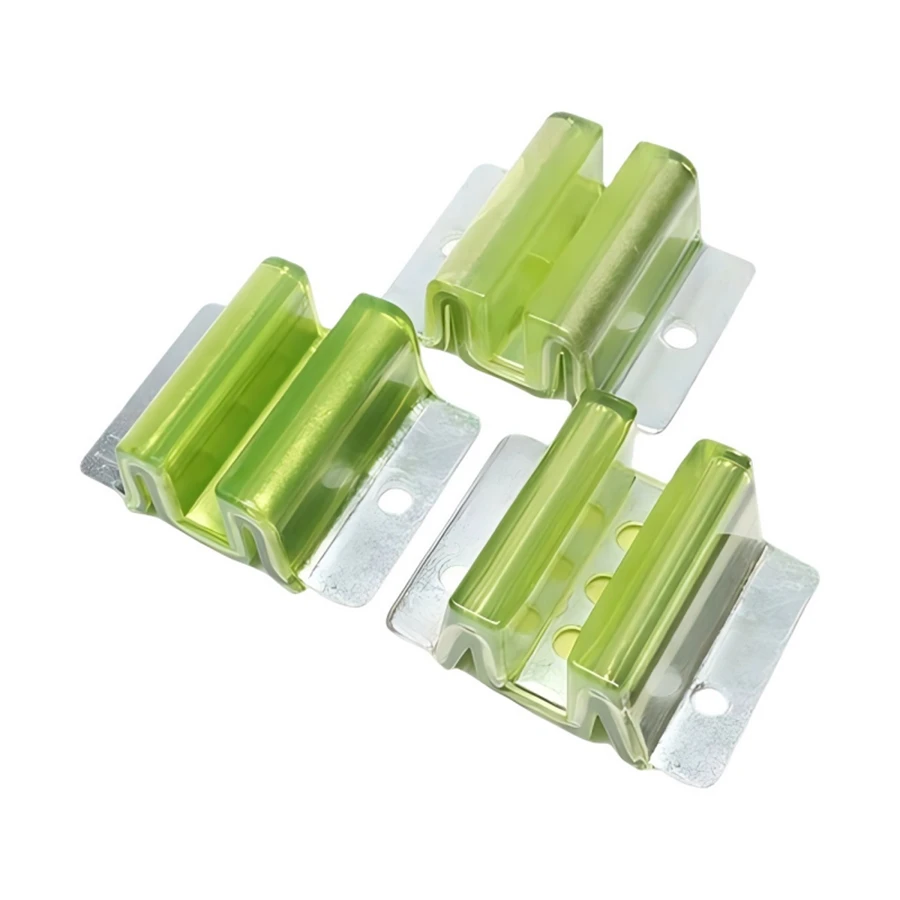

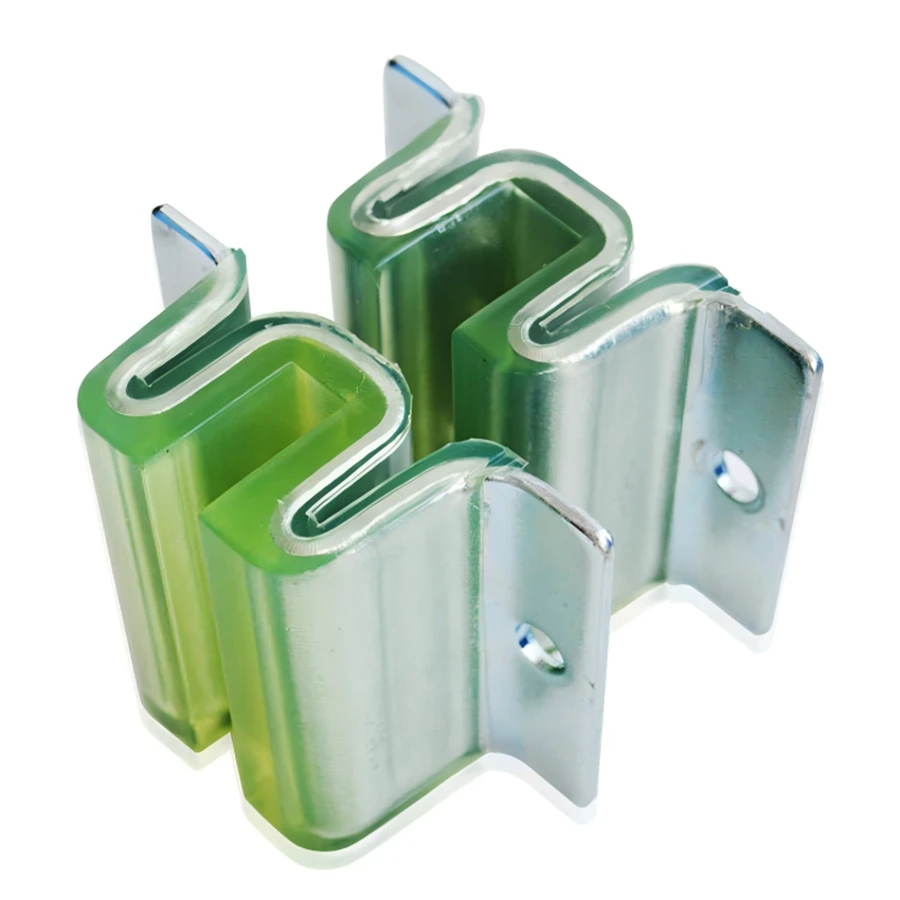

Counterweight Guide Shoe 10mm / 16mm
Cost Effective Black Elevator Counterweight Guide Shoe Hollow Rail W M Design 10 16mm Stable Running
| Elevator Counterweight Guide Shoe Specification Sheet | ||
|---|---|---|
| Parameter | 10mm Model | 16mm Model |

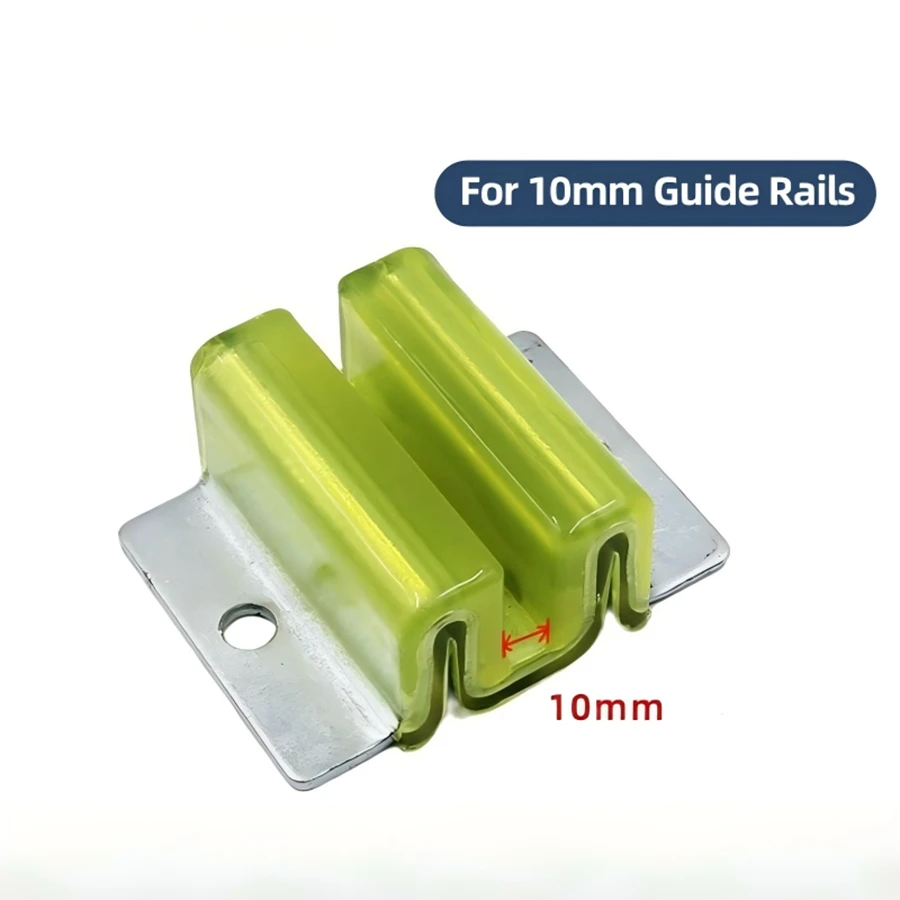

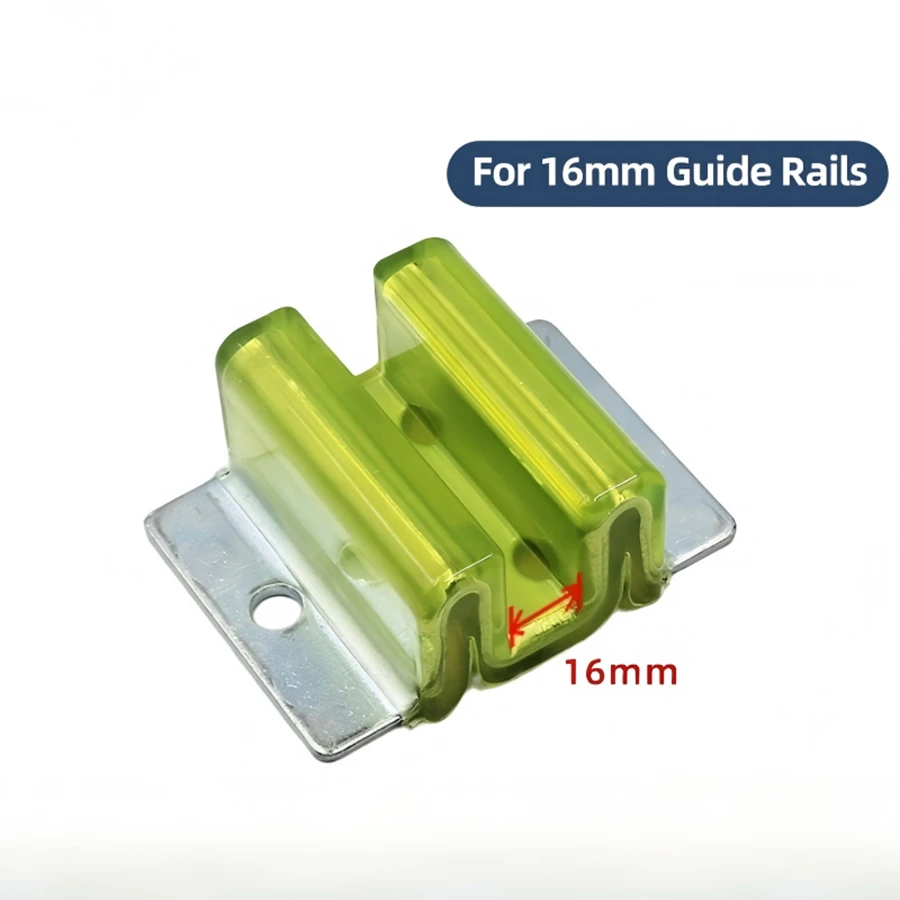

| Applicable Guide Rail Width | 10 mm | 16 mm |
| Rated Speed | ≤2.0 m/s | ≤2.0 m/s |

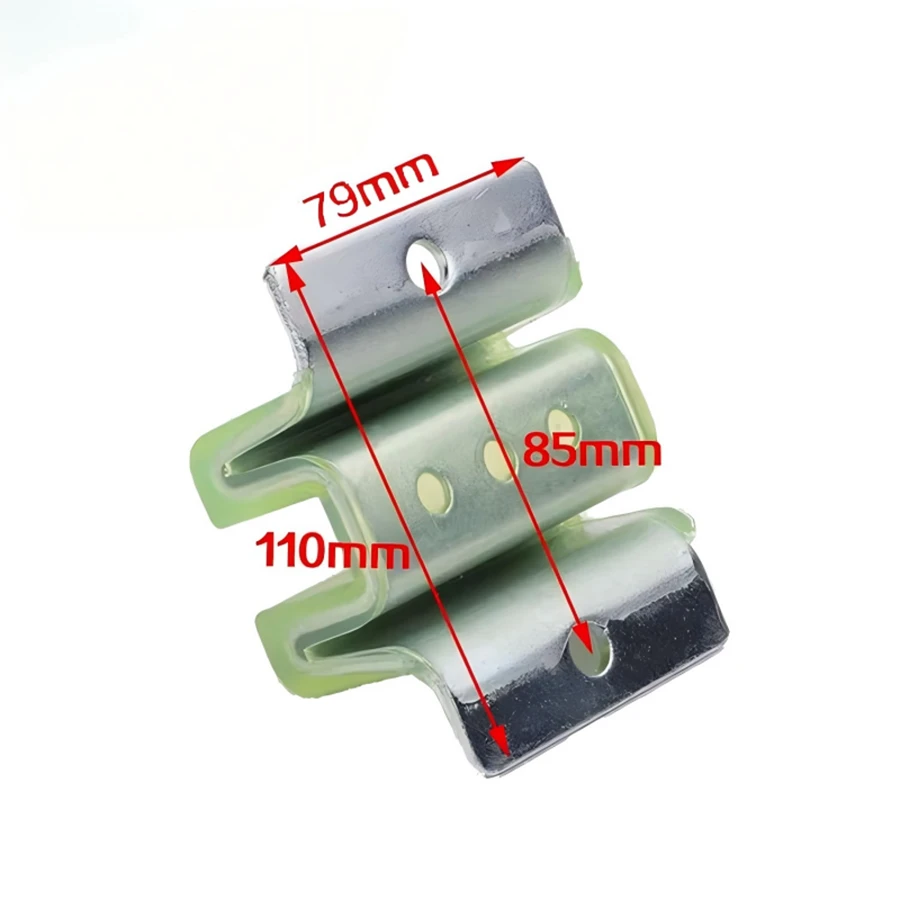

| Total Length | 110 mm | 110 mm |
| Mounting Plate Width | 79 mm | 79 mm |
| Mounting Hole Spacing | 85 mm | 85 mm |
| Mounting Hole Diameter | Ø11 mm | Ø11 mm |

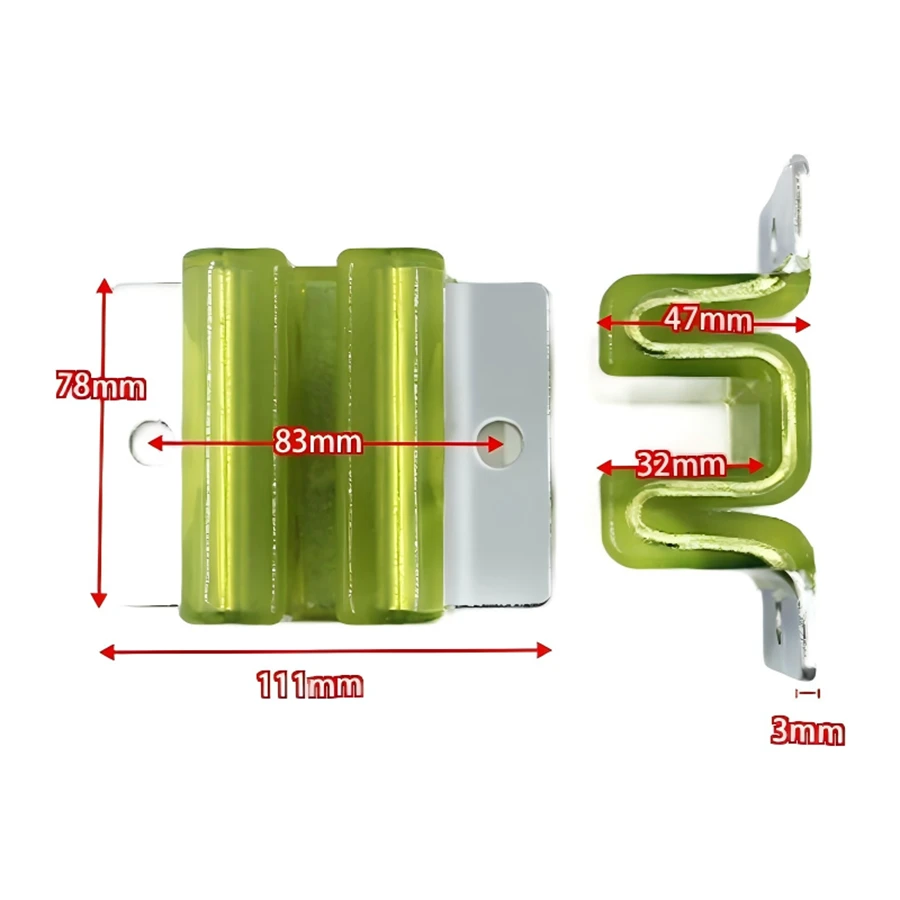

| Total Height | 78 mm | 78 mm |
| Overall Width | 111 mm | 111 mm |
| Sliding Part Outer Width | 47 mm | 47 mm |
| Sliding Part Inner Width | 32 mm | 32 mm |
| Steel Plate Thickness | 3 mm | 3 mm |
| Weight | 0.55 kg | 0.55 kg |
