KONE Guide Shoe

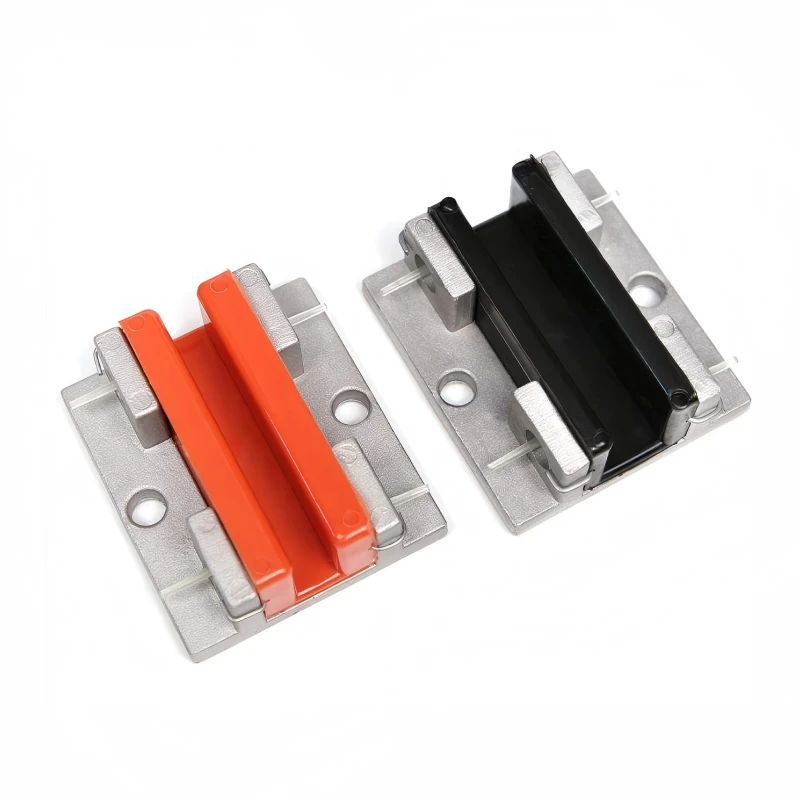

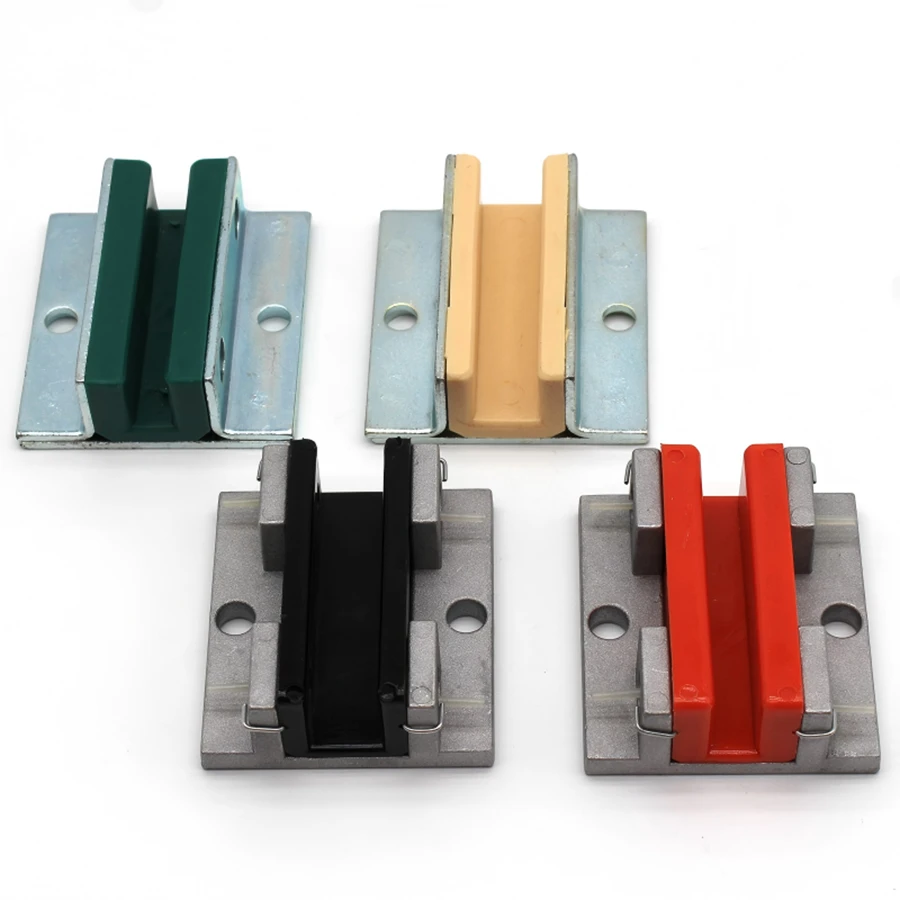

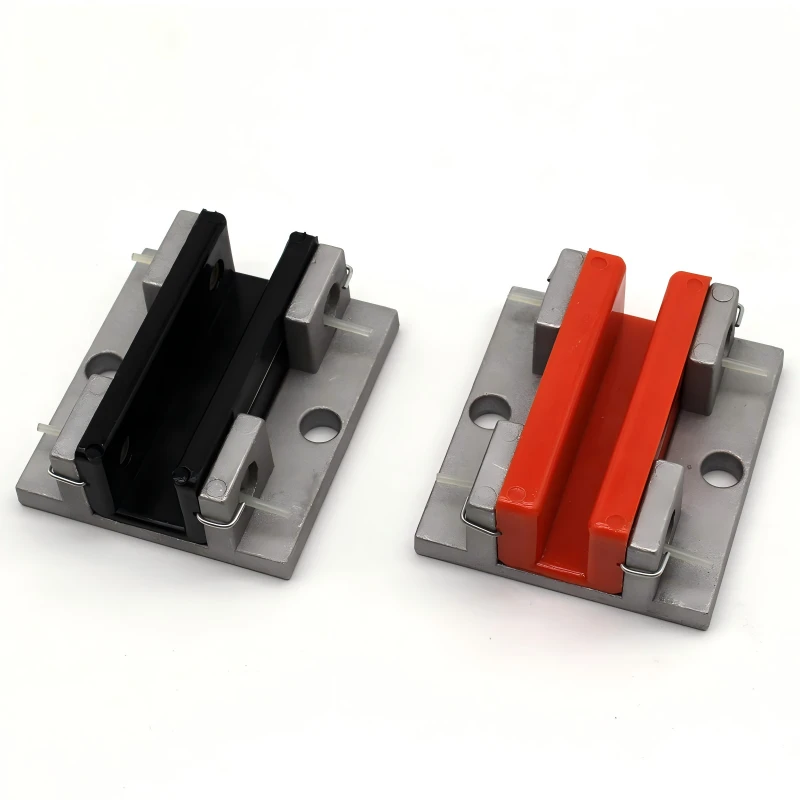

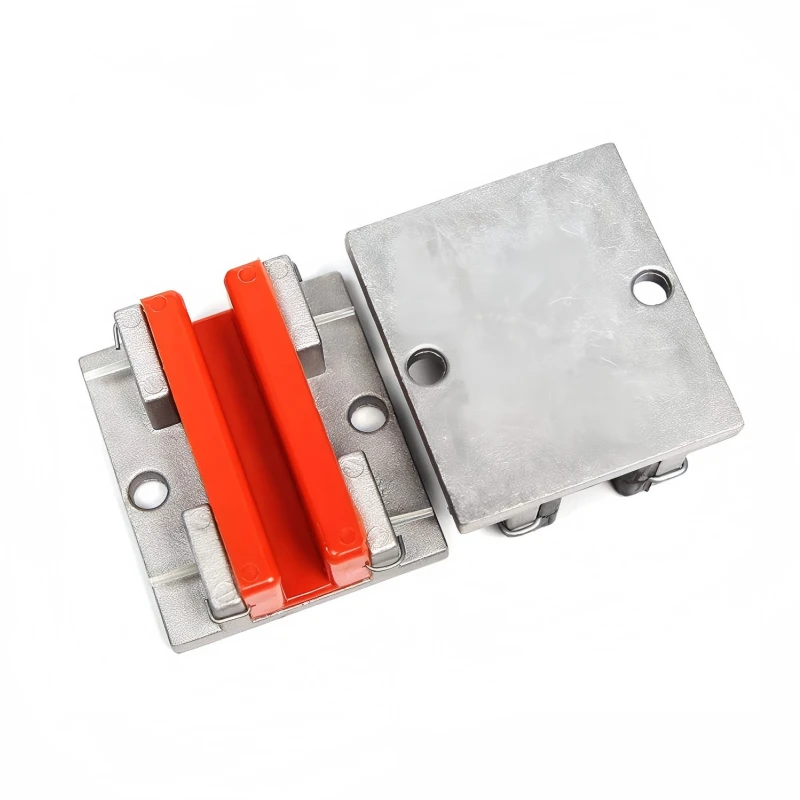

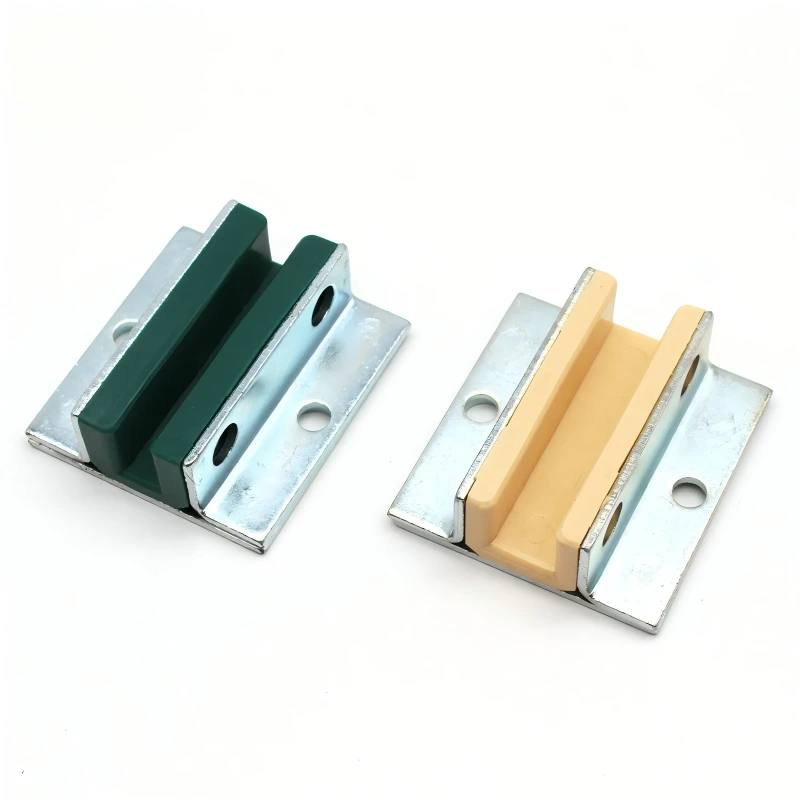

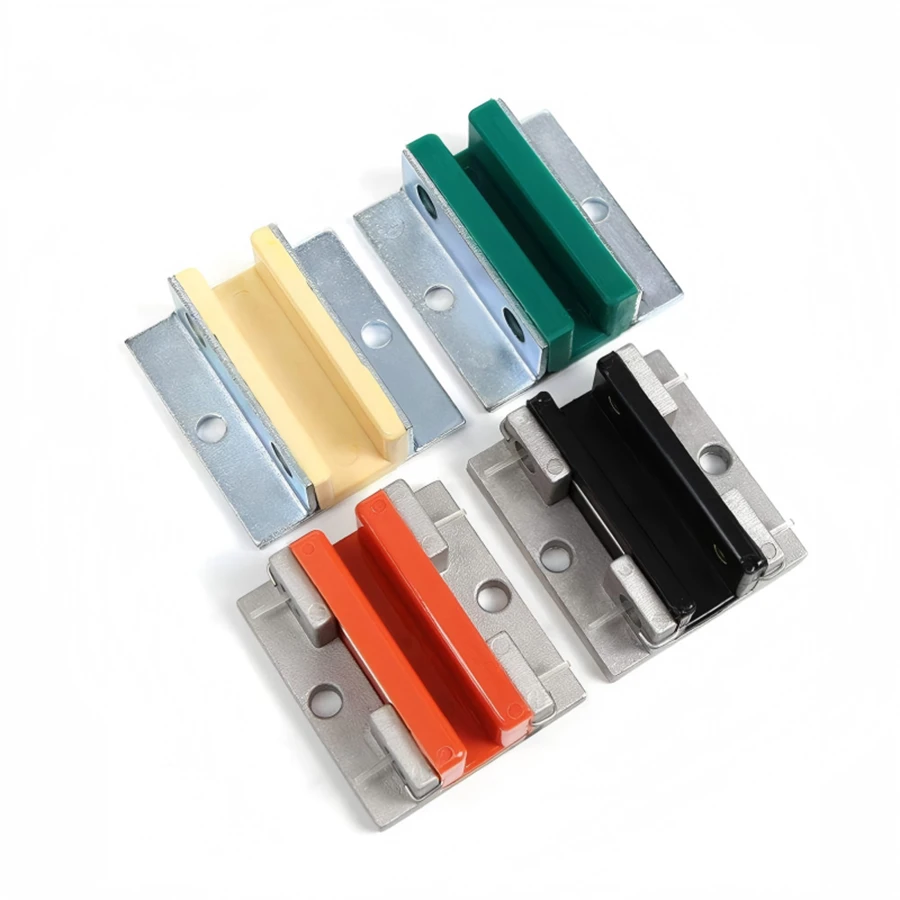

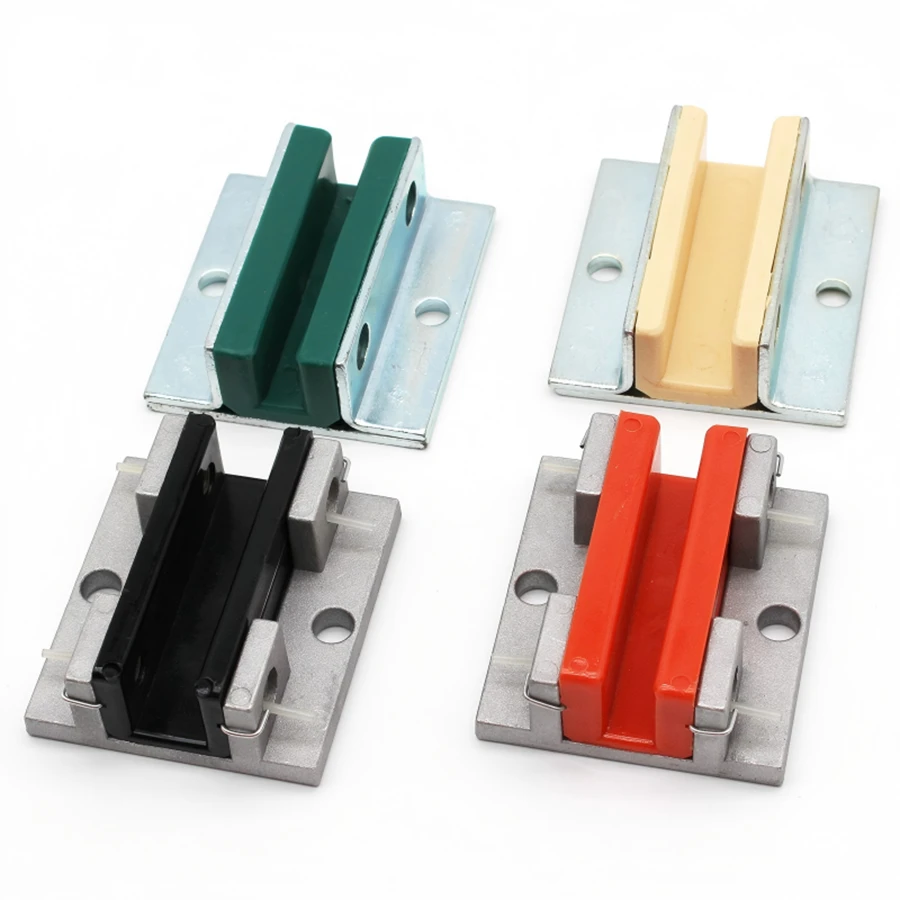

Reliable Black KONE Elevator Sliding Guide Shoe Precision Guidance Long Service Life

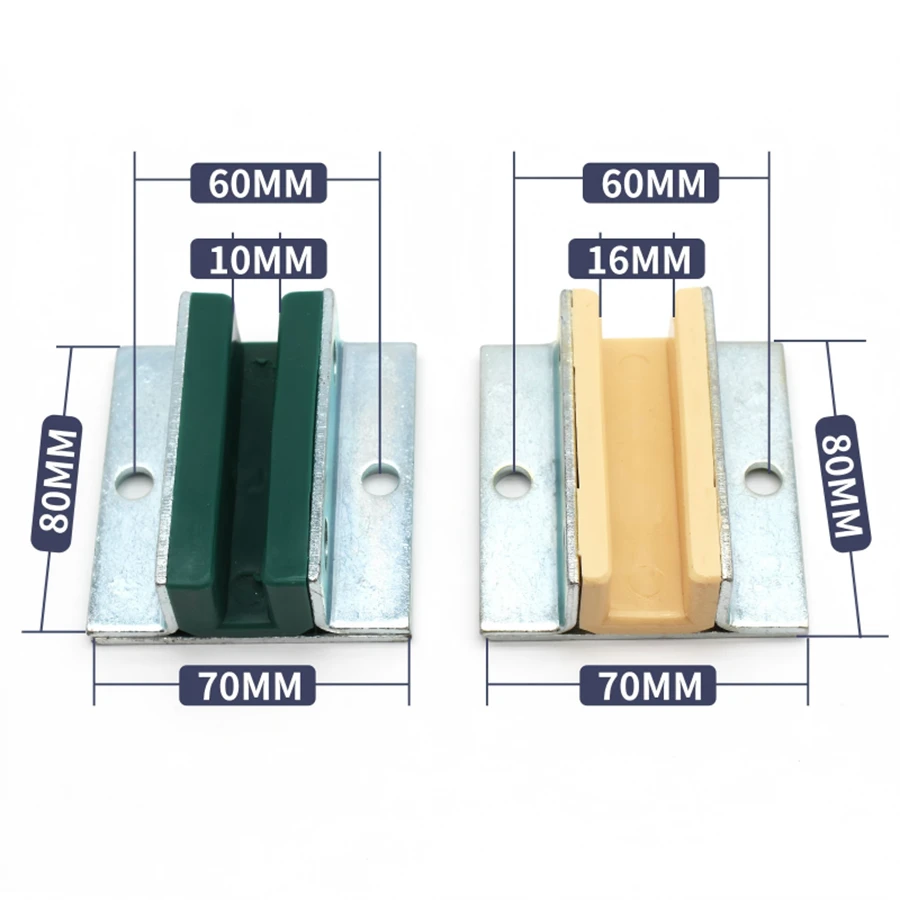

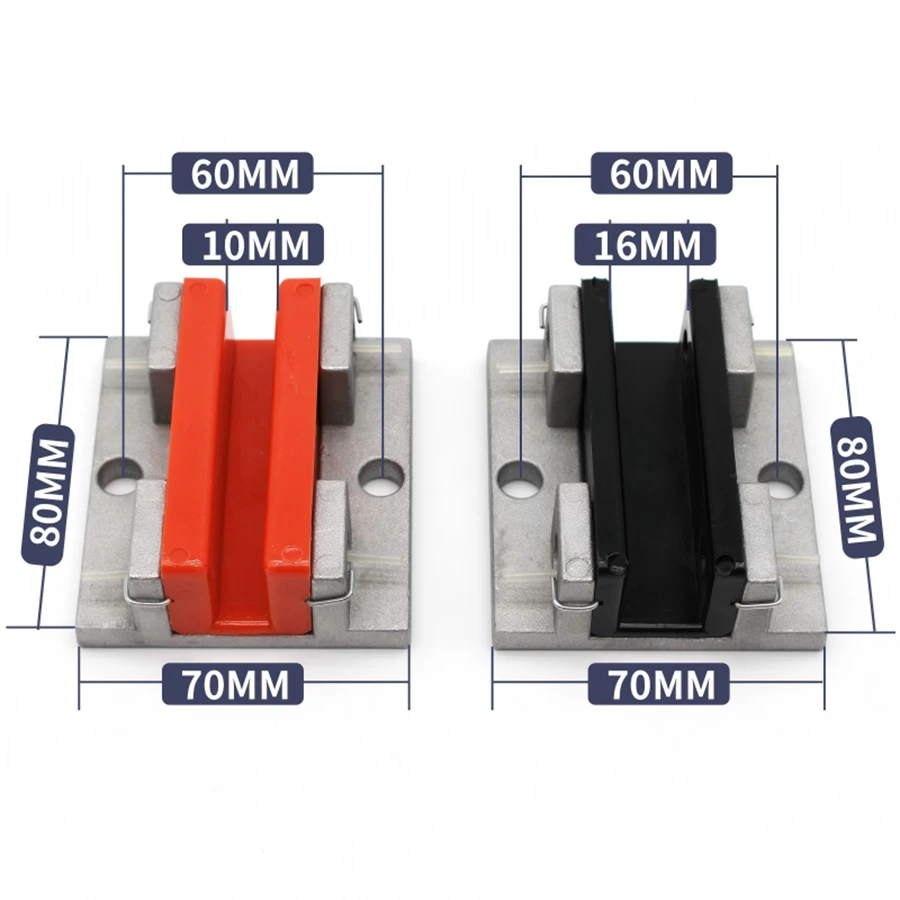

| KONE Elevator Sliding Guide Shoe – Specification Sheet | ||
|---|---|---|
| Parameter | 10mm Rail Model | 16mm Rail Model |
| Applicable Rail Width | 10 mm | 16 mm |
| Mounting Plate Dimensions | 70 mm×80 mm | 70 mm×80 mm |
| Shoe Liner Working Length | 60 mm | 60 mm |
| Mounting Hole Center Spacing | 60 mm | 60 mm |
| Mounting Hole Pitch (Diagonal) | 58 mm | 58 mm |
| Plate Thickness | 28 mm | 28 mm |
