| Elevator Guide Shoe Liner Technical Specification | ||
|---|---|---|
| Item | Specification | |

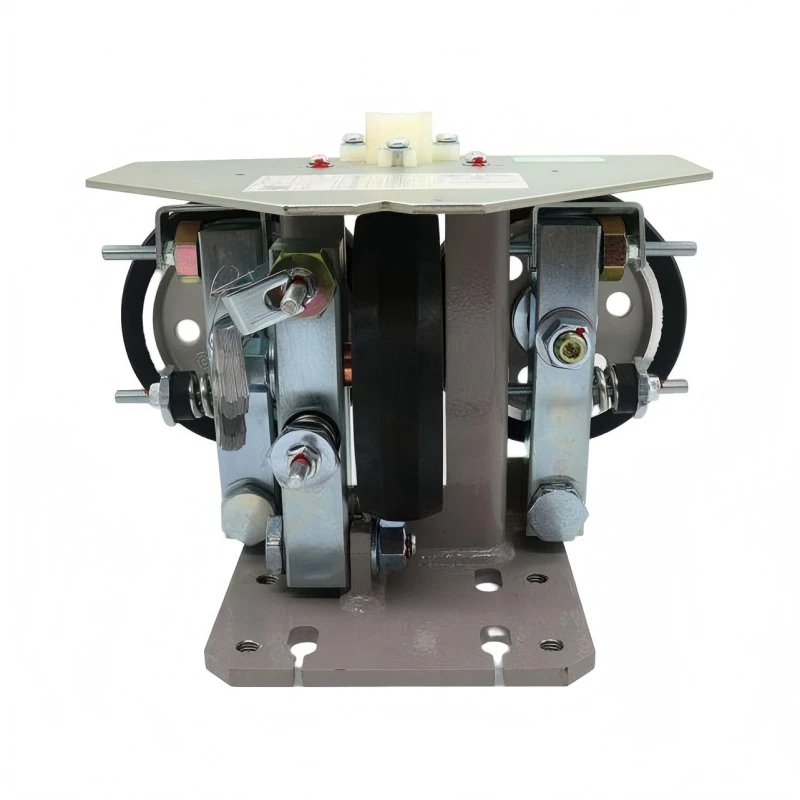

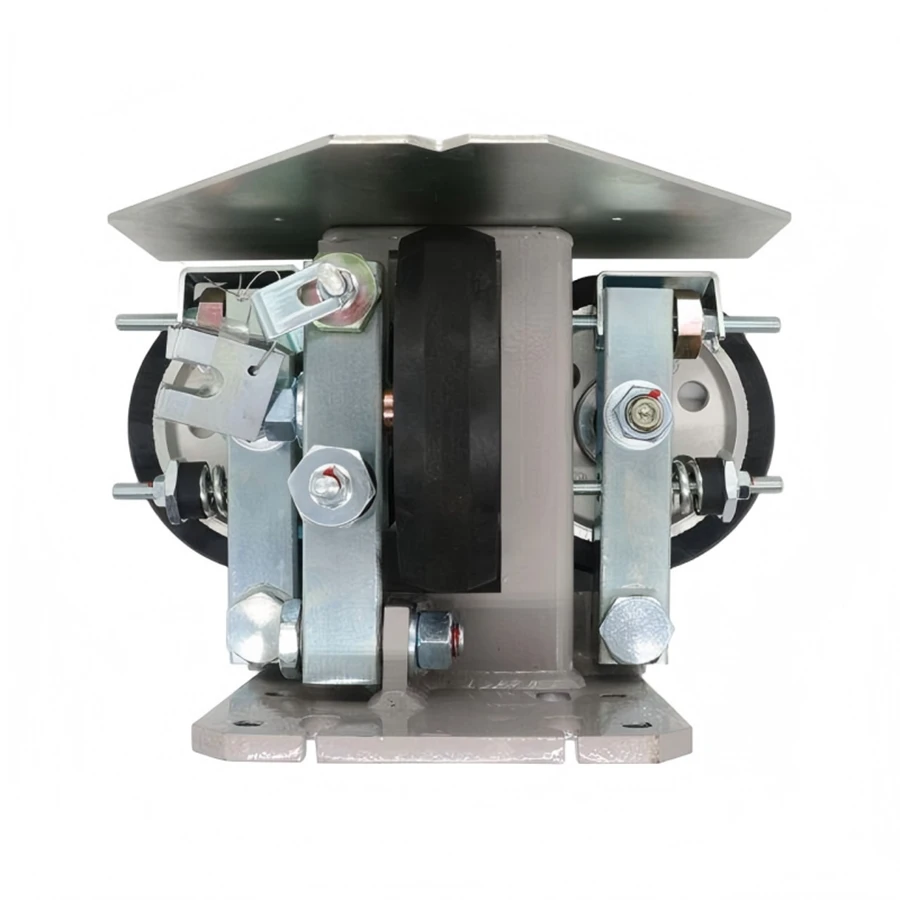

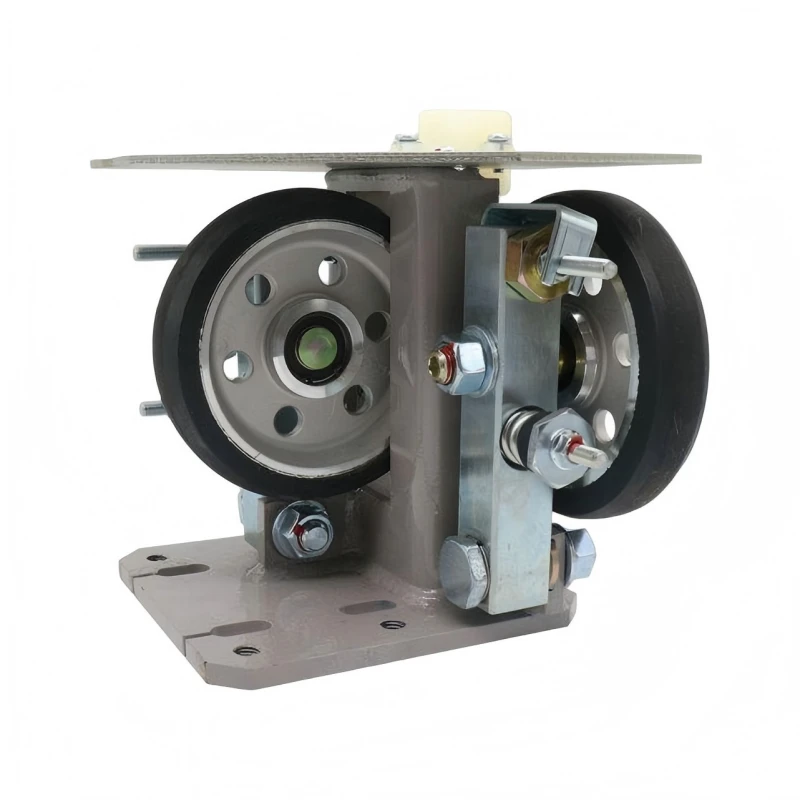

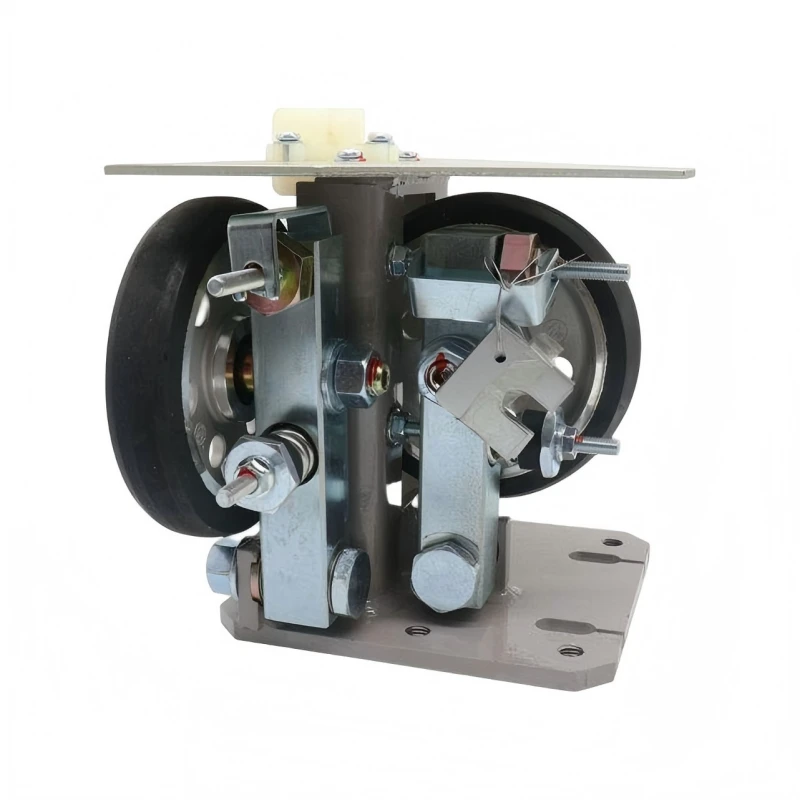

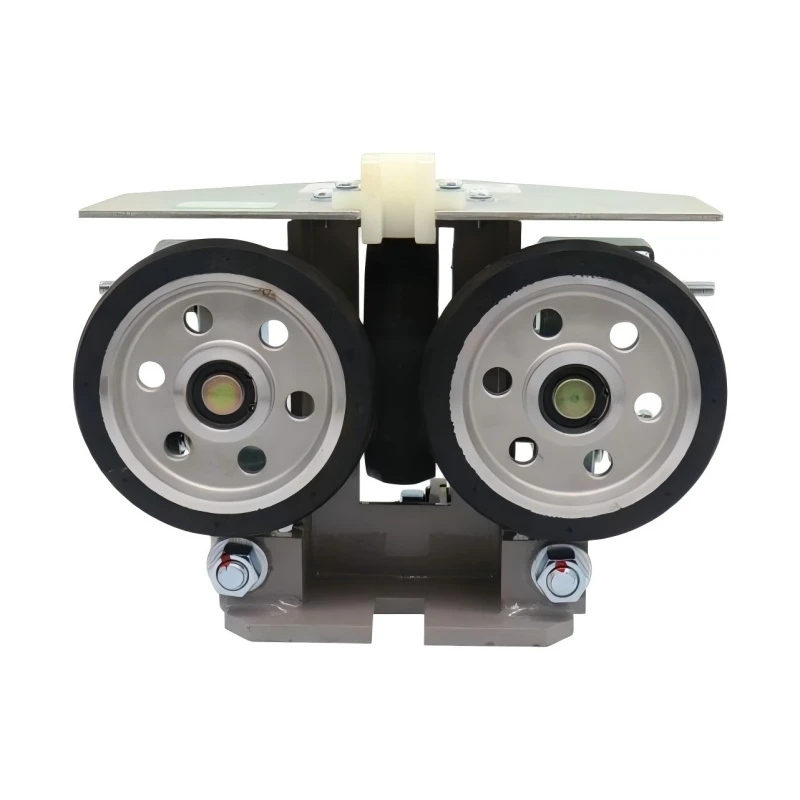

| Model Series | HZ150 Series Elastic Guide Shoe | |
| Style | Elastic | |

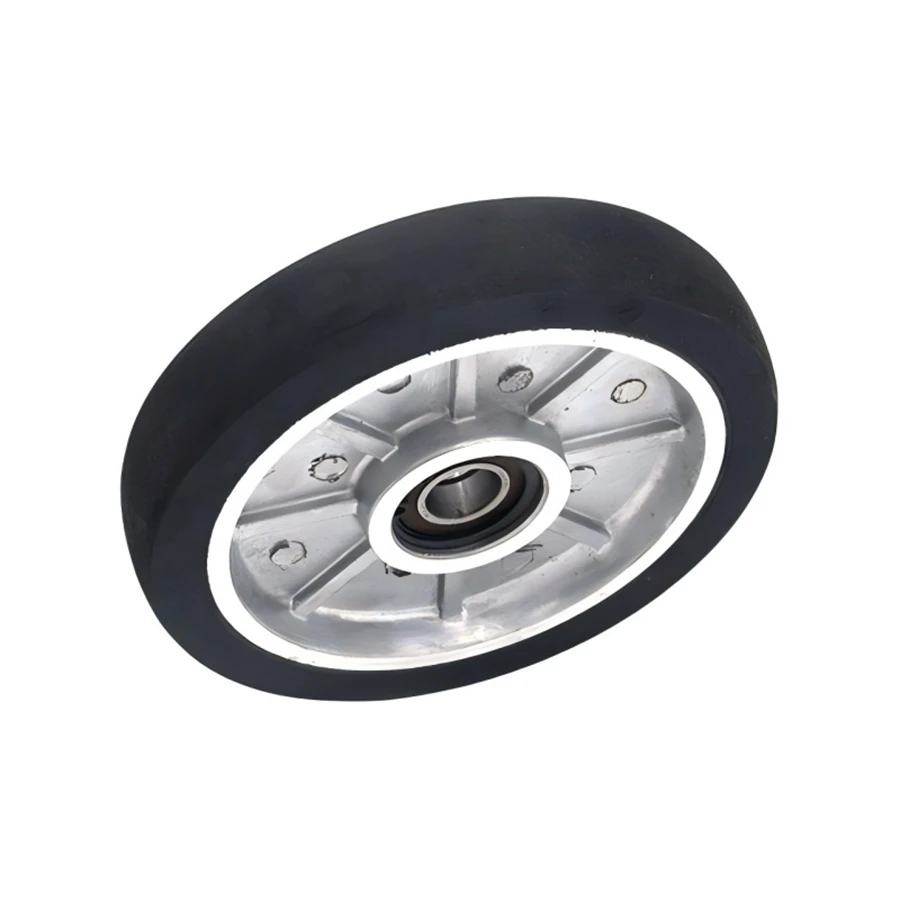

| Roller Diameter | Ø150 mm | |
| Rated Speed – Car (CAR) | 4.0 m/s | |
| Rated Speed – Counterweight (CWT) | 7.0 m/s | |
| Normal Working Load | 450 N | |
| Braking Working Load | 3000 N | |
| Suggested Car Rated Load | 2000 KG | |
| Model-Specific Parameters | |||
|---|---|---|---|
| Model | Rail Working Face Width (K) | Applicable Rail Model | Dimension V |
| HZ150-G09 | 9 mm | TB21A, TB21B, T70A, T70-1A, T70-70-9-A | 19 mm |
| HZ150-G10 | 10 mm | T75A, T75-3/B | 19 mm |
| HZ150-G16S | 16 mm | T89A, T89B, T114/B | 26 mm |
| HZ150-G16L | 16 mm | T125/B, T127-1, T127-2/B, T127/B, T90/A, T90/B | 26 mm |
| HZ150-G19 | 19 mm | T140-1/B | 29 mm |
| HZ150-G29 | 28.6 mm | T140-2/B | 38.6 mm |
| Mechanical Dimensions | |
|---|---|
| Dimension | Value |

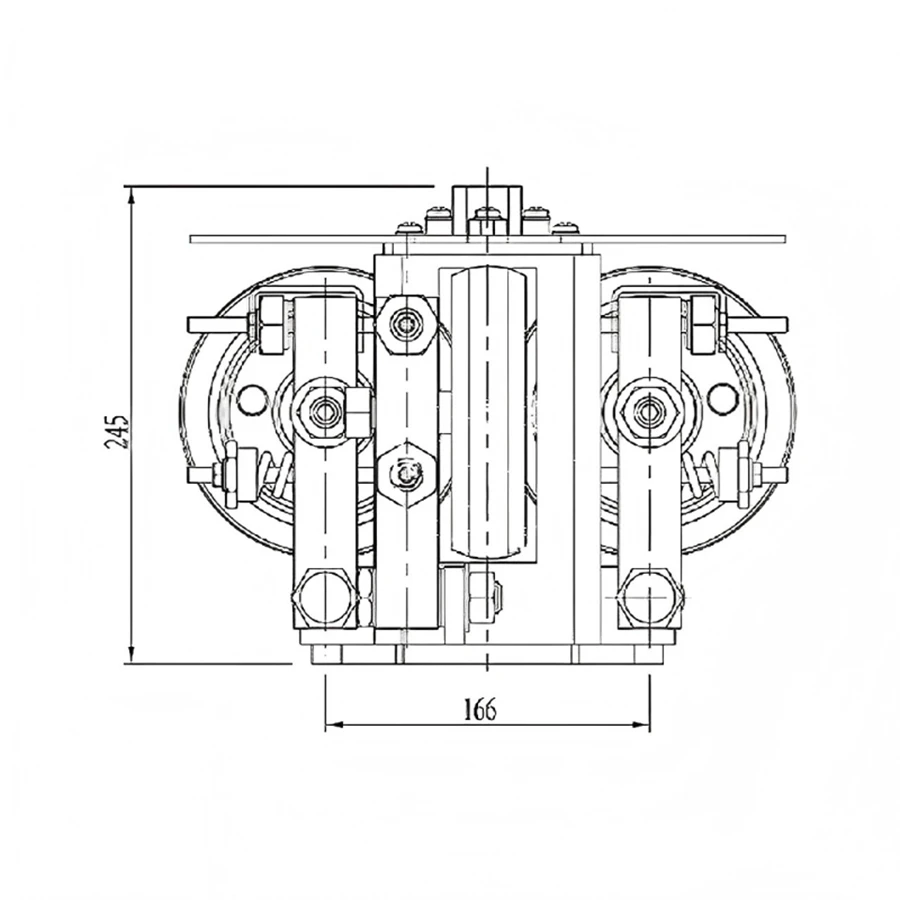

| Overall Height (Front View) | 245 mm |
| Overall Width (Front View) | 166 mm |

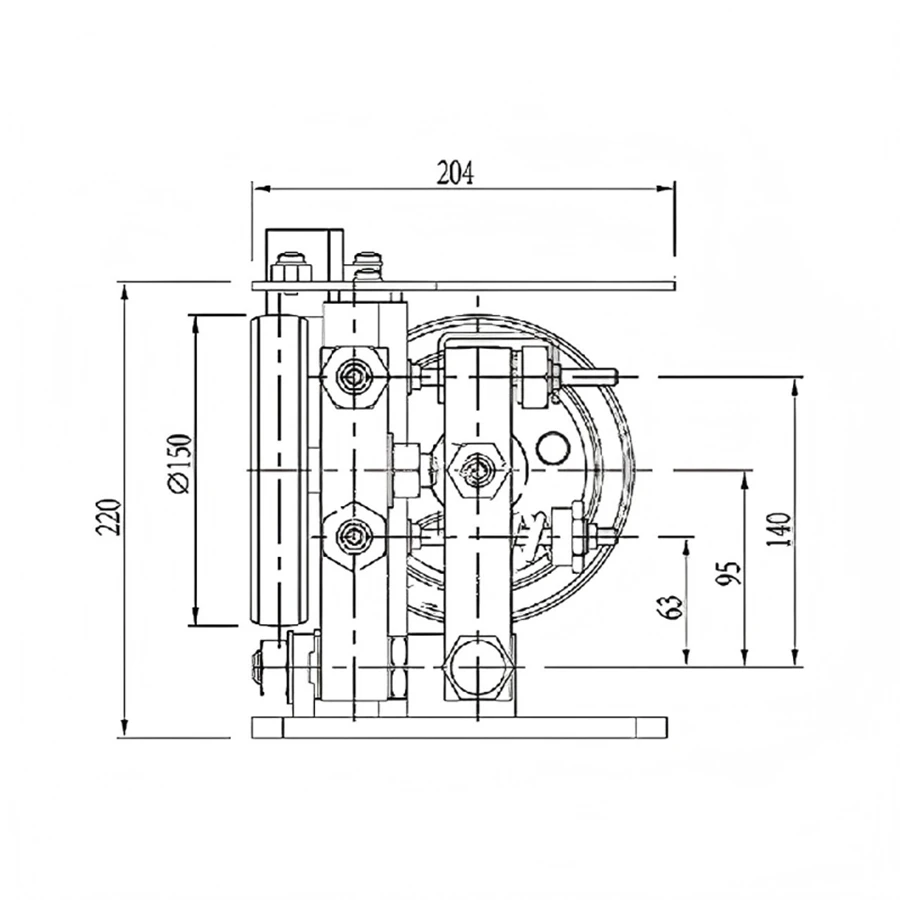

| Overall Length (Side View) | 204 mm |
| Overall Height (Side View) | 220 mm |
| Roller Diameter | Ø150 mm |

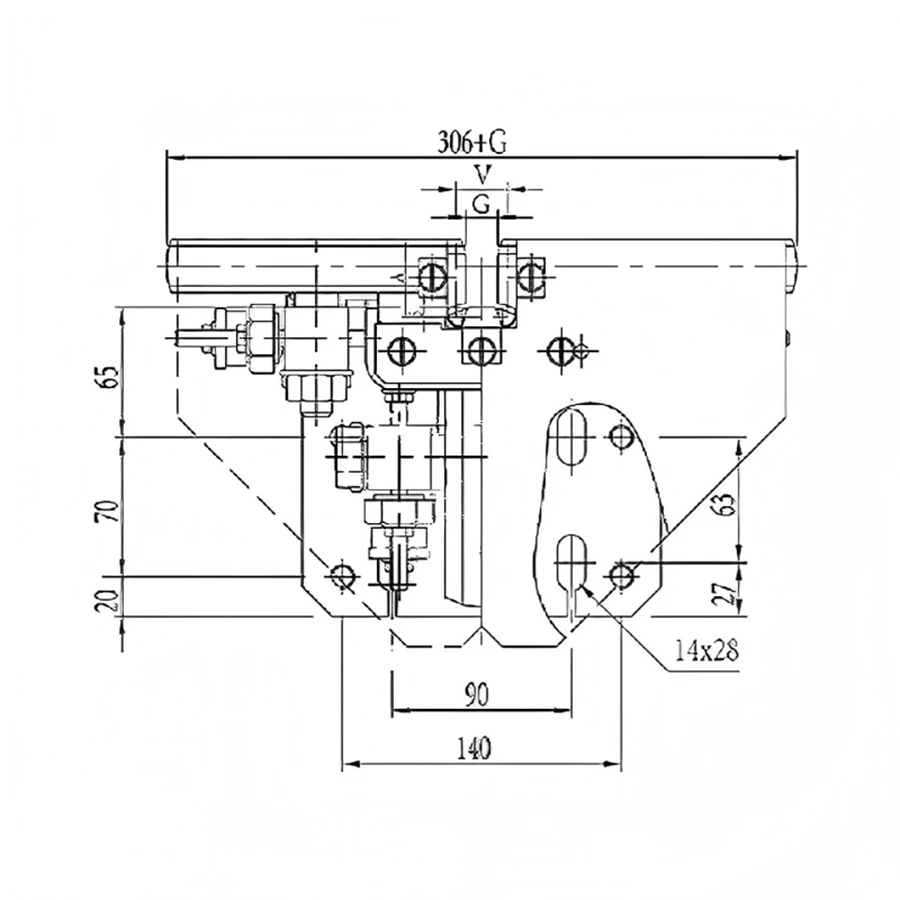

| Mounting Hole Spacing (Bracket) | 140 mm (vertical), 90 mm (horizontal) |
| Mounting Hole Size | 14×28 mm slotted hole |
| Adjustment Reference | |
|---|---|
| Parameter | Specification |
| Adjustment Range | 0～450 N |
| Adjustment Graduation | 1/6 turn per increment (corresponding to 25 N) |
| Adjustment Document Reference | AM-07.07.010 |
| Layout Drawing Reference | 696-642M01 |
