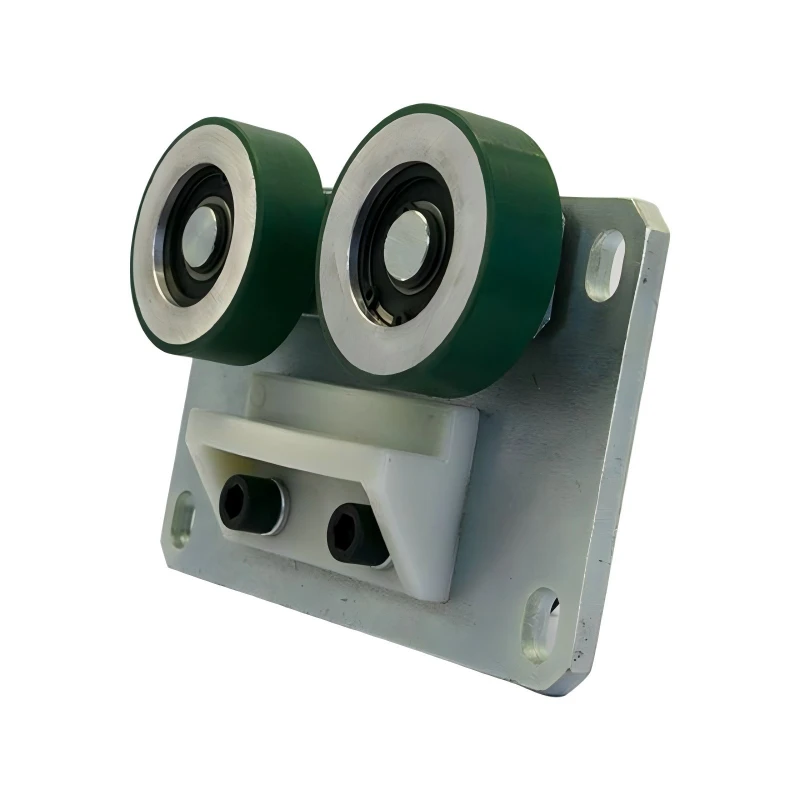

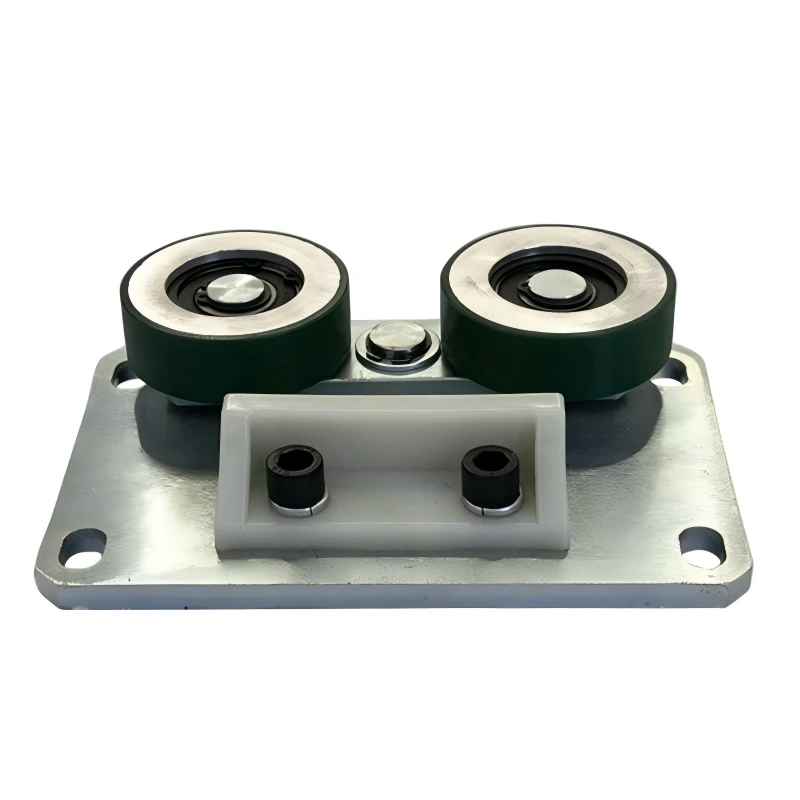

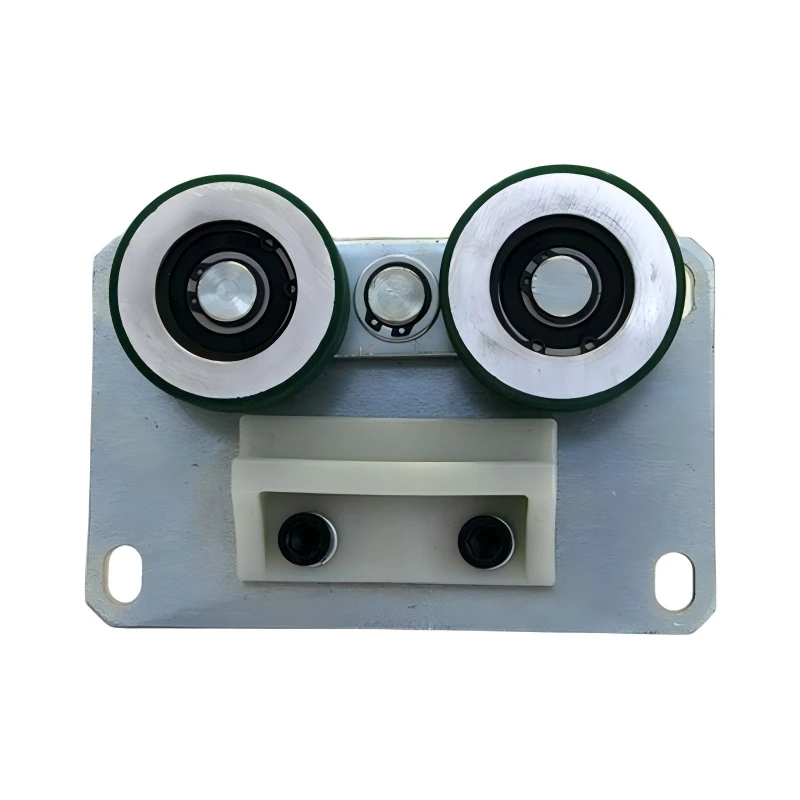

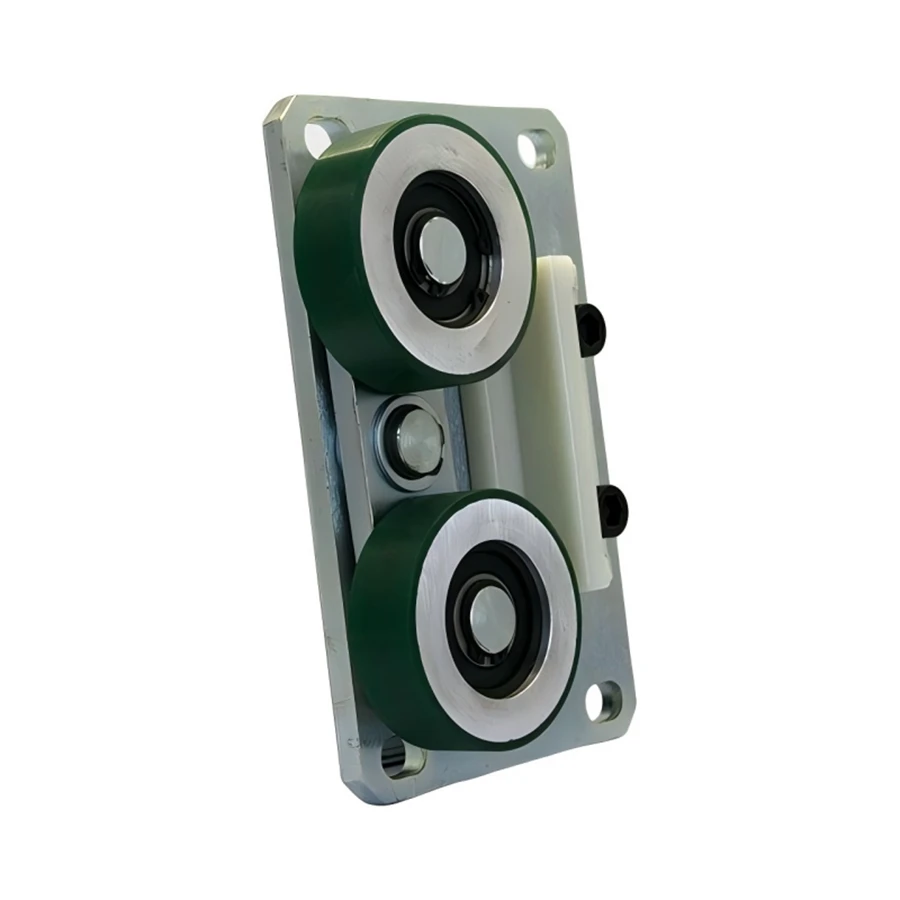

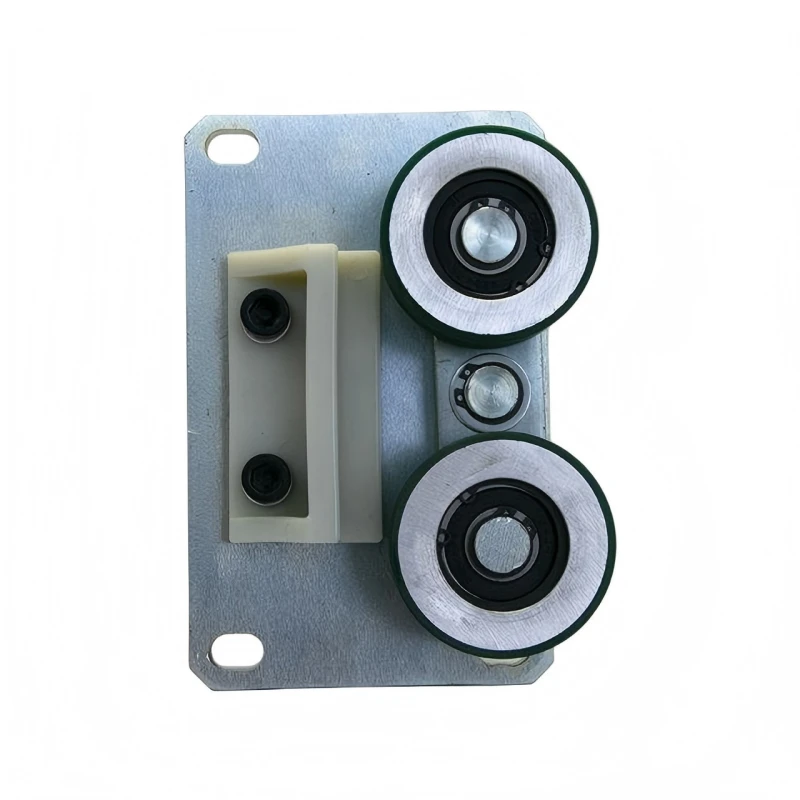

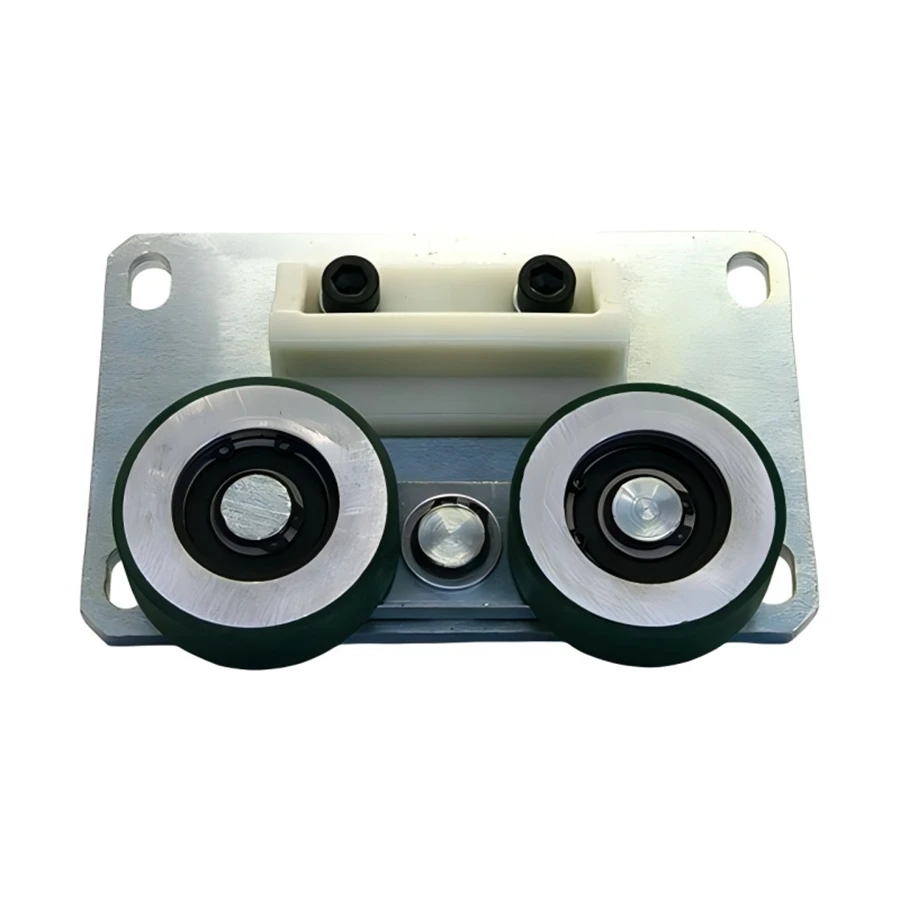

Roller Guide Shoe
Stable Operation Elastic Roller Guide Shoe Anti Drop Mechanical Structure Vertical Guidance
| Elevator Roller Guide Shoe Technical Specification Table | |
|---|---|
| Parameter | Specification |
| Rated Speed | ≤0.6 m/s (for basic model); up to 10.0 m/s (high-speed variants) |
| Rated Load Capacity | ≤600 kg (for basic model); up to 4500 kg (heavy-duty variants) |
| Applicable Guide Rail Width | 9 mm / 10 mm / 16 mm / 19 mm / 28.6 mm / 31.75 mm |
| Roller Diameter Options | φ70 / φ76 / φ80 / φ82.3 / φ100 / φ125 / φ150 / φ160 / φ200 (mm) |

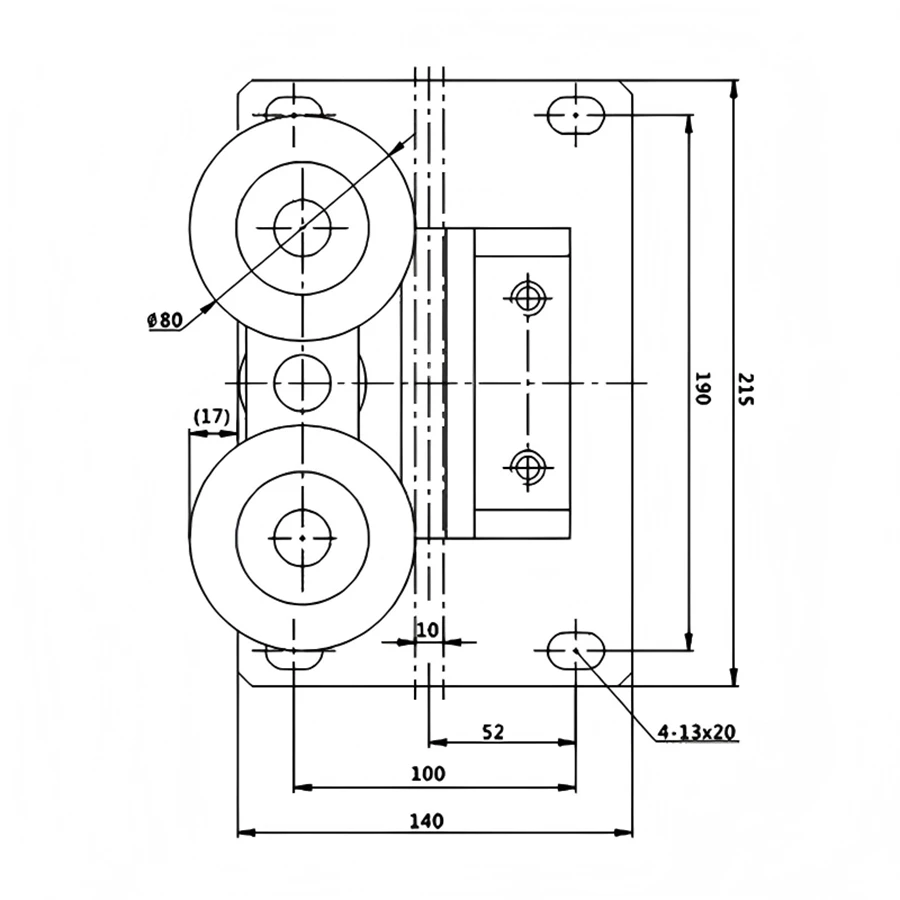

| Mounting Hole Details | 4×13×20 slotted holes (on the mounting plate) |
| Mounting Dimensions | Plate width: 140 mm |
| Plate height: 215 mm | |
| Center distance between mounting holes: 190 mm | |
| Rail Clearance | 10 mm |
