Guide shoe 10mm, 16mm

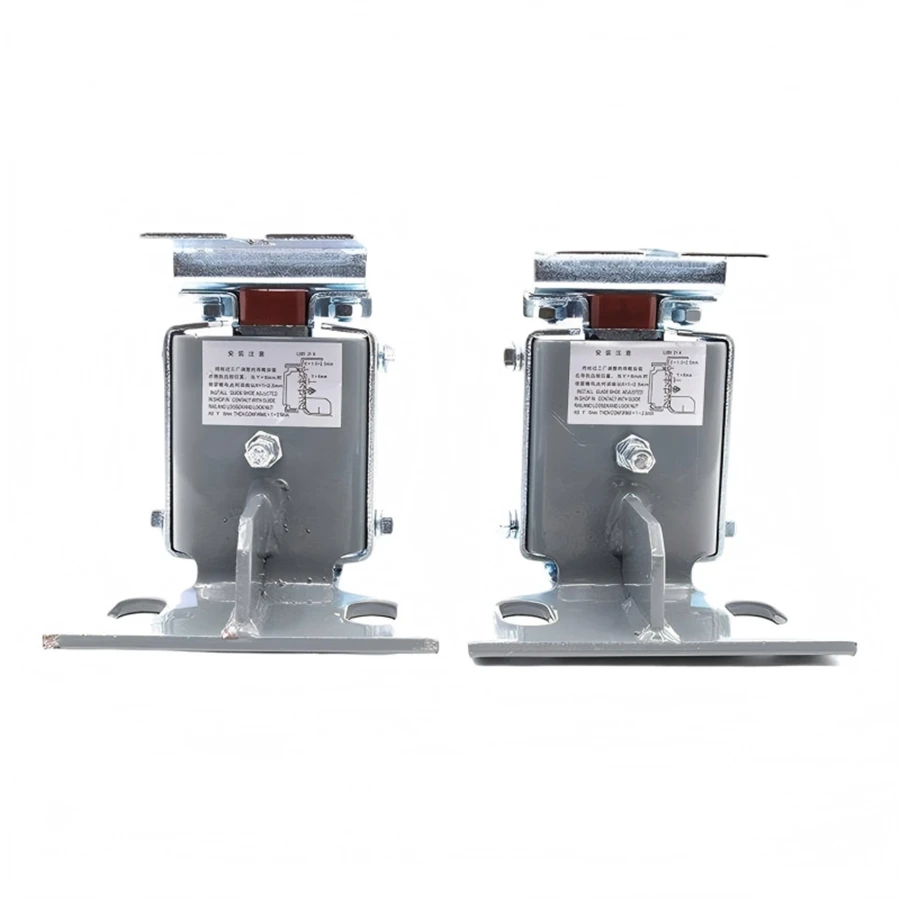

Reliable Wearproof Elevator Guide Shoe Liner 10/16mm Universal Fit for Traction Elevators
| Elevator Sliding Guide Shoe Specification Sheet | |
|---|---|
| Item | Specification |
| Product Name | Elevator Sliding Guide Shoe |
| Rated Speed | ≤1.75 m/s |
| Rated Load Capacity | ≤1350 kg |
| Max Normal Pressure (Front Pressure) | ≤1050 N |
| Max Lateral Pressure (Side Pressure) | ≤750 N |
| Compatible Guide Rail Width | 9/10/16mm |

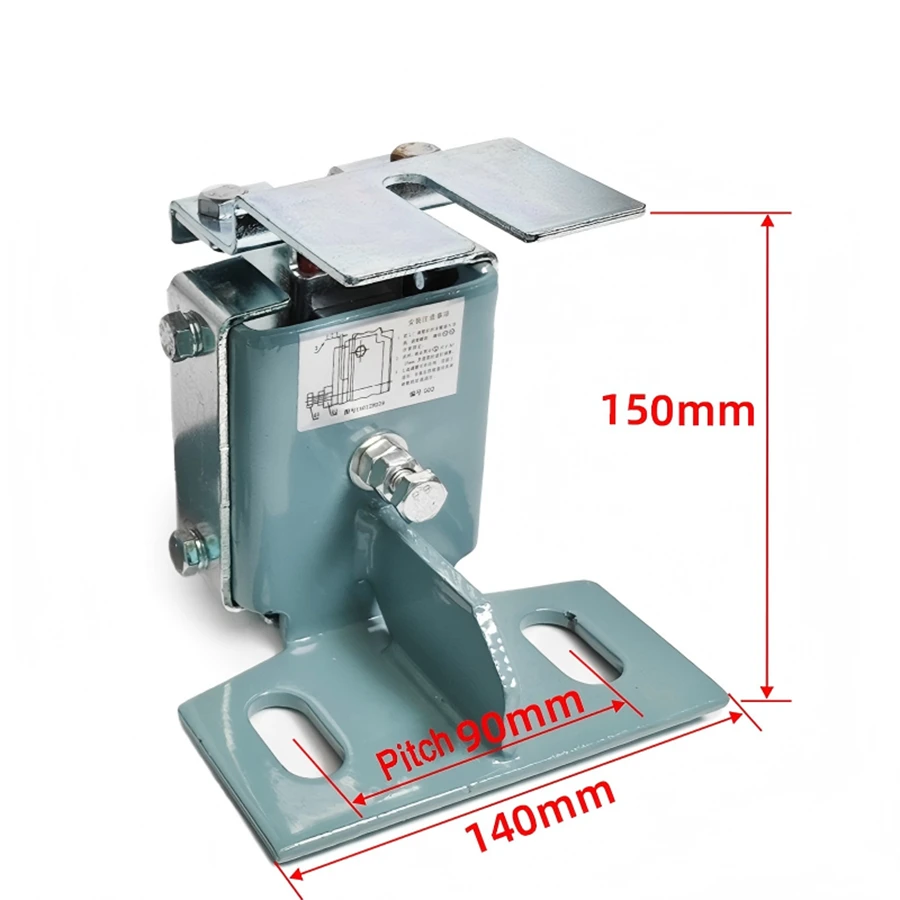

| Overall Height | 150mm |
| Model-Specific Dimensions | |||||
|---|---|---|---|---|---|

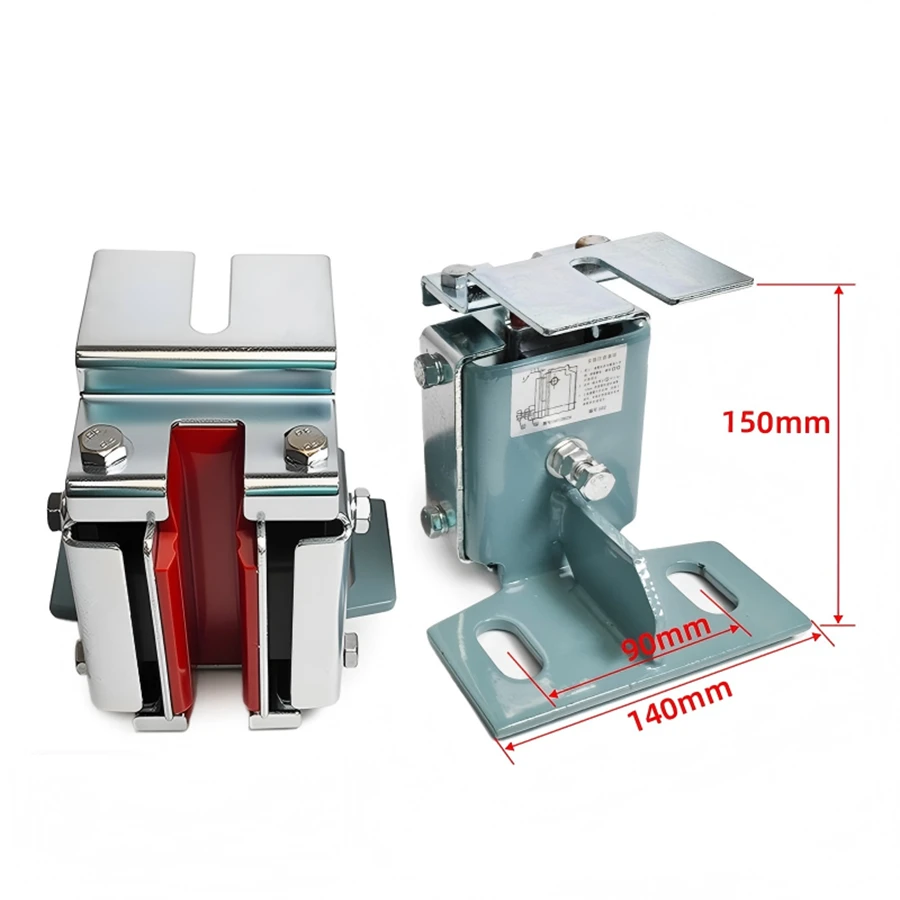

| Model | A (Base Width, mm) | B (Mounting Pitch, mm) | C (Side Dimension, mm) | Mounting Holes | Notes |
| A01 | 140 | 90 | 60 | 2-Ø19×35 slotted holes | Standard 2-hole mounting |
| A02 | 110 | 70 | 60 | 2-Ø19×35 slotted holes | Compact 2-hole mounting |
| A03 | 140 | 100 | 45 | 6-Ø13.5×30 slotted holes | 4-hole mounting pattern (100×60mm) |
