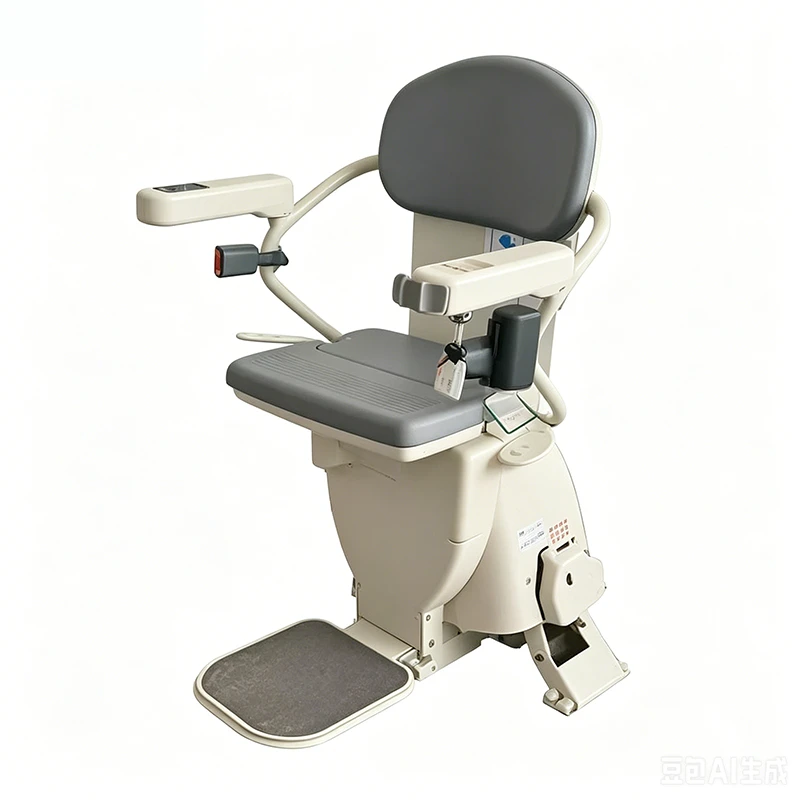

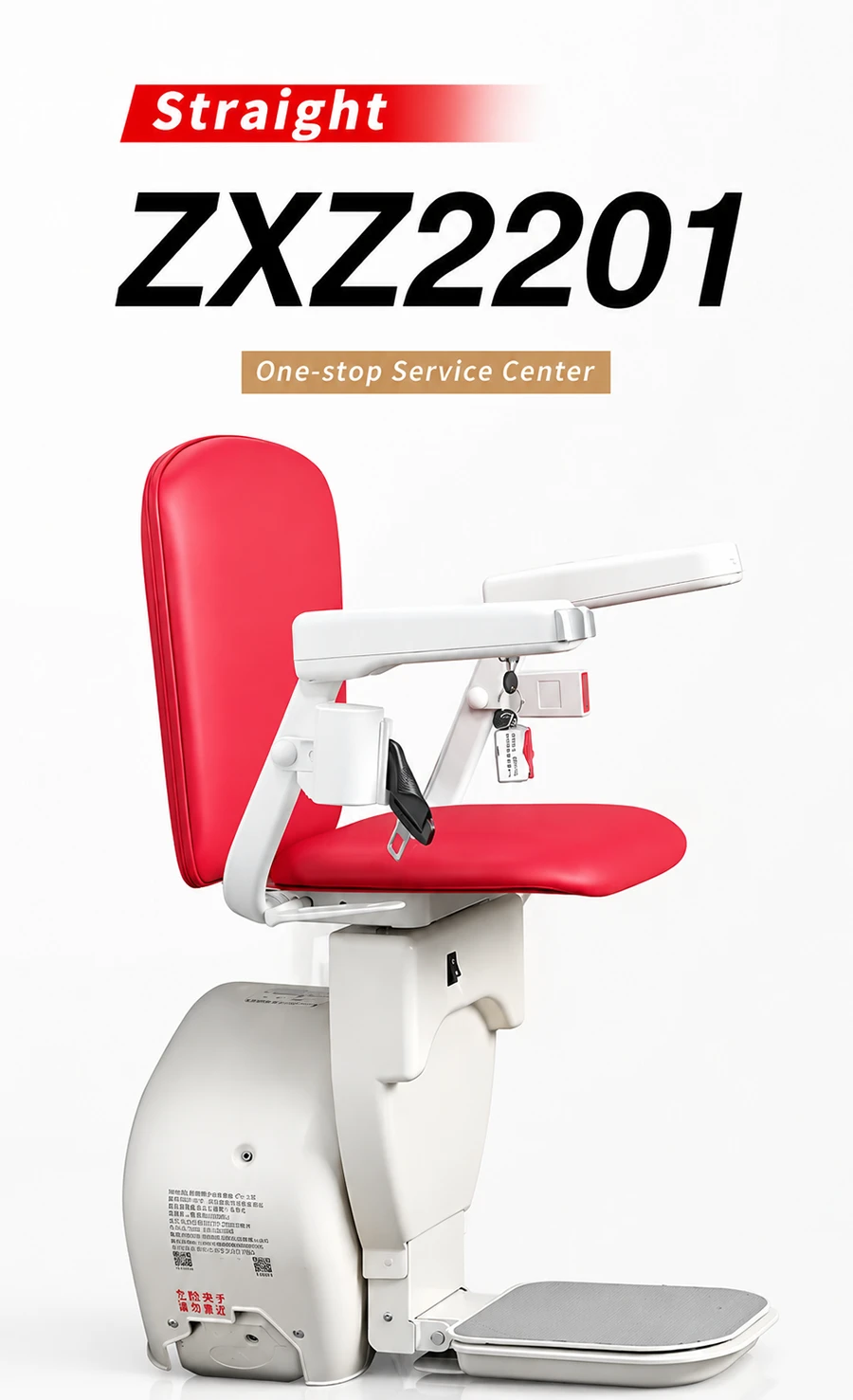

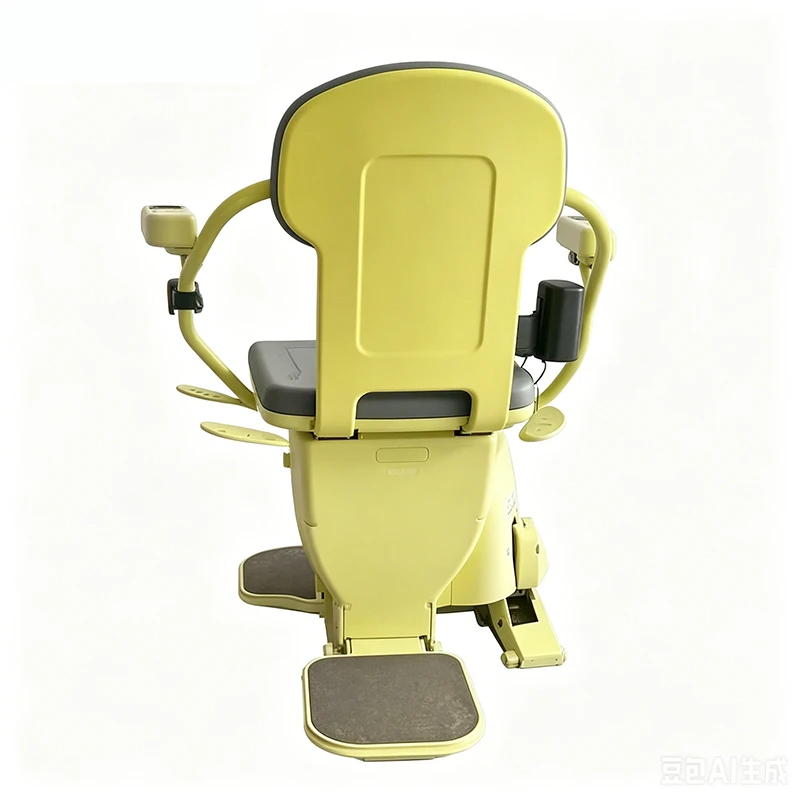

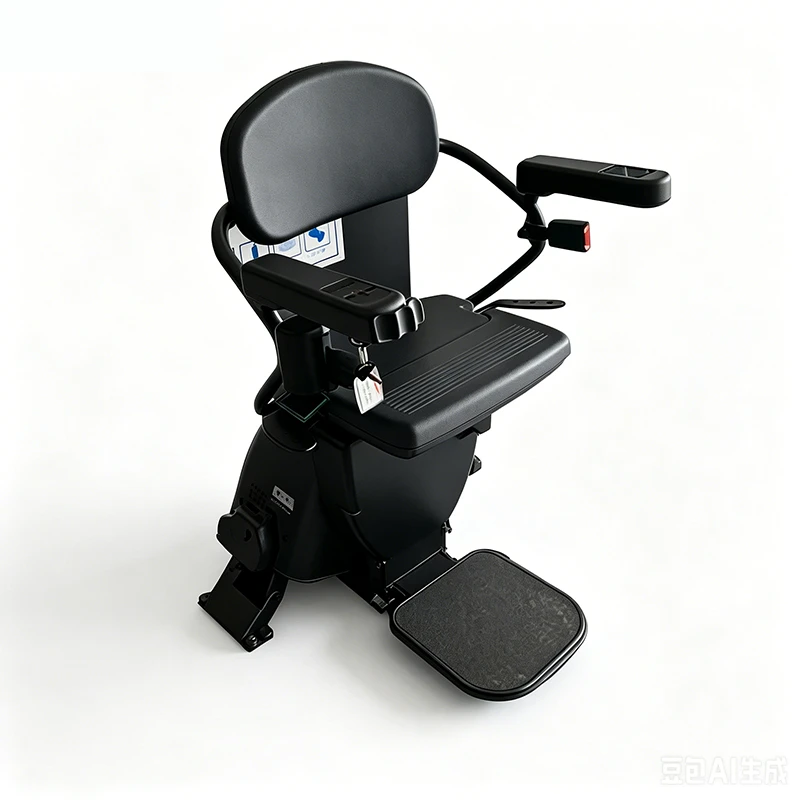

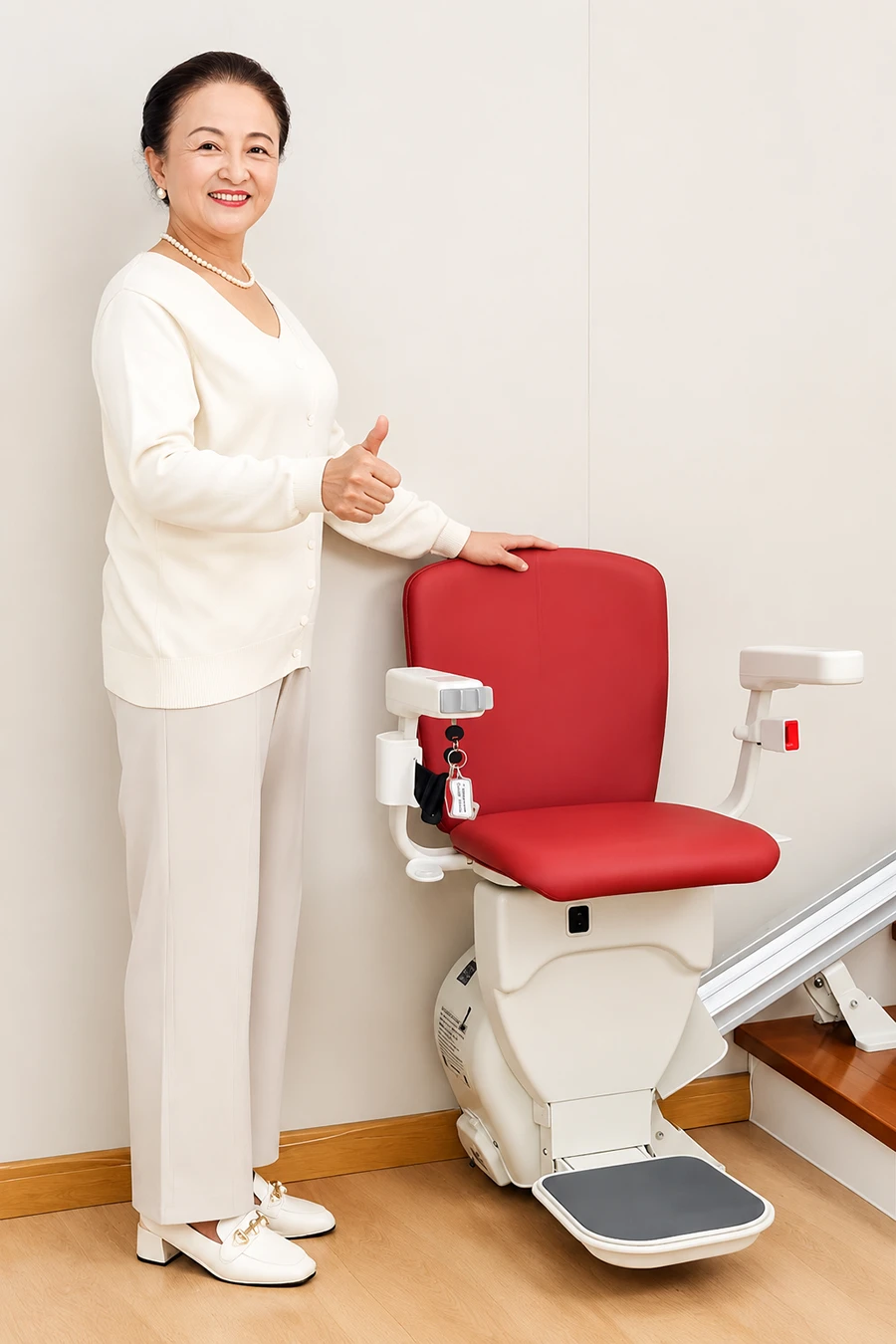

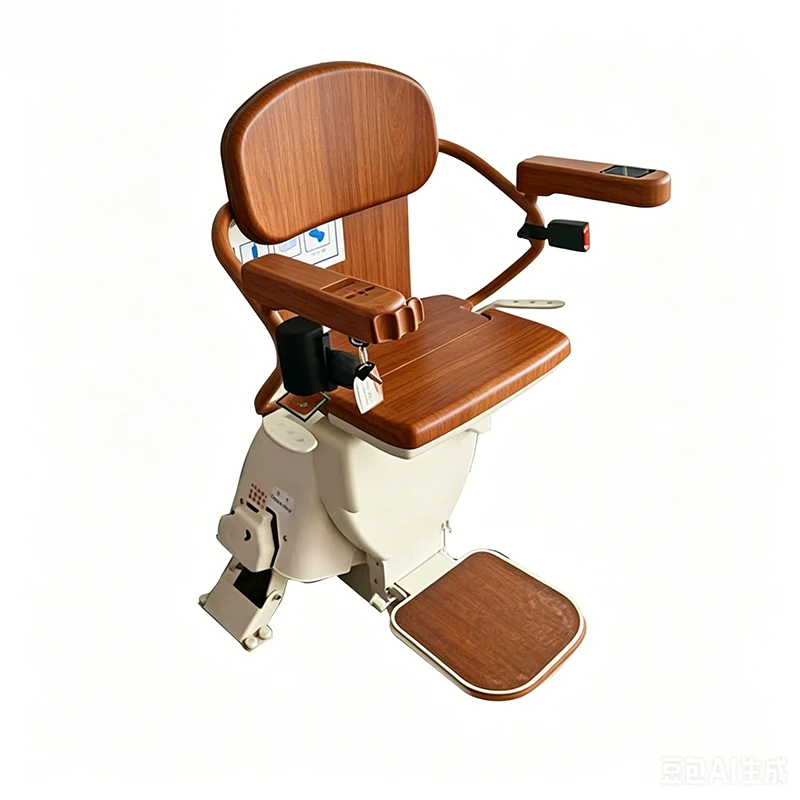

Accessibility Lifting Chair Model ZXZ2201
- Load options: 150kg, 200kg,
- Lifting speeds: 0.08m/s, 0.12m/s, smooth and gentle movement
- Full color customization to match indoor and outdoor surroundings

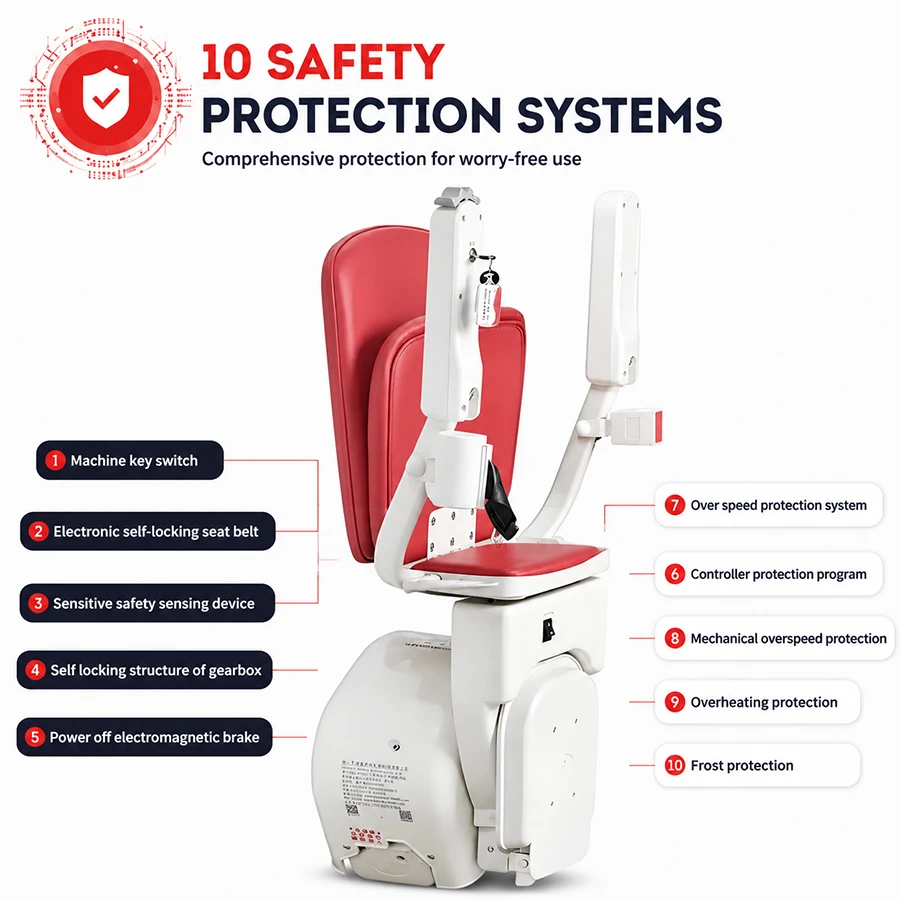

- Multiple safety parts fitted to ensure stable and secure riding
- Simple to operate, install and maintain for long-term use
- Perfect for homes, hospitals, nursing homes and public buildings
| ZXZ2201 Product Technical Specifications | |
|---|---|
| Parameter | Specification |
| Product Model | ZXZ2201 |
| Driver | DC brushed motor + self-locking gearbox |
| Control Mode | Embedded chip control |
| Transmission Mode | Gear rack (with lubricating grease) |
| Charging Voltage / Current | 100–240V / 1.2A |
| Operating Voltage / Current | 24V / 0–18A |
| Battery | Two 12V 9Ah lead-acid batteries |
| Rated Motor Power | 350W |
| Energy Consumption | Approximately 2–5 kWh per month |
| Operating Speed | Approximately 7.2 m/min |
| Laboratory Noise Level | 60–65 dB(A) |
| Charging Method | Automatic charging at both ends of the track; internal track wiring; optional middle charging position |
| Charging Socket | 1 charging position; 2 m² installation area; three-hole socket; only one charger required |

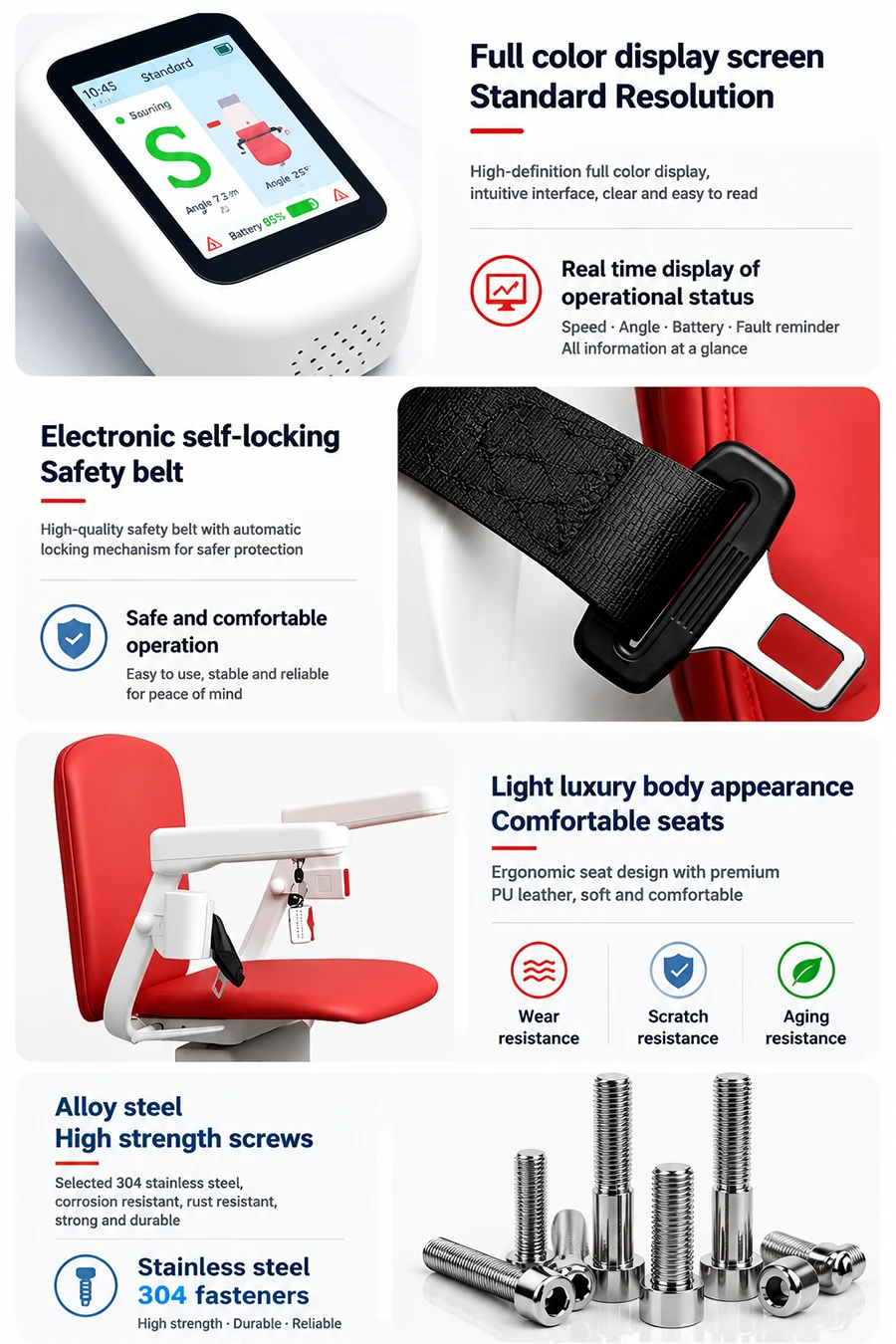

| LCD Display Screen | 2.8-inch color display screen displaying operating status and fault codes |

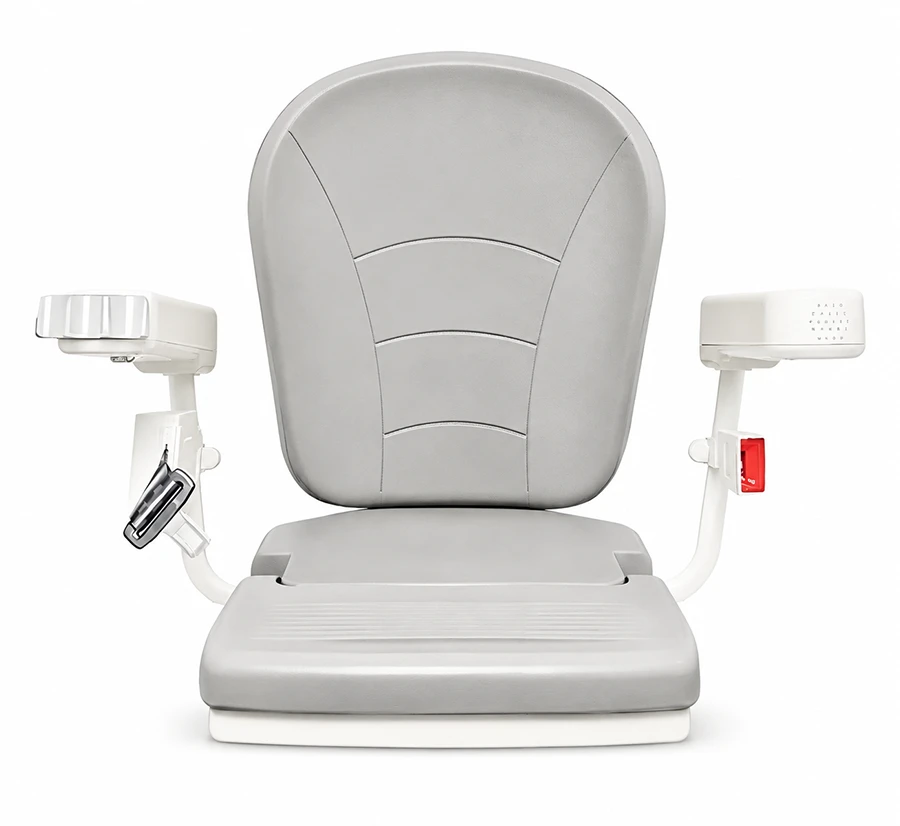

| Seat Function | Horizontally rotating seat |
| Foot Pedal | Foldable foot pedal |

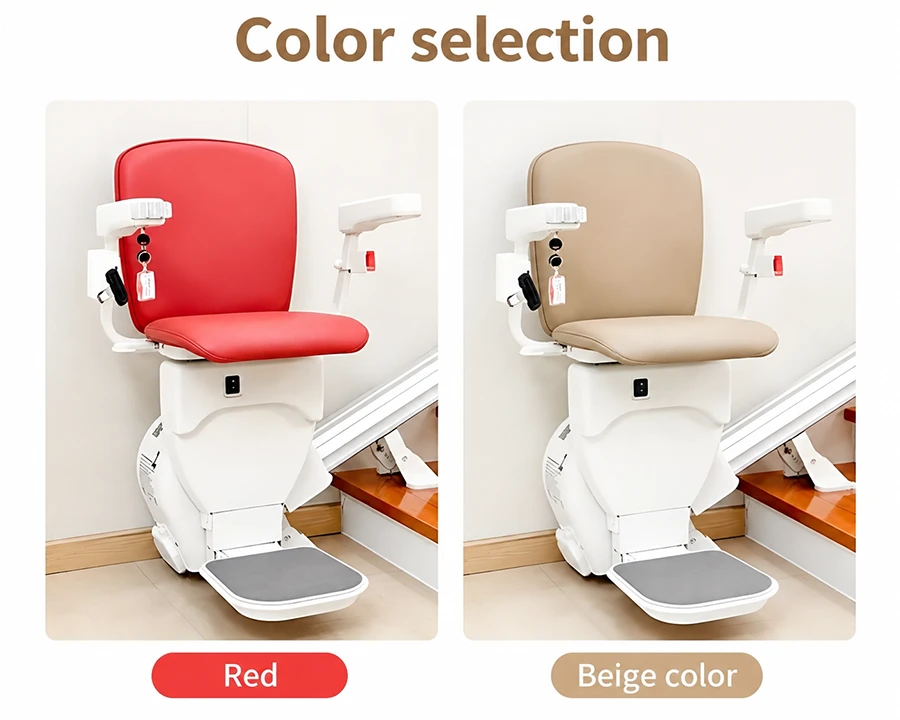

| Seat Back & Cushion Material | PVC leather – red, gray, or beige |
| Seat Cushion Dimensions (W × D) | 410 × 420 mm |
| Folding Size | 350 mm when folded; refer to drawings for details |
| Rack Material | 10 × 15 mm steel section |
| Track Material | High-strength aluminum alloy |
| Track Surface Treatment | Silver matte anodized finish |
| Fixing Method | Screw-fixed to the floor |
| Track Angle | 25°–55° |
| Maximum Payload | 280 lbs (≤35°), 240 lbs (<55°) |
