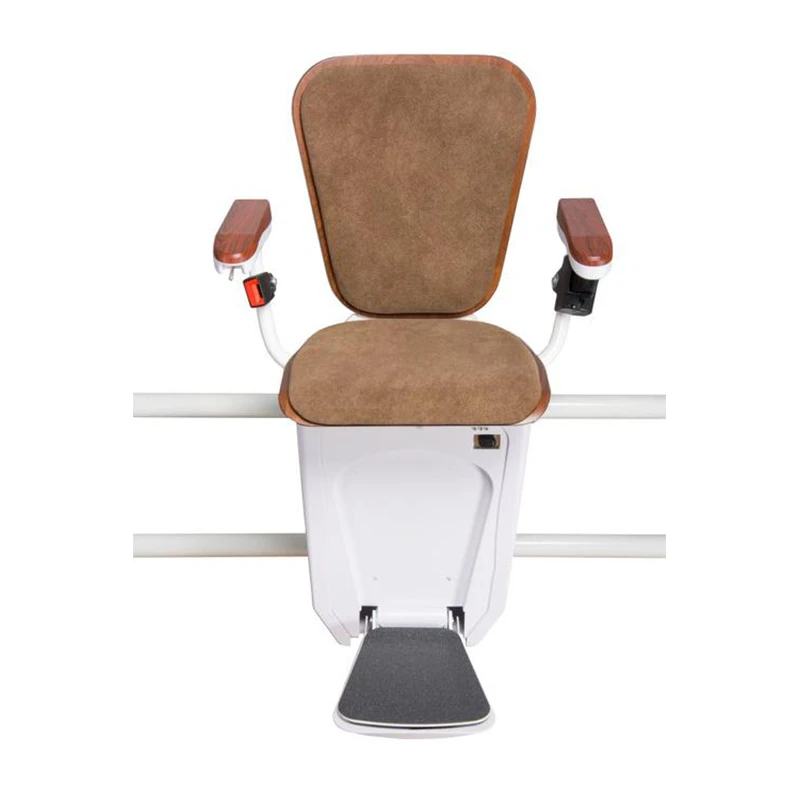

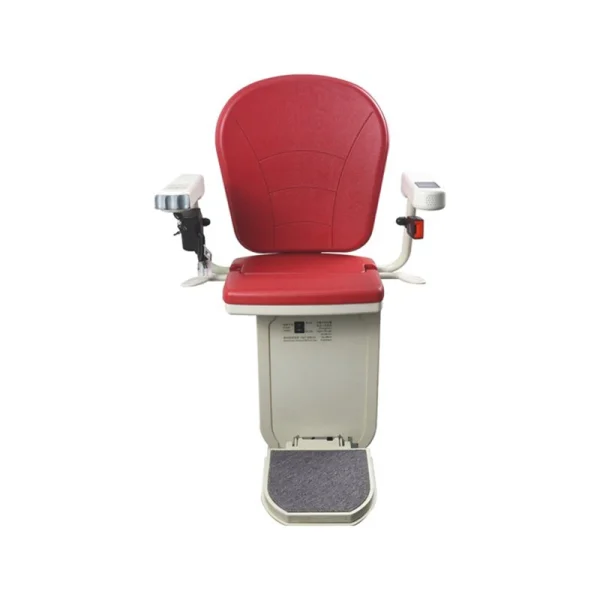

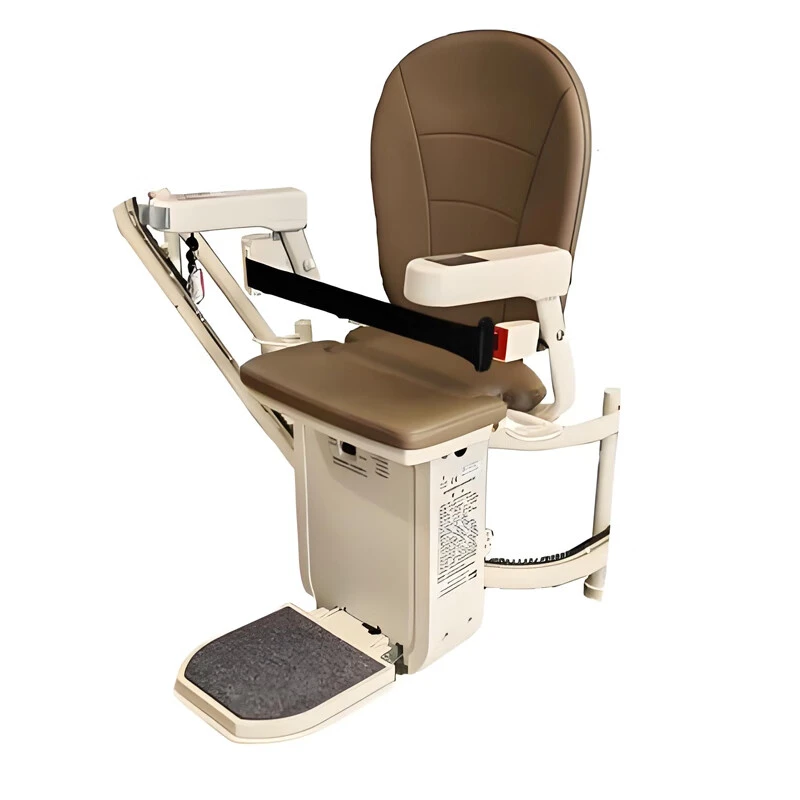

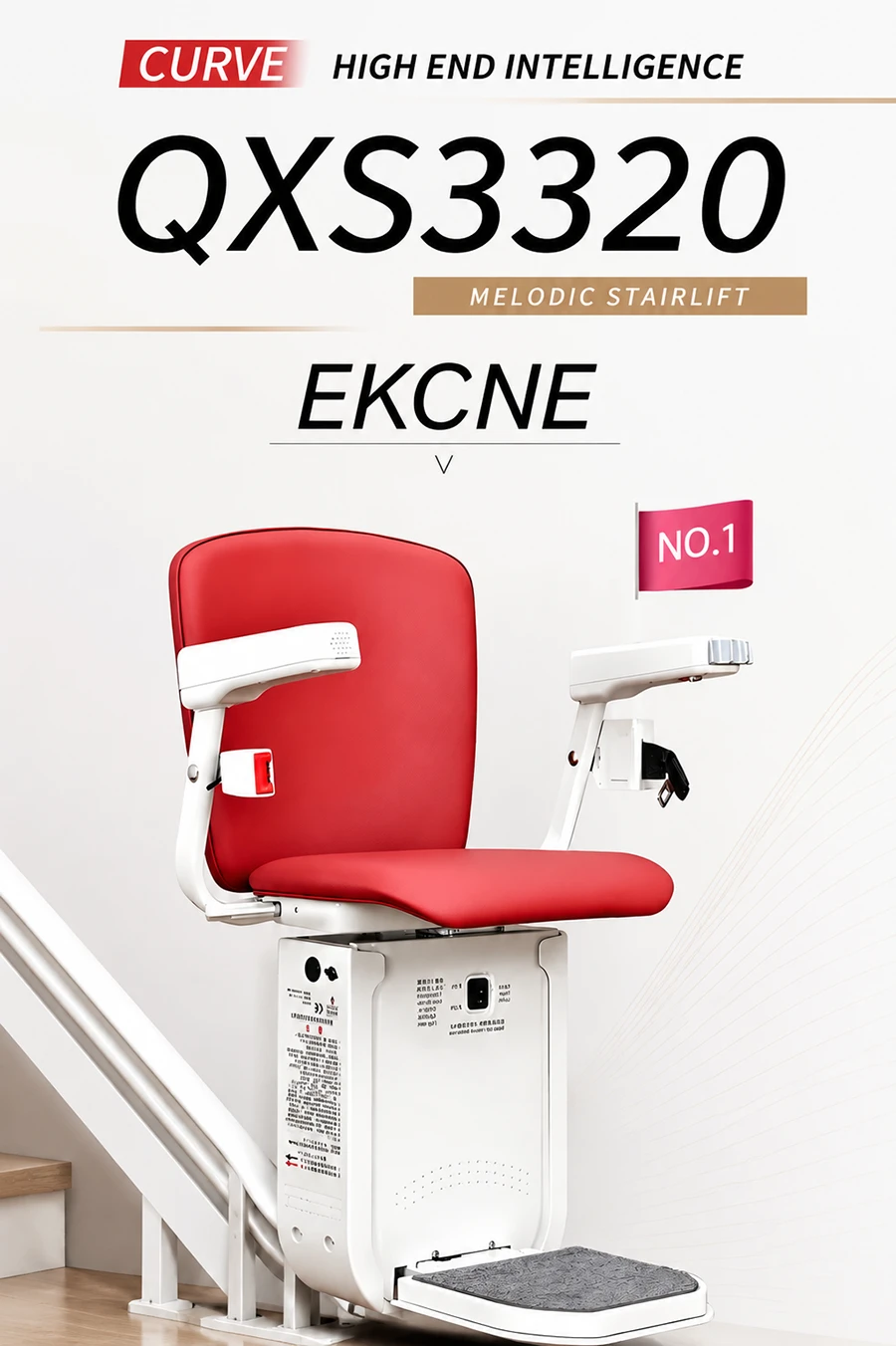

Barrier Free Lifting Chair Curved Corner Model QXS3320
- Load options: 150kg, 200kg
- Lifting speeds: 0.08m/s, 0.12m/s, smooth and gentle movement

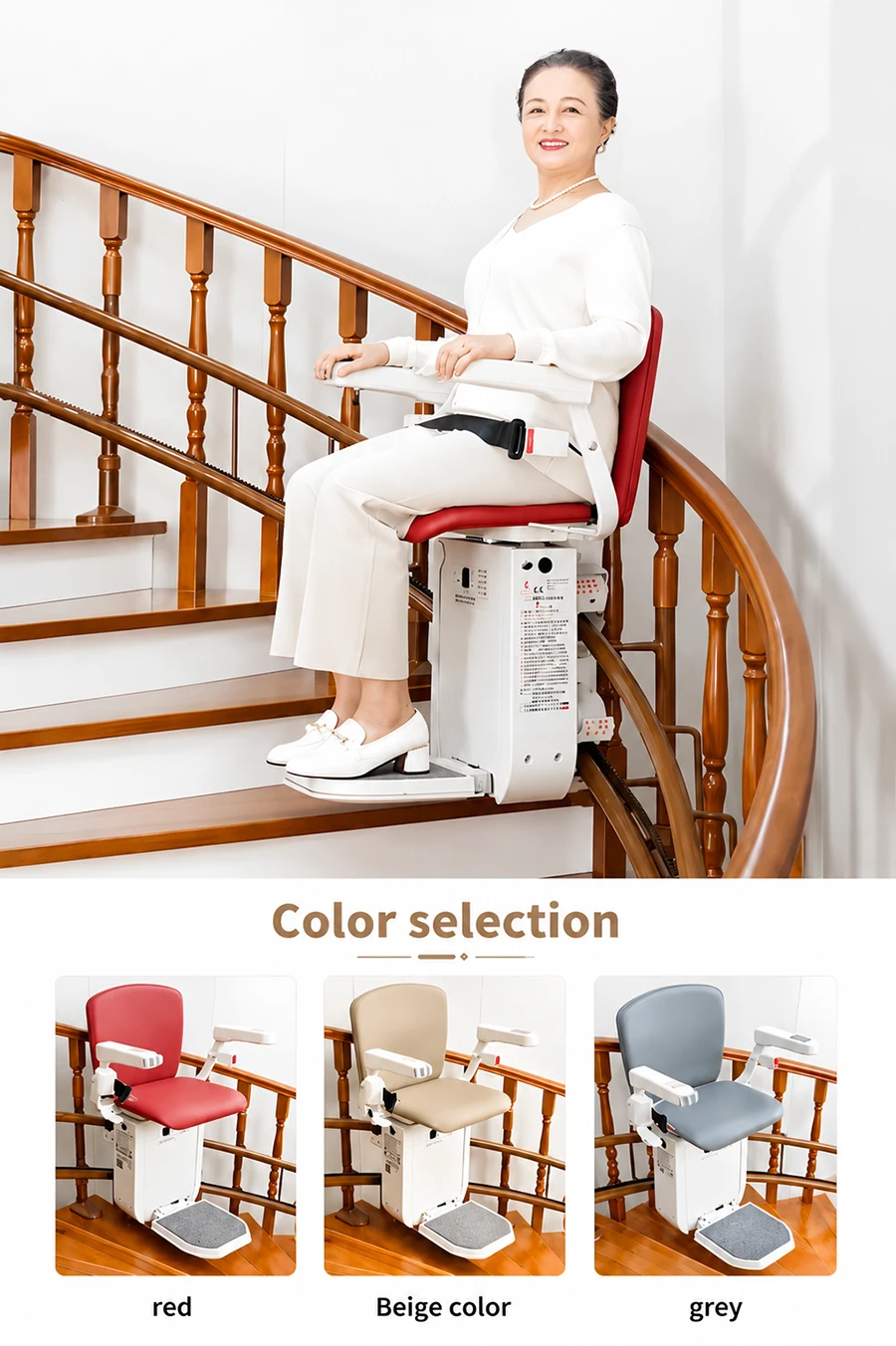

- Full color customization to match indoor and outdoor surroundings

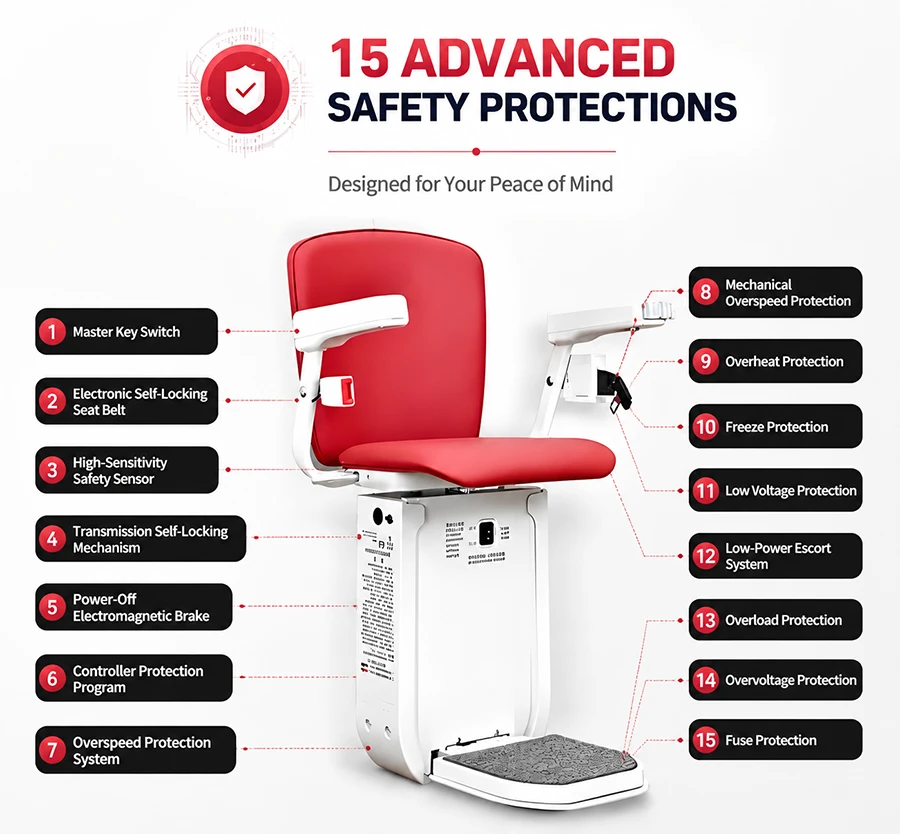

- Multiple safety parts fitted to ensure stable and secure riding
- Simple to operate, install and maintain for long-term use
- Perfect for homes, hospitals, nursing homes and public buildings
| Product Specifications & Configuration | |
|---|---|
| Parameter | Specification |
| Model Number | QXS3320 |

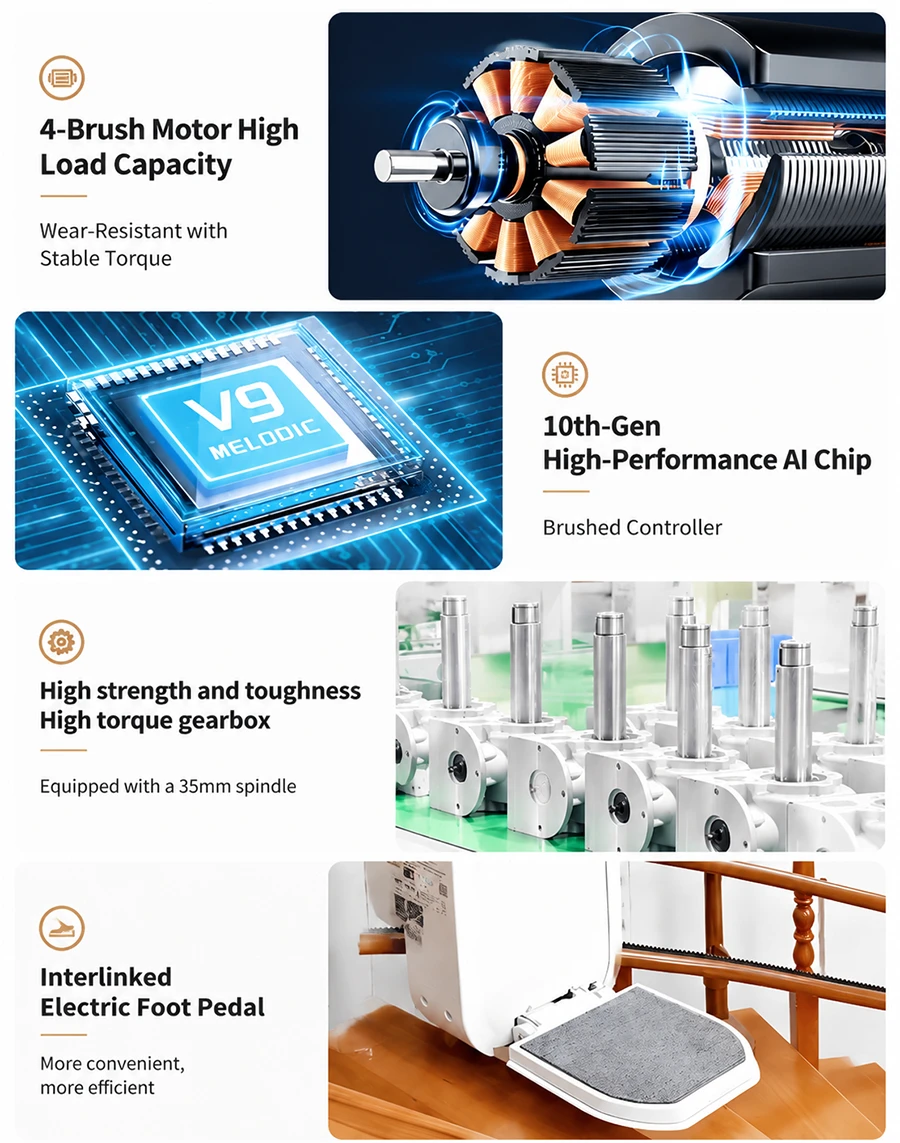

| Actuator | DC Brushed Motor + Self-locking Gearbox |
| Control Method | Embedded Chip Control |
| Transmission Type | Rack & Pinion (with Grease Lubrication) |
| Charging Voltage/Current | Input: 100-240V AC, 1.2A |
| Operating Voltage/Current | Output: 24V DC, 0-18A Adjustable |
| Battery | 2x12V/12Ah Lead-acid Batteries |
| Motor Rated Power | Rated Power: 350W |
| Power Consumption | Energy Use: ~2-5 kWh/month |
| Speed | Speed: ~7.2 m/min |
| Laboratory Noise Level | Noise Level: 60-65 dB(A) |
| Charging Mode | Automatic Charging at Both Rail Ends |
| Charging Socket | Starting or Terminal End (Either Side); 1× 2-Square-Meter Triple-Outlet Socket |

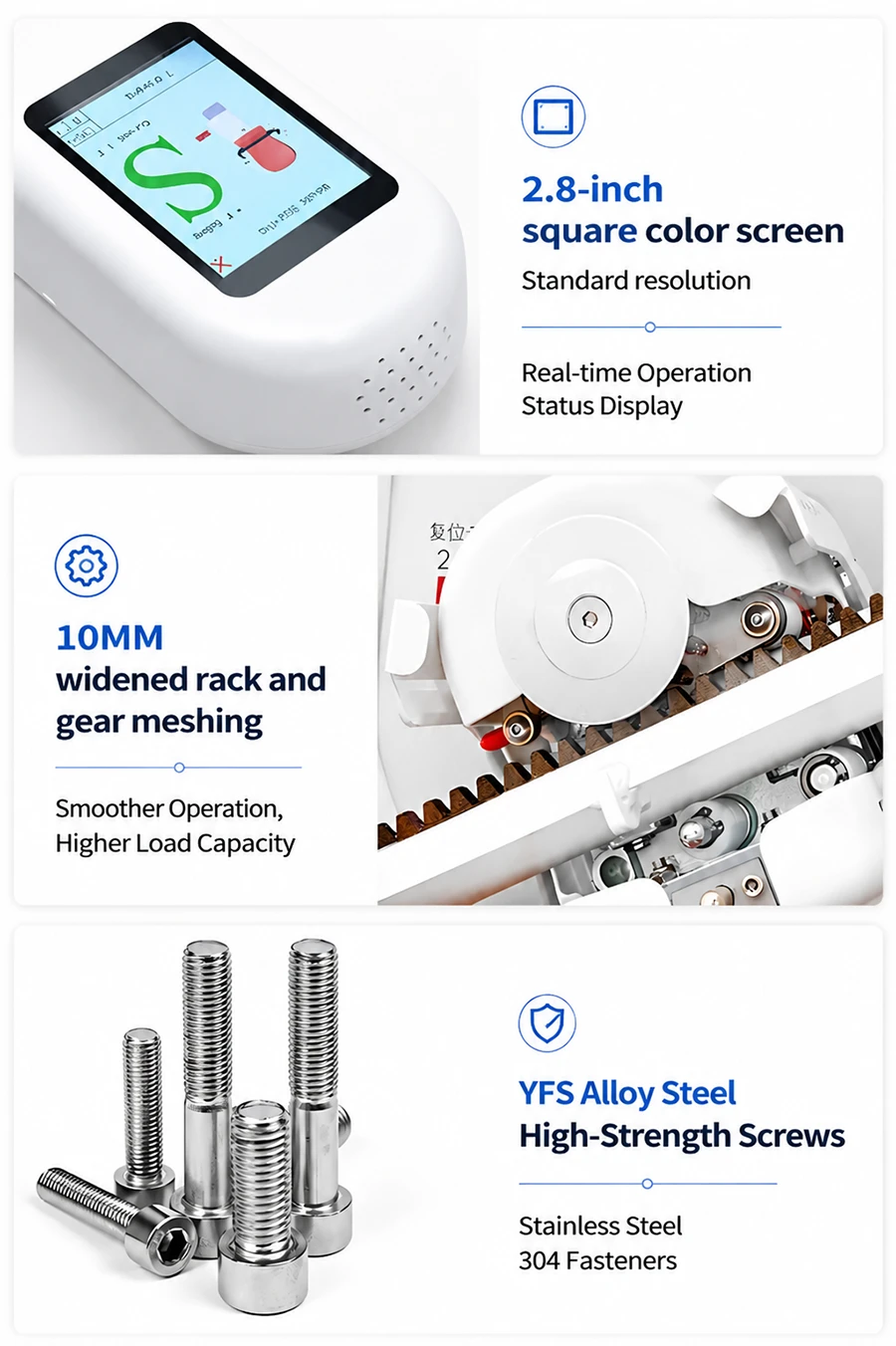

| LCD Display | 2.8-inch Color Display Screen, Showing Operation Status and Error Codes |

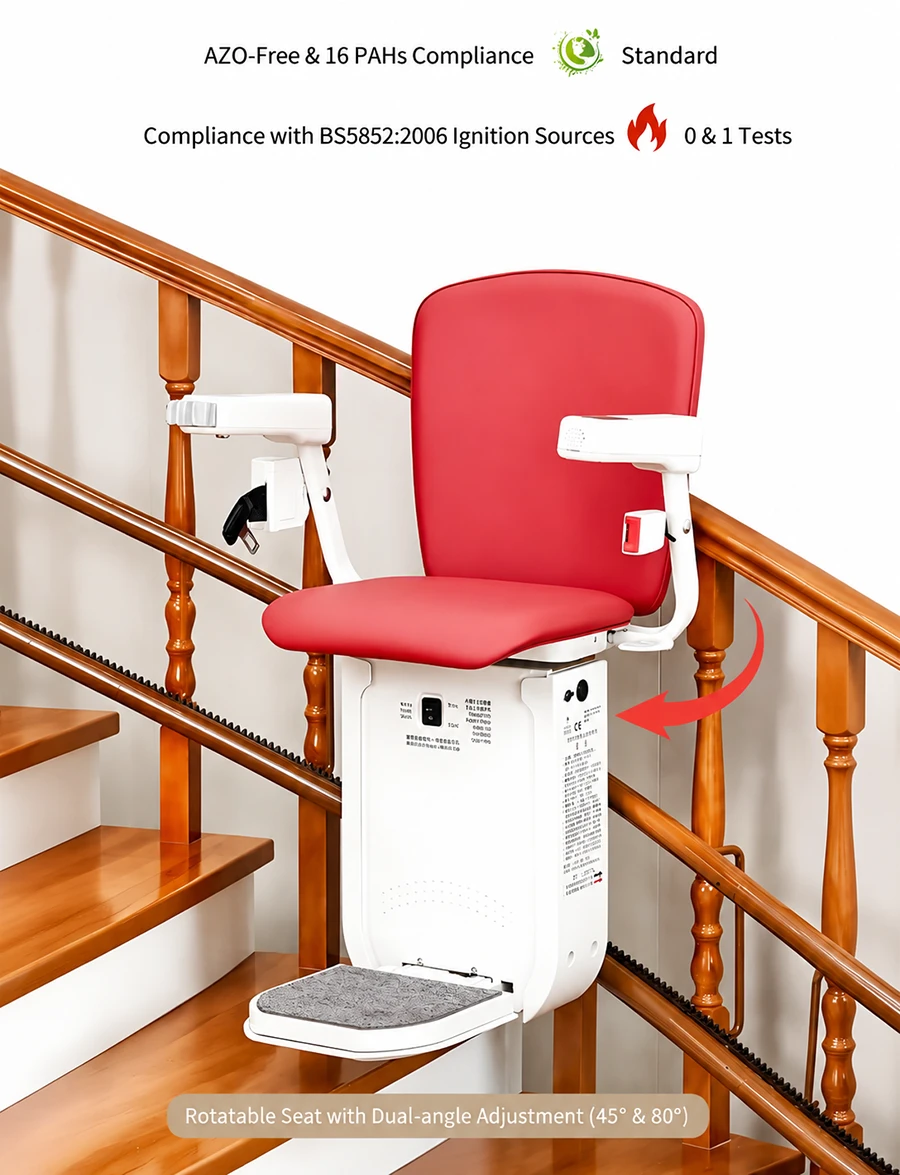

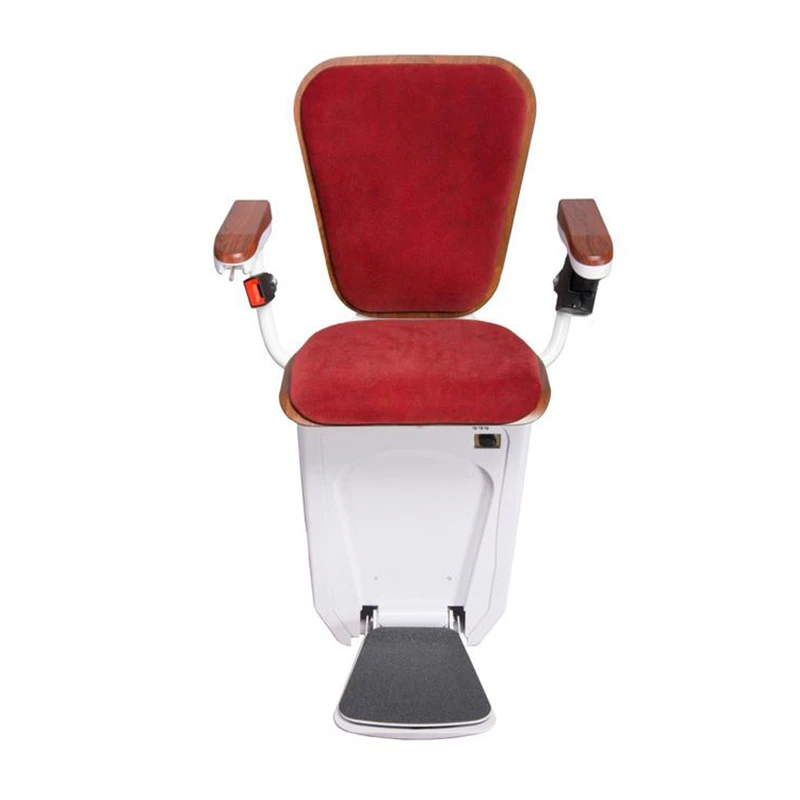

| Seat | Seat with Horizontal Rotation Function |
| Armrest | Foldable Seat Cushion and Armrests |
| Footrest | Electric Footrest |
| Seat Back Cushion Color | PVC Leather: Red / Beige (Other colors available upon customization) |
| Seat Cushion Width x Depth | Width 410 × Depth 390mm |
| Folded Dimensions | Unfolded: 680mm → Folded: 390mm |
| Rack Material | 10×25mm Steel Section |
| Rail Material | 38×3mm Steel Tube (±0.1mm Tolerance) |

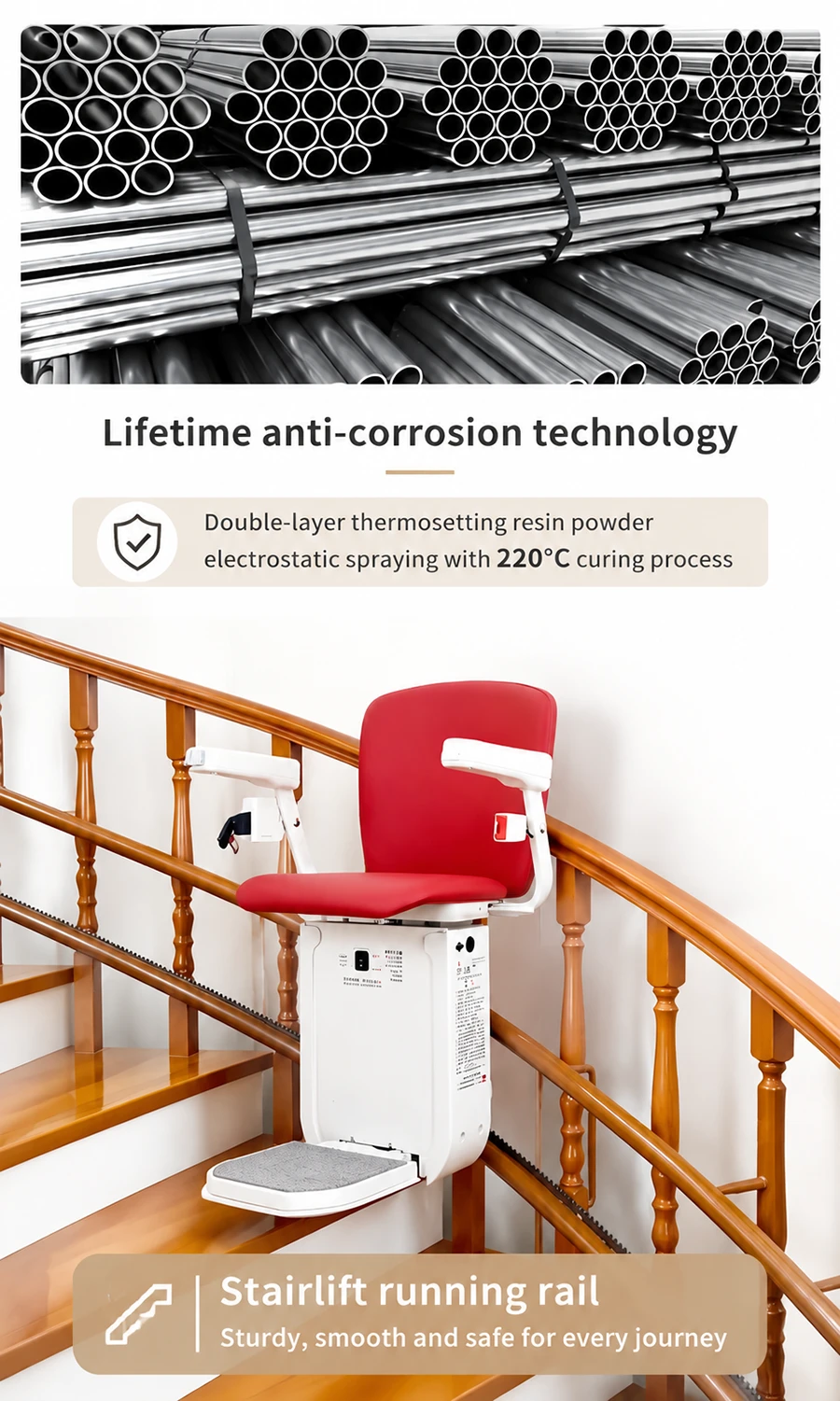

| Rail Surface Treatment | Electrostatic Spray Painting; Rail Colors: Cream White, Brown |
| Mounting Method | Screws Fixed to the Ground |
| Rail Inclination Angle | 0-52° |
| Maximum Load Capacity | 320 Jin (<35°), 240 Jin (<52°) |
