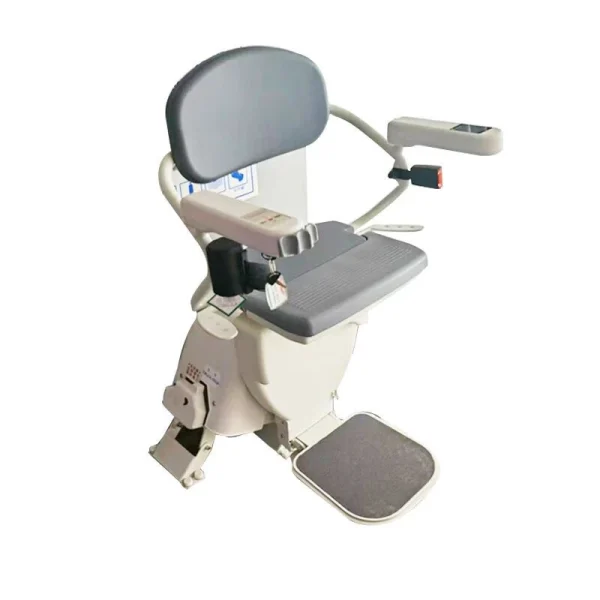

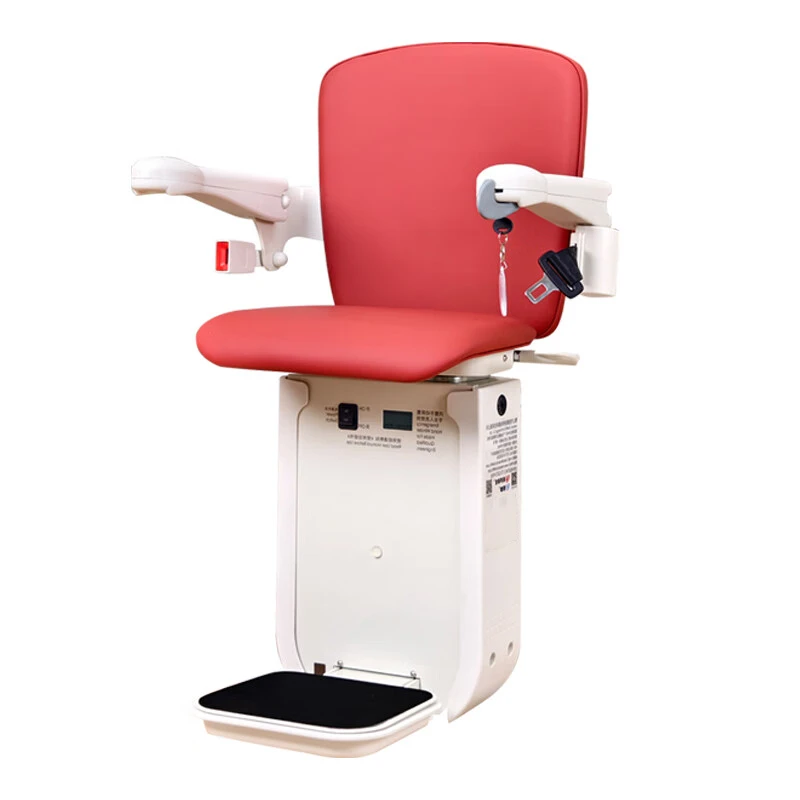

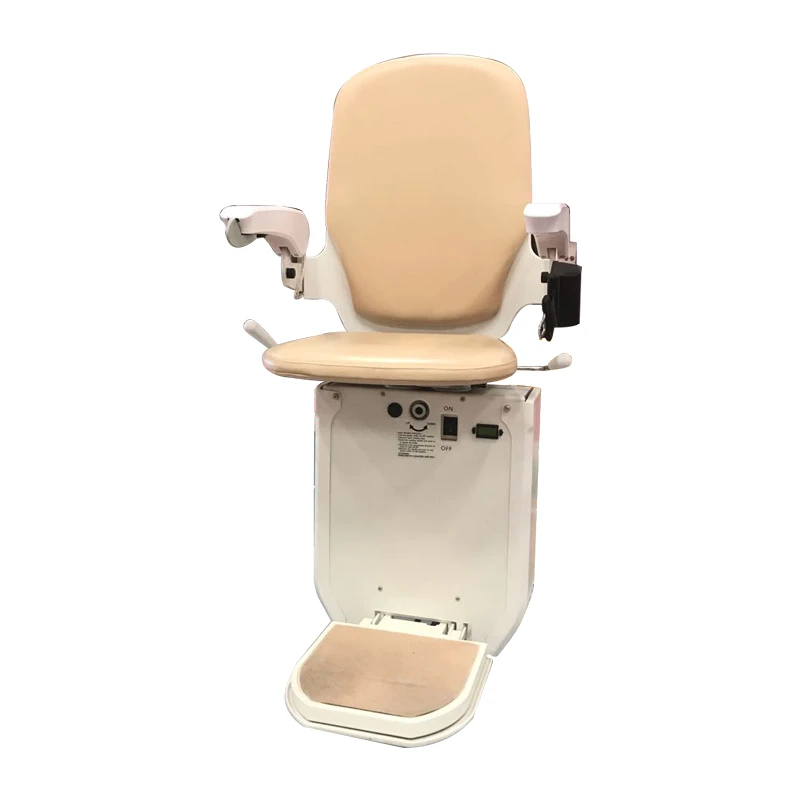

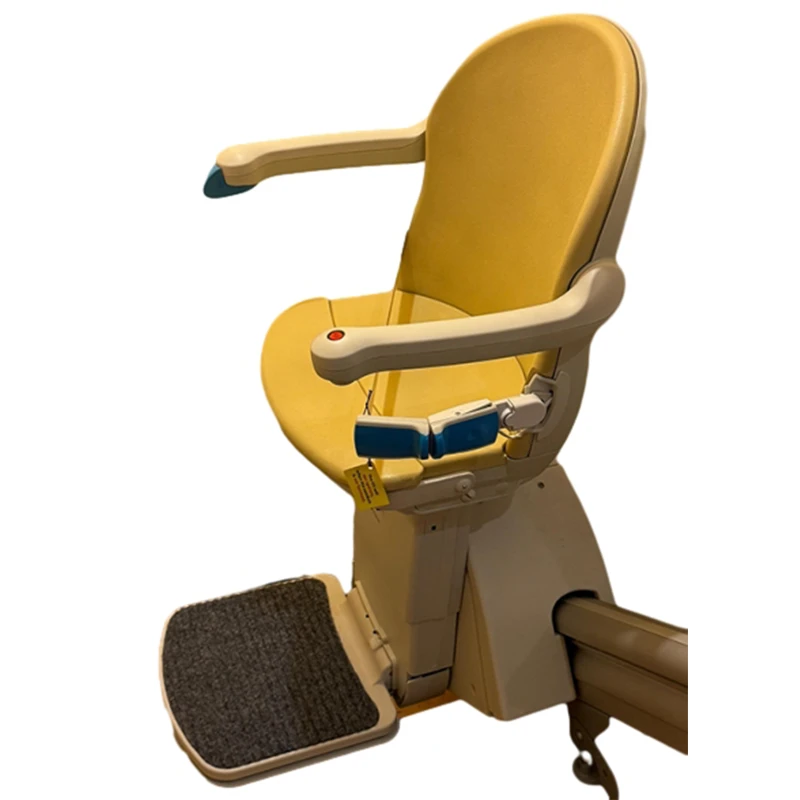

Barrier free lifting chair Linear Model ZXZ2201
- Load options: 150kg, 200kg,
- Lifting speeds: 0.08m/s, 0.12m/s, smooth and gentle movement
- Full color customization to match indoor and outdoor surroundings
- Multiple safety parts fitted to ensure stable and secure riding
- Simple to operate, install and maintain for long-term use
- Perfect for homes, hospitals, nursing homes and public buildings
| ZXZ2201 Product Technical Specifications | |
|---|---|
| Parameter | Specification |
| Product model | ZXZ2201 |
| Driver | DC brushed motor + self-locking gearbox |
| Control mode | Embedded chip control |
| Transmission mode | Gear rack (with lubricating grease) |
| Charging voltage/current | 100-240 V/1.2A |
| Operating voltage/current | 24 V/0-18A |
| Battery | Two 12V 9Ah lead-acid batteries |
| Rated motor power | 350 W |
| Energy consumption | About 2-5 kWh per month |
| Operating speed | About 7.2 meters per minute |
| Laboratory noise level | 60-65 dB(A) |
| Charging method | Automatic charging at both ends of the track; Wiring inside the track; Middle charging position can be added |
| Charging socket | 1 starting/stopping position, 2 square meters; Three-hole socket; (Only 1 charger is needed) |
| LCD display screen | 2.8-inch color display screen; Displays operating status and fault codes |
| Seat function | The seat can rotate horizontally |
| Foot pedal | Foldable foot pedal |
| Seat back cushion material | PVC leather: red/gray/beige |
| Seat cushion dimensions (W x D) | 410mm x 420mm |
| Folding size | Folding 350mm; Please refer to the actual drawings for details |
| Rack material | 10x15mm steel section |
| Track material | High strength aluminum alloy |
| Track surface treatment | Silver matte anodized surface |
| Fixing method | Screw fixed to the ground |
| Orbital angle | 25°-55° |
| Maximum payload | 280 pounds (≤ 35°), 240 pounds (<55°) |
