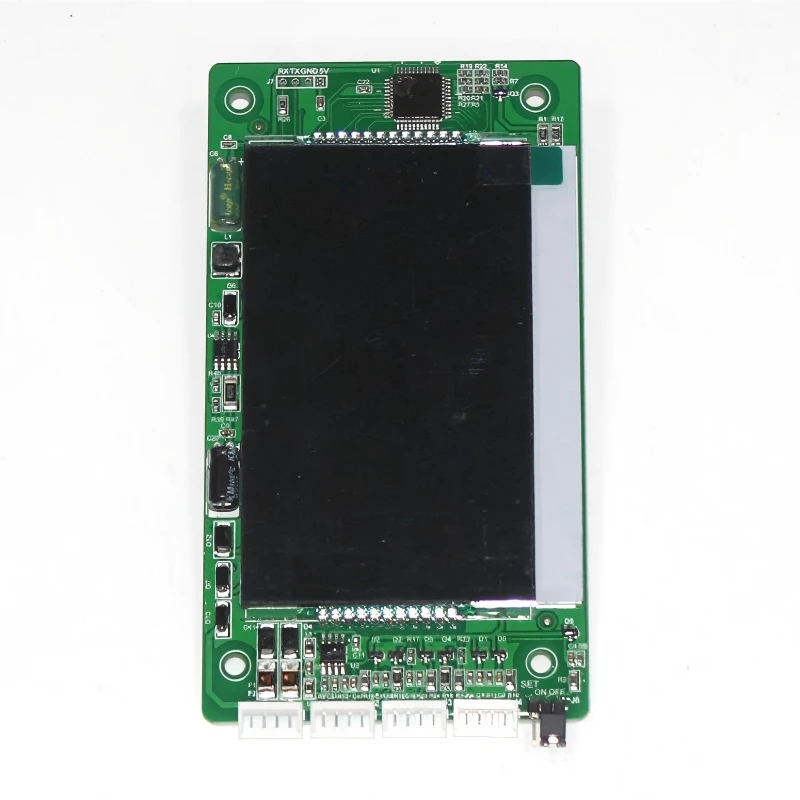

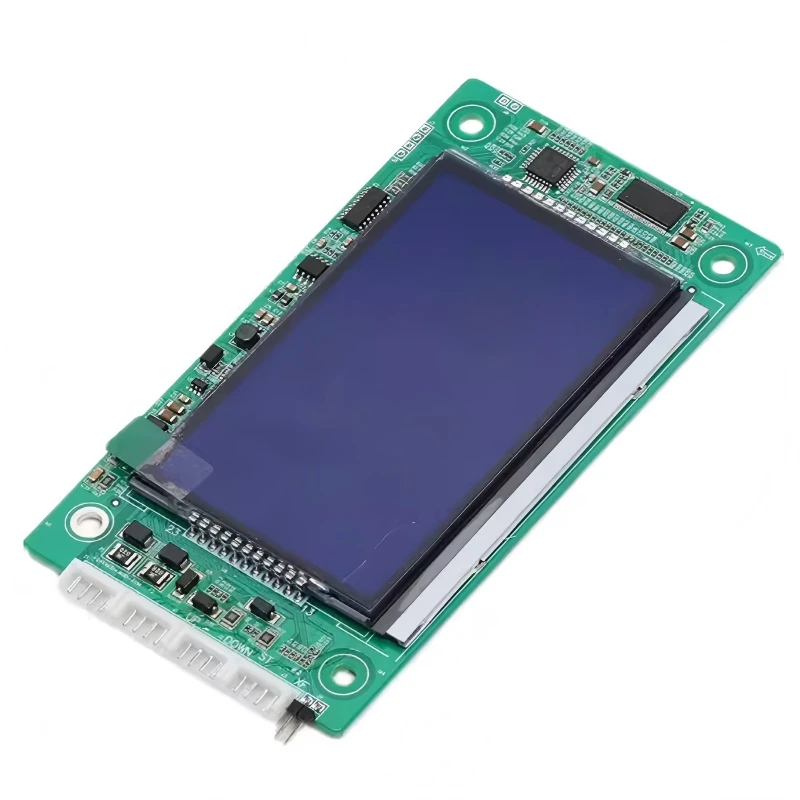

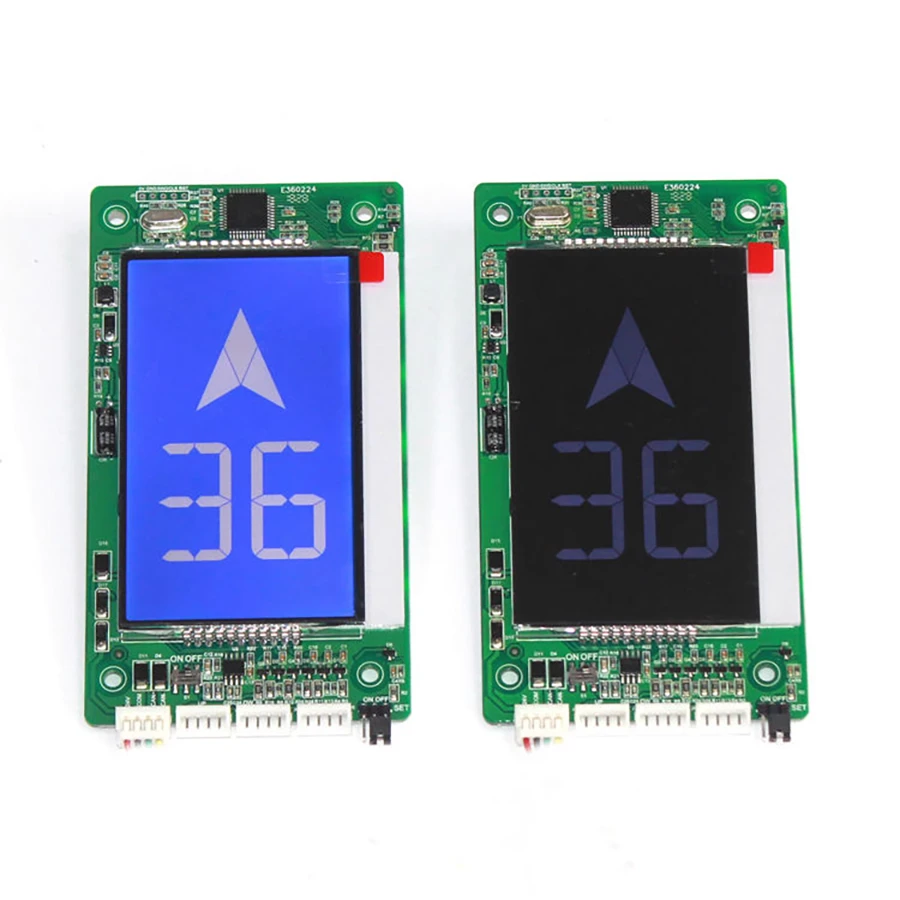

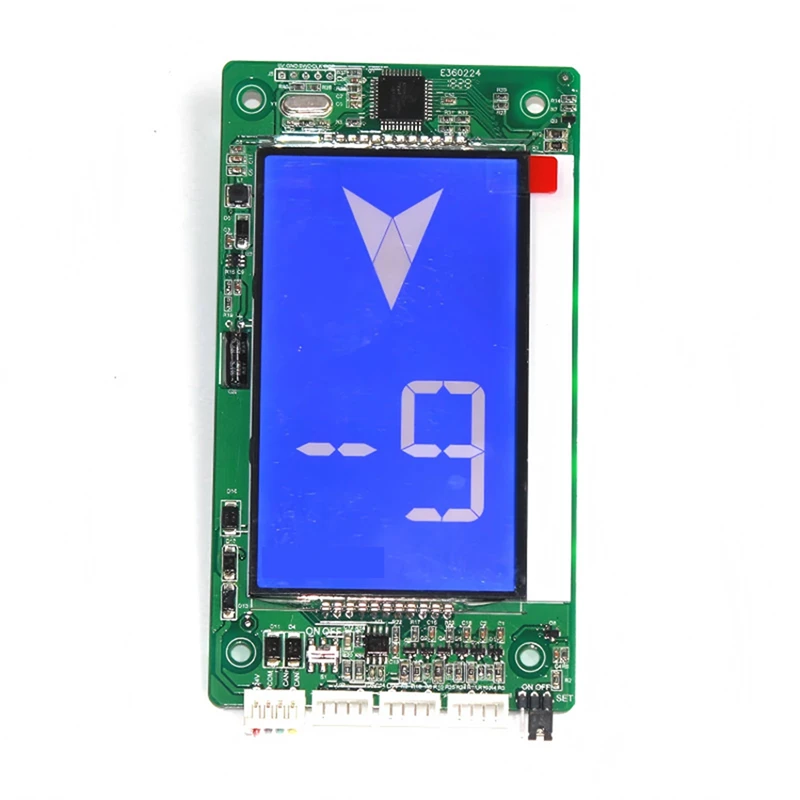

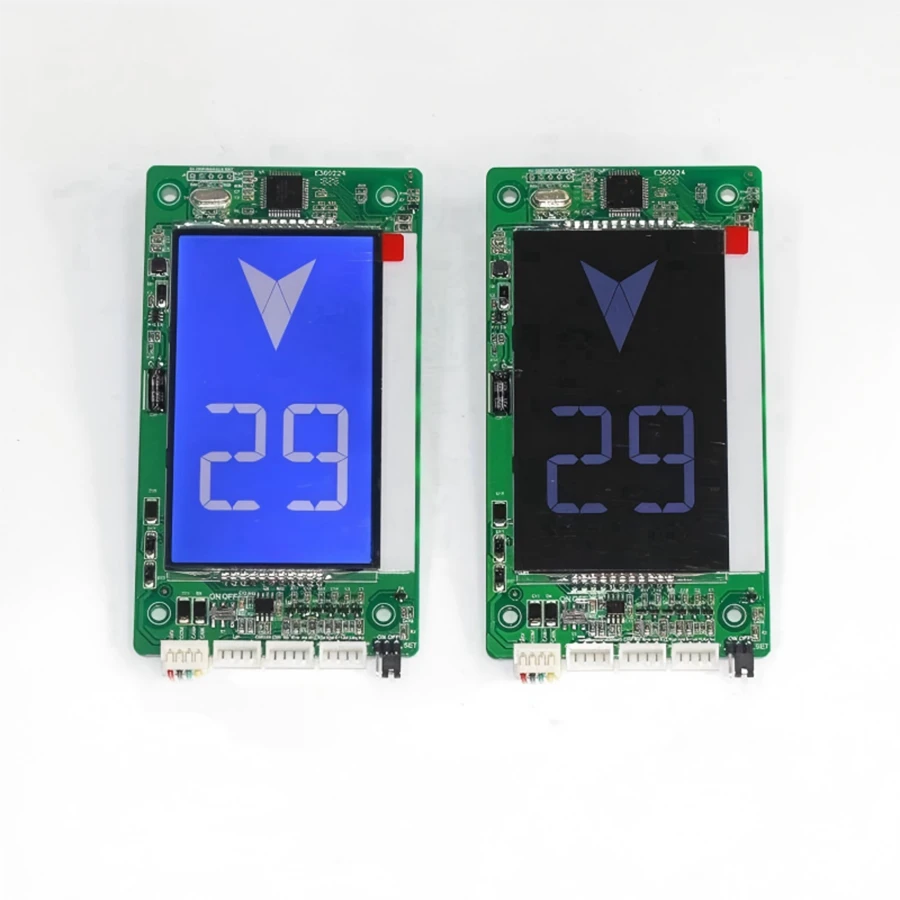

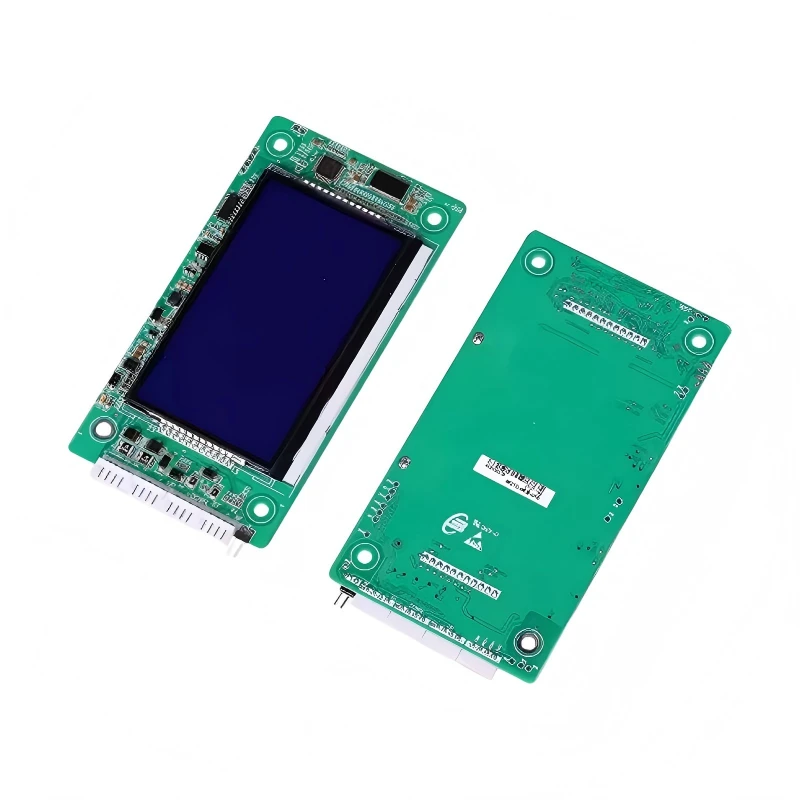

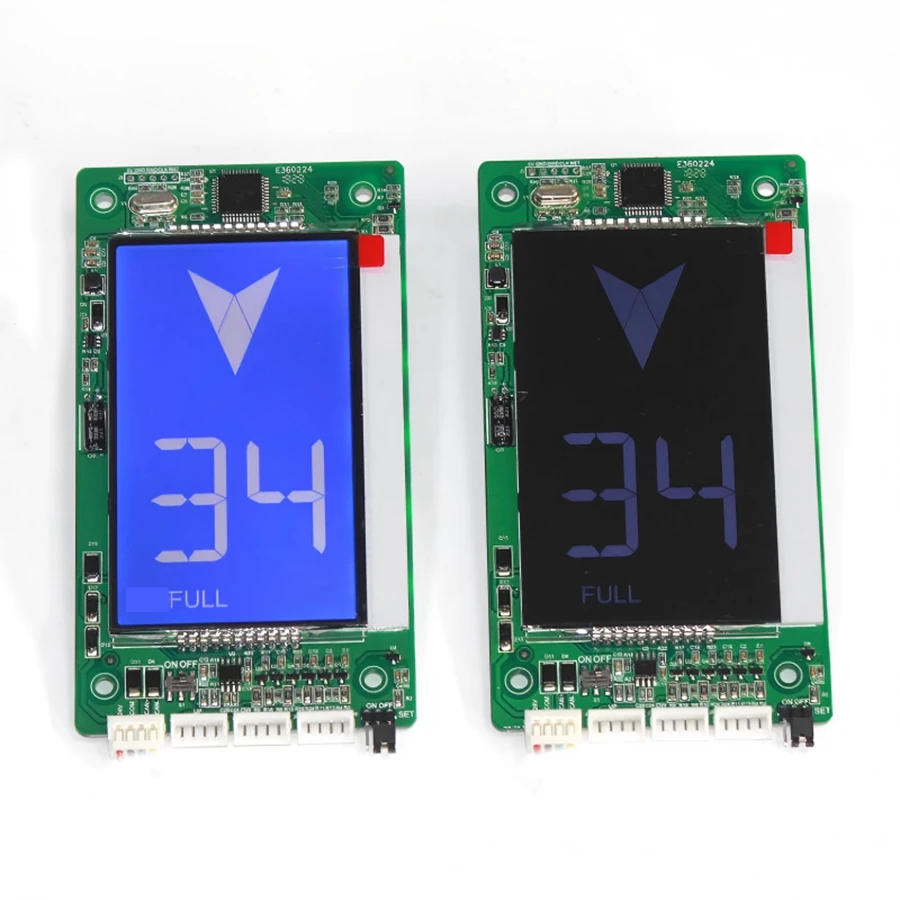

Elevator Display Screen MCTC-HCB-U673
Cost Effective MCTC HCB U673 Elevator Floor Indicator Panel Integrated Drive Structure Easy Maintenance
| Key Technical Specifications | |
|---|---|
| Parameter category | Full specifications |
| Product model | MCTC-HCB-U673 |
| Product name | Monark lift car / lobby LCD display panels |
| Mains power supply | 24 V DC (wide-range voltage: 18 V to 30 V) |
| Overall dimension (H × W × D) | 140 × 76 × 16 mm |
| Display area size | 118 × 60 mm |
| Mounting hole spacing (Top) | 60 mm |
| Mounting hole spacing (Bottom) | 65.23 mm |
| Mounting hole diameter | Ø4.2 mm |
| Mounting hole offset (Top) | 8 mm |
| Mounting hole offset (Bottom) | 12 mm |
| PCB protrusion (Bottom) | 19.94 mm |
| Connector height | 4.8 mm |
| Panel thickness | 1.6 mm |
| Elevator Control Board I/O Terminal Specification | |||||
|---|---|---|---|---|---|
| Terminal Function Definition Table | |||||
| Terminal | Function | Pin 1 | Pin 2 | Pin 3 | Pin 4 |
| J1 | Up Call Button Input | +24V | +24V | Up Button Input | Button Lamp Output |
| J2 | Down Call Button Input | +24V | +24V | Down Button Input | Button Lamp Output |
| J3 | Lock Elevator / Fire Service Input | Lock Elevator Input | +24V | +24V | Fire Service Input |
| CN1 | Power / Communication Terminal | +24V | MOD+ | MOD- | COM |
