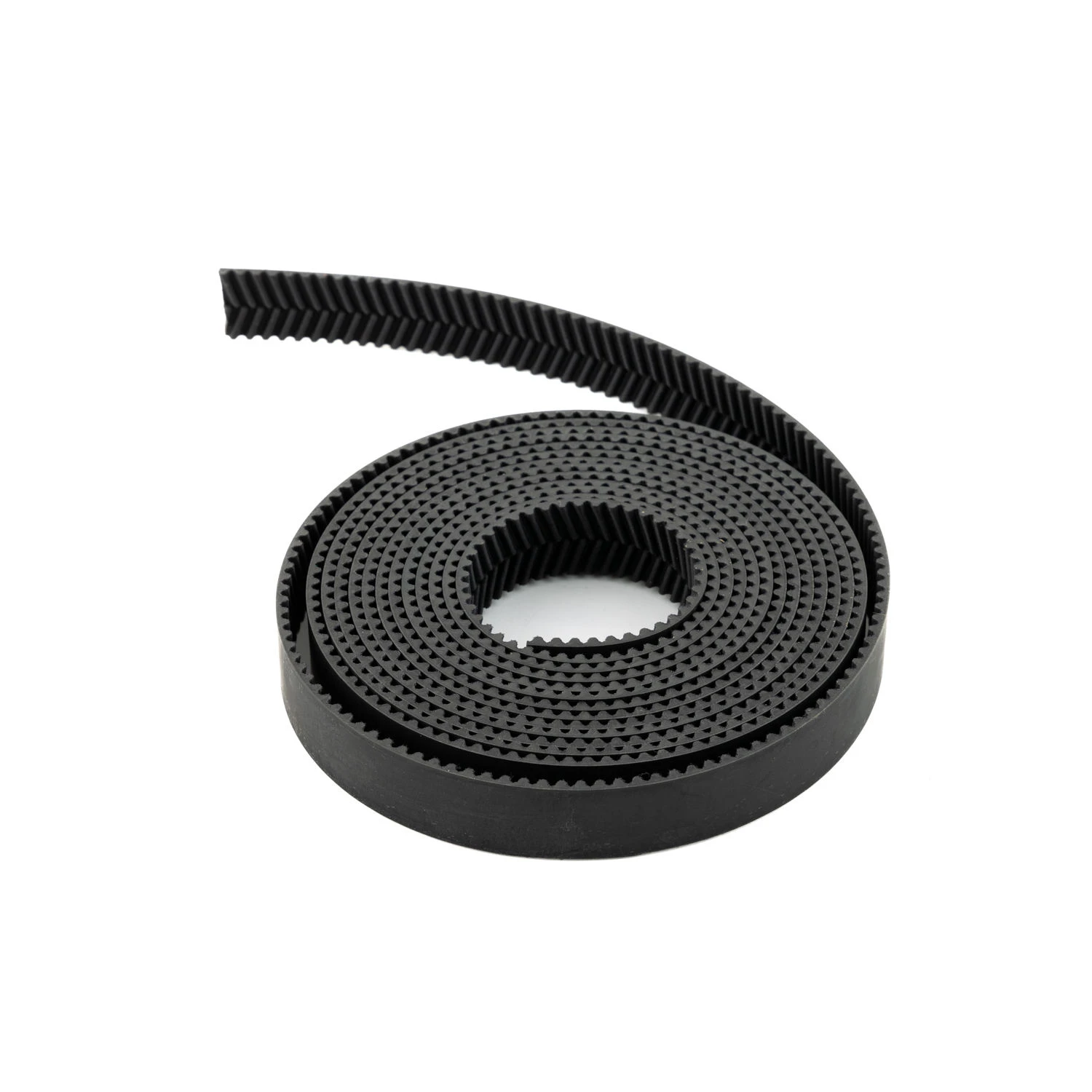

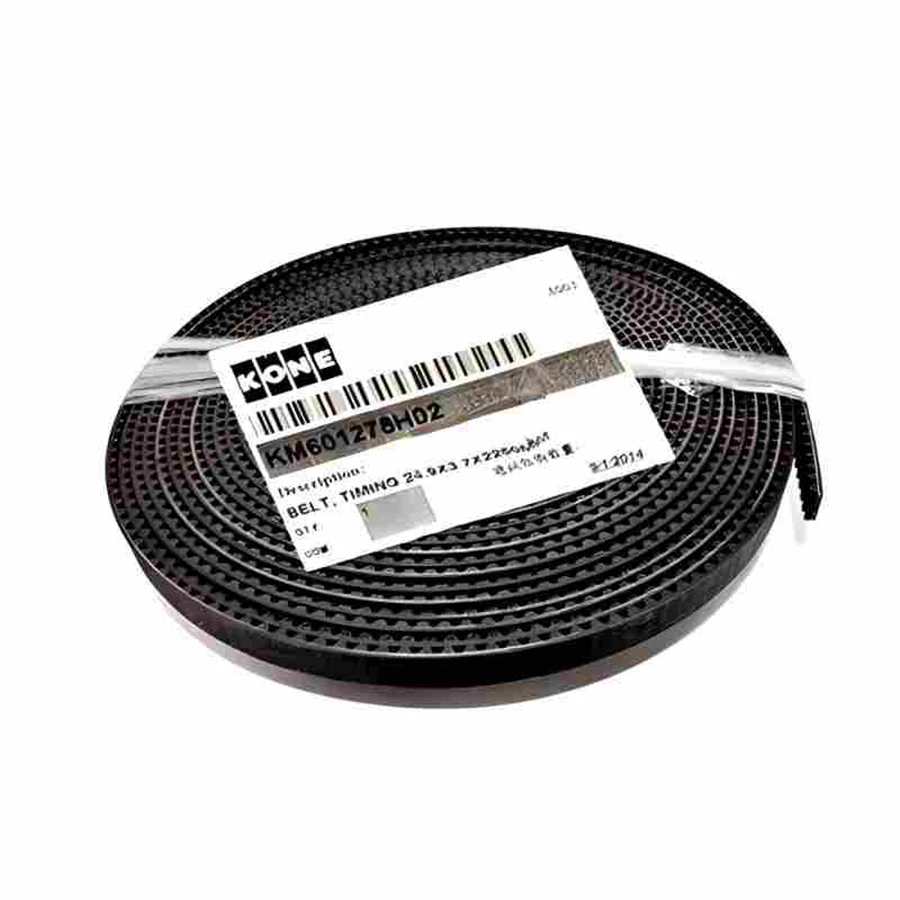

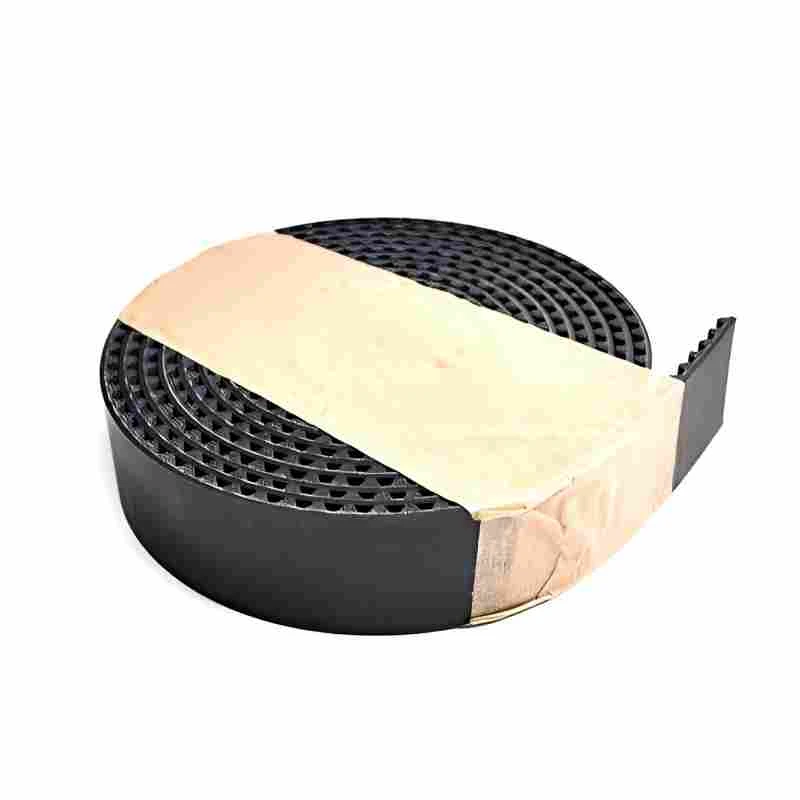

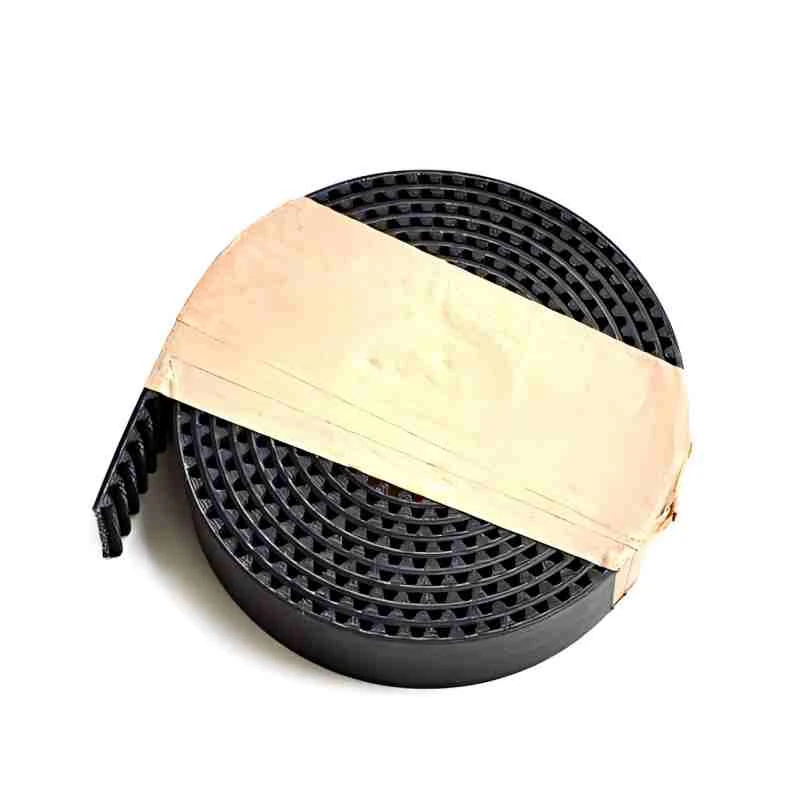

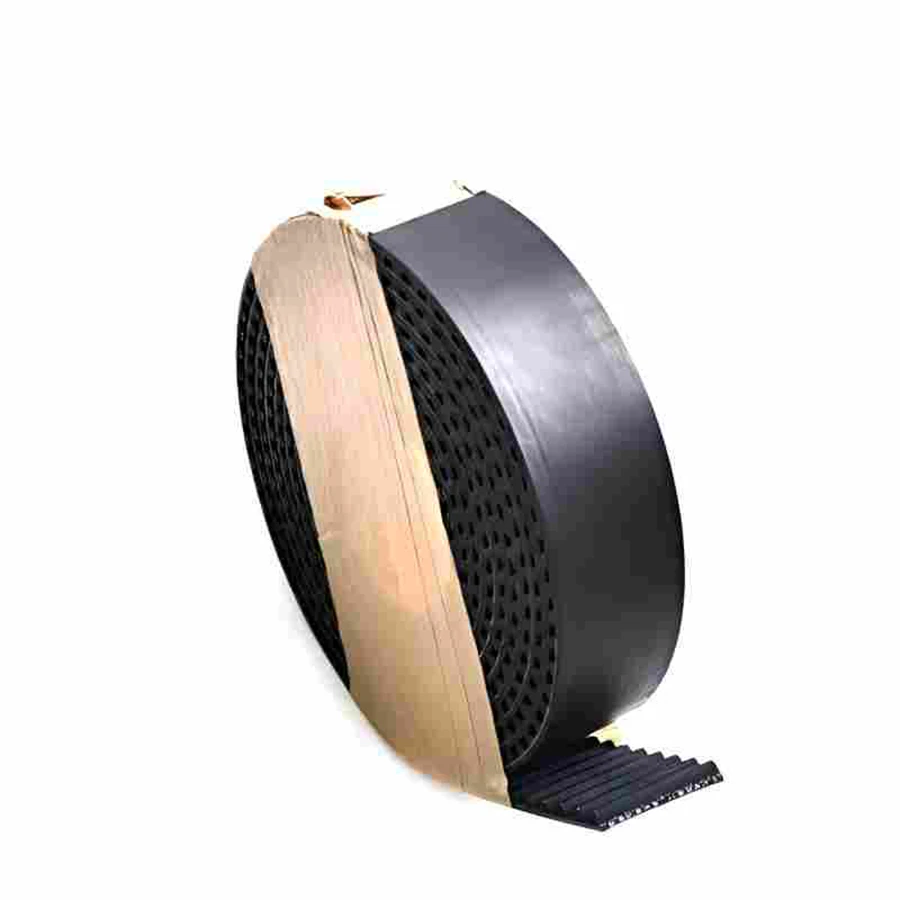

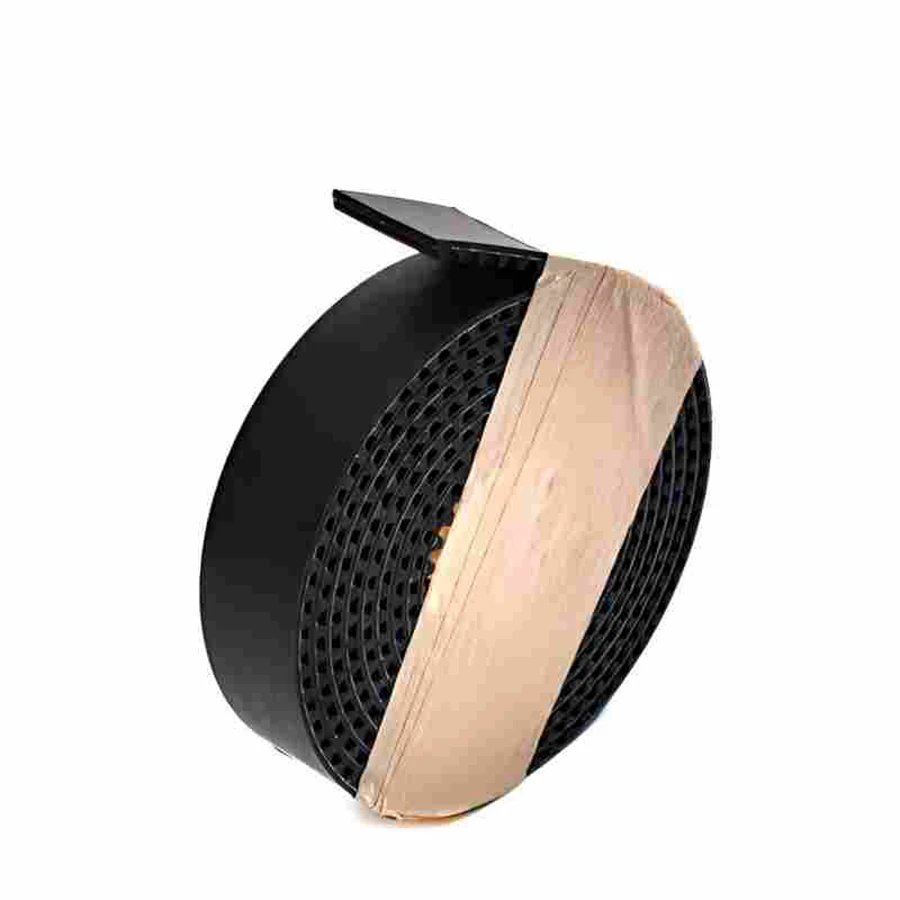

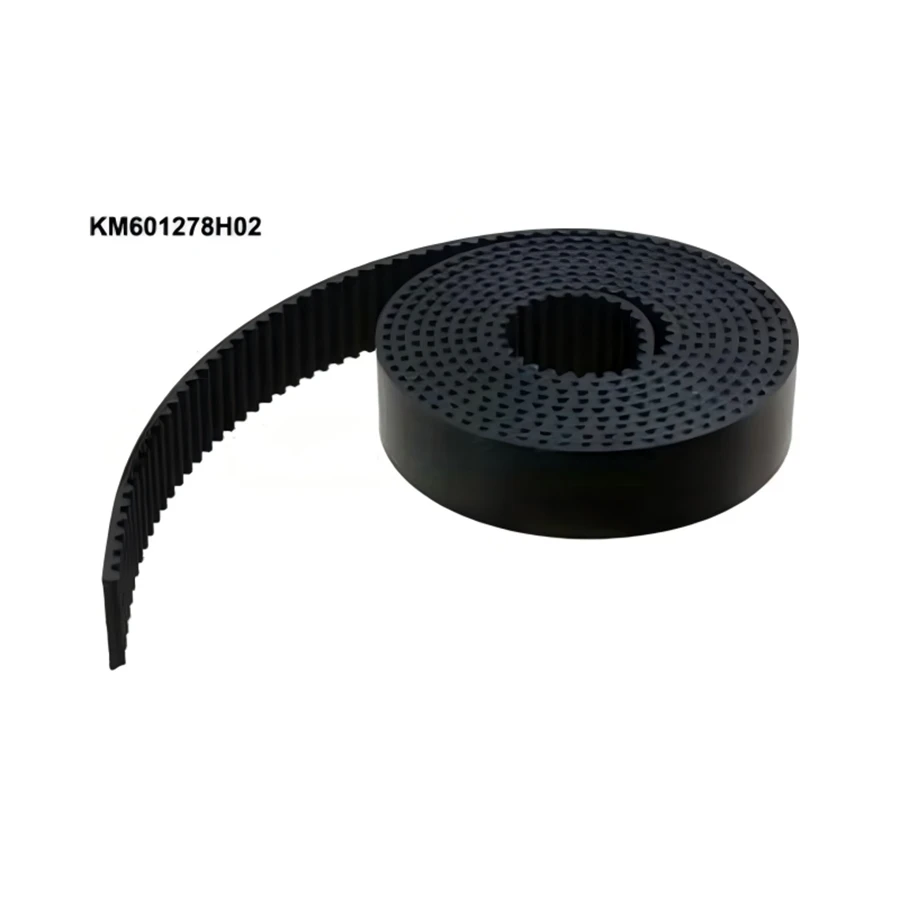

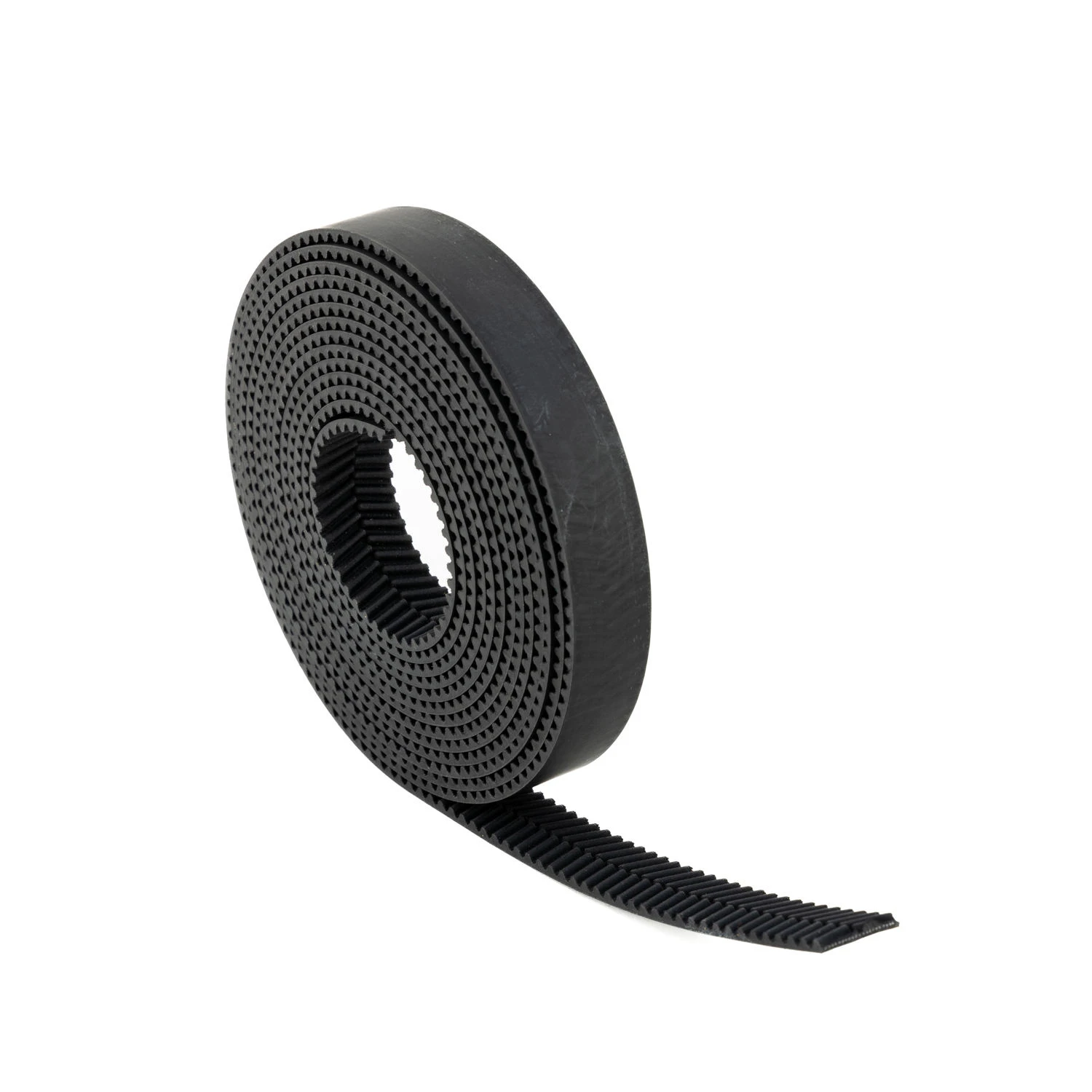

Elevator Door Operator Belt KM601278H02
Stable Meshing Long Lifespan Elevator Door Drive Belt KM601278H02 Nylon Cloth Covered
| KM601278H02 Elevator Timing Belt Specification Sheet | |
|---|---|
| Parameter | Specification |
| Part Number | KM601278H02 |
| Product Type | Open-Ended Timing Belt (BELT, TIMING) |
| Standard Series | HTD Series Timing Belt |
| Tooth Profile | Circular Arc Tooth (HTD) |
| Pitch (t) | 5 mm |
| Tooth Height (ht) | 2.06 mm |
| Total Belt Thickness (hs) | 3.8 mm |
| Standard Width | 24.9 / 37 mm (as per label description) |
| Standard Length | 2250+ mm (open-ended roll) |
| HTD Series Reference Parameters (for full context) | |||
|---|---|---|---|
| Belt Type | Pitch (t) | Tooth Height (ht) | Total Thickness (hs) |
| HTD3M | 3 mm | 1.17 mm | 2.4 mm |
| HTD5M | 5 mm | 2.06 mm | 3.8 mm |
| HTD8M | 8 mm | 3.36 mm | 6 mm |
| HTD14M | 14 mm | 6.02 mm | 10 mm |
| HTD20M | 20 mm | 8.4 mm | 13.2 mm |
