Elevator LCD Display HCB-SL-V

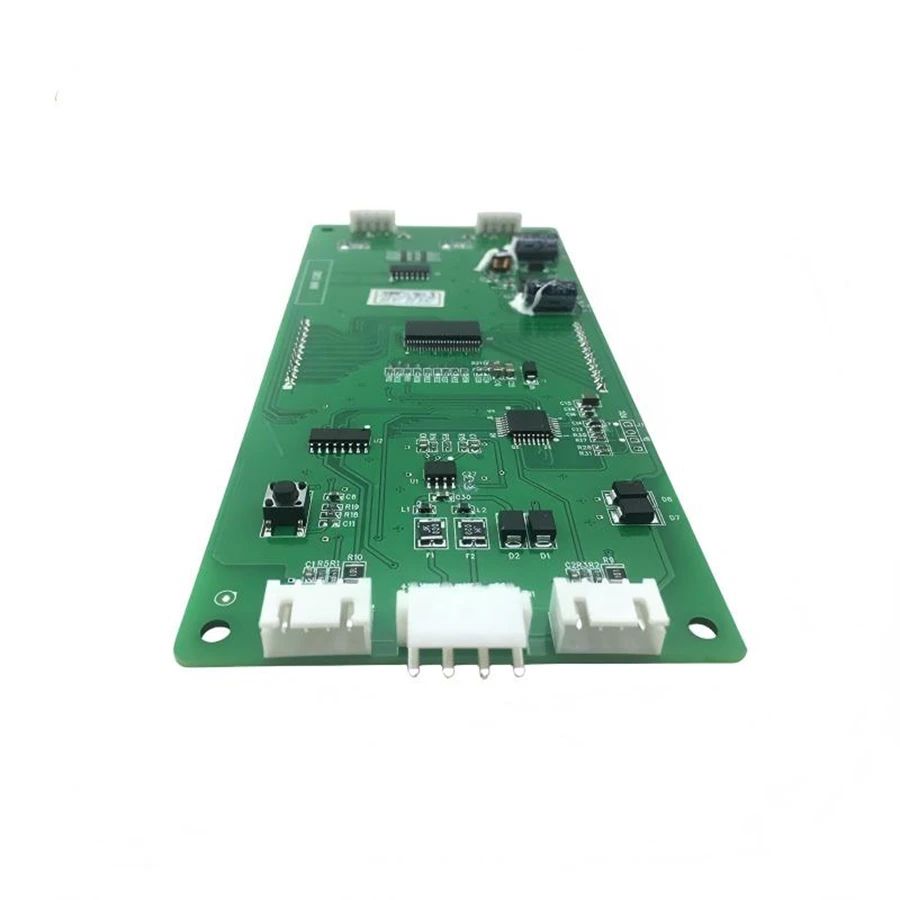

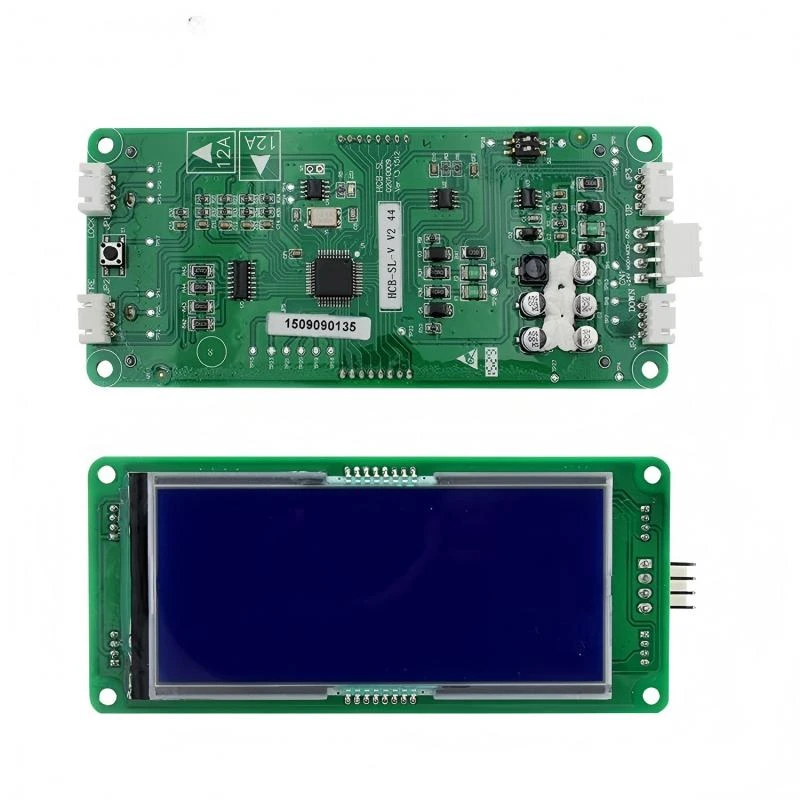

High Clarity HCB SL V V2.44 Elevator Floor Display Module 4 Layer PCB Shockproof Moisture Proof

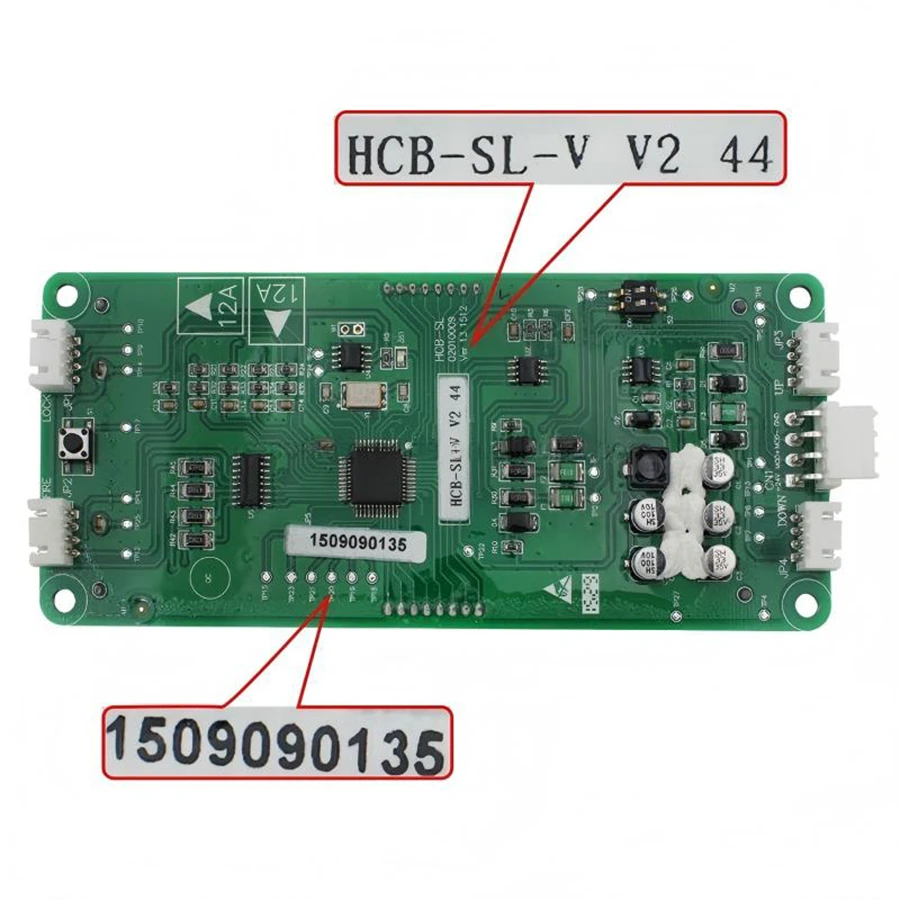

| Elevator Call Board I/O Terminal Specification | |
|---|---|
| Key Technical Specifications | Full specifications |
| Product model | HCB-SL-V (Software version: V2.44) |
| Product name | LCD display panel for lift cabins / Floor display panel for in-cabin call systems |

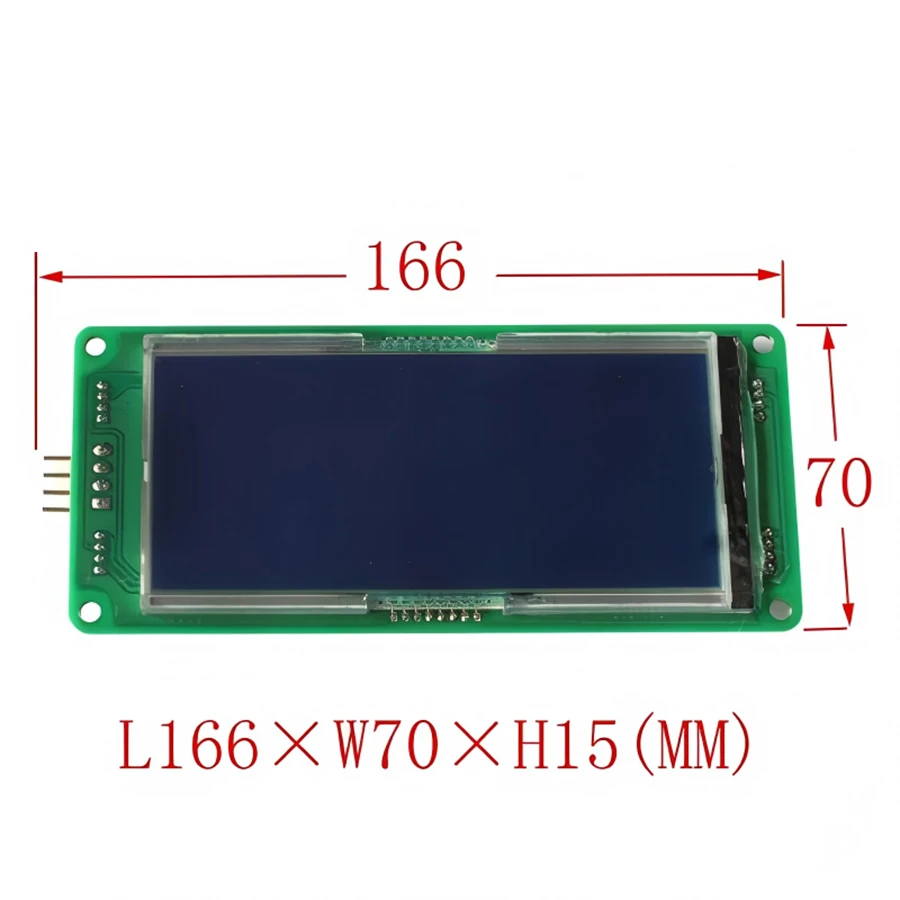

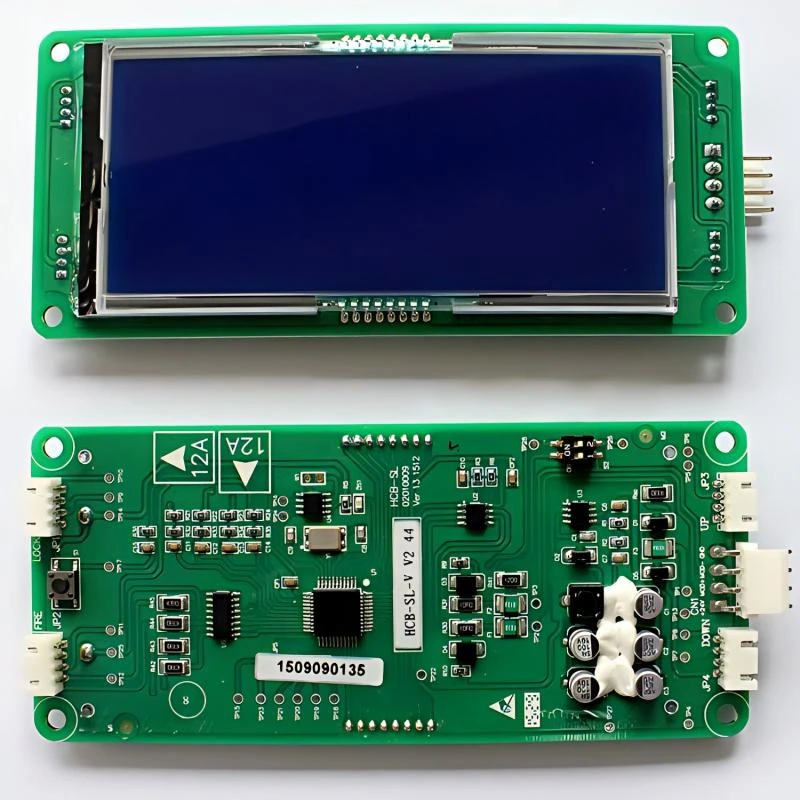

| Display size | 166 × 70 × 15 mm (L × W × H) |
| Mains power supply | 24 V DC (wide-range voltage: 18 V to 30 V) |
| Terminal Function Definition Table | |||||
|---|---|---|---|---|---|
| Terminal | Function | Pin 1 | Pin 2 | Pin 3 | Pin 4 |
| JP1 | Lock elevator / Fire service input | Reserved | +24V | +Fire service input | Lock elevator input |
| JP2 | Up call button input | +24V | +24V | Up call button input | Button lamp output |
| JP3 | Down call button input | +24V | +24V | Down call button input | Button lamp output |

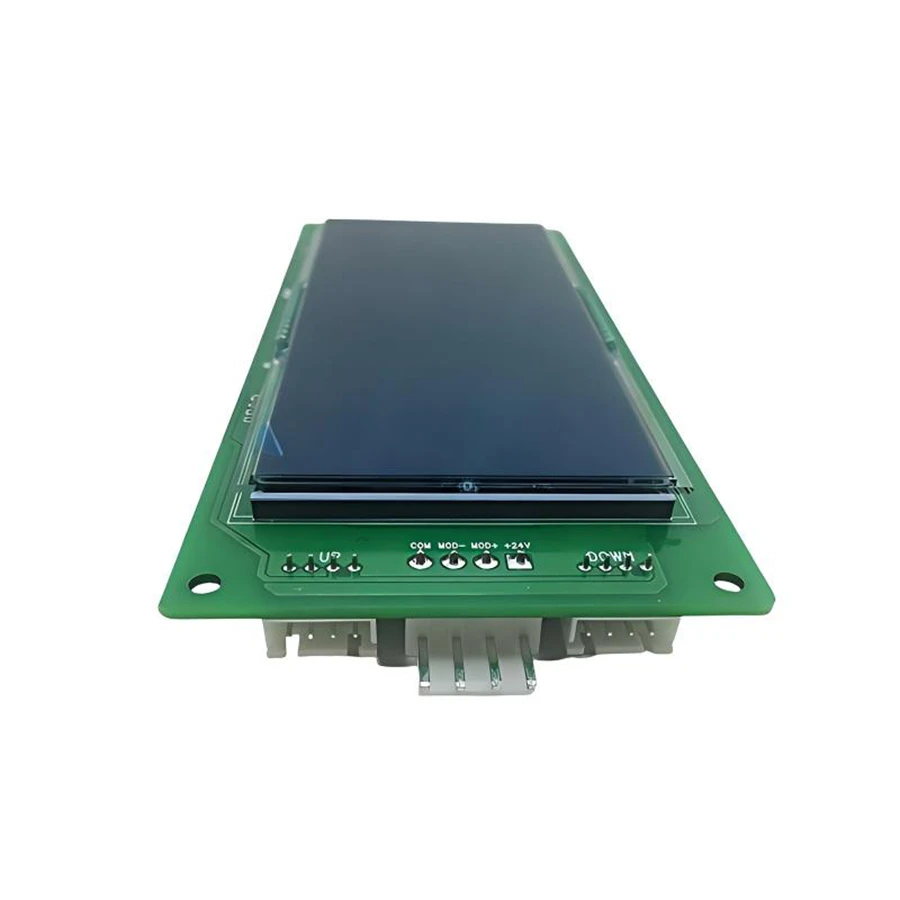

| CN1 | Power / Communication terminal | +24V | MOD+ | MOD- | COM |
