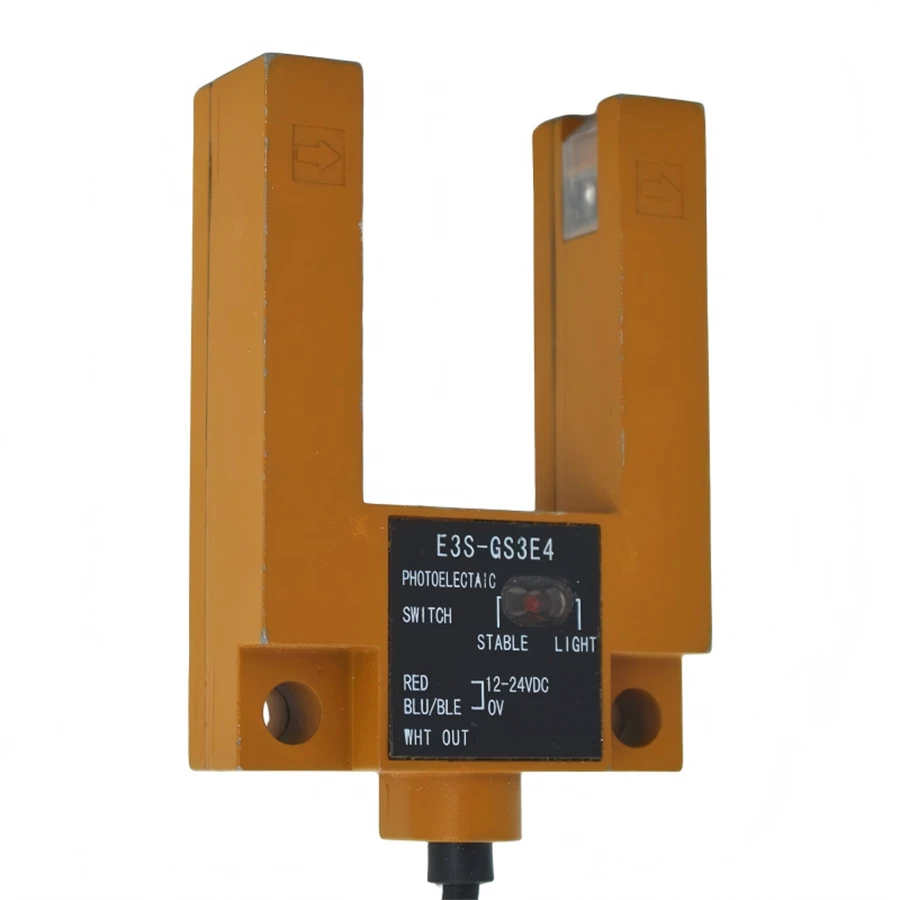

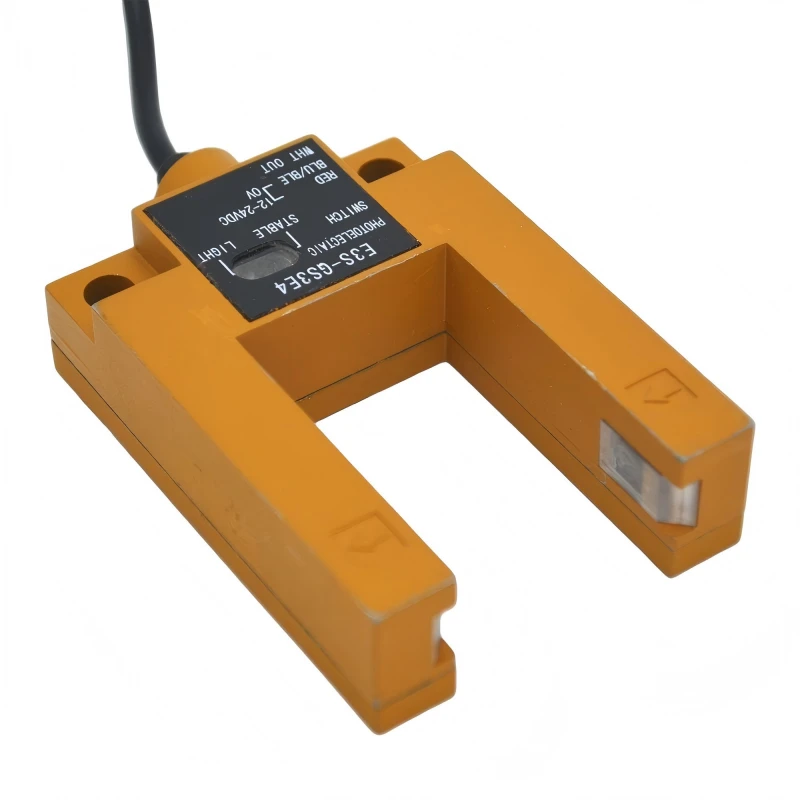

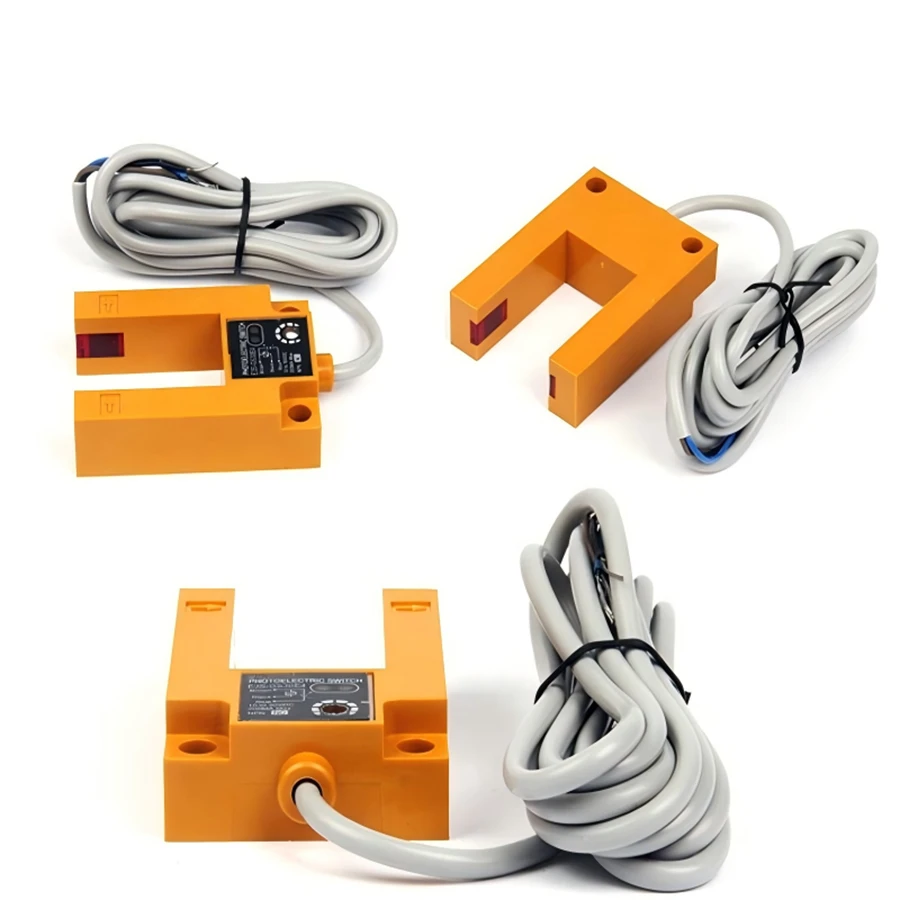

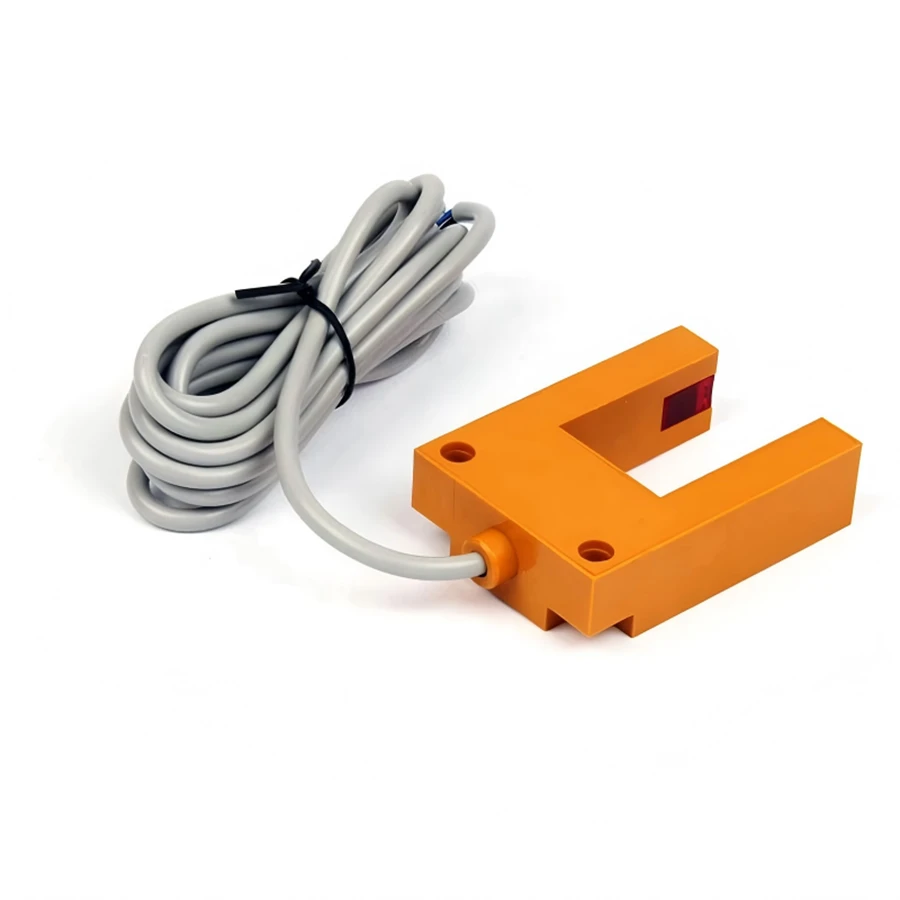

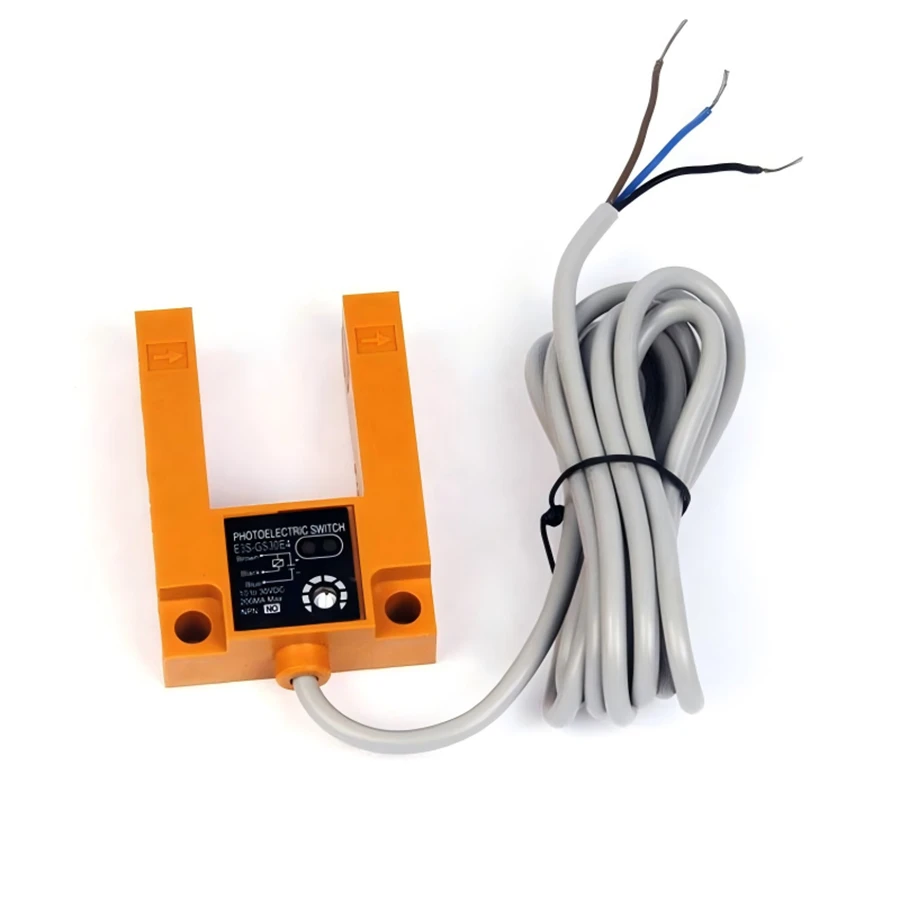

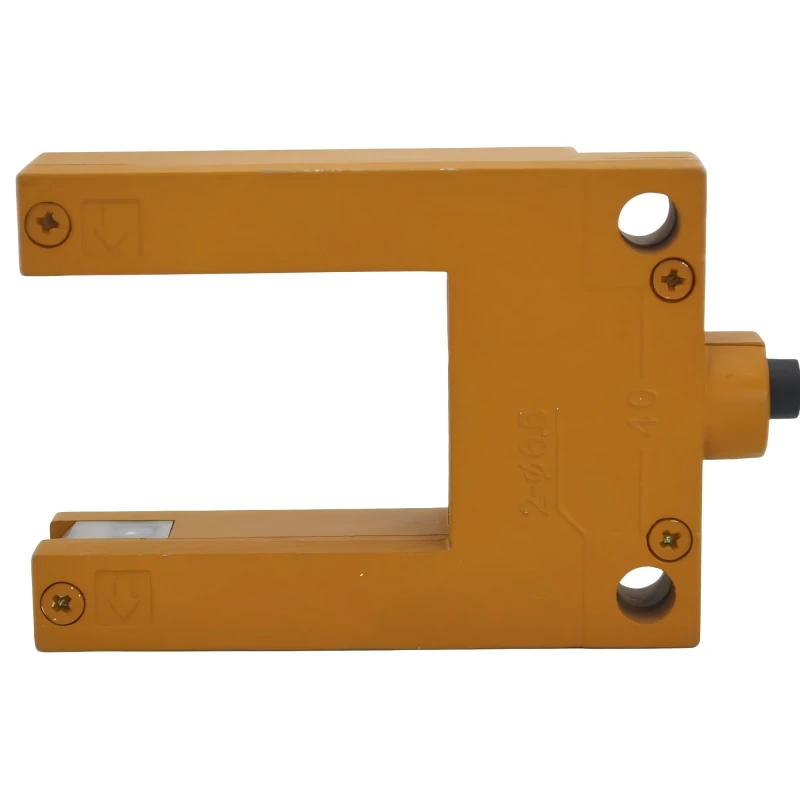

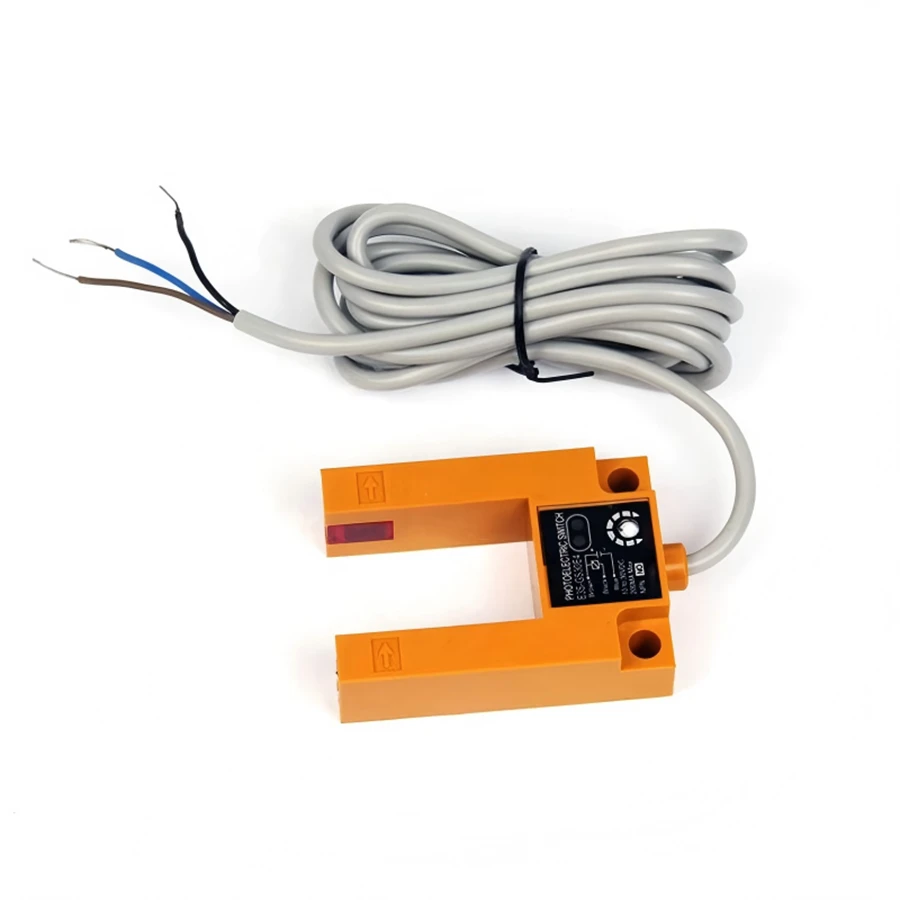

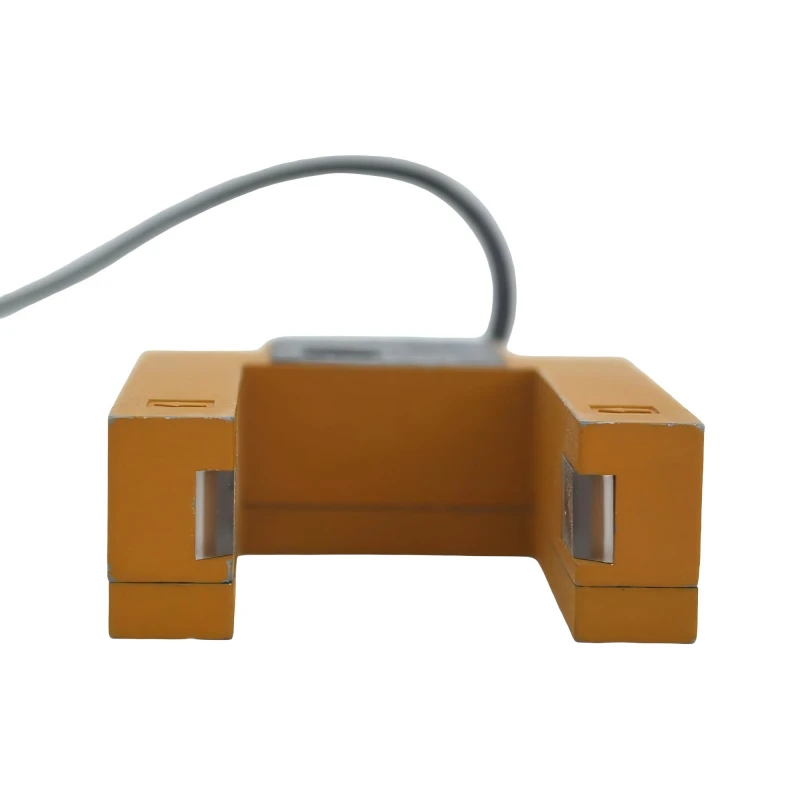

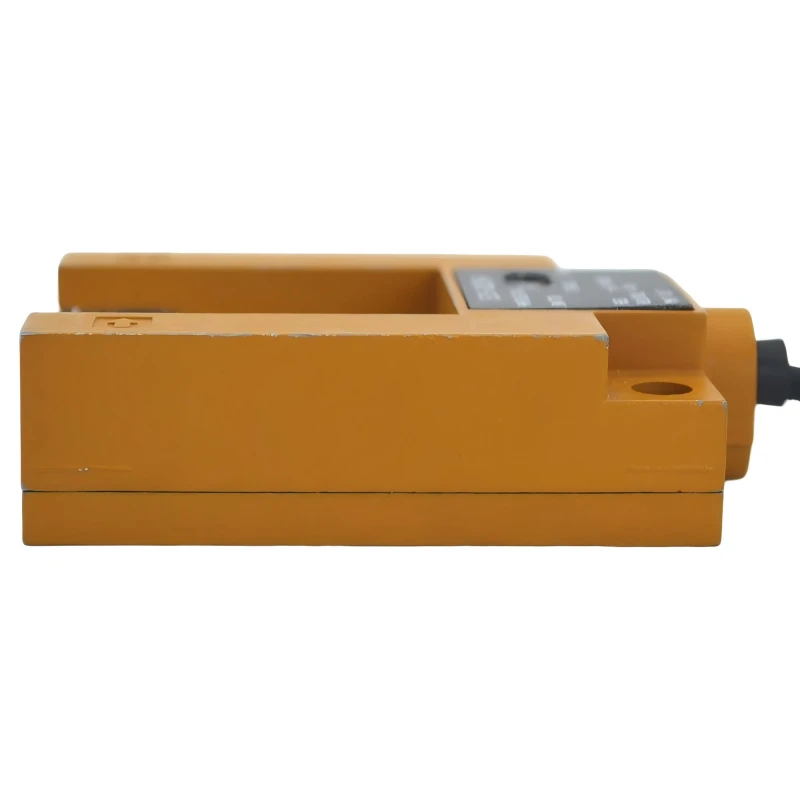

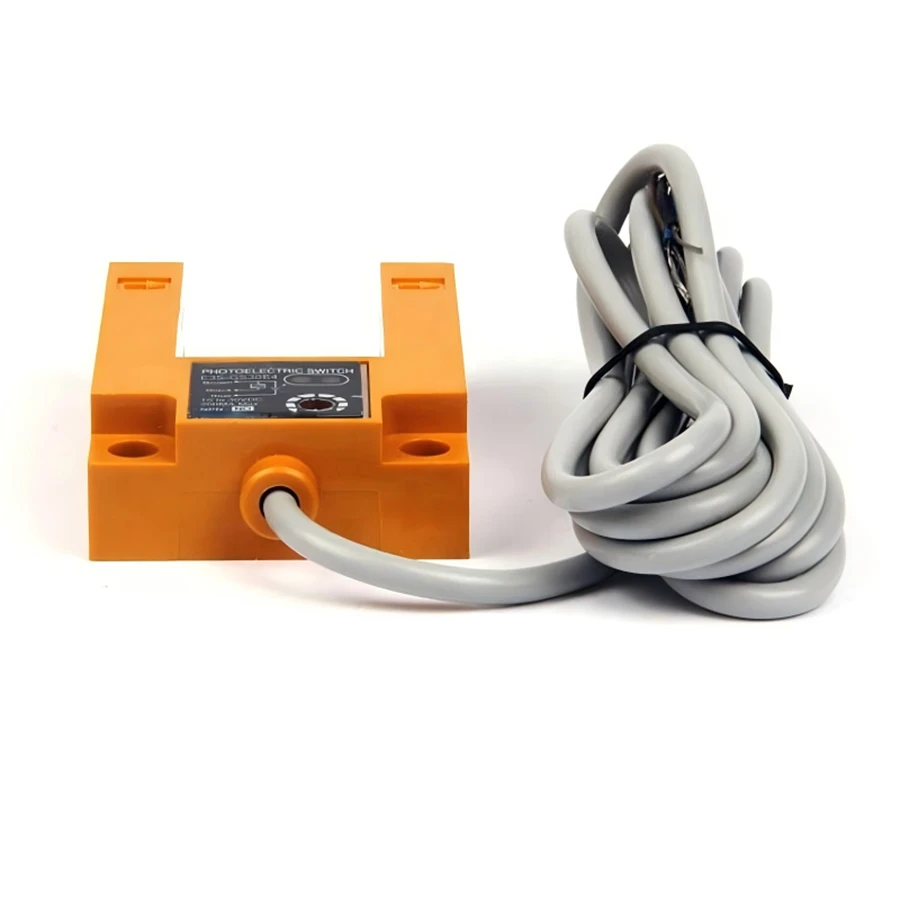

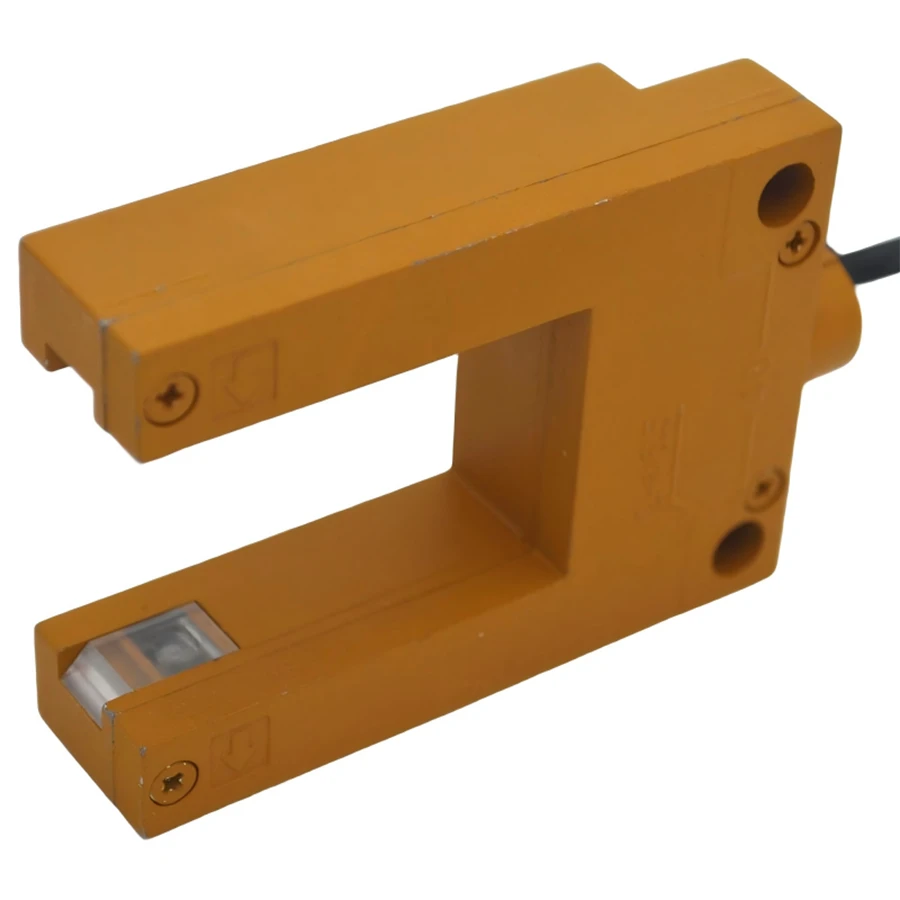

Elevator Leveling Sensor E3S-GS30E4
High Precision E3S GS30E34 Visible Light Photoelectric Switch For Mechanical Equipment
| Elevator Wire Rope Sensor Technical Specification | ||
|---|---|---|
| Detection Method | Trough/Utype | |
| Model | DC type NPN | E3S-GS30E4 |
| E3S-GS30E2 | ||
| E3S-GS30E42 | ||
| DC type PNP | E3S-GS30P4 | |
| E3S-GS30P2 | ||
| E3S-GS30P42 | ||
| Examination Range | 30mm | |
| Detection Range Adjustment | Sensitivity adjuster | |
| Detection Target | Opaque object | |
| Response Time | 1ms | |
| On Delay | 1.5ms | |
| Light Source | Infrared light 660nm | |
| Voltage | DC type: DC12-24V（6-36V）pulsation（P-P）below 10%, AC type: AC110-220V（90-250V) 50/60Hz | |
| Withstand Voltage | AC1000V 50/60Hz 1min between the charging part and the outer casing | |
| Voltage Effect | Rated power supply voltage range within 15%, rated power supply voltage value, ±10％ detection distance | |
| Current Consumption | N.P type: 20mA or less, type A: 1.7mA or less | |
| Control Output | N.P type: 300mA or less, A type: 400mA or less, J type: 2A or less (contact life: 100,000 times) | |
| Loop Protection | N.P.D type: reverse connection protection, surge absorption, load short circuit protection, type A: surge absorption | |
| Ambient Temperature and Humidity | During operation and storage: -30~+65°C (no ice, no condensation), 35-95% RH | |
| Temperature Effect | Temperature range -30~+65°C, +23°C, ±15% detection distance; Temperature range -25~+60°C, +23°C, ±10% detection distance | |
| Insulation Resistance | 50MΩ or more (DC500 megohmmeter) between the charging part and the outer casing | |
| Material | Housing: ABS; Detection surface (lens): PMMA | |
| Protective Structure | IP67 (IEC specification) | |
