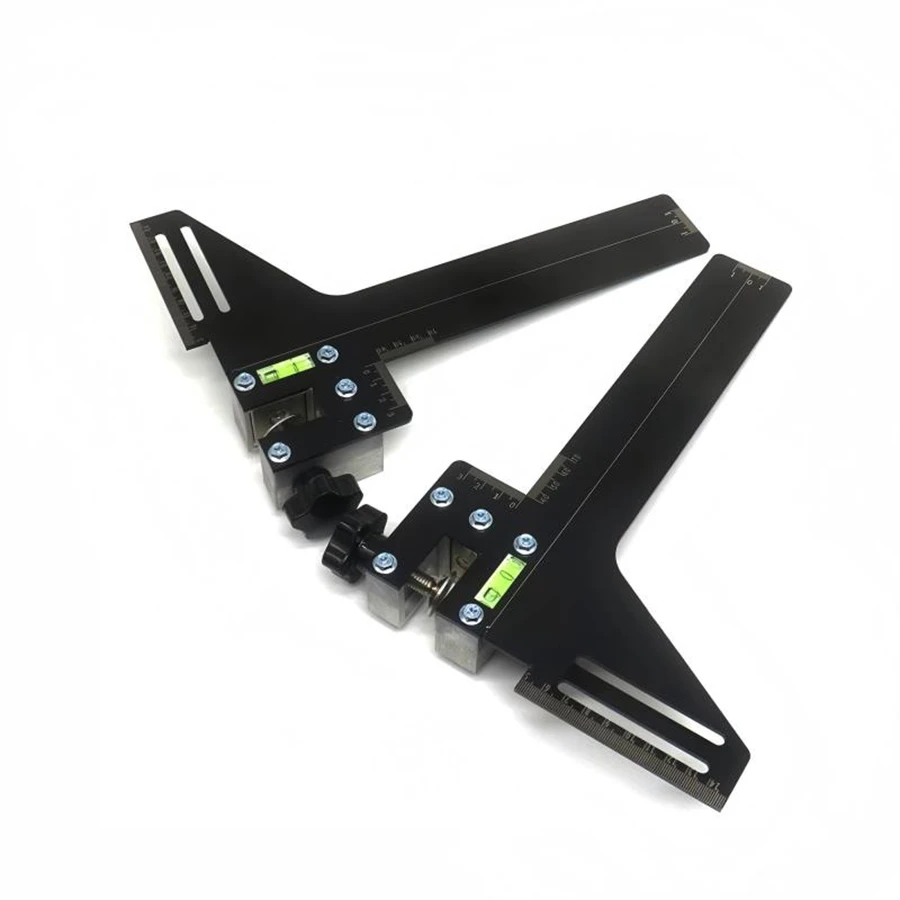

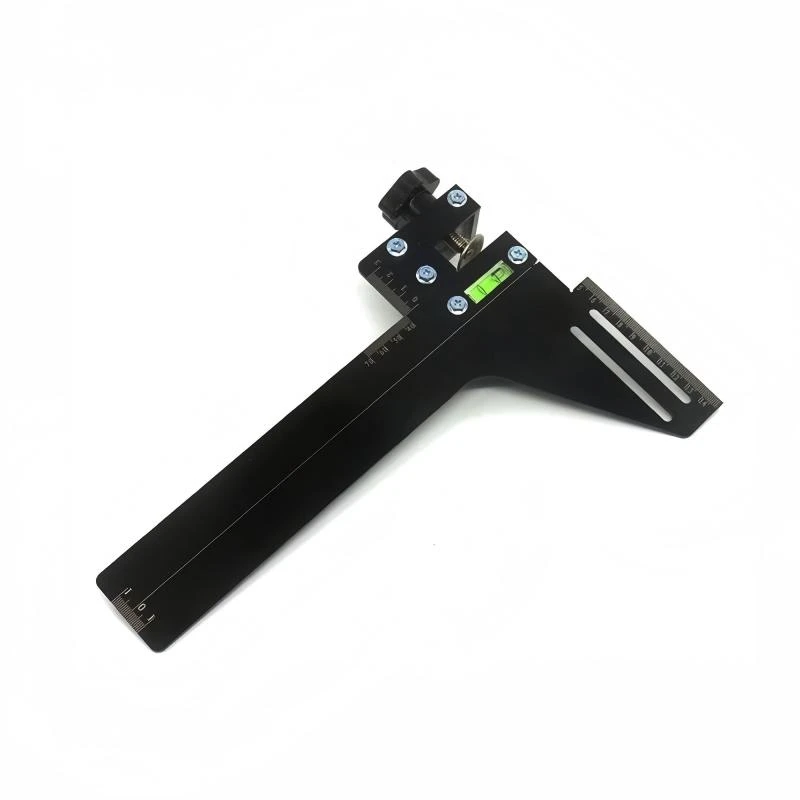

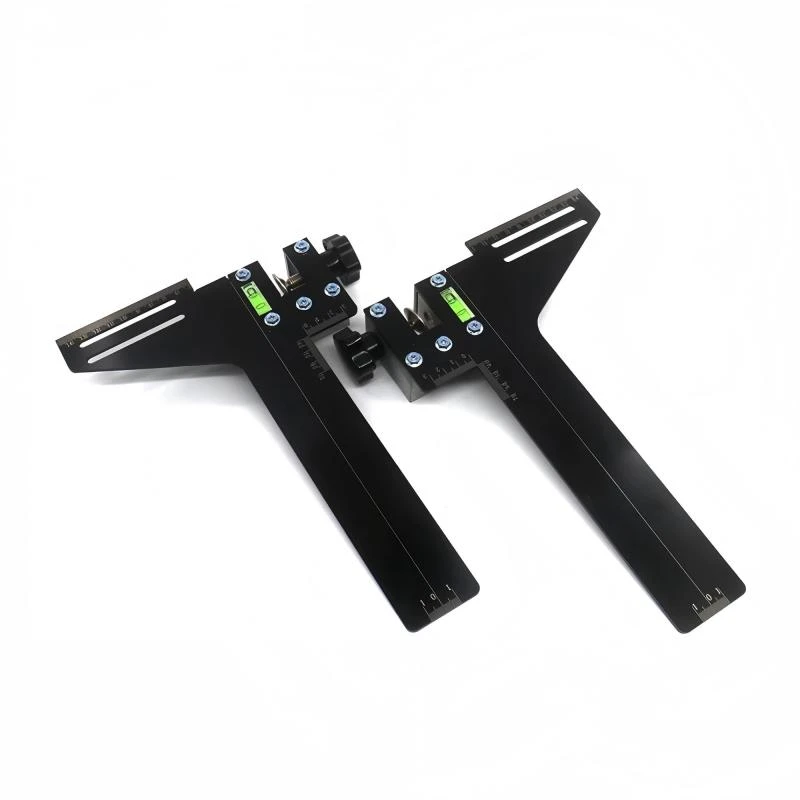

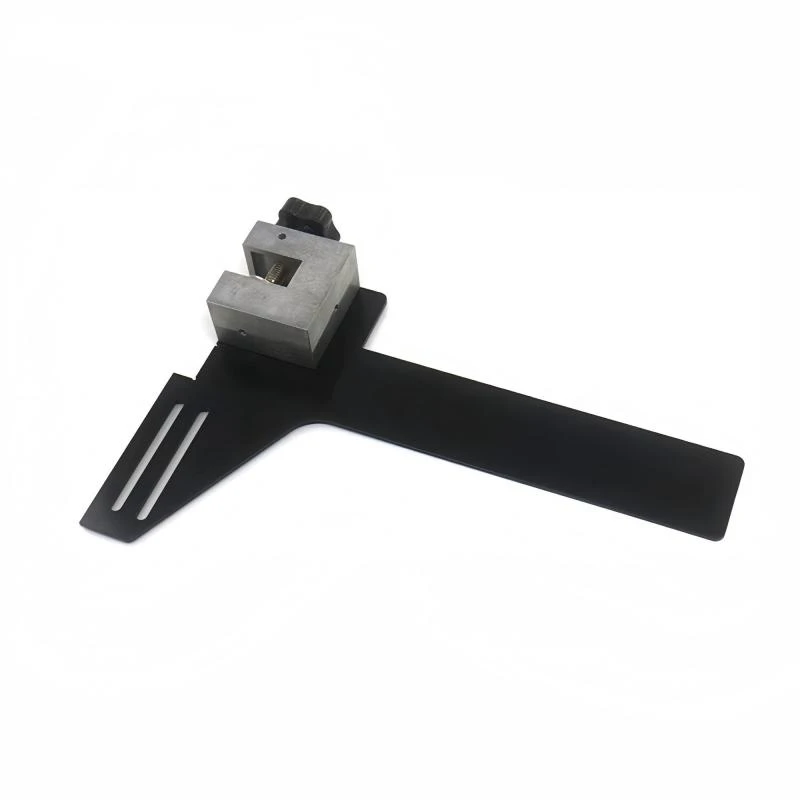

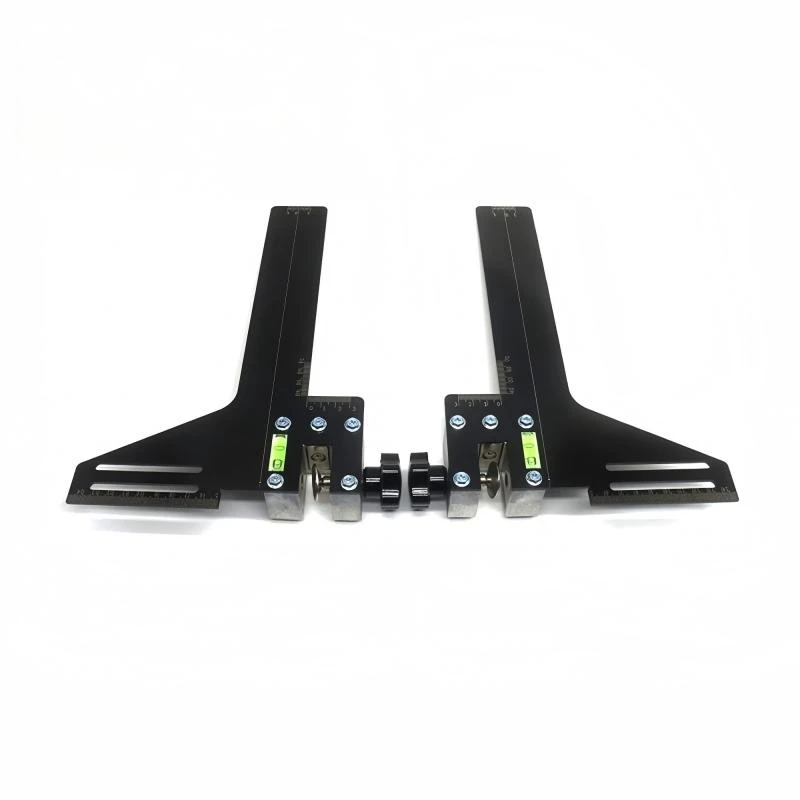

Elevator Rail Gauge

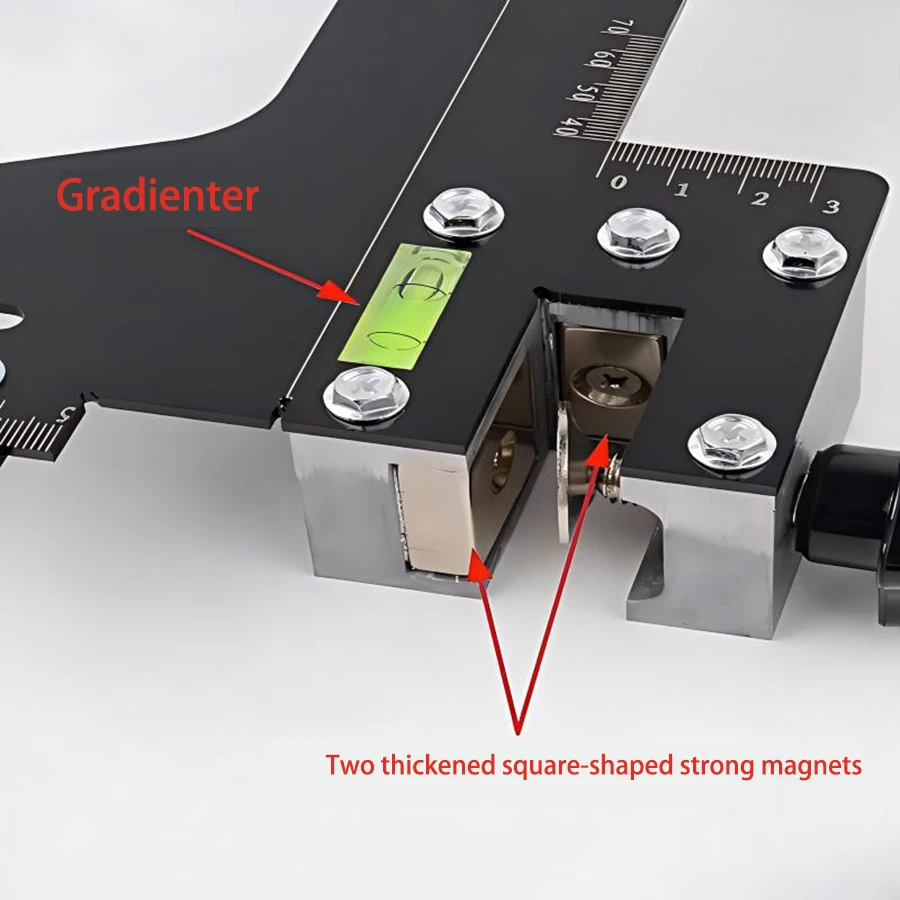

Lightweight Alloy Elevator Rail Straightening Ruler Strong Magnetic Absorption for Maintenance
| Key Technical Specifications | |
|---|---|
| Parameter category | Full specifications |
| Product name | Elevator guide rail alignment gauge / Guide rail positioning gauge / Rail alignment gauge |
| Compatible guide rail | Universal fit, suitable for lift guide rails with diameters ranging from 13 mm to 30 mm (T-shaped / hollow guide rails) |

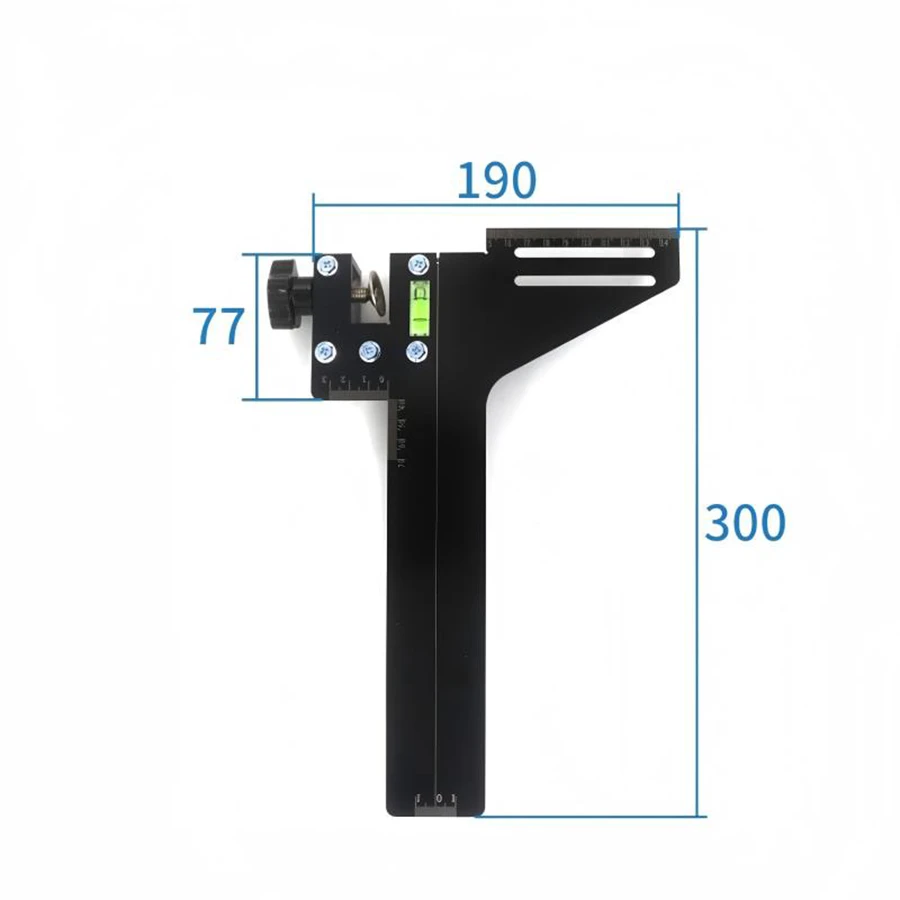

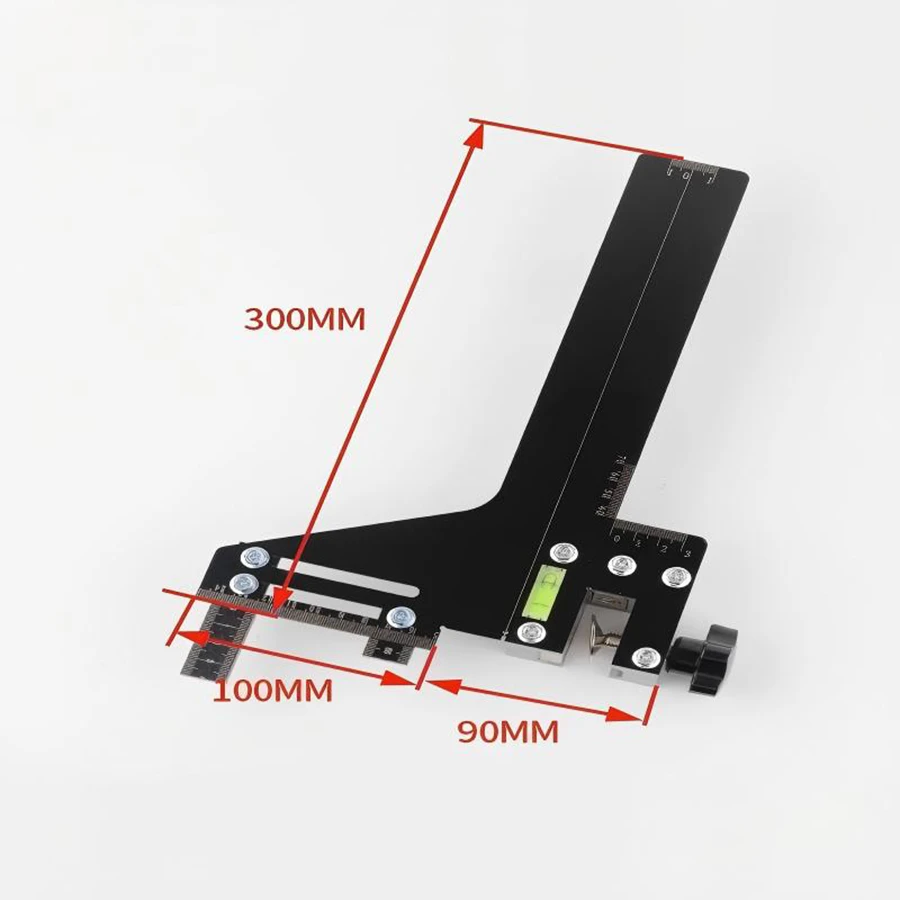

| Total height | 300 mm |
| Base width | 90 mm / 190 mm |
| Base length | 77 mm / 100 mm |
| Card slot opening | 20 mm |
| Slot depth | 37 mm |
| Scale accuracy | 0.5 mm / 1 mm |
| Mounting hole spacing | 77 × 190 mm |
| Net weight | Approximately 0.8 kg per pack |
