Elevator Travel Switch XCK-T

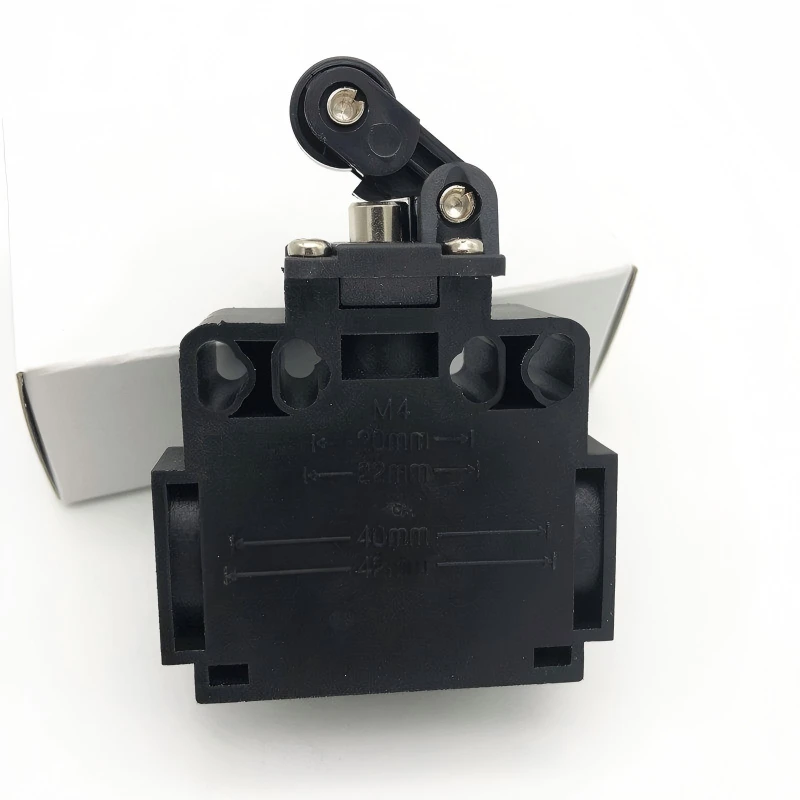

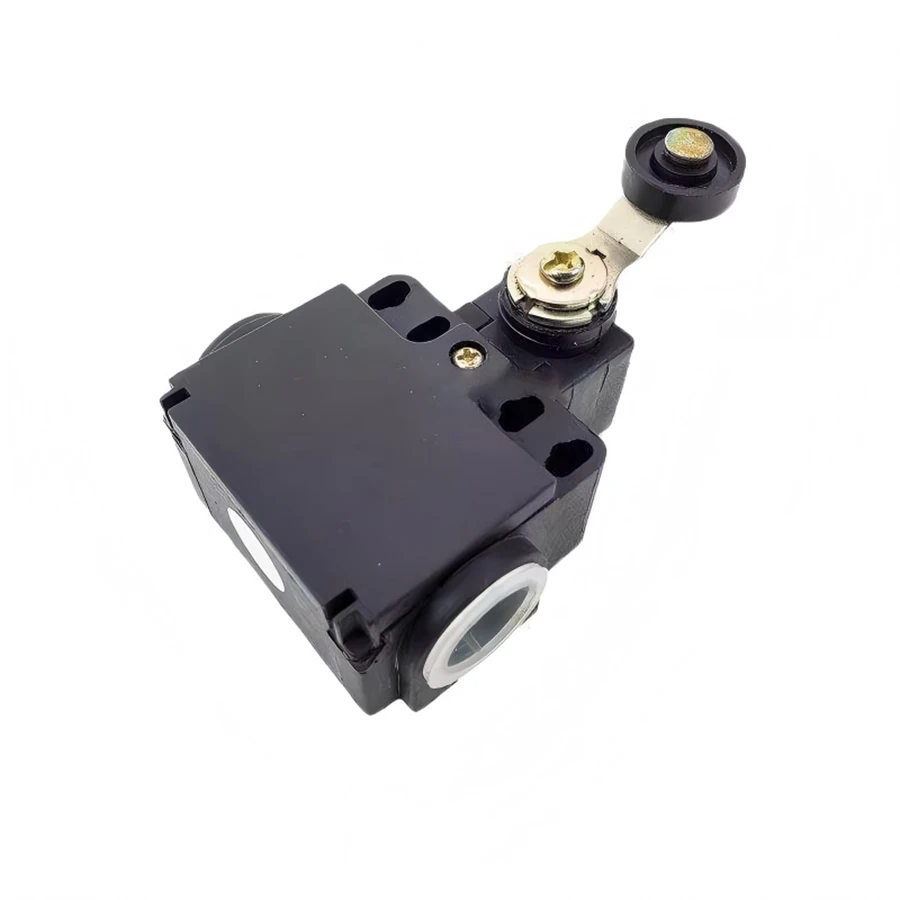

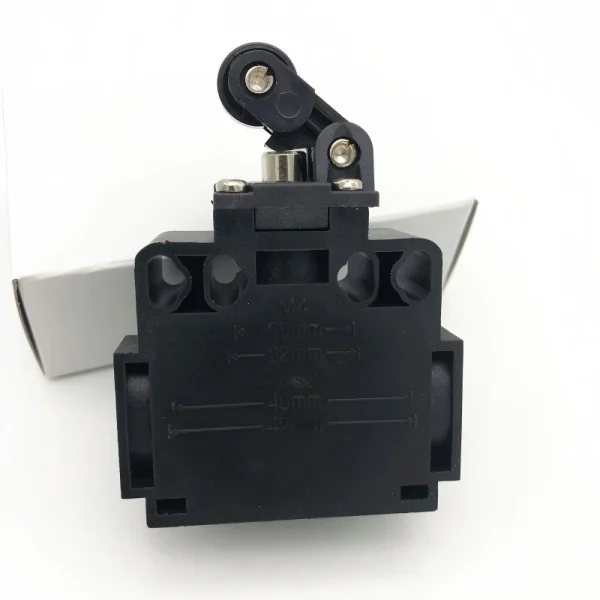

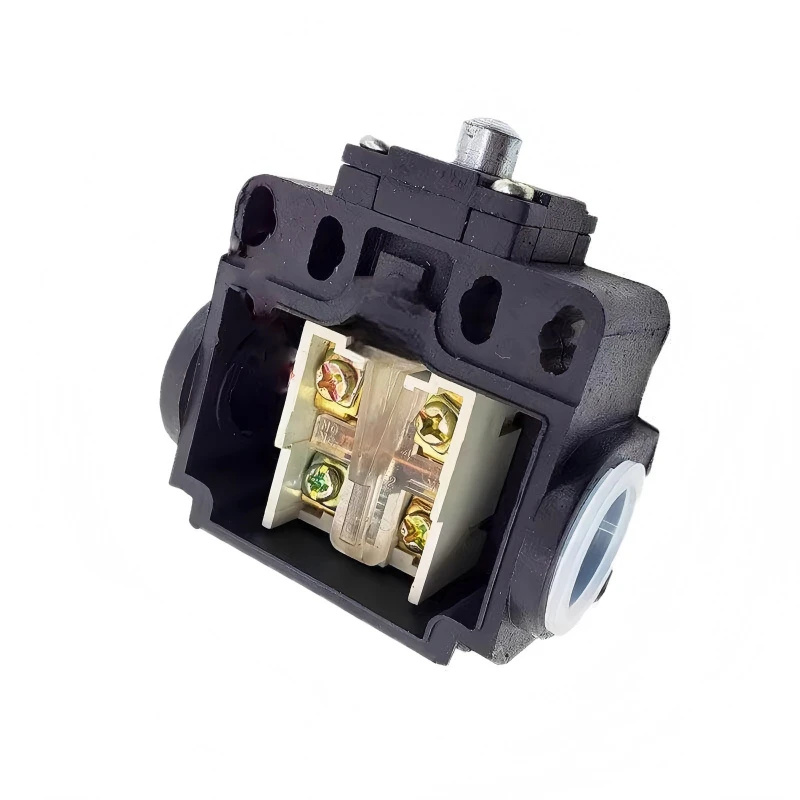

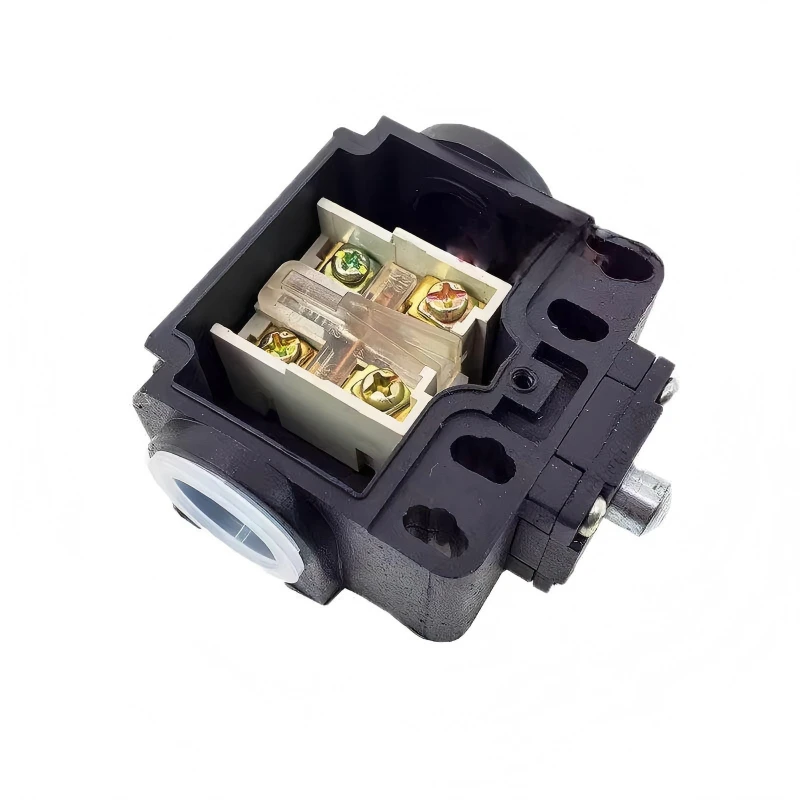

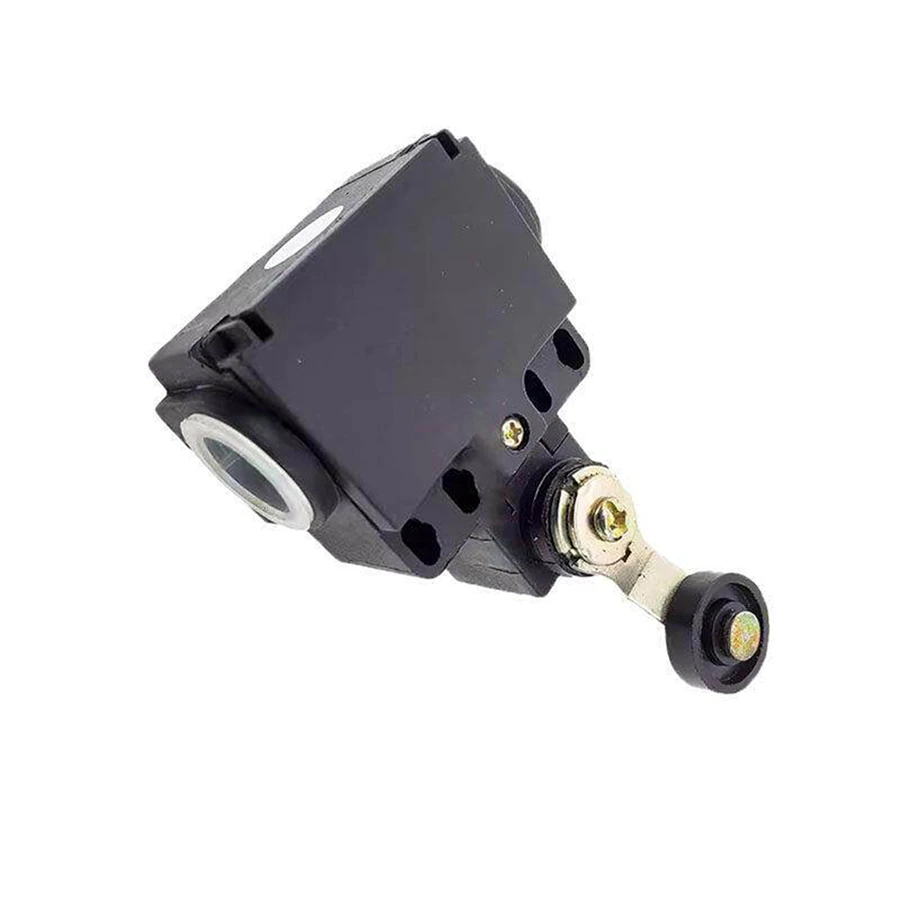

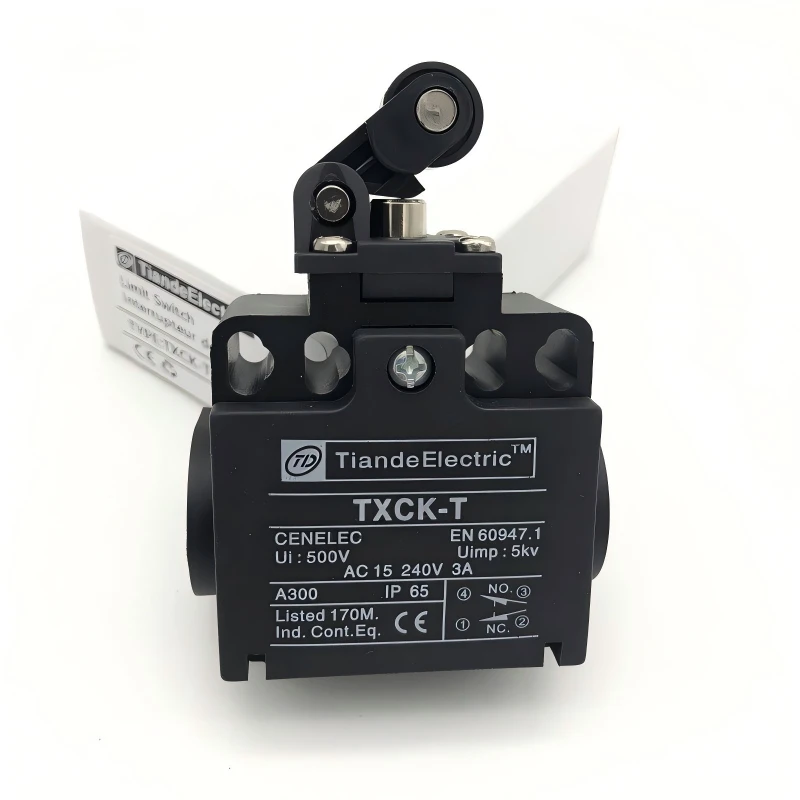

Quality XCK T Mechanical Position Sensor Compatible Replacement For Industrial Lift Equipment
| XCK-P/XCK-T Series Limit Switch Specification Sheet | |||
|---|---|---|---|
| Electrical Ratings | |||
| Load Capacity (Current in Amperes) | |||
| Rated Voltage | Load Type | NC Contact | NO Contact |
| AC 125/250 V | Resistance (non-inductive) | 5 A | 5 A |
| Lamp (non-inductive) | 1.5A @125V / 1A @250V | 0.7A @125V / 0.5A @250V | |
| Inductive | 3 A | 3 A | |
| Motor | 2A @125V / 1.5A @250V | 1A @125V / 0.8A @250V | |
| DC 8/14/30 V | Resistance | 5 A | 5 A |
| Lamp | 3 A | 3 A | |
| Inductive | 5A @8V / 4A @14-30V | 4 A | |
| Motor | 3 A | 3 A | |
| DC 125 V | Resistance | 0.4 A | 0.4 A |
| DC 250 V | Resistance | 0.2 A | 0.2 A |
| Electrical Characteristics | |||
| Parameter | Specification | ||
| Initial Contact Resistance | ≤ 25 mΩ | ||
| Insulation Resistance | ≥ 100 MΩ (at 500 VDC) | ||
| Withstand Voltage | 1,000 VAC (50/60 Hz) between independent terminals (1 min) | ||
| 1,500 VAC (50/60 Hz) between live parts, non-live parts, and ground (1 min) | |||
| Inrush Current | NC: < 24 A | ||
| NO: < 12 A | |||
| Mechanical & Operational Characteristics | |||
| Environmental & Mechanical Durability | |||
| Parameter | Specification | ||
| Vibration Resistance | 10–55 Hz, 1.5 mm double amplitude | ||
| Shock Resistance | Mechanical Endurance: 1,000 m/s² (～100G) | ||
| Misoperation Endurance: 300 m/s² (～30G) | |||
| Actuator Specifications (by Model) | ||||||
|---|---|---|---|---|---|---|
| Model Series | Operating Force (OF, Max) | Release Force (RF, Min) | Pretravel (PT, Max) | Overtravel (OT, Min) | Differential Travel (MD, Max) | Operating Position (OP) |
| XCK-P118/T118 | 500 g | 50 g | 18°–28° | 30° | 14° | — |
| XCK-P145/P149/P155/T149 | 450 g | 40 g | 18°–28° | 30° | 14° | — |
| XCK-P110/T110 | 700 g | 150 g | 2 mm | 4 mm | 0.8 mm | 18 ± 0.5 mm |
| XCK-P102/T102 | 700 g | 150 g | 2 mm | 4 mm | 0.8 mm | 28.2 ± 0.8 mm |
| XCK-P121/P127/T121 | 450 g | 80 g | 4 mm | 5 mm | 1.6 mm | 37 ± 0.8 mm |
| XCK-P106/T106 | 150 g | — | 30 mm | — | — | — |
| Dimensional Specifications | |||
|---|---|---|---|
| Parameter | Specification | ||

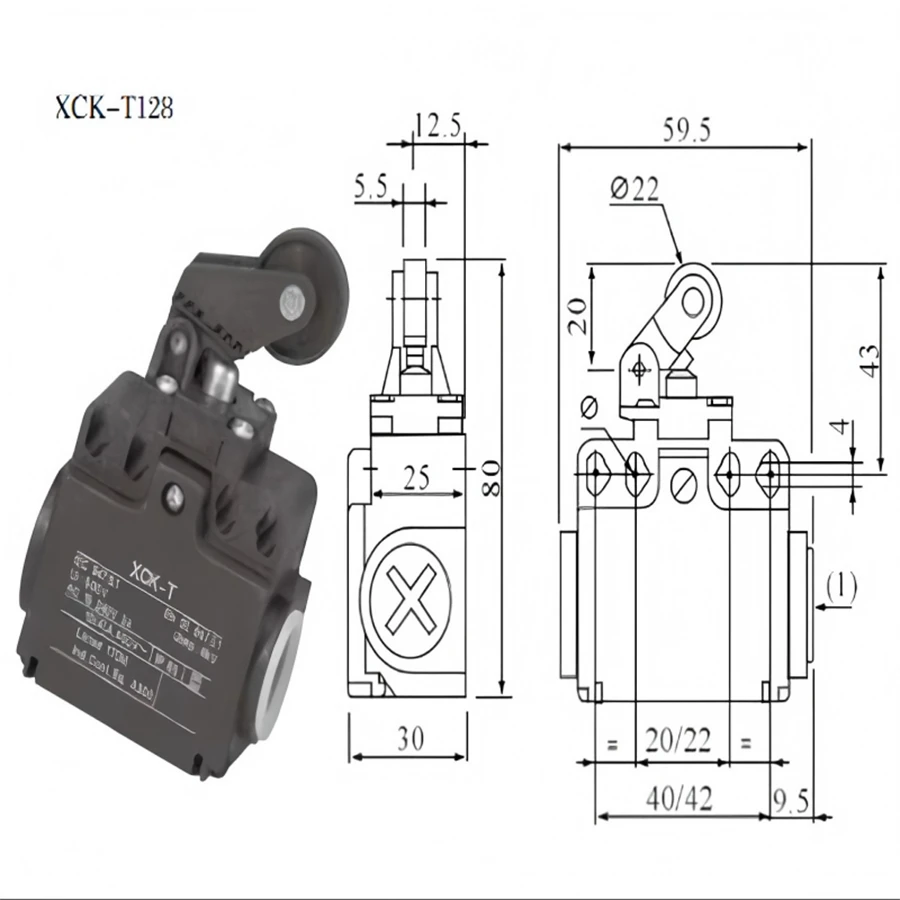

| Housing Dimensions (common base) | Width: 30 mm | ||
| Depth: 25 mm | |||
| XCK-T128 Actuator | Total Height: 80 mm | ||
| Roller Arm: Ø22 mm, height 43 mm | |||
| XCK-P Series Adjustable Lever | Total Height Range: 132–177 mm | ||
| Lever Adjustment: 40–85 mm / 62–107 mm | |||
