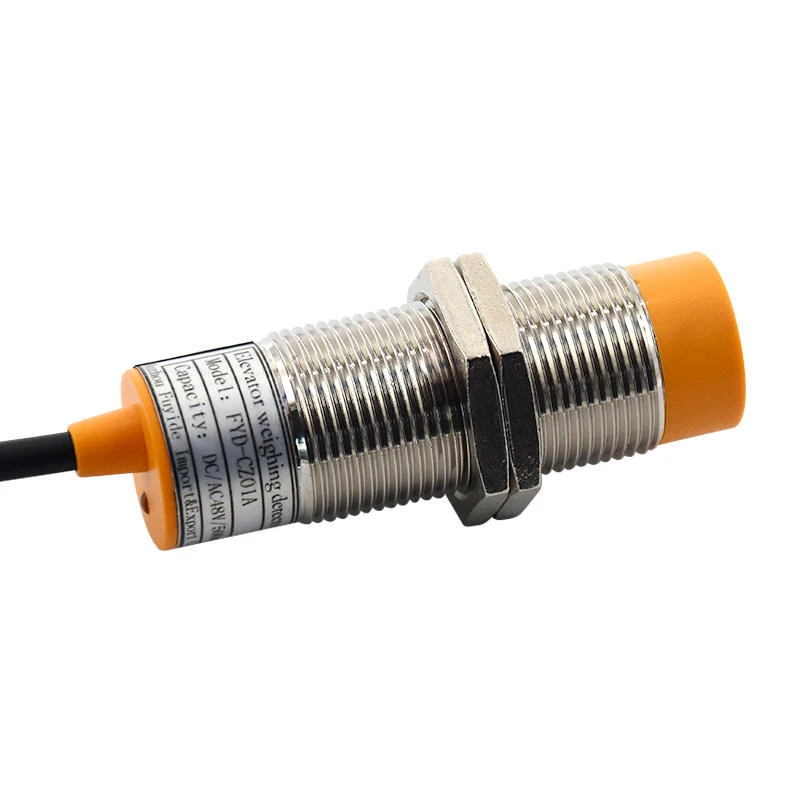

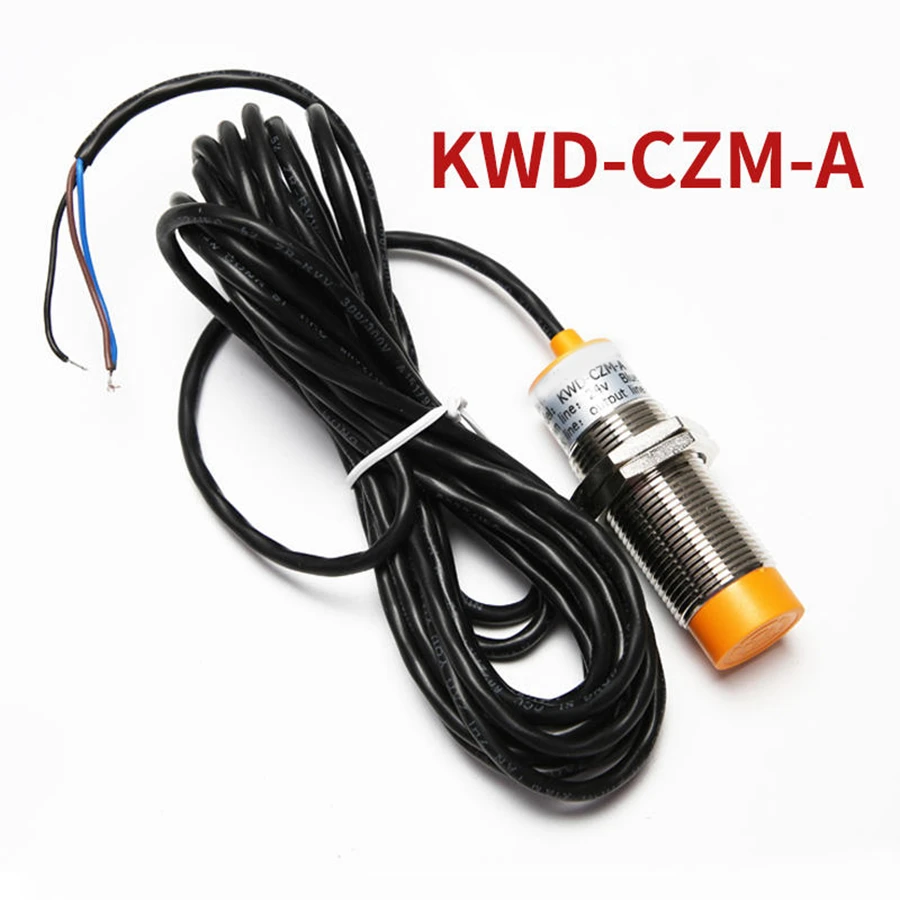

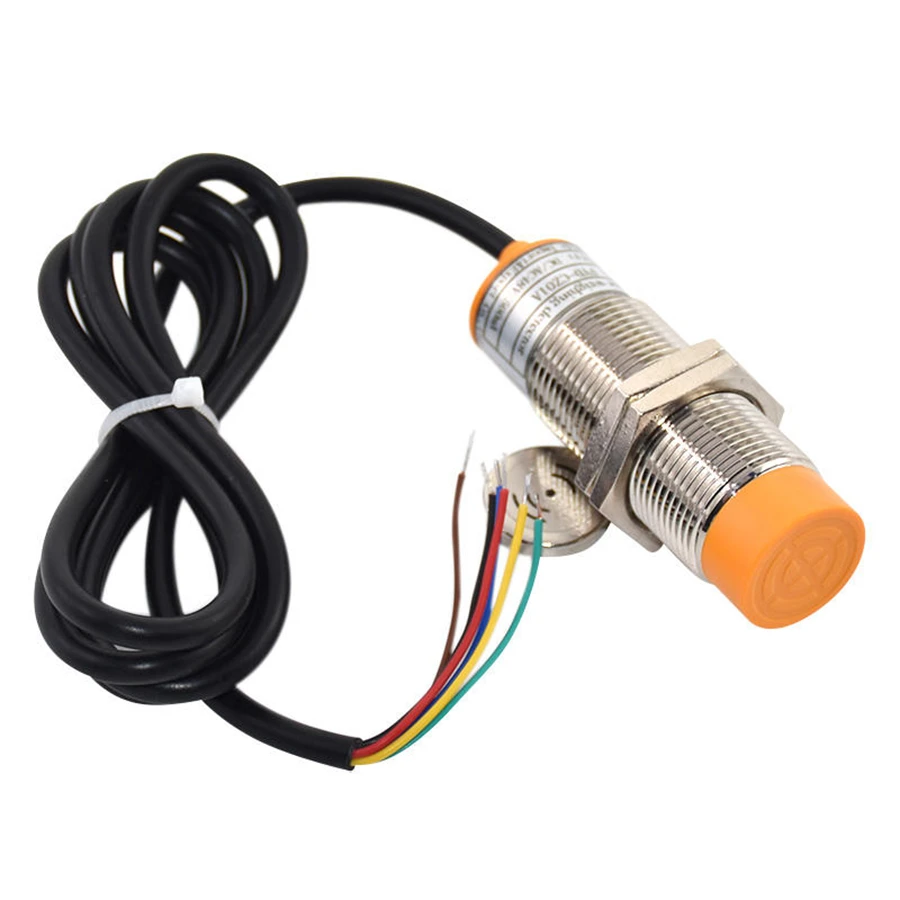

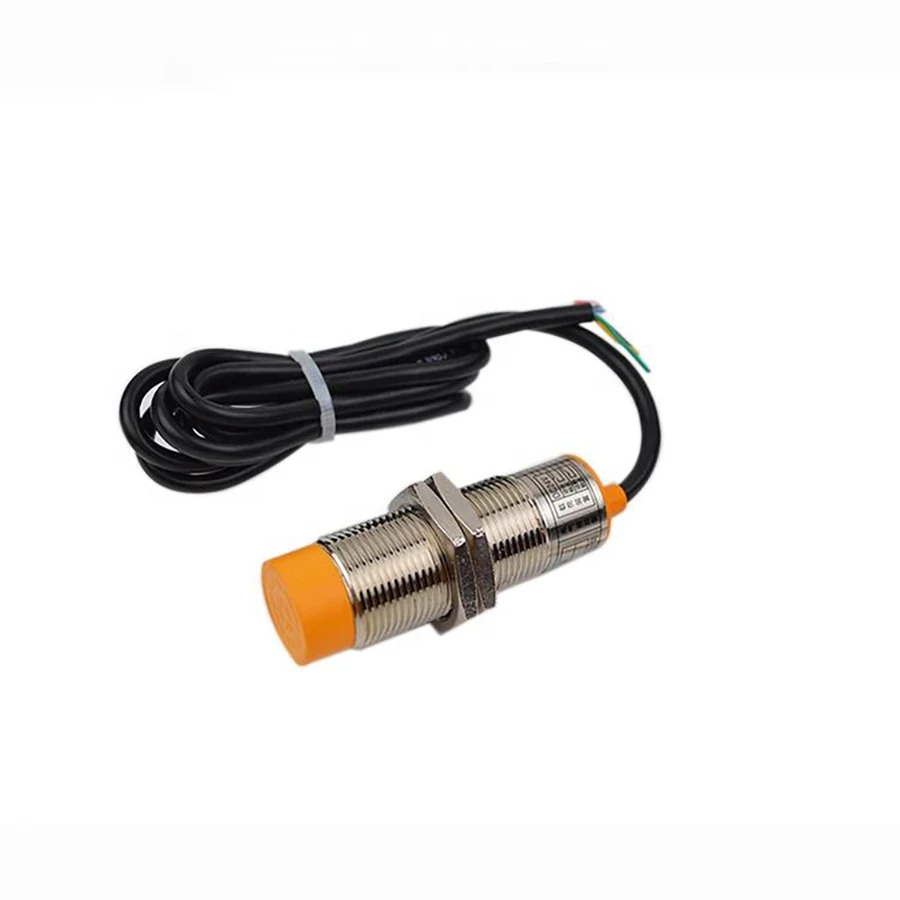

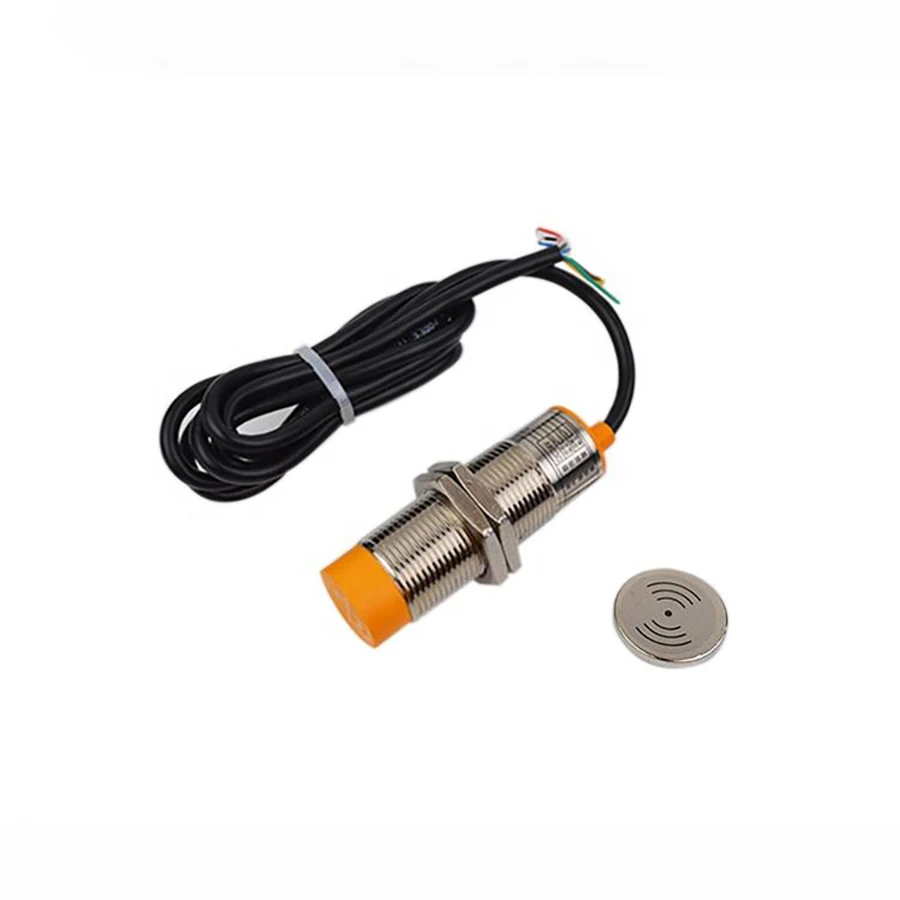

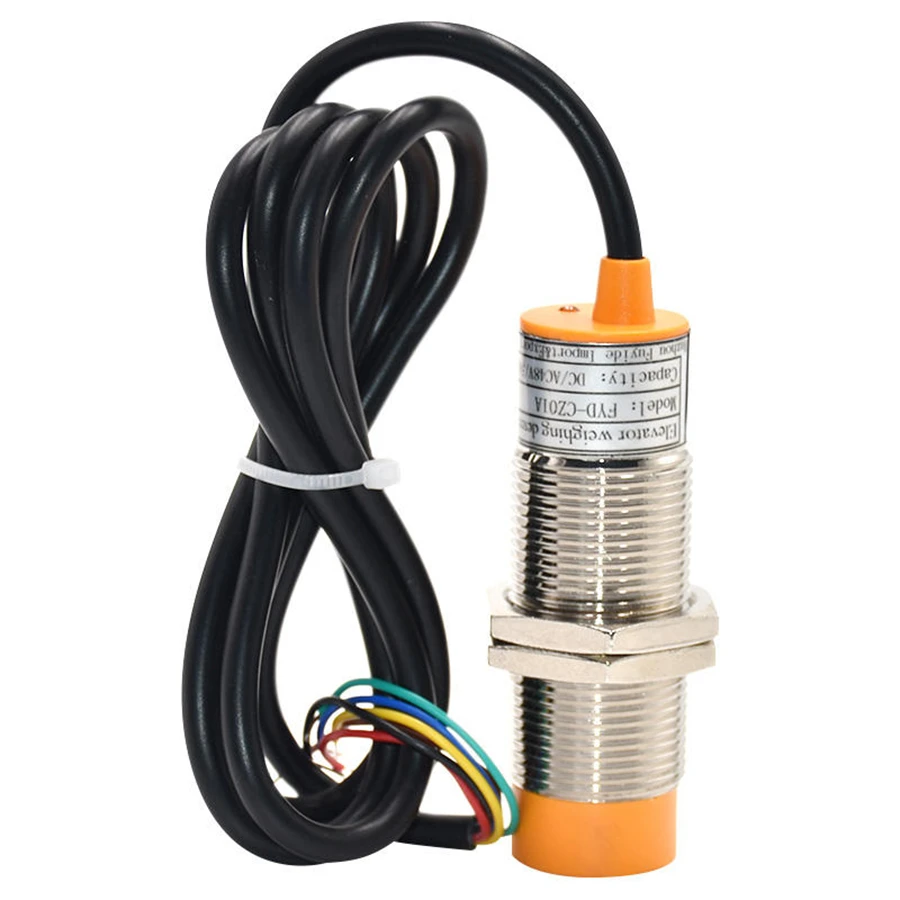

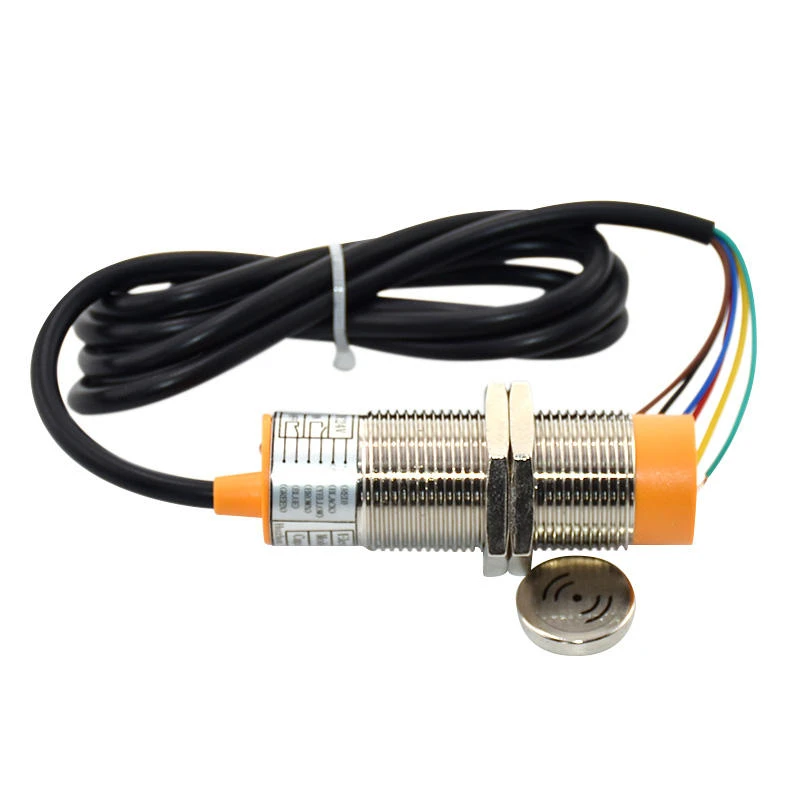

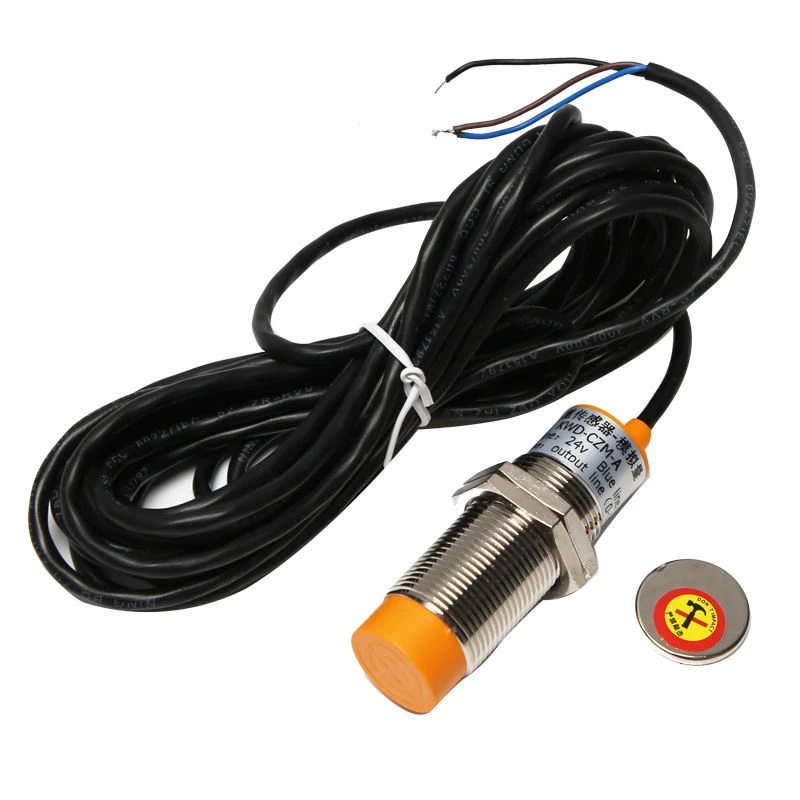

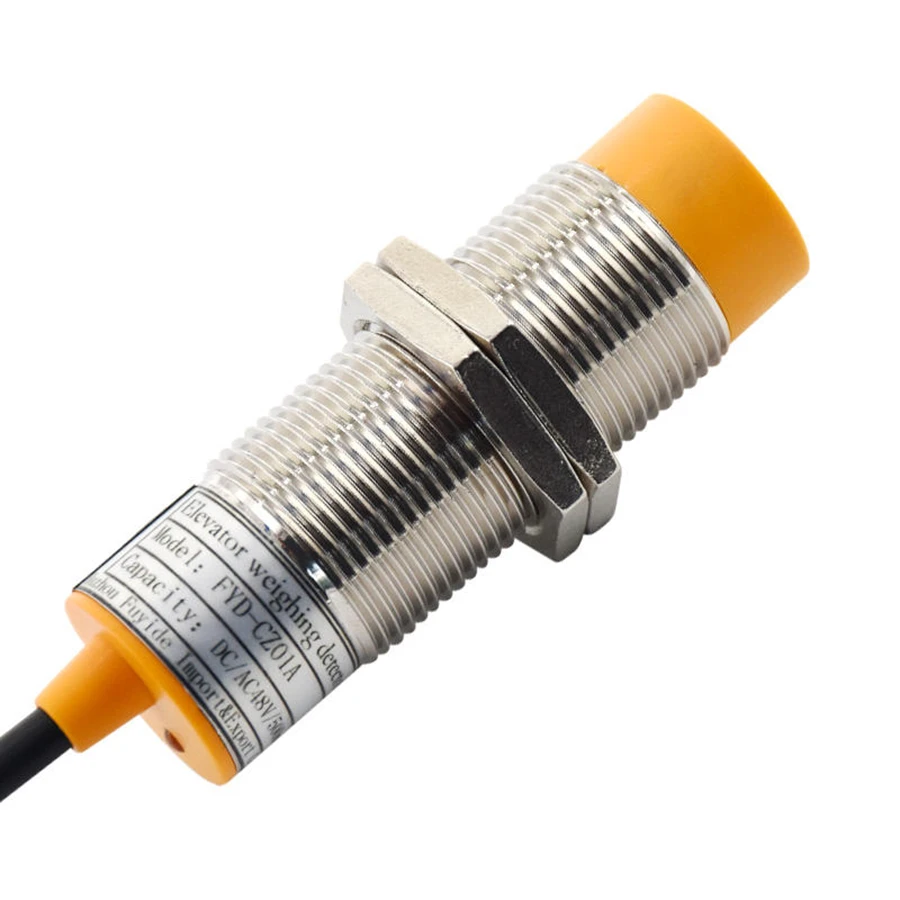

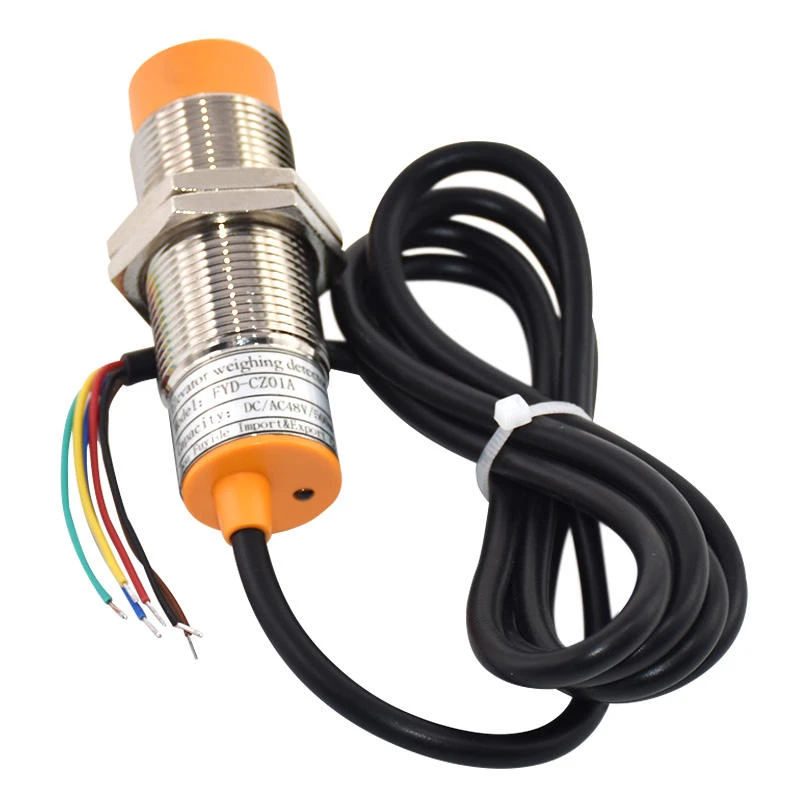

Elevator Weight Induction Switch
Universal Compatible Black Elevator Weight Monitoring Load Sensing Switch
| Parameter | Specification |
|---|---|
| Supply Voltage | DC 11 V ~ 30 V ±5% |
| Current Consumption | <30 mA |
| Detected Distance | 12 mm |

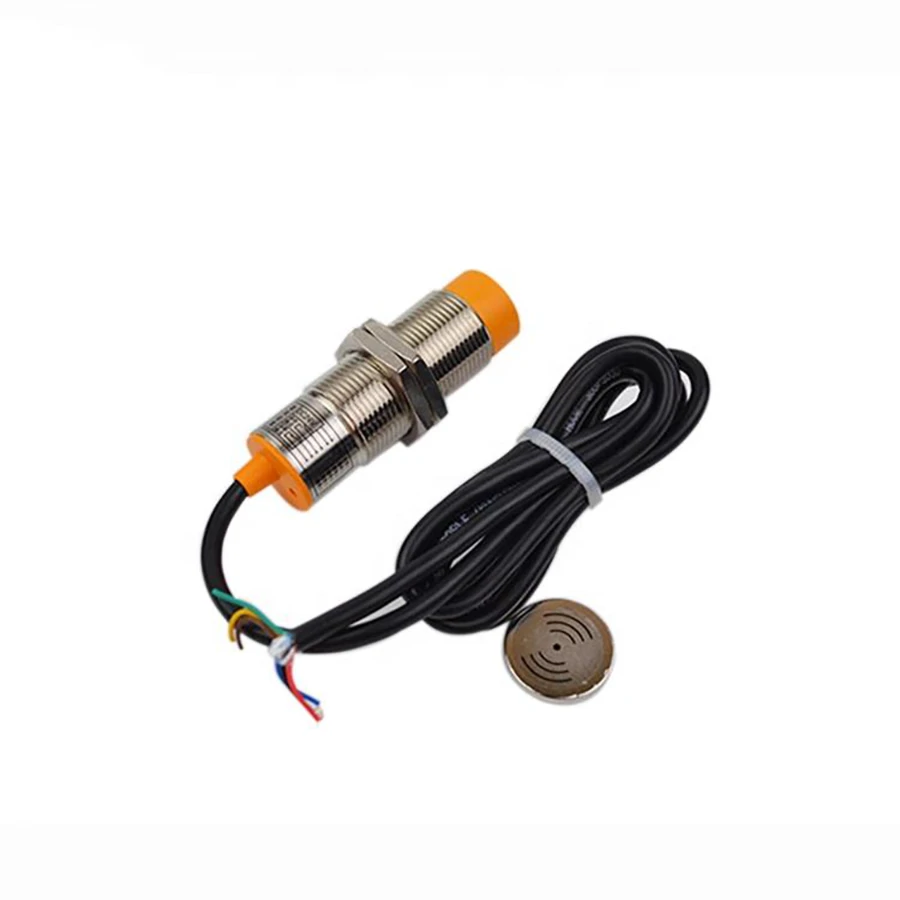

| Object detection | 20 × 20 × 5 mm magnet |
| Installation method | Non-embedded |
| Response time | <4 ms |
| Control output | Load voltage 250 V / AC 220 V / DC; LOAD 10 μA–2 A |
| Indicator light | Action indicator light: red LED (dark–bright) |
| Contact rating | 60 VA |
| Withstanding voltage | 500 VAC 50/60 Hz 1 min |
| Ambient temperature | Work: -40℃ ~ +85℃; Storage: -40℃ ~ +100℃ |
| Ambient humidity | Work: 35~80% RH; Storage: 35~80% RH |
| Insulation resistance | Min: 20 MΩ (500 V DC) |
| Anti vibration | 10–50 Hz Up and down amplitude |
| Impact resistance | 10–55 Hz Amplitude fluctuation 1.5 m X, Y, Z each direction 2 h |
| IP Code | IP60 |
| Material | Brass chrome plated |
| Weight | About 55 g |
| Length | Default 1 m, customizable according to user needs |
