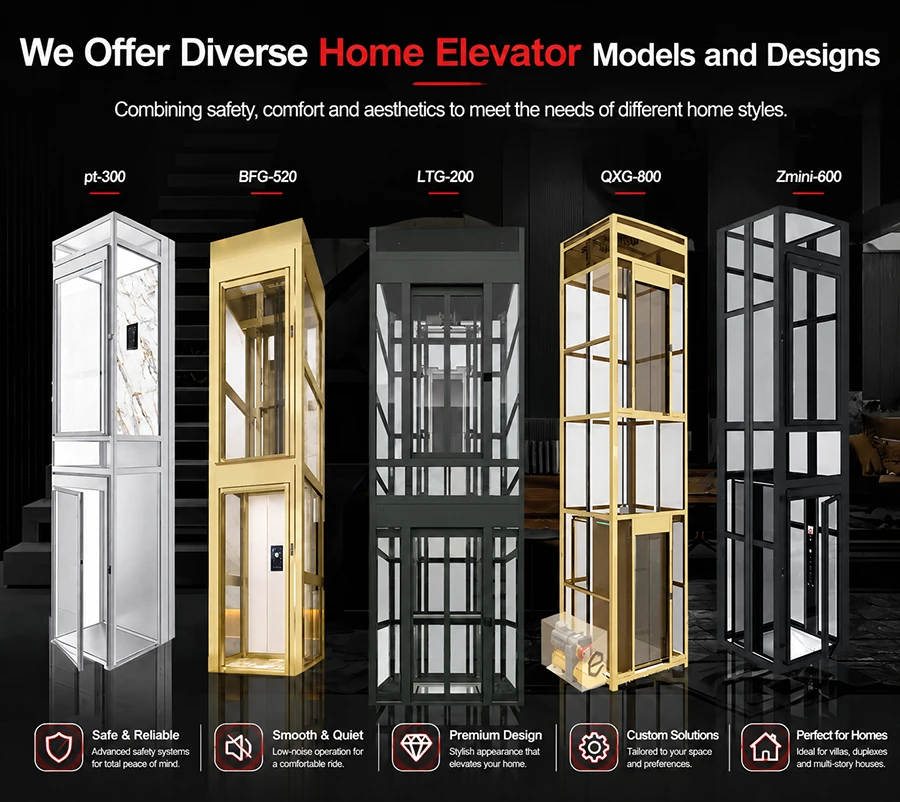

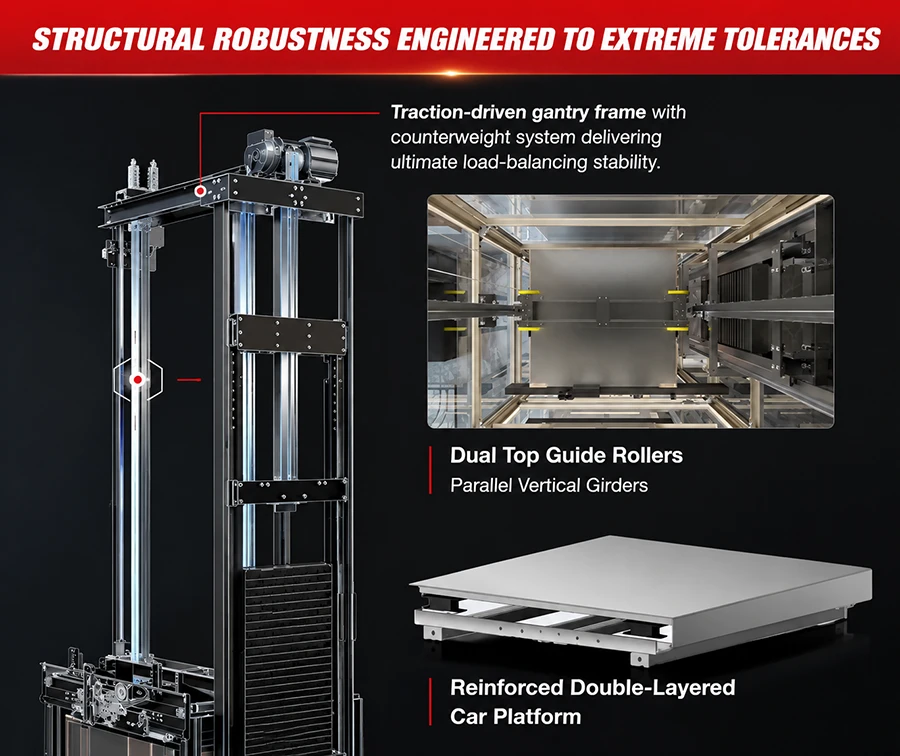

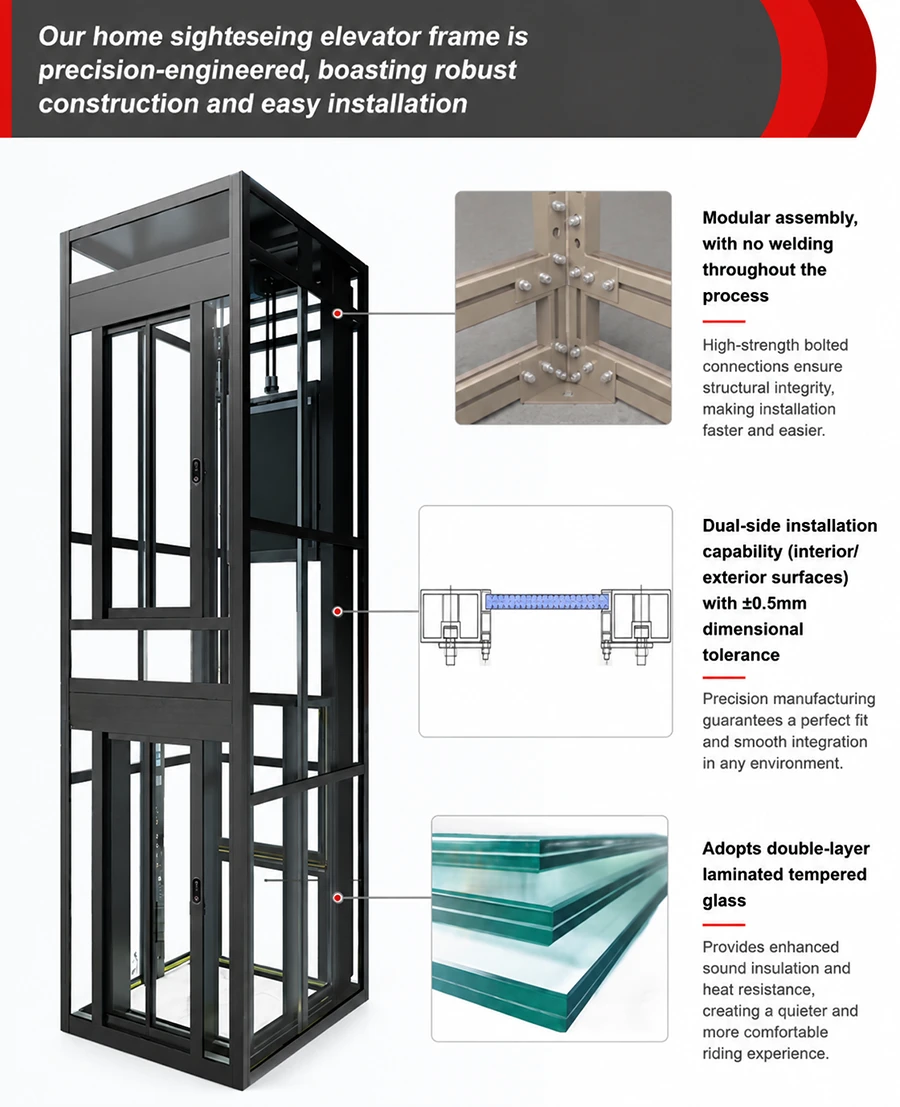

Gantry Frame Structure Sightseeing Home Elevator | LTG-200
- Running speeds 0.3m/s and 0.4m/s for villa installation
- 250kg, 320kg, 400kg load holds 3 to 5 family passengers

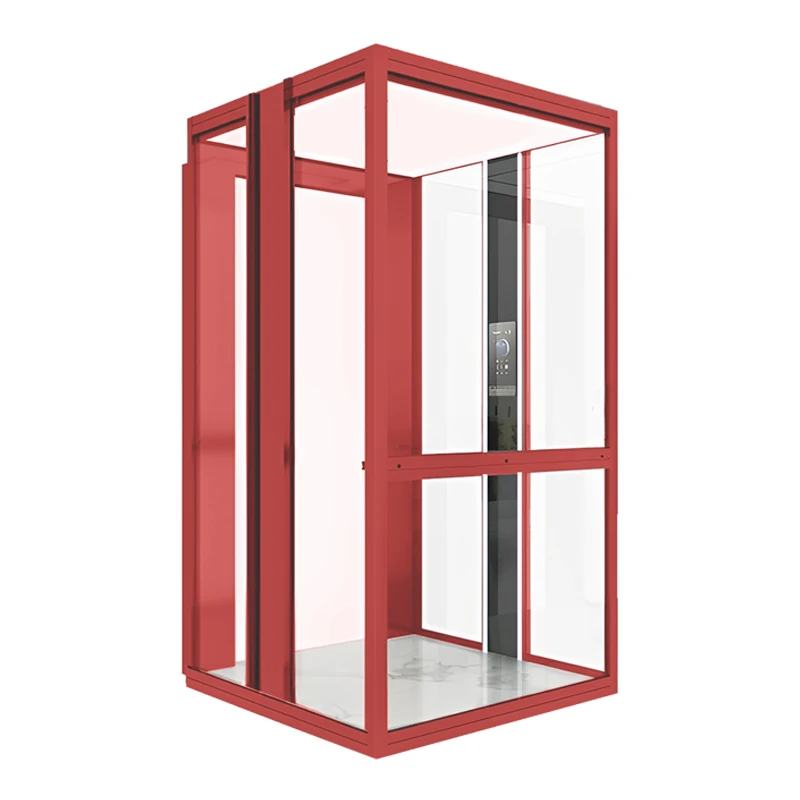

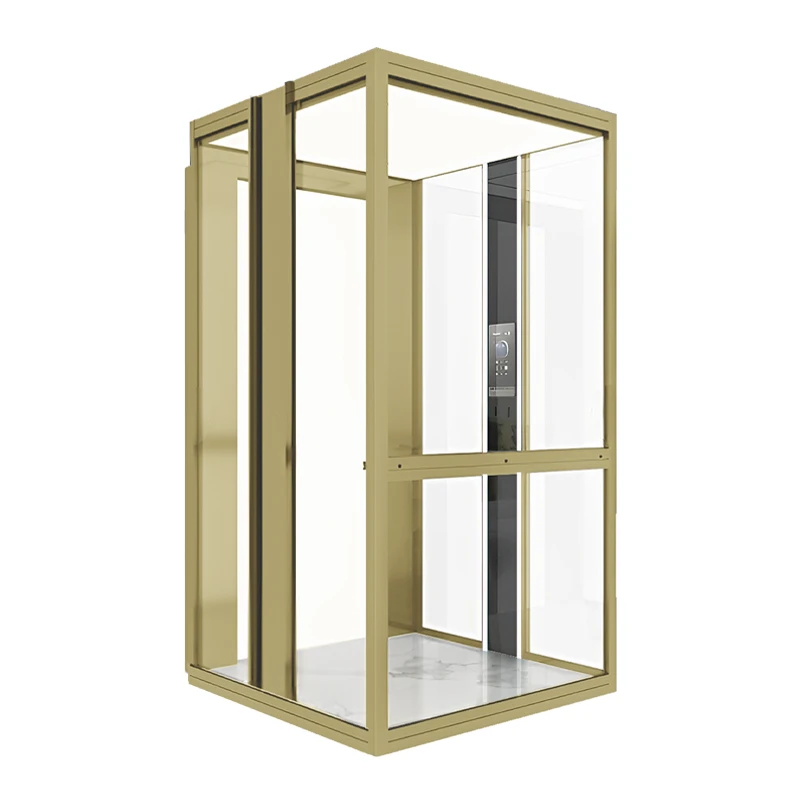

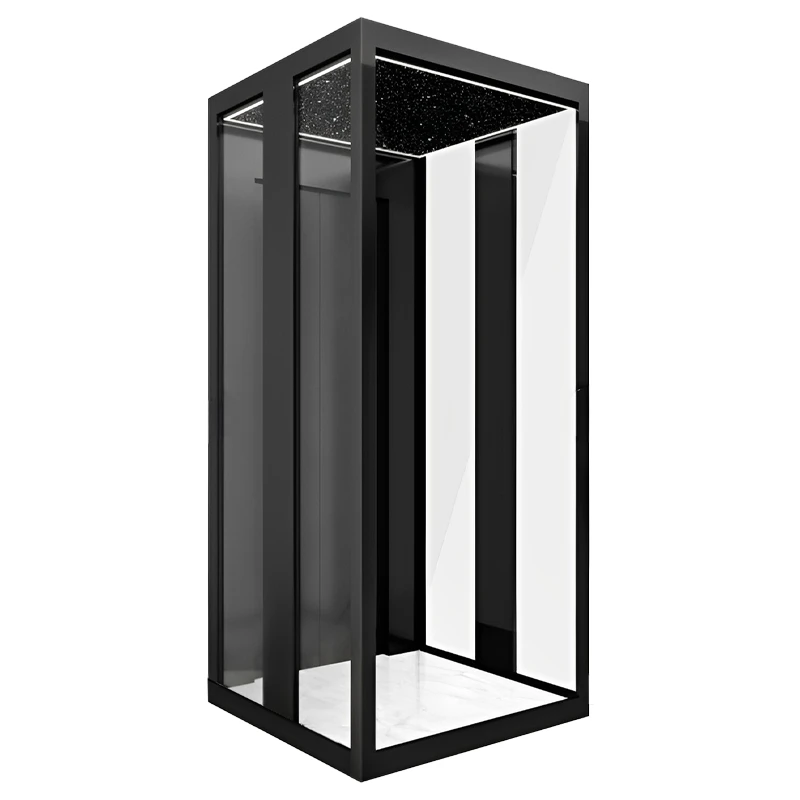

- Panoramic glass cabin offers great sightseeing views

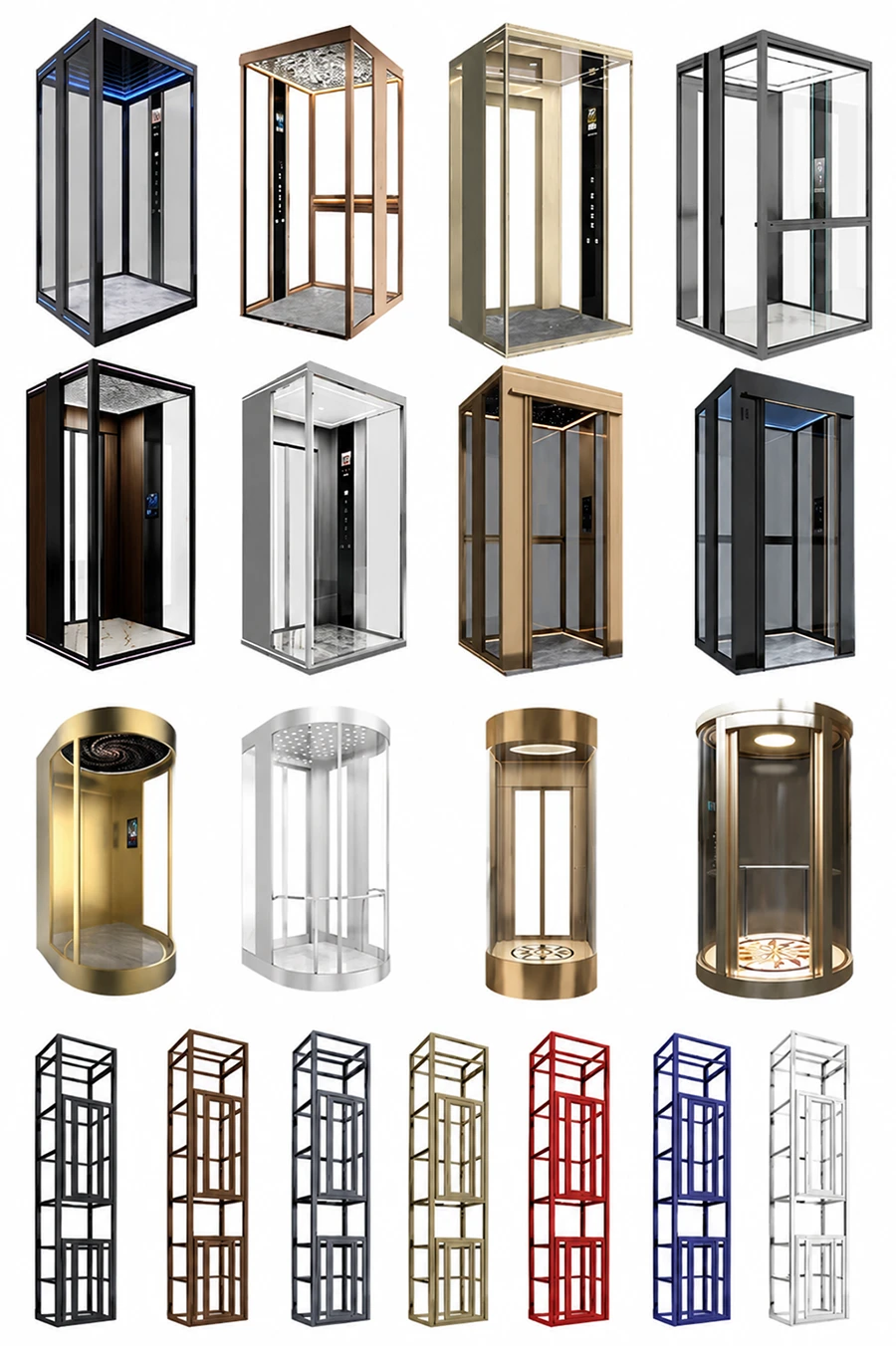

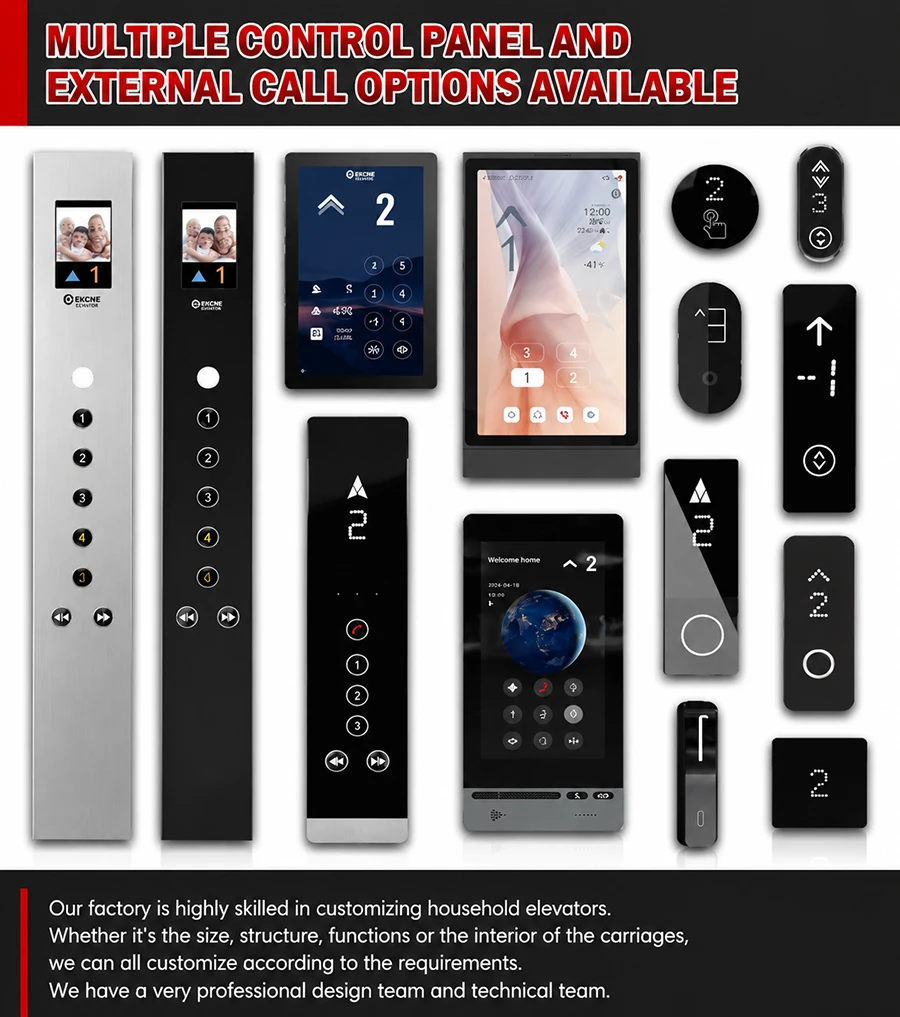

- Custom color, cabin size and functions with MRL self-contained shaft

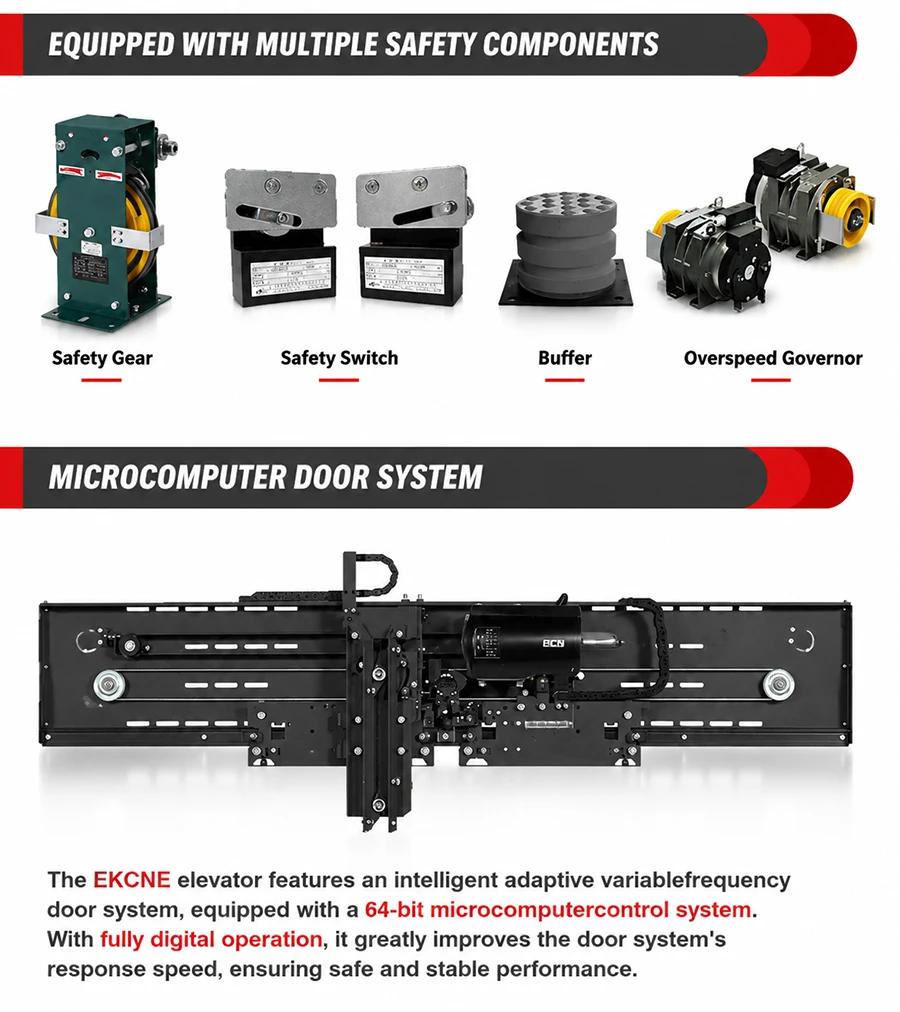

- Silent space-saving lift with CE ISO certification, sturdy and safe

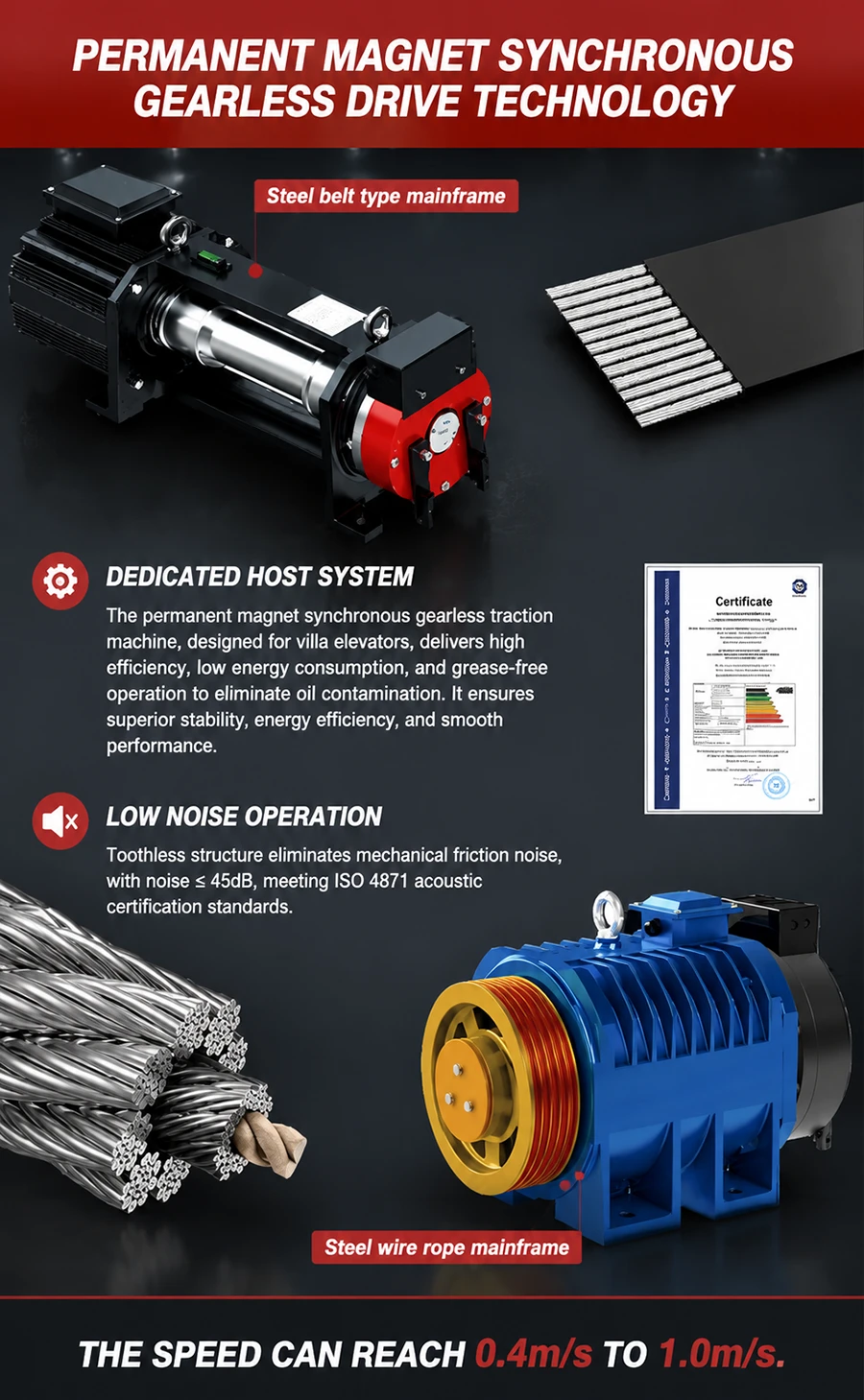

| Parameters Table of Gantry Traction Type Home Elevator (Counterweight Side-mounted) | |||
|---|---|---|---|
| Parameter | 260 kg (3-Person) | 320 kg (4-Person) | 400 kg (5-Person) |
| Load capacity (kg) | 260 | 320 | 400 |
| Capacity (people) | 3 | 4 | 5 |
| Door opening size (mm) | 700×2000 | 700×2000 | 700×2000 |
| Cabin dimensions (mm) | 1000×900×2200 | 1000×1000×2200 | 1200×1250×2200 |
| Hoistway dimensions (mm) | 1550×1200 | 1550×1400 | 1750×1500 |
| Top floor height (mm) | ≥2900 | ≥2900 | ≥2900 |
| Pit depth (mm) | ≥300 | ≥300 | ≥300 |
| Parameters Table of Gantry Traction Type Home Elevator (Counterweight placed at the end) | |||
|---|---|---|---|
| Parameter | 260 kg (3-Person) | 320 kg (4-Person) | 400 kg (5-Person) |
| Load capacity (kg) | 260 | 320 | 400 |
| Capacity (people) | 3 | 4 | 5 |
| Door opening size (mm) | 700×2000 | 700×2000 | 800×2000 |
| Cabin dimensions (mm) | 1150×750 | 1150×850 | 1350×1000 |
| Hoistway dimensions (mm) | 1500×1200 | 1500×1300 | 1700×1500 |
| Top floor height (mm) | ≥3200 | ≥3200 | ≥3200 |
| Pit depth (mm) | ≥200 | ≥200 | ≥200 |
| Parameter | Specification |
|---|---|
| Rated speed | 0.4 m/s |

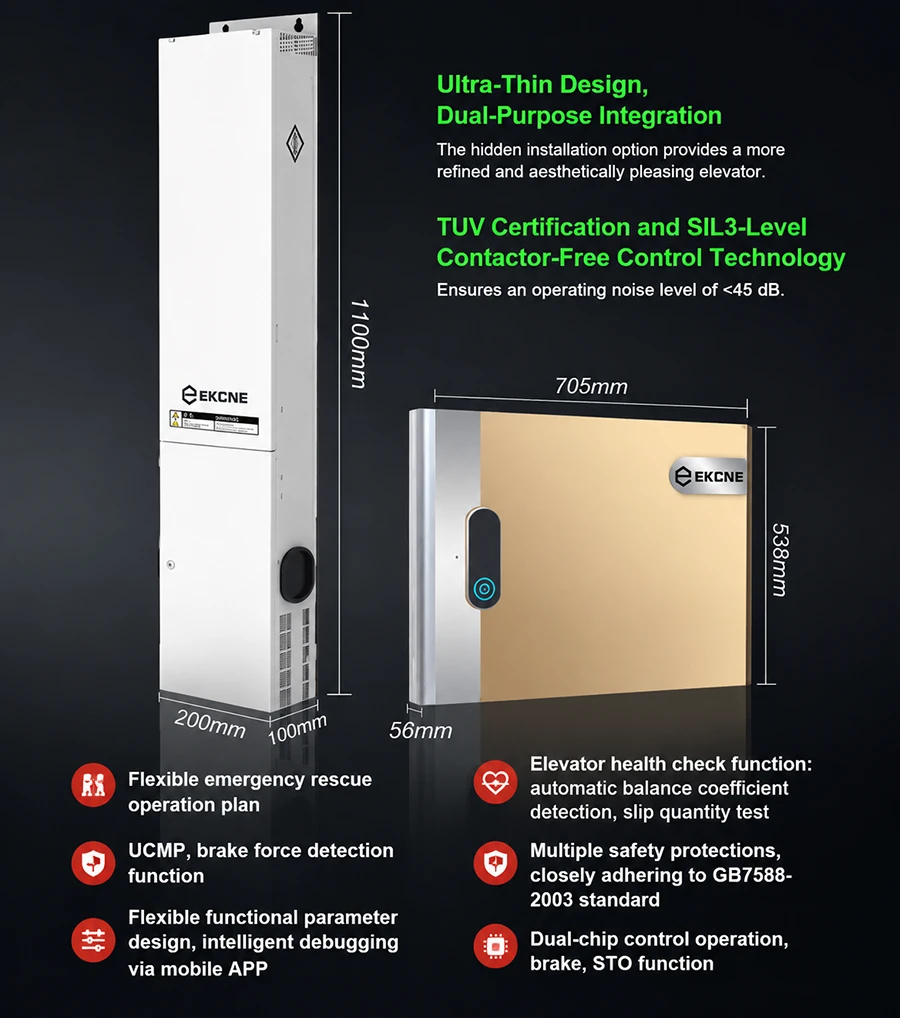

| Control mode | VVVF |

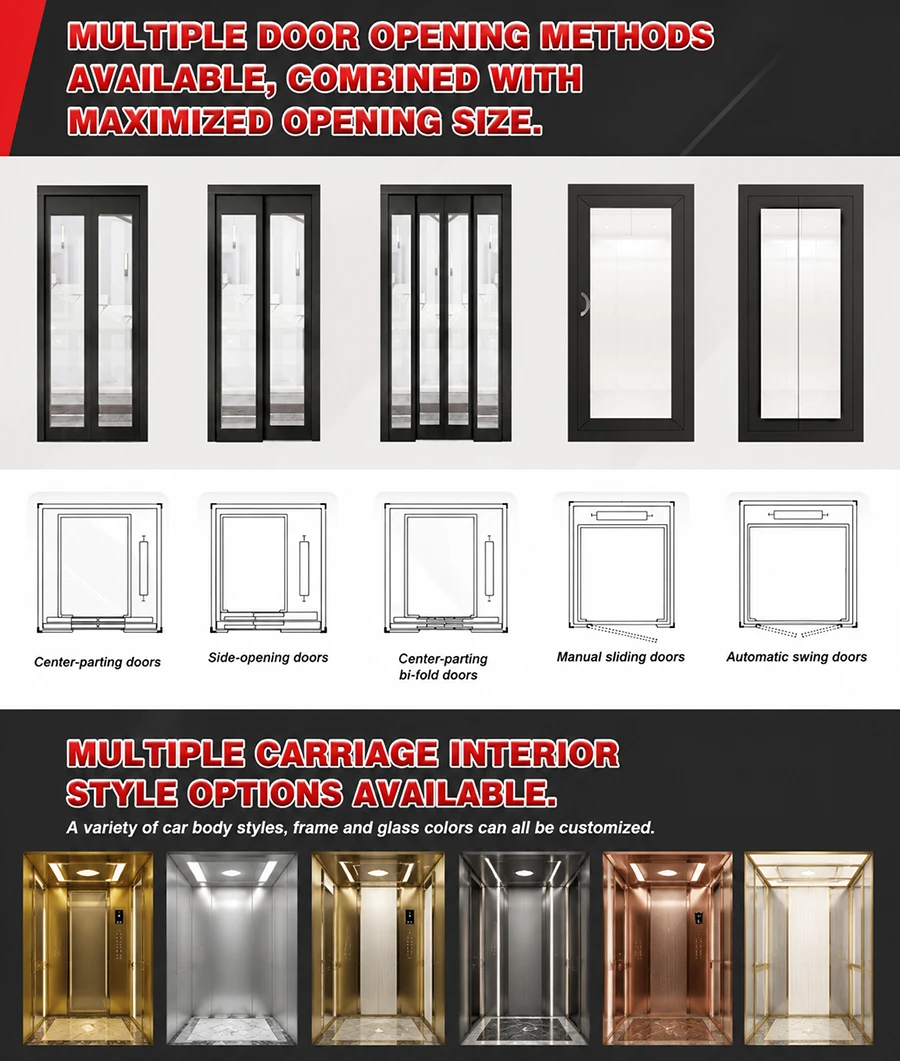

| Door opening type | Center opening |
| Power supply | 380V / 220V 50Hz |
