Monadrive MCK100 Controller

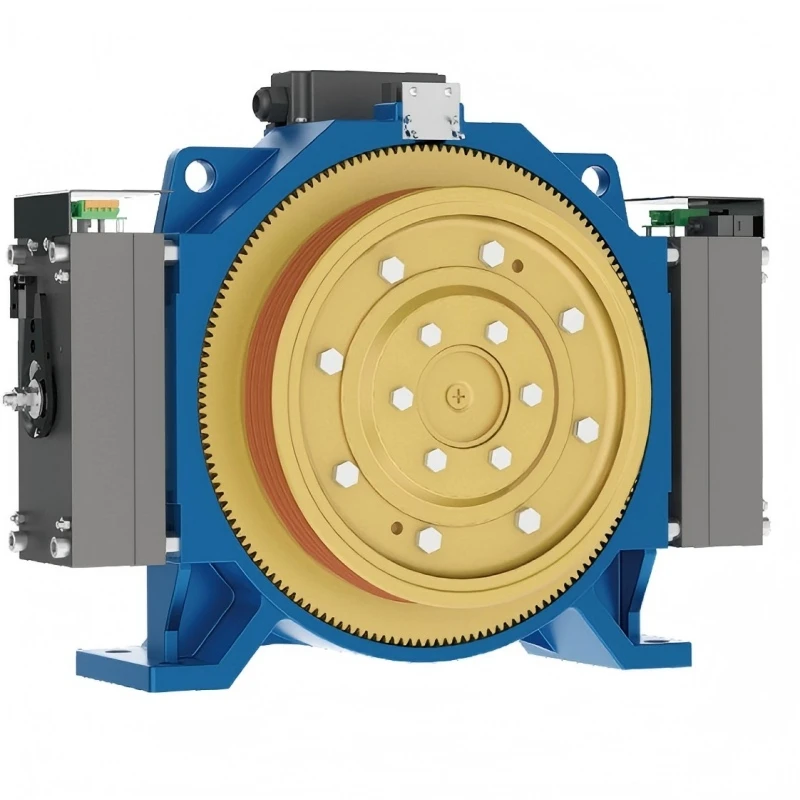

High Torque MCK Series Permanent Magnet Synchronous Traction Machine Outer Rotor Block Brake Design

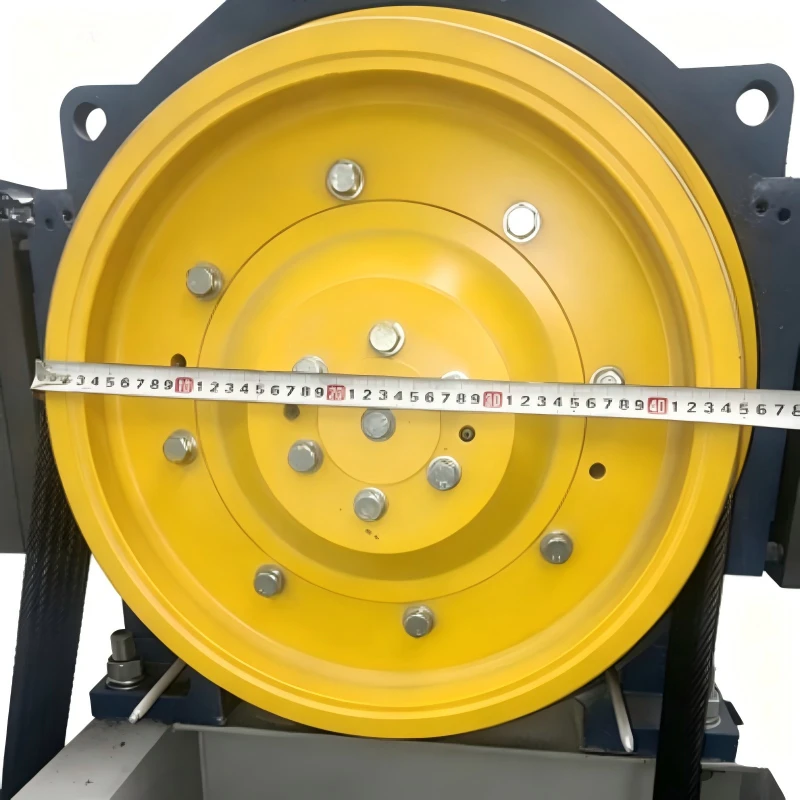

| MCK100 Series Detailed Performance (Sheave Diameter Φ320 mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

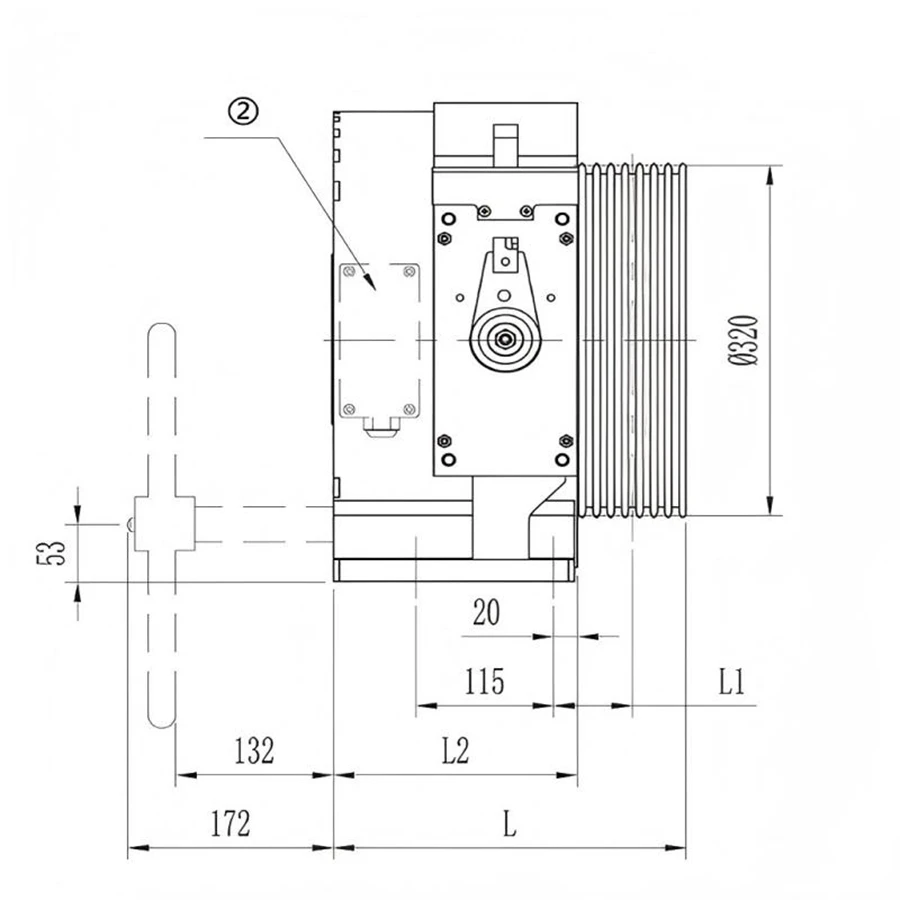

| Model | Load (kg) | Speed (m/s) | Sheave Groove | Rated Current (A) | Rated Power (kW) | Rated Speed (r/min) | Rated Freq. (Hz) | Rated Torque (N·m) | Poles | L (mm) | L1 (mm) | L2 (mm) | Undercut Angle β (°) |
| 320-1.0 | 320 | 1.0 | 3×Φ8×12 | 5 | 2.2 | 119 | 23.8 | 180 | 24 | 225 | 52 | 163 | 95 |
| 320-1.5 | 1.5 | 8 | 3.4 | 35.8 | |||||||||
| 450-1.0 | 450 | 1.0 | 4×Φ8×12 | 7 | 2.7 | 23.8 | 220 | ||||||
| 450-1.5 | 1.5 | 11 | 4.1 | 179 | 35.8 | ||||||||
| 450-1.6 | 1.6 | 4.4 | 191 | 38.2 | |||||||||
| 450-1.75 | 1.75 | 4.8 | 209 | 41.8 | |||||||||
| 630-1.0 | 630 | 1.0 | 5×Φ8×12 | 10 | 3.9 | 119 | 23.8 | 310 | 235 | 57 | |||
| 630-1.5 | 1.5 | 16 | 5.8 | 179 | 35.8 | ||||||||
| 630-1.6 | 1.6 | 17 | 6.2 | 191 | 38.2 | ||||||||
| 630-1.75 | 1.75 | 18 | 6.8 | 209 | 41.8 | ||||||||
| 800-1.0 | 800 | 1.0 | 6×Φ8×12 | 13 | 5.1 | 119 | 23.8 | 410 | 245 | 61 | |||
| 800-1.5 | 1.5 | 22 | 7.7 | 179 | 35.8 | ||||||||
| 800-1.6 | 1.6 | 8.2 | 191 | 38.2 | |||||||||
| 800-1.75 | 1.75 | 9.0 | 209 | 41.8 | |||||||||
| 1000-1.0 | 1000 | 1.0 | 7×Φ8×12 | 16 | 6.4 | 119 | 23.8 | 510 | 295 | 66 | 204 | ||
| 1000-1.5 | 1.5 | 26 | 9.6 | 179 | 35.8 | ||||||||
| 1000-1.6 | 1.6 | 10.2 | 191 | 38.2 | |||||||||
| 1000-1.75 | 1.75 | 11.2 | 209 | 41.8 | |||||||||
