Monadrive MCK200 Controller
Durable MCK Outer Rotor Traction Machine Permanent Magnet Material Large Torque Design

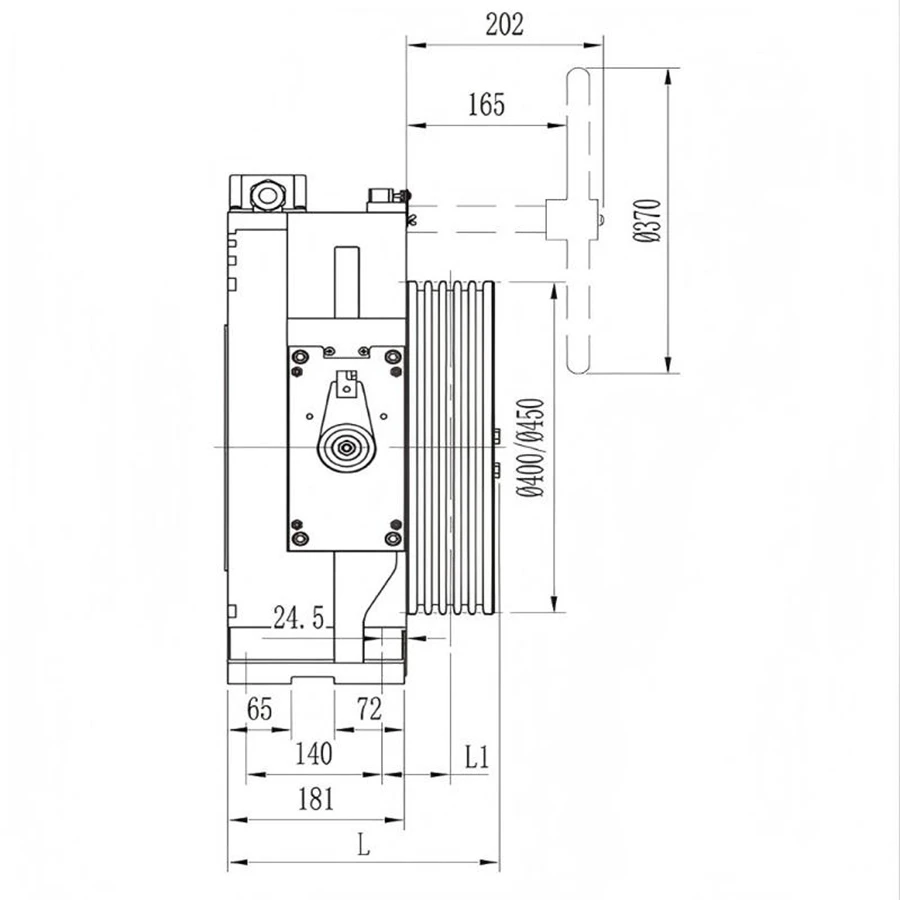

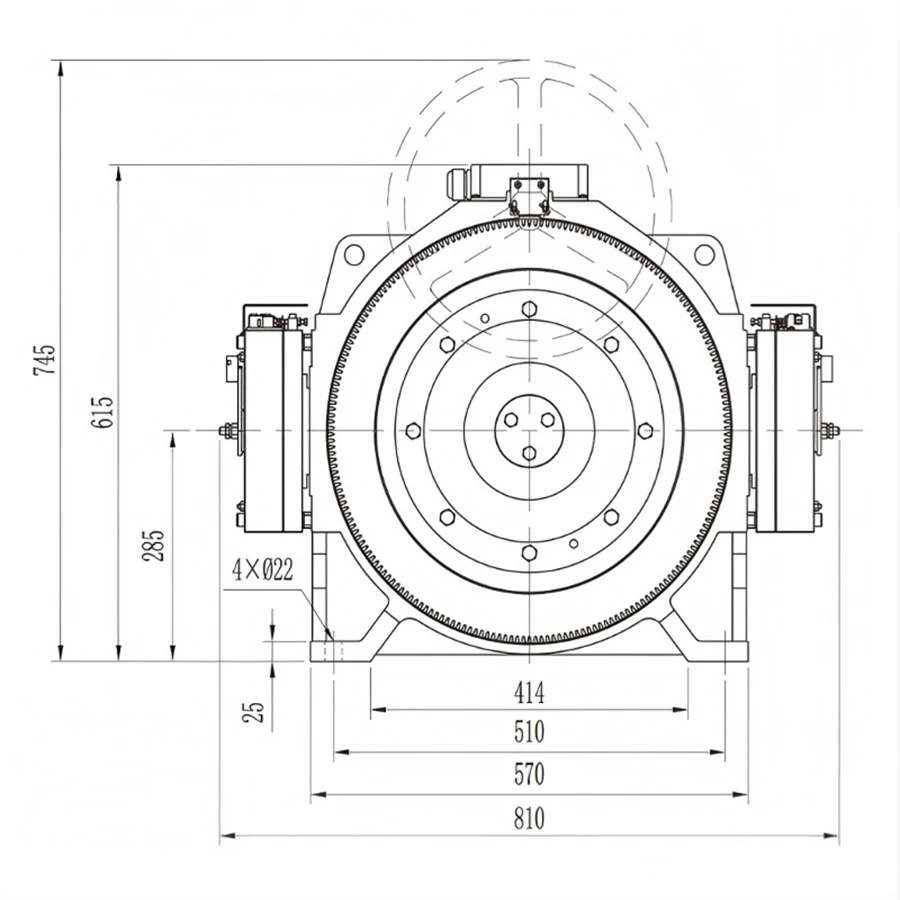

| MCK200 Series Detailed Performance (Roping 2:1, Sheave Diameter Φ400 / Φ450 mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Load (kg) | Speed (m/s) | Sheave Diameter (mm) | Sheave Groove | Rated Current (A) | Rated Power (kW) | Rated Speed (r/min) | Rated Freq. (Hz) | Rated Torque (N·m) | Poles | L (mm) | L1 (mm) | Undercut Angle β (°) |
| 630-1.0 | 630 | 1.0 | 400 | 4×Φ10×15 | 10 | 4.2 | 95 | 25.3 | 420 | 32 | 280 | 69.5 | 95 |
| 630-1.5 | 1.5 | 4×Φ10×15 | 14 | 6.3 | 143 | 38.1 | |||||||
| 630-1.6 | 1.6 | 16 | 6.7 | 153 | 40.8 | ||||||||
| 630-1.75 | 1.75 | 7.3 | 167 | 44.5 | |||||||||
| 630-2.0 | 2.0 | 18 | 8.4 | 191 | 50.9 | ||||||||
| 800-1.0 | 800 | 1.0 | 5×Φ10×15 | 12 | 5.2 | 95 | 23.8 | 520 | 245 | 61 | |||
| 800-1.5 | 1.5 | 18 | 7.8 | 143 | 38.1 | ||||||||
| 800-1.6 | 1.6 | 20 | 8.3 | 153 | 40.8 | ||||||||
| 800-1.75 | 1.75 | 9.1 | 167 | 44.5 | |||||||||
| 800-2.0A | 2.0 | 23 | 10.4 | 191 | 50.9 | 292 | 75.5 | ||||||
| 800-2.5A | 2.5 | 6×Φ10×15 | 28 | 13.0 | 239 | 63.7 | |||||||
| 1000-1.0 | 1000 | 1.0 | 7×Φ8×12 | 16 | 6.4 | 119 | 23.8 | 510 | 295 | 66 | 204 | ||
| 1000-1.5 | 1.5 | 26 | 9.6 | 179 | 35.8 | ||||||||
| 1000-1.6 | 1.6 | 10.2 | 191 | 38.2 | |||||||||
| 1000-1.75 | 1.75 | 11.2 | 209 | 41.8 | |||||||||
| 1000-2.0A | 2.0 | 28 | 13.0 | 191 | 50.9 | 292 | 75.5 | ||||||
| 1000-2.5A | 2.5 | 6×Φ10×15 | 34 | 16.3 | 239 | 63.7 | |||||||
| MCK200 Series Detailed Performance (Roping 4:1, Sheave Diameter Φ400 mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Load (kg) | Speed (m/s) | Sheave Groove | Rated Current (A) | Rated Power (kW) | Rated Speed (r/min) | Rated Freq. (Hz) | Rated Torque (N·m) | Poles | L (mm) | Undercut Angle β (°) |
| 2000-0.5 | 2000 | 0.5 | 5×Φ8×12 | 15 | 6.5 | 95 | 25.3 | 650 | 32 | 280 | Custom |
| 2000-1.0 | 1 | 6×Φ8×12 | 28 | 13.0 | 191 | 50.9 | |||||
