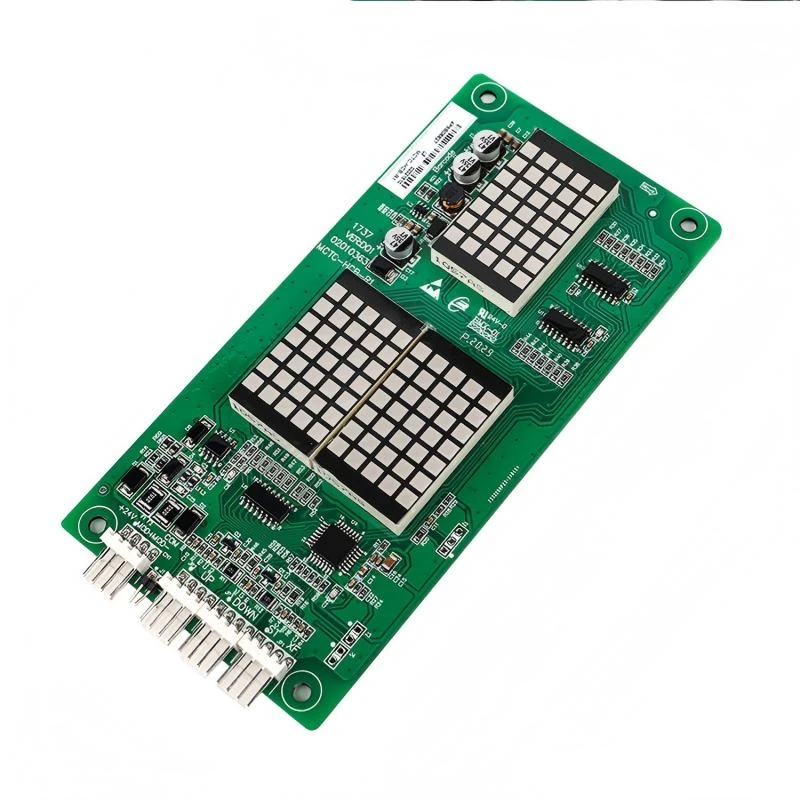

Monarch Elevator Display Board MCTC-HCB-R1
High Stability Monarch LED Car Display Board MCTC HCB R1 Compatible Lift Control System for Elevator Maintenance
| Item | Specification |
|---|---|
| Product brand | Monarch |

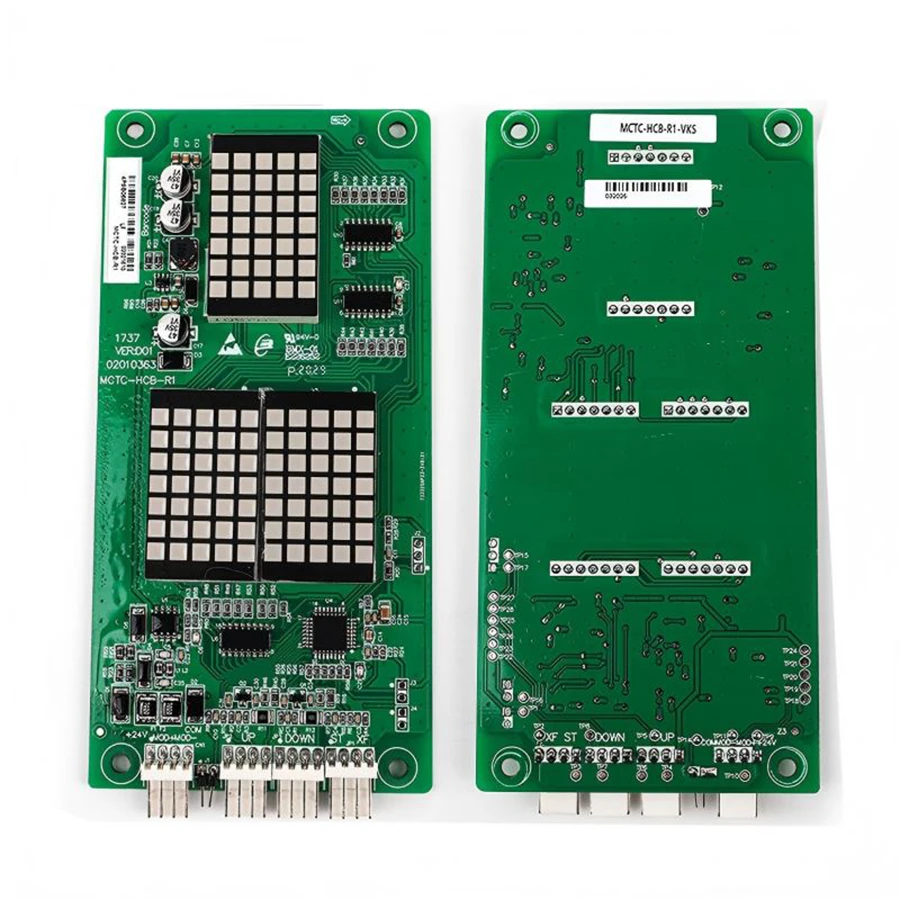

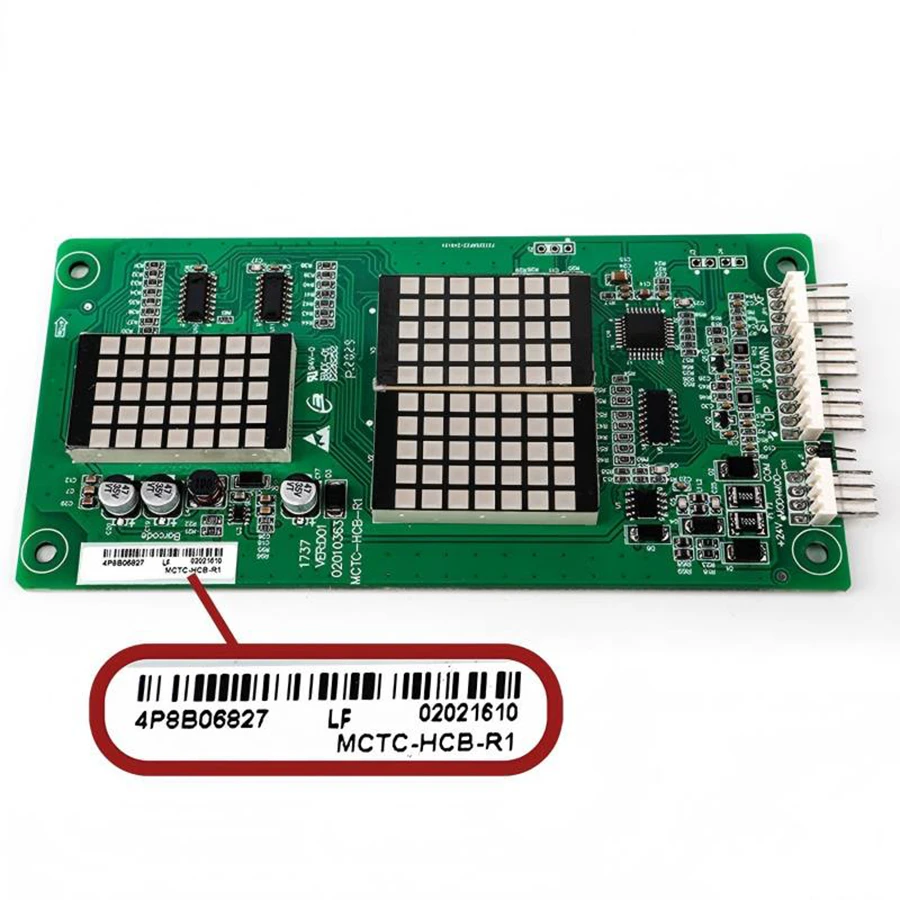

| Product model | MCTC-HCB-R1 (including MCTC-HCB-R1-VKS customized version) |
| Compatible system | Monarch NICE3000, NICE-L, NICE7000, NICE9000 and other full series integrated elevator controllers |
| Display type | High-brightness LED dot matrix display (8×8 / 16×8 dot matrix) |
| Display content | Floor number (0–99 floors), running direction (↑/↓), overload, full load, inspection, fire control, fault status, etc. |
| Working power | DC 24 V (wide voltage adaptive 18–30 V) |
| Operating temperature | -20℃ to +70℃ |
| Relative humidity | ≤90% (non-condensing, no corrosive gas) |
| Anti-interference level | Complies with GB/T 17626 EMC level 4 standard, resistant to strong electromagnetic interference in elevator shafts |

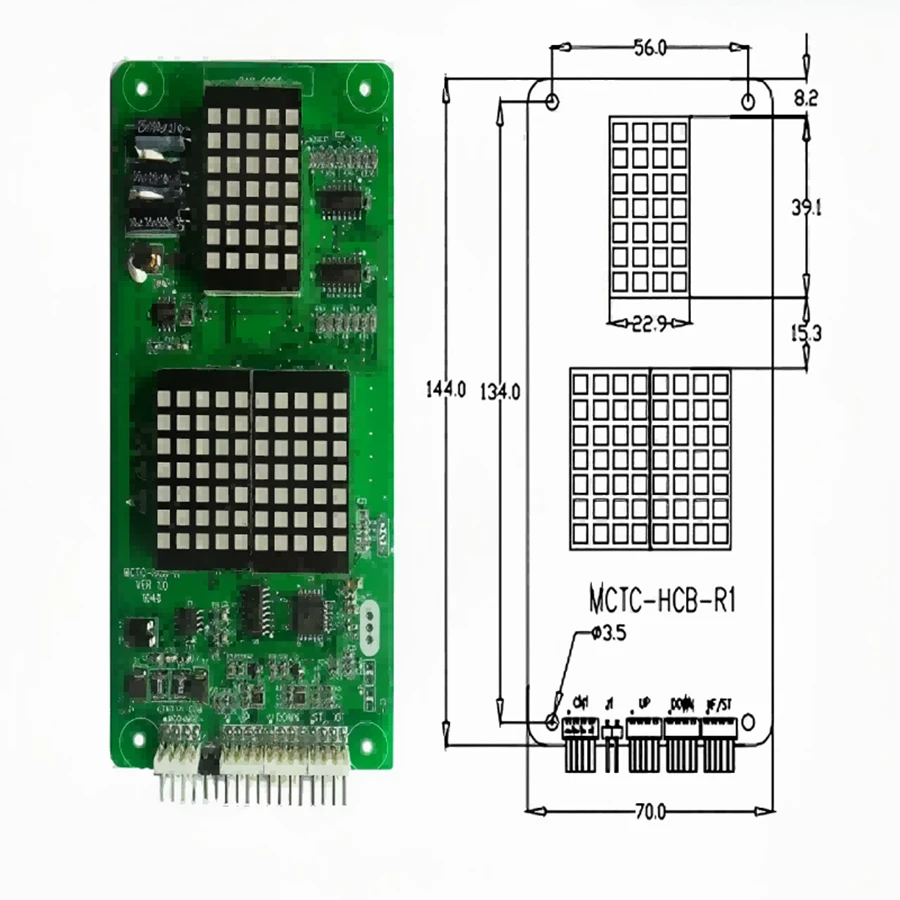

| Installation size | 144 × 70 mm (standard mounting holes, hole diameter Φ3.5 mm) |
| Communication interface | Monarch standard CAN / RS485 serial communication interface, multiple groups of terminal blocks |
| Protection level | IP20 (for installation in car) |
| Installation method | Fixed by screws on car operation panel, plug and play |
| Service life | ≥50,000 hours |
| Dot matrix layout | 3 groups of dot matrix modules (1 small top display + 2 large bottom displays, customizable partitions) |
| Display brightness | High-brightness LED, viewing angle ≥120°, clearly visible from full viewing angle in the car |
| Character specification | Supports 0–9 digits, ↑/↓ arrows, special characters (–, F, B, etc.), customizable floor names |
| Response speed | Communication response delay ≤100 ms, smooth floor switching |
| Wiring definition | Fully matches Monarch original standard, no wiring modification needed, direct replacement |
