Monarch Elevator PG Card

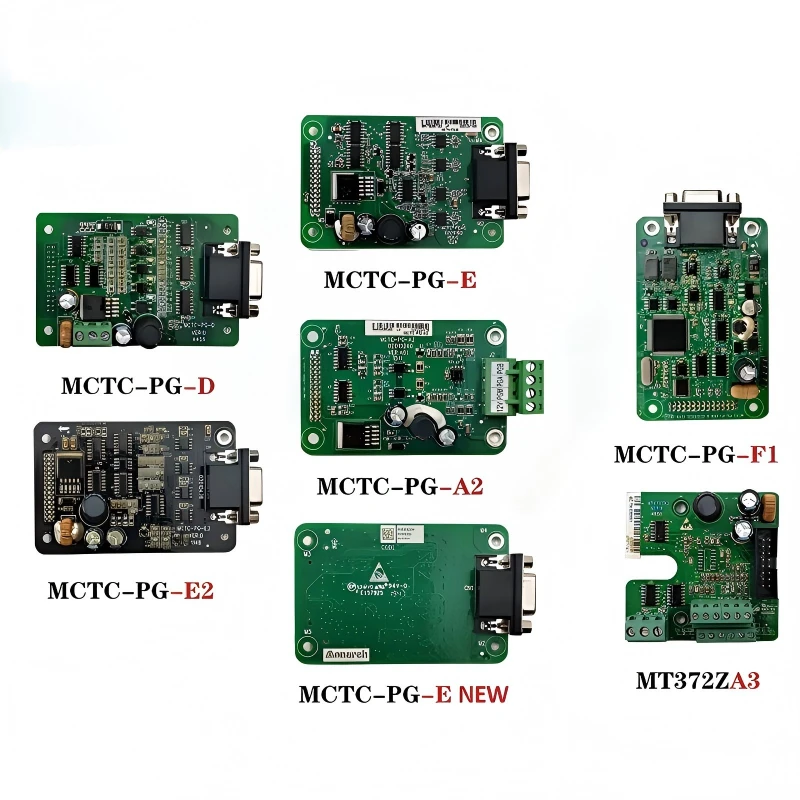

| Model | Compatible Encoder Type | Core Functions | DB15 Pin Interface Definition |
|---|---|---|---|

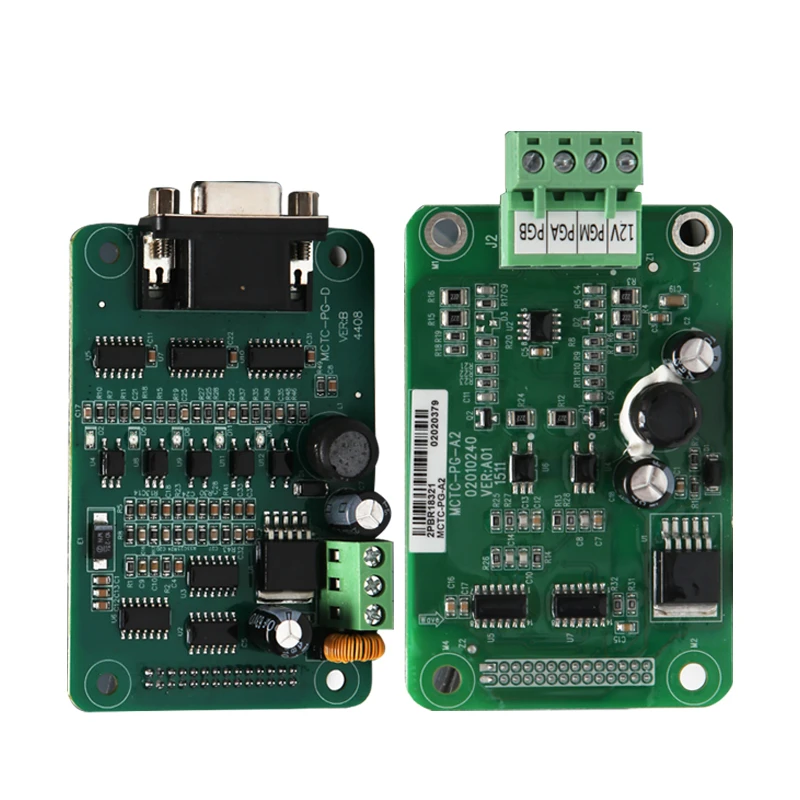

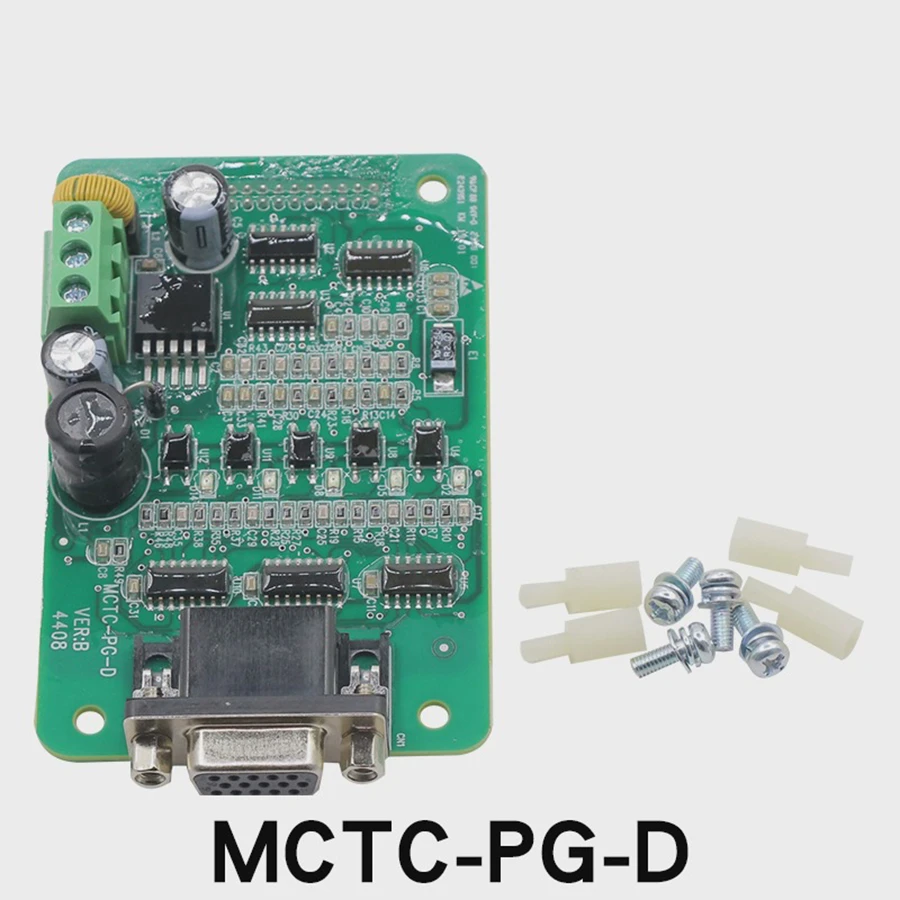

| MCTC-PG-D | UVW Incremental Encoder | Compatible with asynchronous/synchronous traction machine UVW encoder, motor speed and position signal acquisition | 1:V+ 2:A+ 3:B+ 4:B- 5:NC 6:NC 7:U+ 8:U- 9:A- 10:V- 11:W+ 12:W- 13:VCC 14:COM 15:NC |

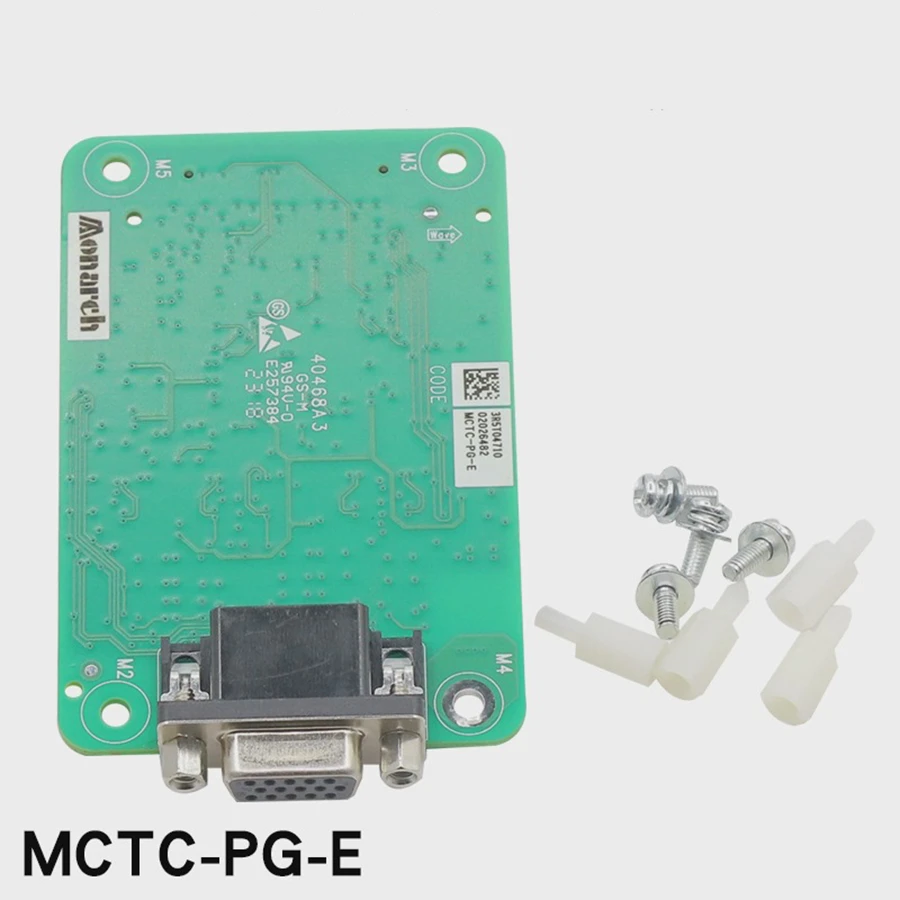

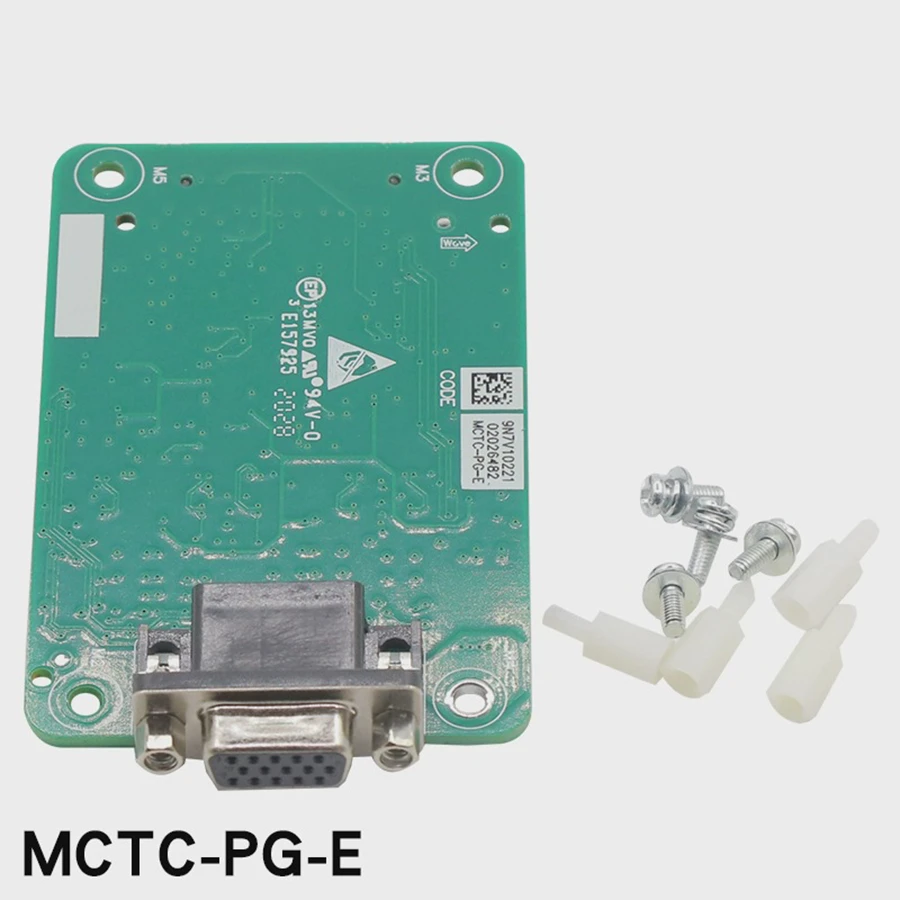

| MCTC-PG-E | SIN/COS Sine-Cosine Encoder | Compatible with high-precision sine-cosine encoder, accurate positioning for high-speed elevator operation | 1:B- 2:NC 3:Z+ 4:Z- 5:A+ 6:A- 7:COM 8:B+ 9:VCC 10:C+ 11:C- 12:D+ 13:D- 14:NC 15:NC |

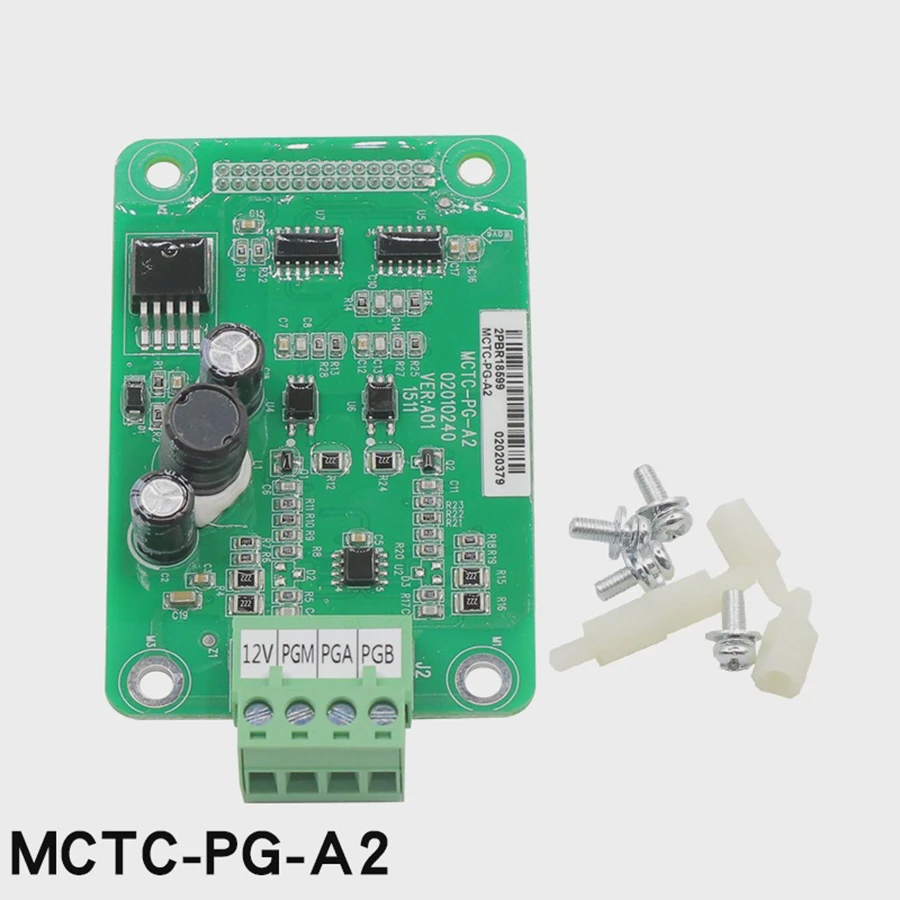

| MCTC-PG-A2 | Universal Incremental Encoder | Compatible with multi-brand encoders, universal model for elevator door machine and traction machine | Terminal Block + DB15 dual interface, compatible with multiple wiring methods |

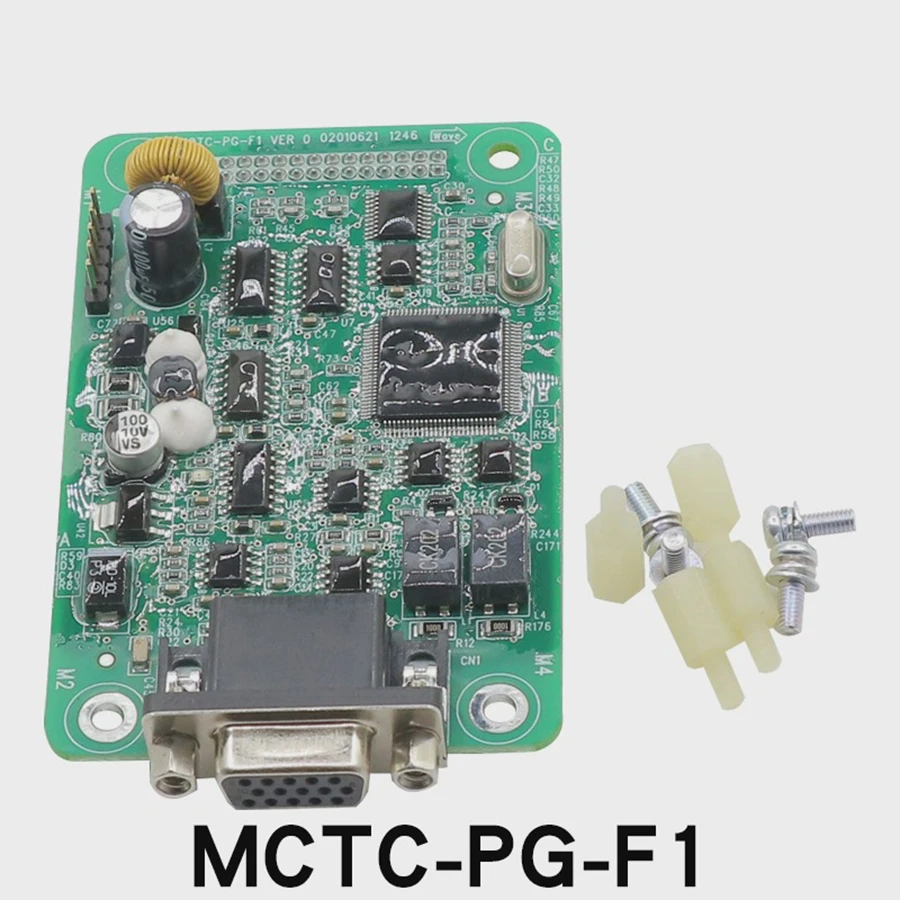

| MCTC-PG-F1 | High-Speed Elevator Special Encoder | Compatible with ultra-high-speed elevator traction machine, stable transmission of high-speed signals | Enhanced anti-interference design, supports high-speed elevators above 10 m/s |
| MCTC-PG-E2 | Miniature Encoder Adapter Card | Special for small control cabinets and transformation projects, compact size | Compatible with PG-E functions, volume reduced by 30% |
| MCTC-PG-E NEW | New Generation Sine-Cosine Encoder Card | Monarch upgraded model with improved signal stability, compatible with old models | Interface fully consistent with old PG-E model, direct replacement |

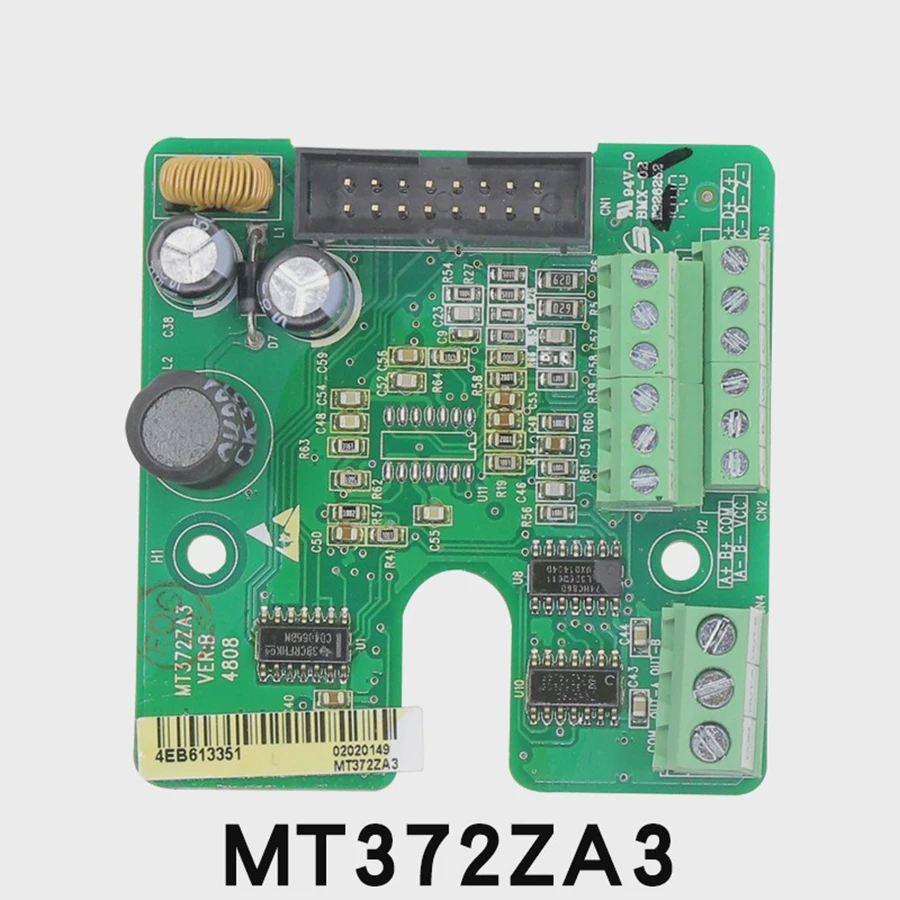

| MT372ZA3 | Monarch Door Machine Special PG Card | Compatible with elevator door machine encoder, accurate control of door opening and closing | Special interface for door machine controller, compatible with Monarch door machine system |
