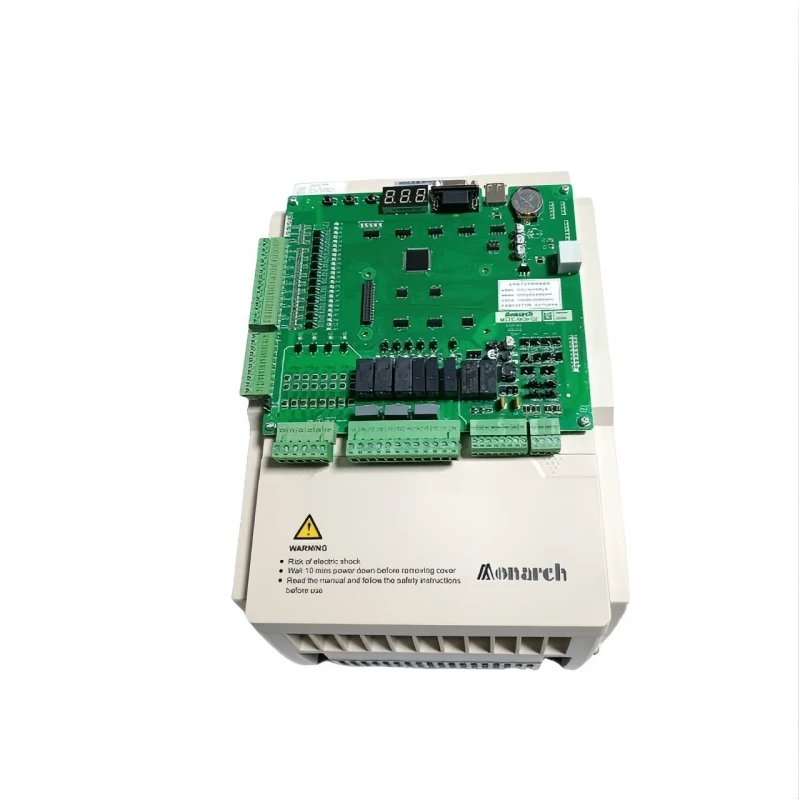

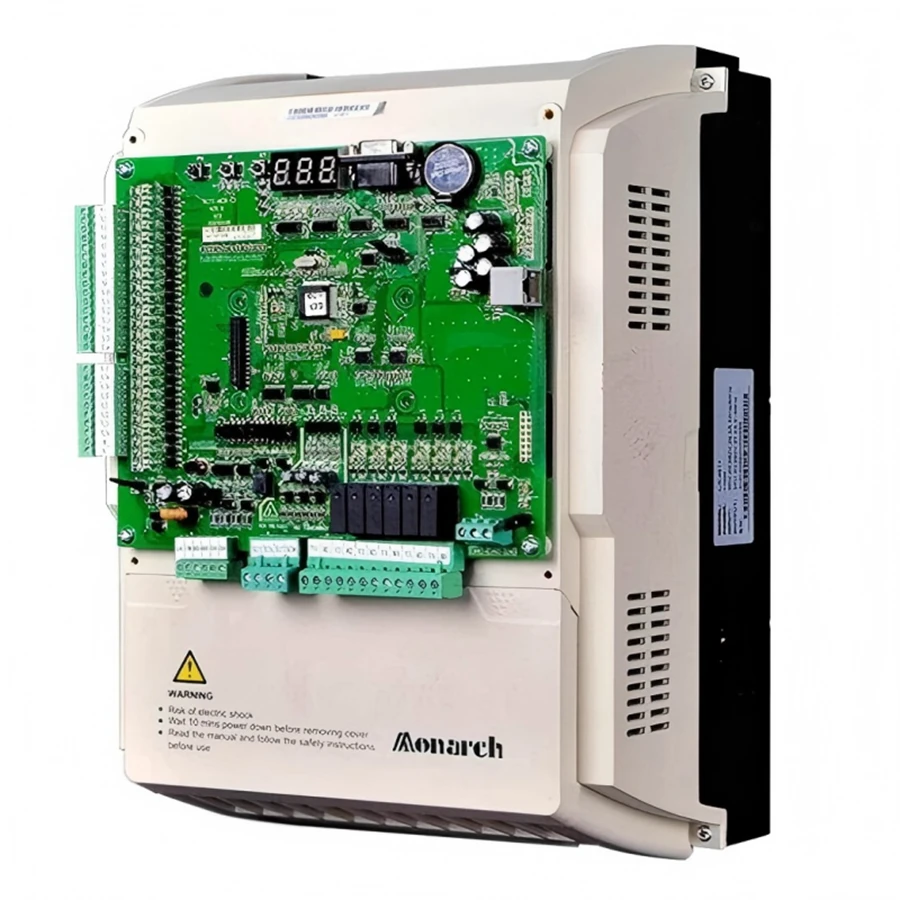

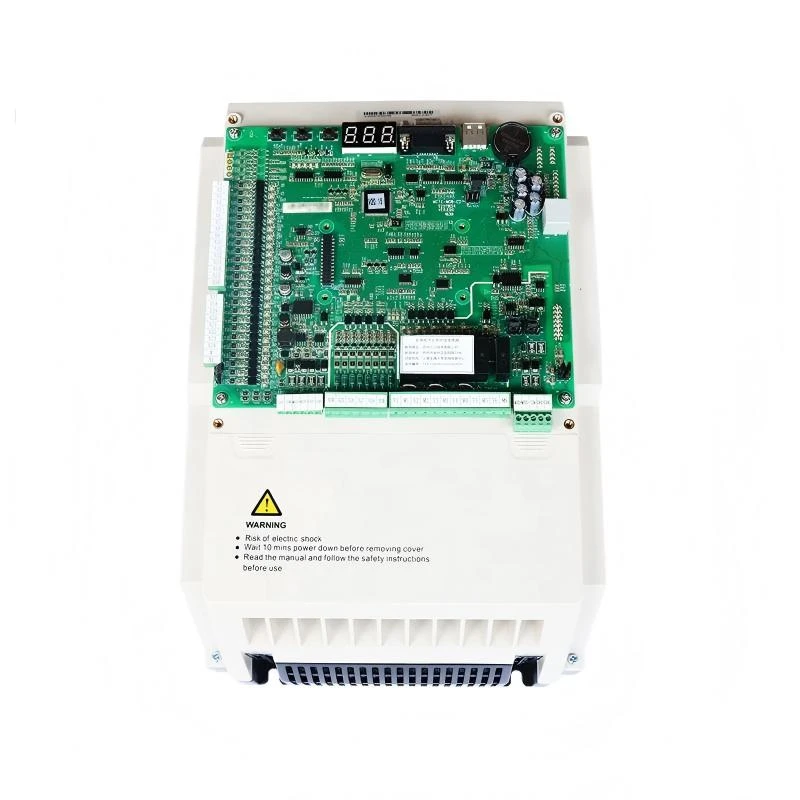

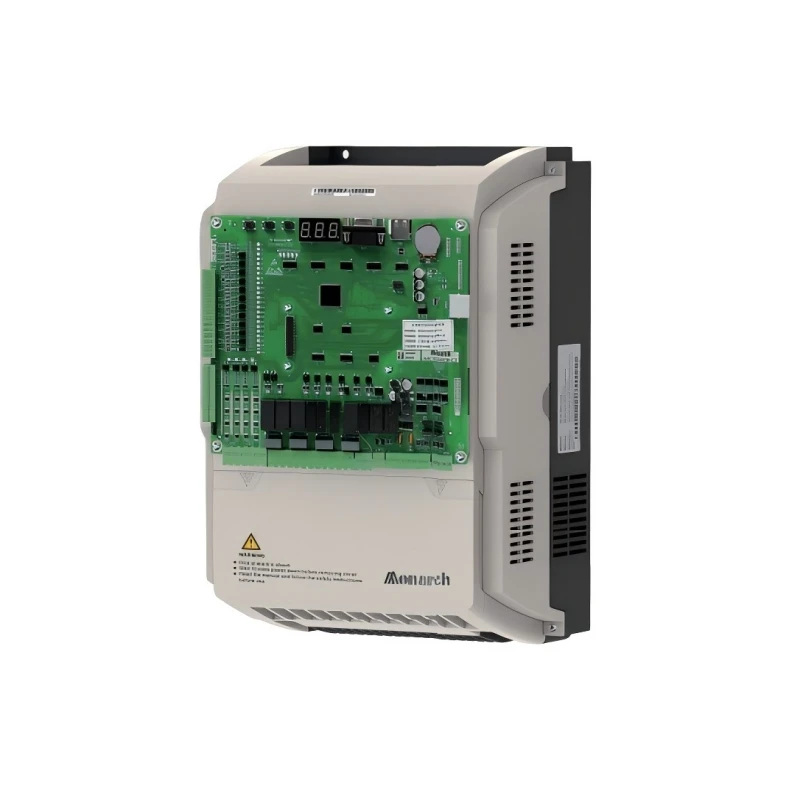

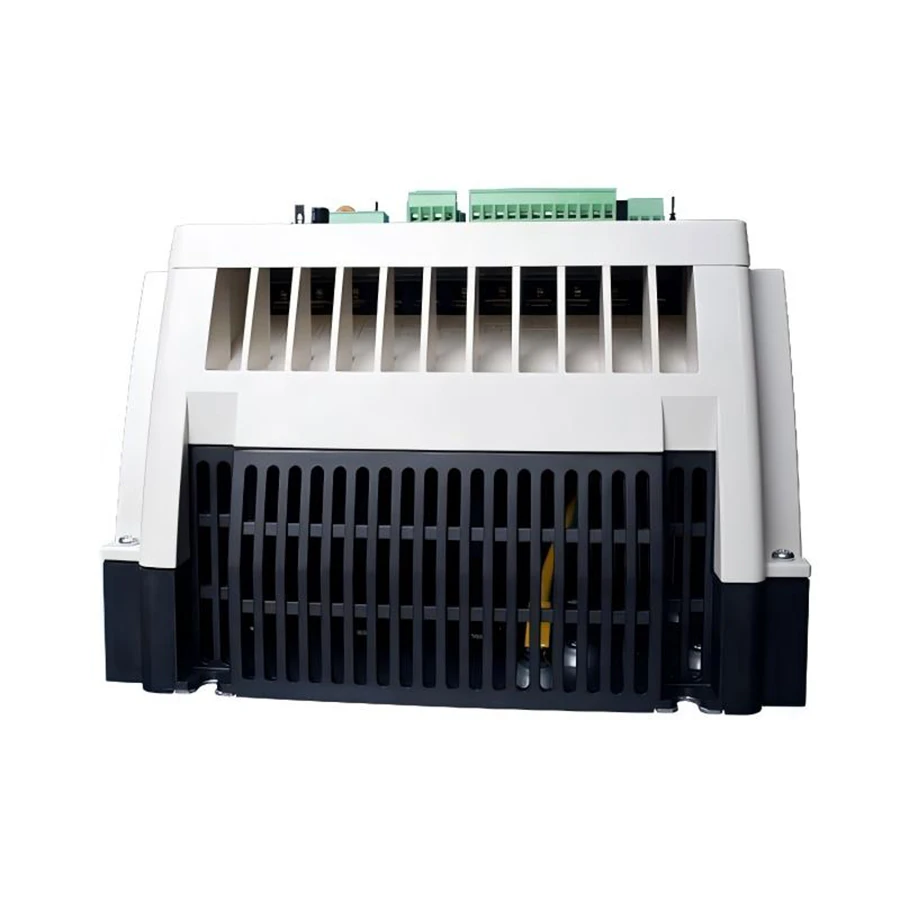

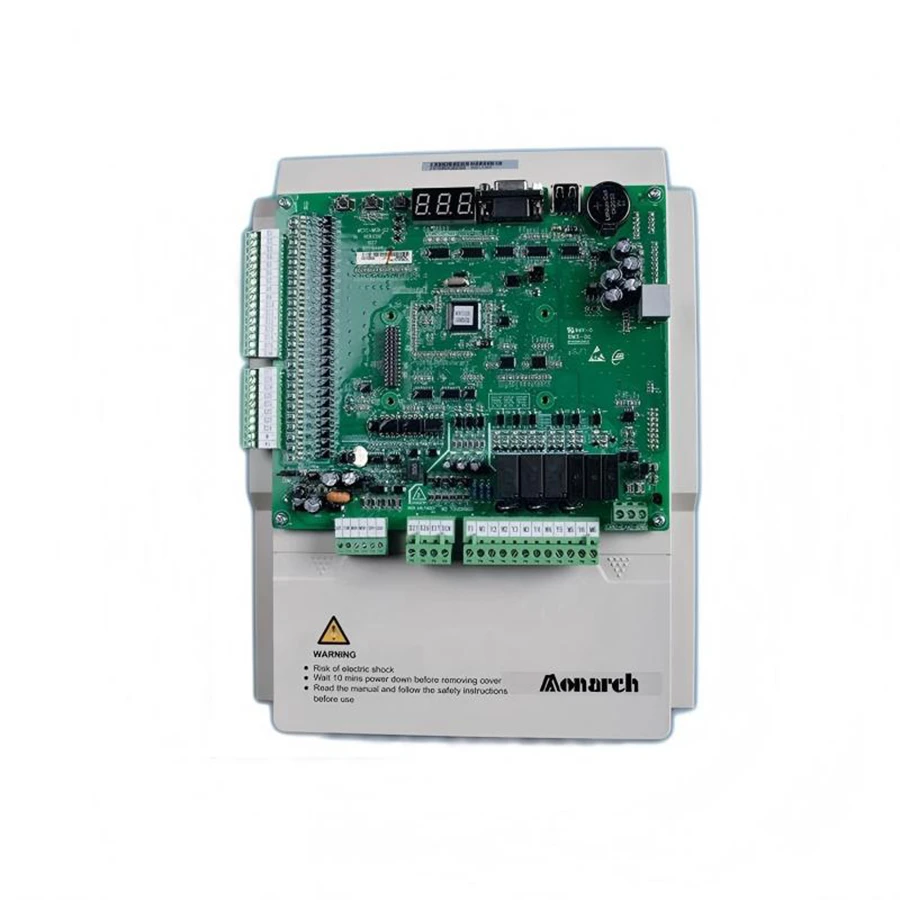

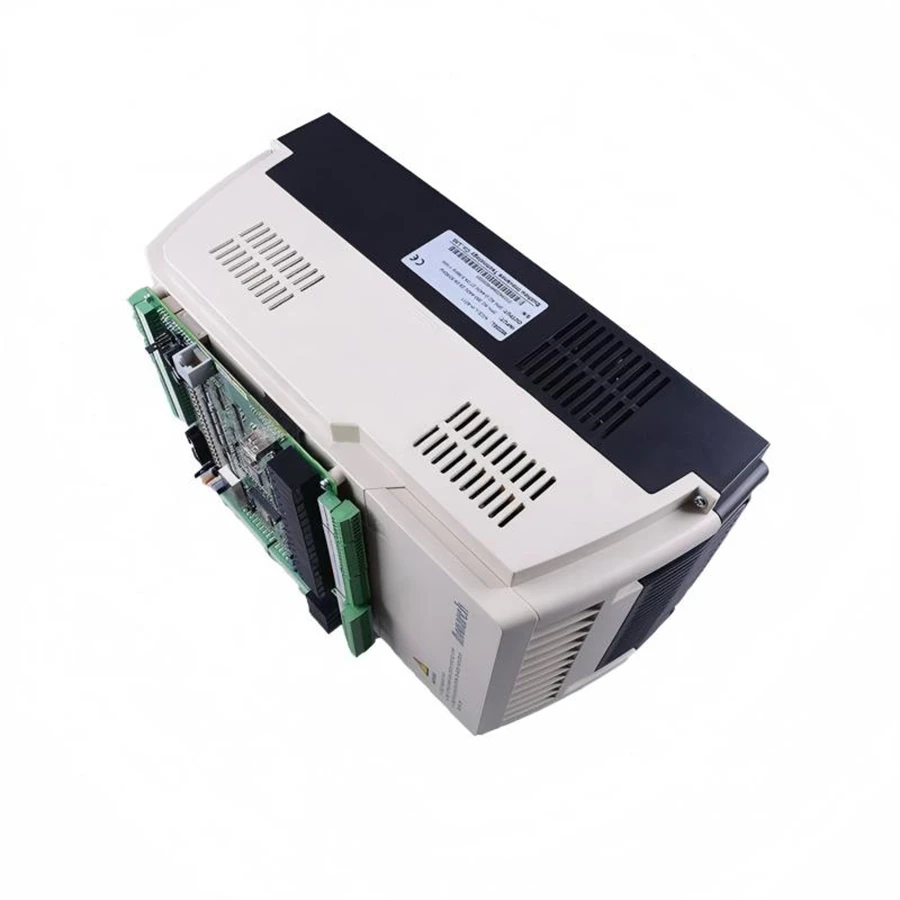

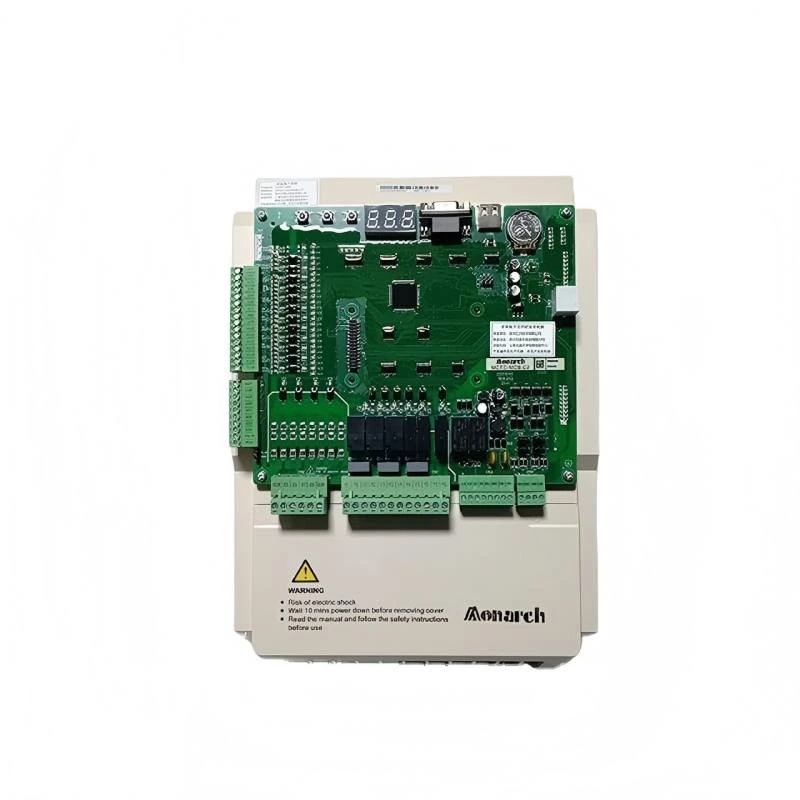

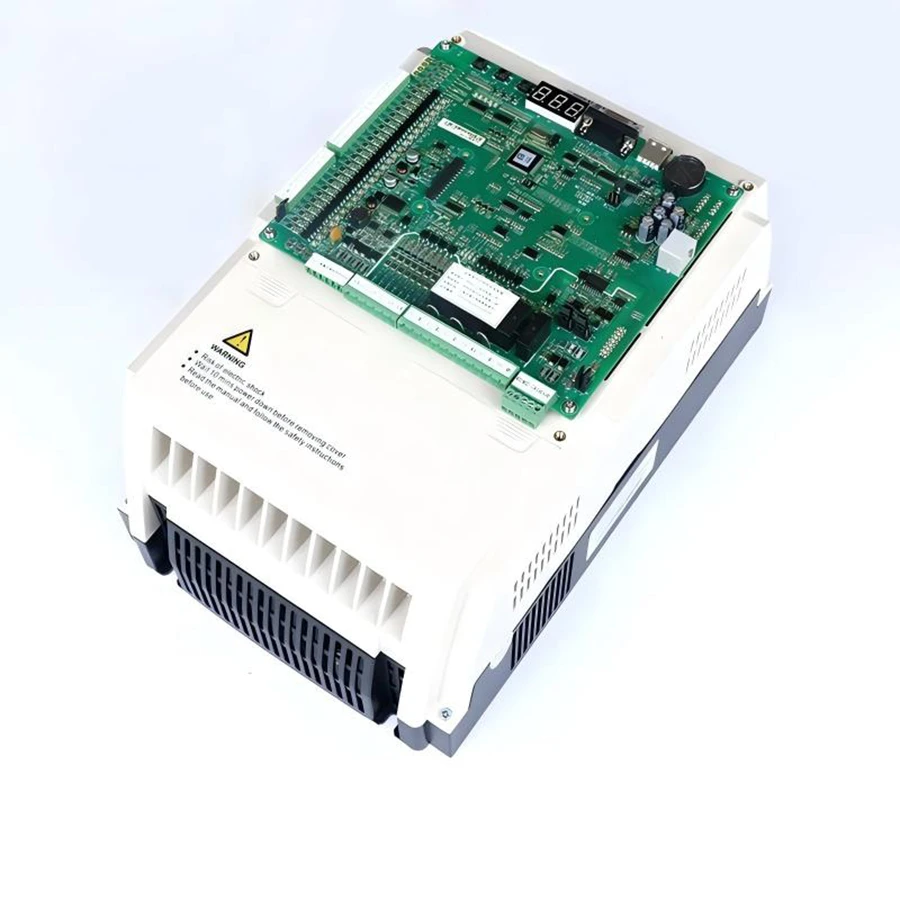

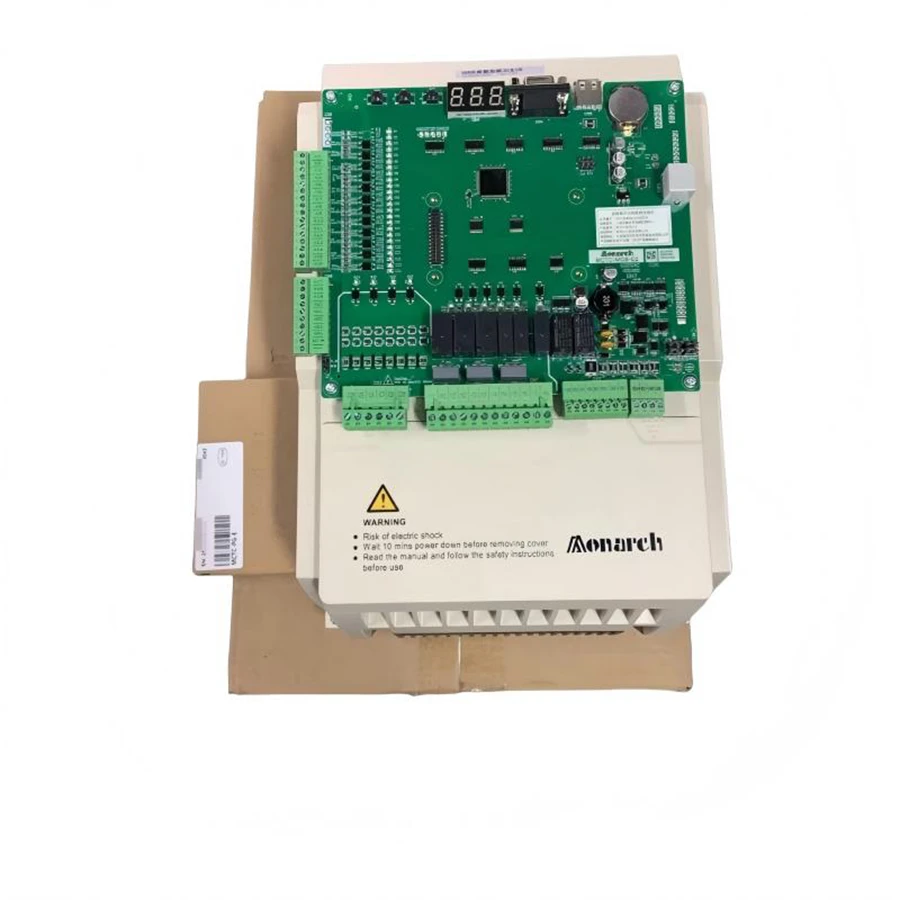

Monarch NICE3000+ Inverter
High Quality CE Approved NICE3000-B Elevator Integrated Cabinet Eco Friendly Compact Layout AC & PM Synchronous Motor Universal Drive
| NICE3000 NEW INVERTER Electrical Parameter Specification | |||||
|---|---|---|---|---|---|
| 1. Electrical Parameter Specification (Input Voltage: Single-phase 220V / Three-phase 220V / Three-phase 380V, Voltage fluctuation range: -15% ~ +20%) | |||||
| Controller Model | Power Capacity (kVA) | Input Current (A) | Output Current (A) | Rated Motor Power (kW) | Applicable Input Power Supply |
| NICE-L-C-2002 | 2 | 9.2 | 5.2 | 1.1 | Single-phase 220V |
| NICE-L-C-2003 | 2.9 | 13.3 | 7.5 | 1.5 | Single-phase 220V |
| 220-NICE-L-C-4007 | 3.9 | 17.9 | 10.3 | 2.2 | Single-phase 220V |
| 220-NICE-L-C-4011 | 5.9 | 25.3 | 15.5 | 3.7 | Single-phase 220V |
| 220-NICE-L-C-4015 | 7.3 | 31.3 | 19 | 4 | Single-phase 220V |
| 220-NICE-L-C-4018 | 8.6 | 34.6 | 22.5 | 5.5 | Single-phase 220V |
| 220-NICE-L-C-4022 | 10.6 | 42.6 | 27.7 | 11 | Single-phase 220V |
| 220-NICE-L-C-4030 | 13.1 | 52.6 | 34.6 | 15 | Single-phase 220V |
| NICE-L-C-2002 | 4 | 11 | 9.6 | 2.2 | Three-phase 220V |
| NICE-L-C-2003 | 5.9 | 17 | 14 | 3.7 | Three-phase 220V |
| 220-NICE-L-C-4007 | 7 | 20.5 | 18 | 4 | Three-phase 220V |
| 220-NICE-L-C-4011 | 10 | 29 | 27 | 5.5 | Three-phase 220V |
| 220-NICE-L-C-4015 | 12.6 | 36 | 33 | 7.5 | Three-phase 220V |
| 220-NICE-L-C-4018 | 15 | 41 | 39 | 11 | Three-phase 220V |
| 220-NICE-L-C-4022 | 18.3 | 49 | 48 | 15 | Three-phase 220V |
| 220-NICE-L-C-4030 | 23 | 62 | 60 | 18.5 | Three-phase 220V |
| NICE-L-C-4002 | 4 | 6.5 | 5.1 | 2.2 | Three-phase 380V |
| NICE-L-C-4003 | 5.9 | 10.5 | 9 | 3.7 | Three-phase 380V |
| NICE-L-C-4005 | 8.9 | 14.8 | 13 | 5.5 | Three-phase 380V |
| NICE-L-C-4007 | 11 | 20.5 | 18 | 7.5 | Three-phase 380V |
| NICE-L-C-4011 | 17 | 29 | 27 | 11 | Three-phase 380V |
| NICE-L-C-4015 | 21 | 36 | 33 | 15 | Three-phase 380V |
| NICE-L-C-4018 | 24 | 41 | 39 | 18.5 | Three-phase 380V |
| NICE-L-C-4022 | 30 | 49.5 | 48 | 22 | Three-phase 380V |
| NICE-L-C-4030 | 40 | 62 | 60 | 30 | Three-phase 380V |
| NICE-L-C-4037 | 57 | 77 | 75 | 37 | Three-phase 380V |
| NICE-L-C-4045 | 69 | 93 | 91 | 45 | Three-phase 380V |
| 2. Outline Dimension Specification (Unit: mm) | |||||
|---|---|---|---|---|---|
| Controller Model | A | B | H | W | D |
| NICE-L-C-2002 / 2003 / 4002 / 4003 / 4005 | 150 | 334.5 | 347 | 223 | 143 |
| NICE-L-C-4007 / 4011 / 4015 | 150 | 334.5 | 347 | 223 | 173.5 |
| NICE-L-C-4018 / 4022 / 4030 | 235 | 541.5 | 554.5 | 289.6 | 223 |
| 3. Matching Elevator Guide Rail Reference (For Complete Elevator System Matching) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.1 Cold-drawn Guide Rail Dimension (Unit: mm) | ||||||||||||
| Rail Type | h1 | k | p | rs | m1 | m2 | t1 | t2 | d | b₃ | l₂ | l₃ |
| T45/A | 45 | 5 | 5 | 1 | 2 | 1.95 | 2.5 | 2 | 9 | 25 | 65 | 15 |
| T50/A | 50 | 5 | 5 | 1 | 2 | 1.95 | 2.5 | 2 | 9 | 30 | 75 | 25 |
| T70/A | 70 | 9 | 7 | 1.5 | 3 | 2.95 | 3.5 | 3 | 13 | 42 | 105 | 25 |
| 3.2 Machined Guide Rail Physical Property | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Rail Type | S (cm²) | q1 (kg/m) | e (cm) | Ixx (cm⁴) | Wxx (cm³) | ixx (cm) | Iyy (cm⁴) | Wyy (cm³) | iyy (cm) |
| T70-1/B | 9.51 | 7.47 | 2.04 | 41.3 | 9.24 | 2.09 | 18.65 | 5.35 | 1.40 |
| T75-3/B | 10.99 | 8.63 | 1.86 | 40.35 | 9.29 | 1.92 | 26.49 | 7.06 | 1.55 |
| T78/B | 9.84 | 7.72 | 1.65 | 29.92 | 7.56 | 1.74 | 26.10 | 6.71 | 1.63 |
| T82/B | 10.90 | 8.55 | 1.98 | 49.40 | 10.20 | 2.13 | 30.50 | 7.40 | 1.67 |
| T89/B | 15.70 | 12.30 | 2.09 | 59.70 | 14.50 | 1.98 | 53.00 | 11.90 | 1.84 |
| T89-1/B | 15.70 | 11.00 | 2.09 | 59.70 | 14.50 | 1.98 | 53.00 | 11.90 | 1.84 |
| T90/B | 17.20 | 13.50 | 2.65 | 102.20 | 20.90 | 2.50 | 52.00 | 11.90 | 1.76 |
| T114/B | 20.80 | 16.40 | 2.87 | 179.00 | 29.70 | 2.93 | 108.00 | 19.10 | 2.28 |
| T127-1/B | 22.60 | 17.80 | 2.75 | 187.00 | 30.40 | 2.91 | 151.50 | 24.00 | 2.65 |
| T127-2/B | 28.90 | 22.70 | 2.45 | 200.00 | 31.00 | 2.68 | 235.00 | 36.80 | 2.86 |
| T140-1/B | 35.15 | 27.59 | 3.236 | 403.30 | 53.32 | 3.387 | 309.70 | 44.24 | 2.968 |
| T140-2/B | 43.21 | 33.92 | 3.484 | 456.70 | 68.01 | 3.251 | 358.20 | 51.18 | 2.879 |
| Extended Power Series (GNL-NICE-L-C Series, 3PH 220/380V Universal Input) | |||
|---|---|---|---|
| Model | Rated Motor Power (kW) | Phase | Rated Voltage |
| GNL-NICE-L-C-4003 | 3.7 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4005 | 5.5 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4007 | 7.5 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4011 | 11 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4015 | 15 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4018 | 18.5 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4022 | 22 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4030 | 30 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4037 | 37 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4045 | 45 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4055 | 55 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4075 | 75 | 3PHASE | 220V/380V |
| GNL-NICE-L-C-4090 | 90 | 3PHASE | 220V/380V |
