Outdoor Residential Elevator丨 YTL-SW50
- Running speeds 0.3m/s, 0.4m/s, 1.0m/s for outdoor building installation
- 250kg, 320kg, 400kg load capacity fits private multi-story buildings

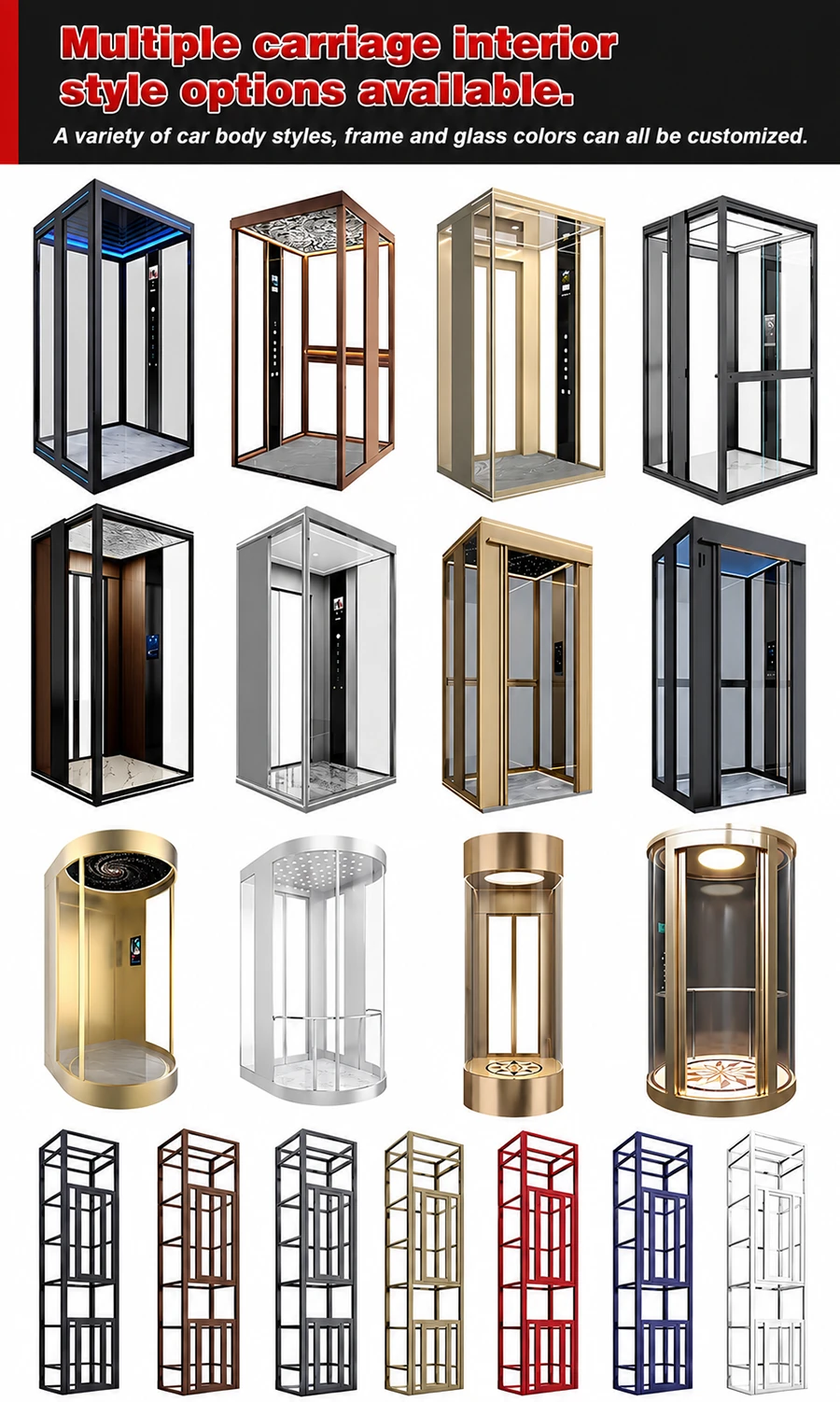

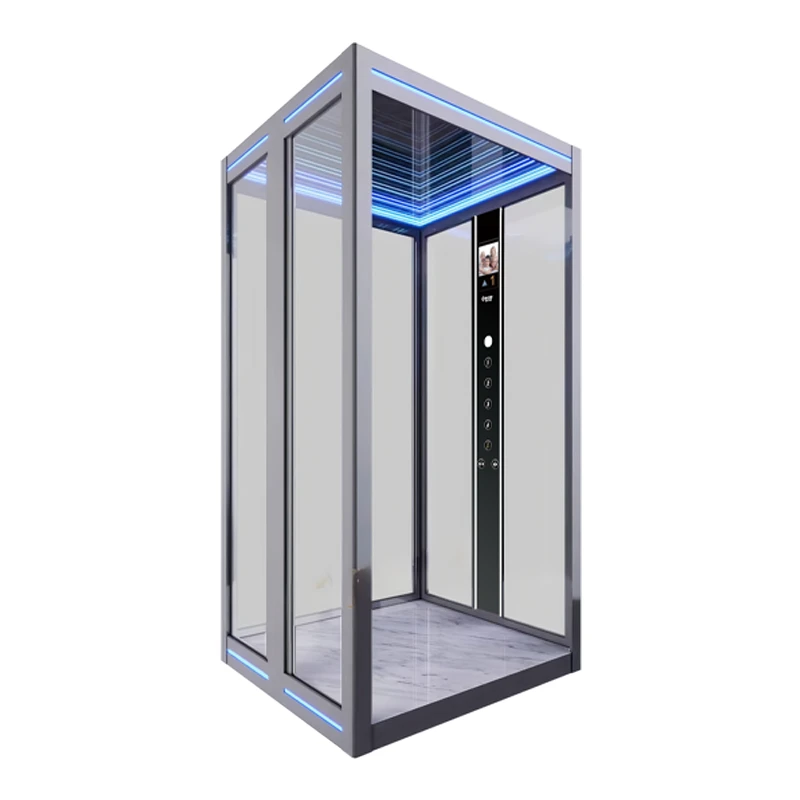

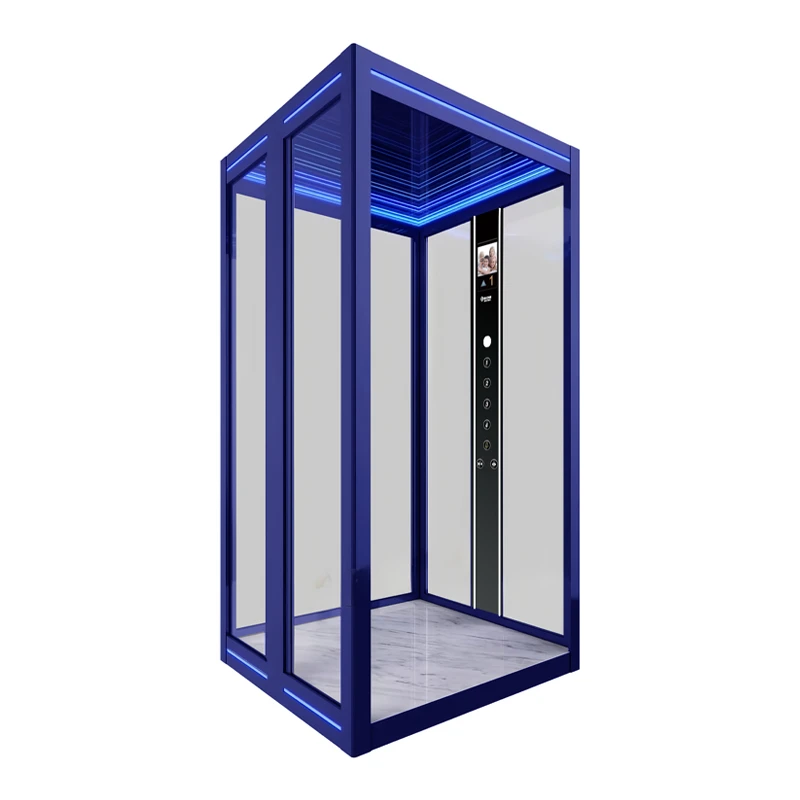

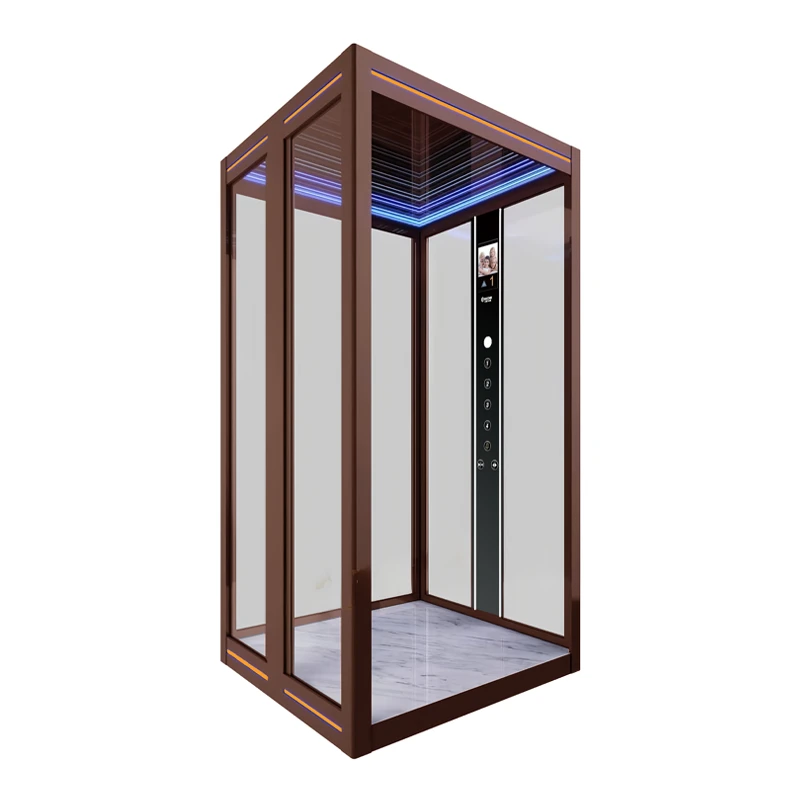

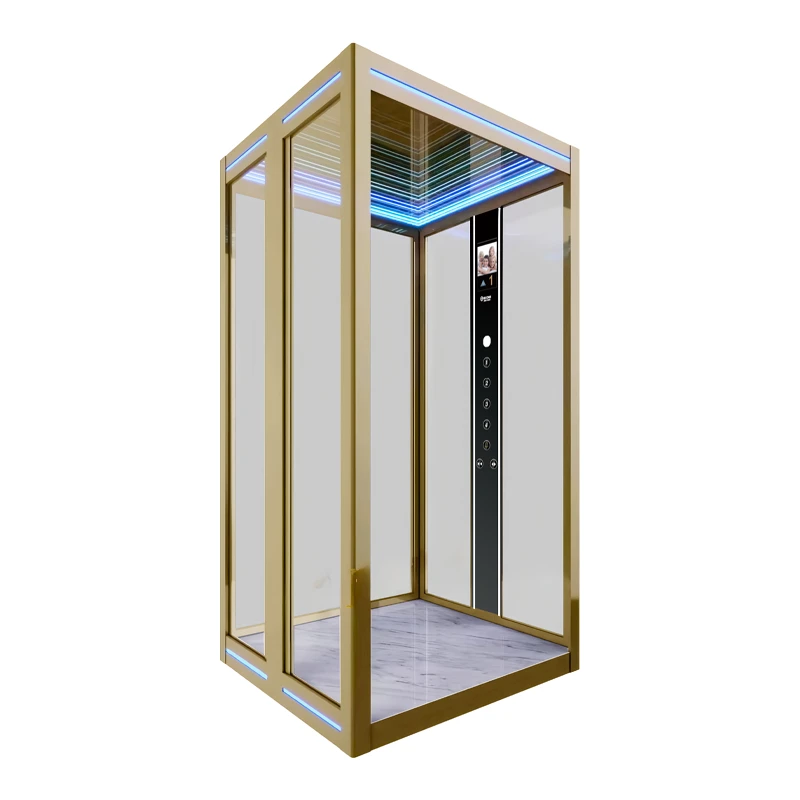

- Optional panoramic glass or fully enclosed cabin with customizable colors

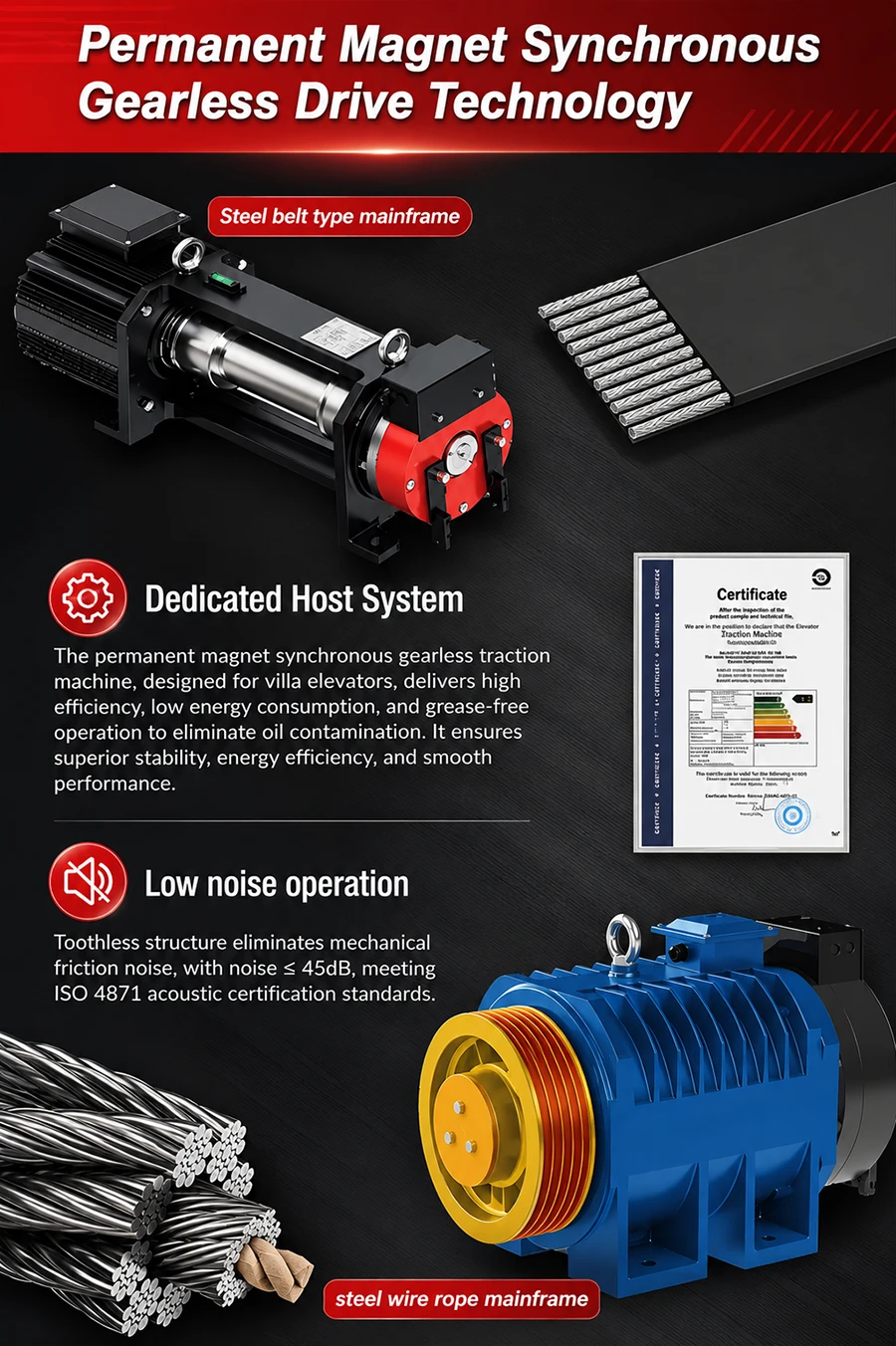

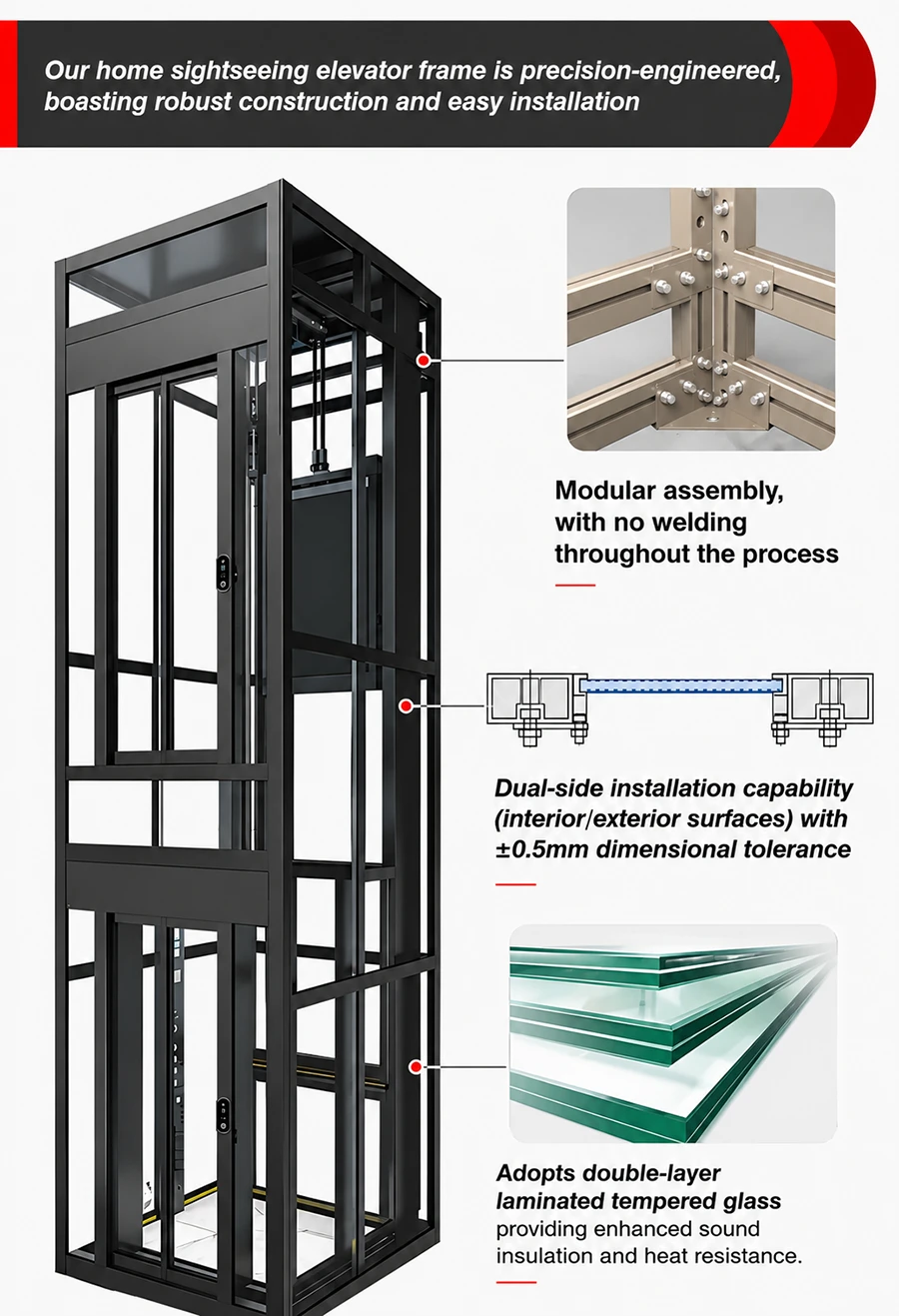

- MRL traction lift with self-contained shaft, waterproof wind and shock resistant
- Stable silent operation certified safe durable for exterior household use
| Parameters Table of Gantry Traction Type Home Elevator (Counterweight Side-mounted) | |||
|---|---|---|---|
| Parameter | 260 kg (3-Person) | 320 kg (4-Person) | 400 kg (5-Person) |
| Load capacity (kg) | 260 | 320 | 400 |
| Capacity (people) | 3 | 4 | 5 |
| Door opening size (mm) | 700×2000 | 700×2000 | 700×2000 |
| Cabin dimensions (mm) | 1000×900×2200 | 1000×1000×2200 | 1200×1250×2200 |
| Hoistway dimensions (mm) | 1550×1200 | 1550×1400 | 1750×1500 |
| Top floor height (mm) | ≥2900 | ≥2900 | ≥2900 |
| Pit depth (mm) | ≥300 | ≥300 | ≥300 |
| Parameters Table of Gantry Traction Type Home Elevator (Counterweight placed at the end) | |||
|---|---|---|---|
| Parameter | 260 kg (3-Person) | 320 kg (4-Person) | 400 kg (5-Person) |
| Load capacity (kg) | 260 | 320 | 400 |
| Capacity (people) | 3 | 4 | 5 |
| Door opening size (mm) | 700×2000 | 700×2000 | 800×2000 |
| Cabin dimensions (mm) | 1150×750 | 1150×850 | 1350×1000 |
| Hoistway dimensions (mm) | 1500×1200 | 1500×1300 | 1700×1500 |
| Top floor height (mm) | ≥3200 | ≥3200 | ≥3200 |
| Pit depth (mm) | ≥200 | ≥200 | ≥200 |
| Parameter | Specification |
|---|---|
| Rated speed | 0.4 m/s |

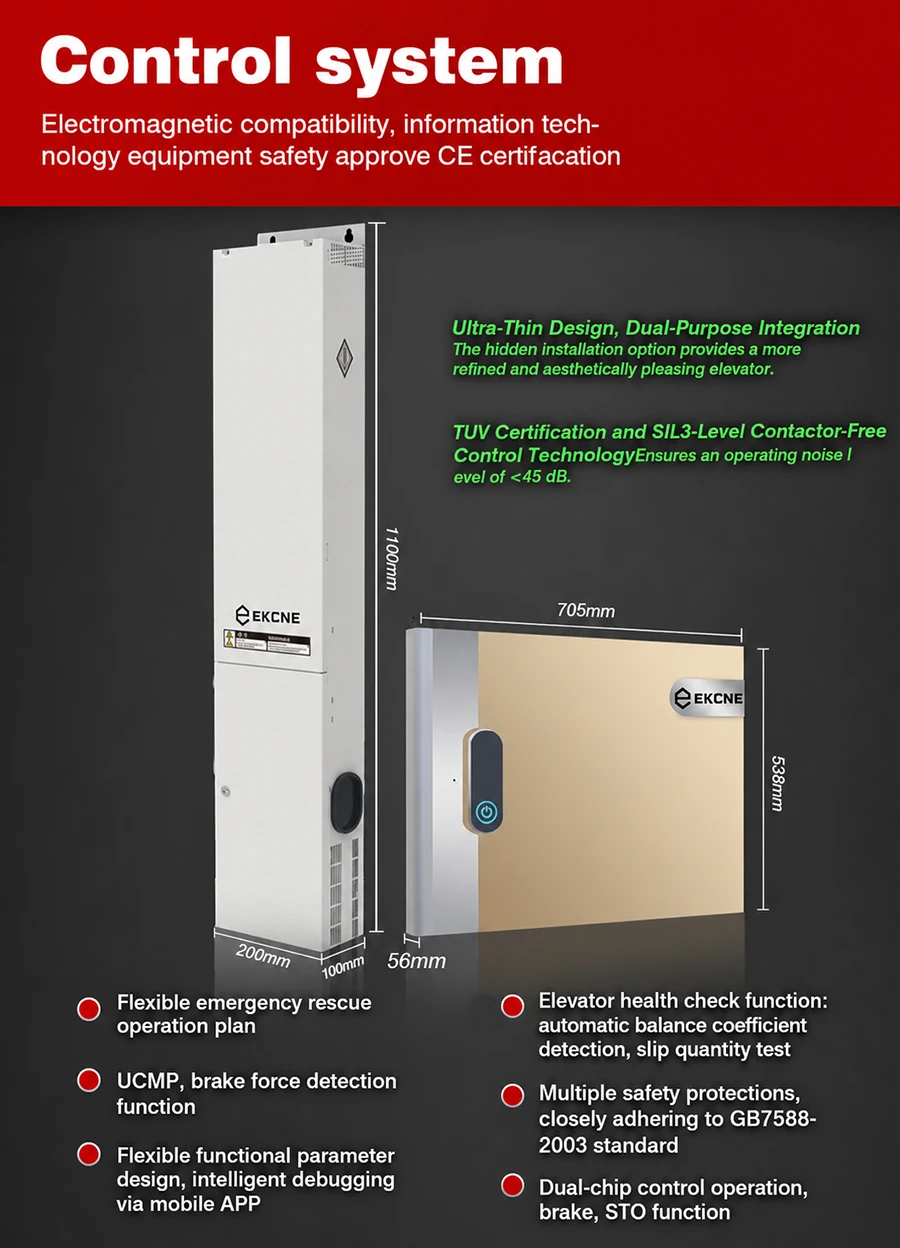

| Control mode | VVVF |

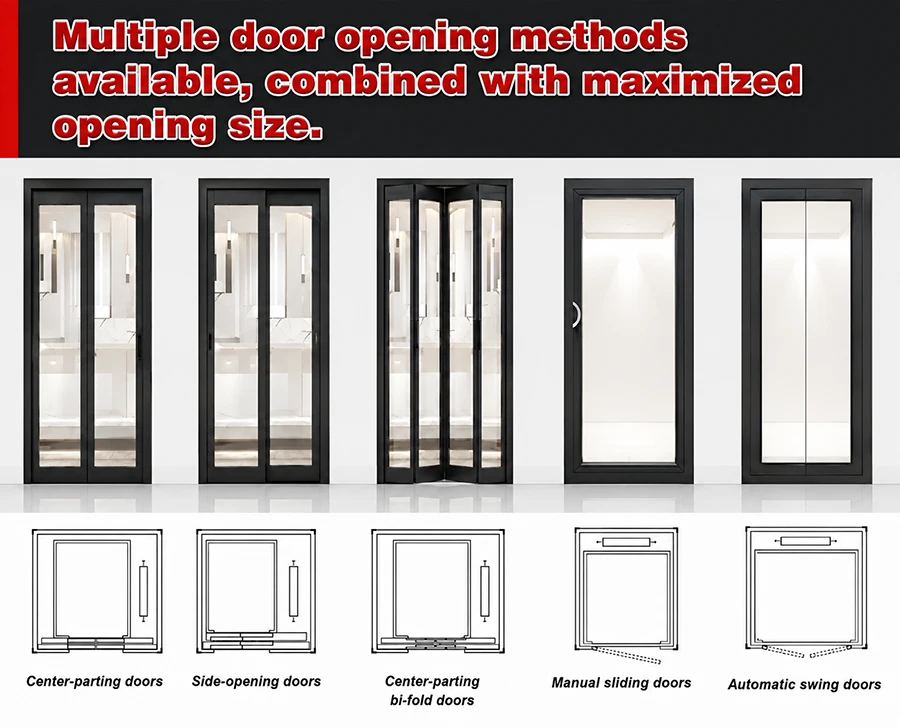

| Door opening type | Center opening |
| Power supply | 380V / 220V 50Hz |
Video thumb with Custom Icon
Embed videos to your sites and control various fields with our most powerful video widget of ElementsKit.
Professionalism
Backed by 33 years of expertise, our technical, design, engineering, and production teams deliver reliable elevator solutions.
Our Services
Pre-Sales Engineering Support
Shaft drawings, site evaluation, and technical planning tailored to project requirements.
Customized elevator systems for offices, hotels, warehouses, and commercial buildings.

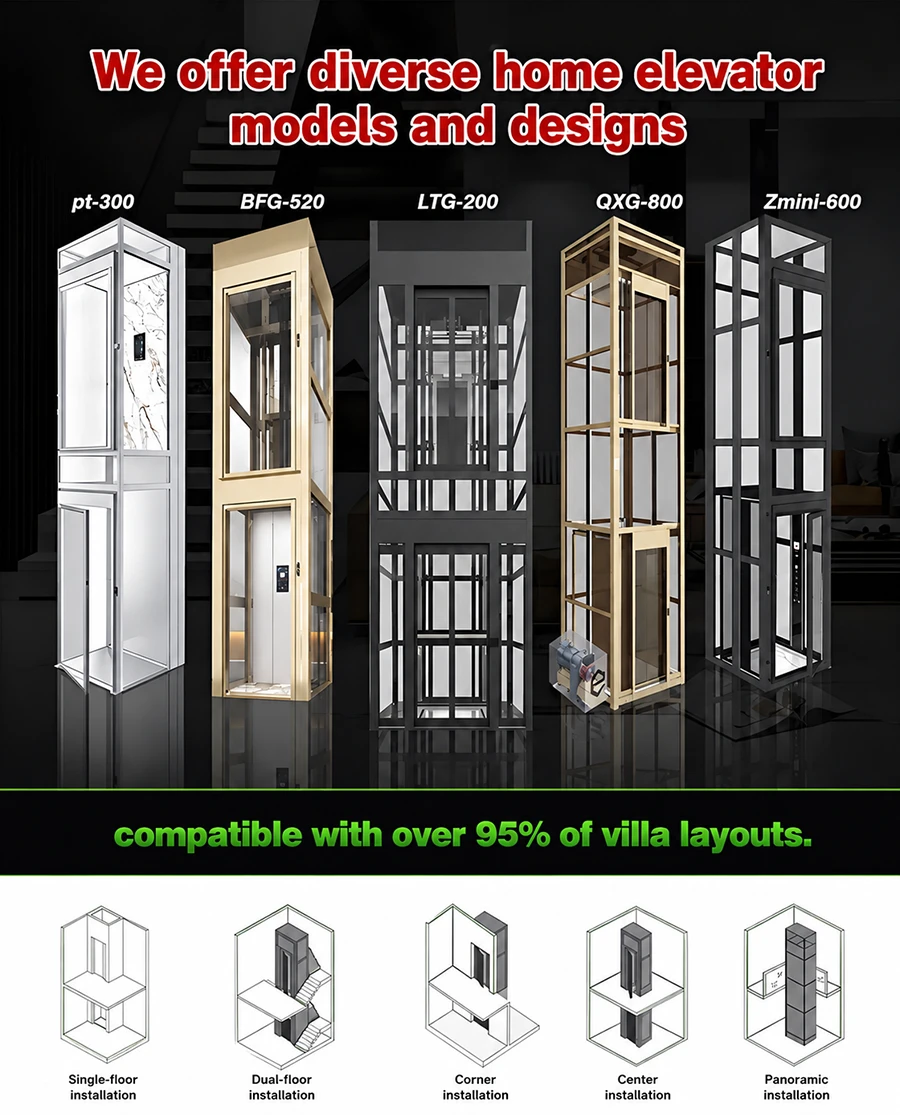

Compact and flexible home elevator solutions for villas and residential projects.
Quality Control & Testing
Strict inspection and testing to ensure stable performance and installation accuracy.
OEM & Semi-CKD Manufacturing
Flexible OEM and semi-CKD cooperation with customized branding and production support.
Supply of elevator components and spare parts for mainstream elevator systems.
Export Packaging & Logistics
Export-standard packaging and secure logistics for international transportation.
Partner Support Services
Technical, installation, and market support for distributors and project partners.
