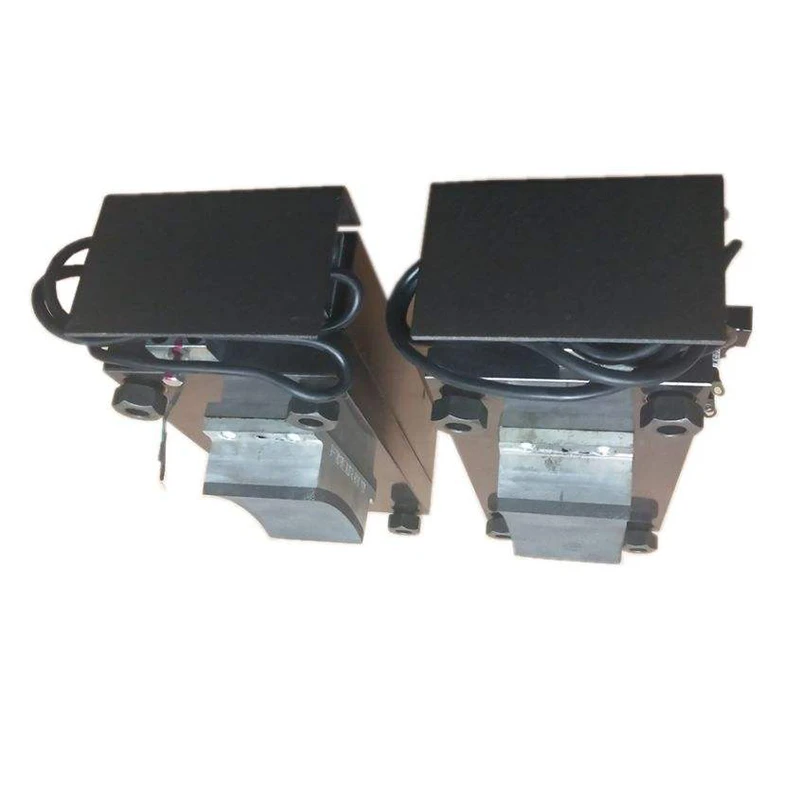

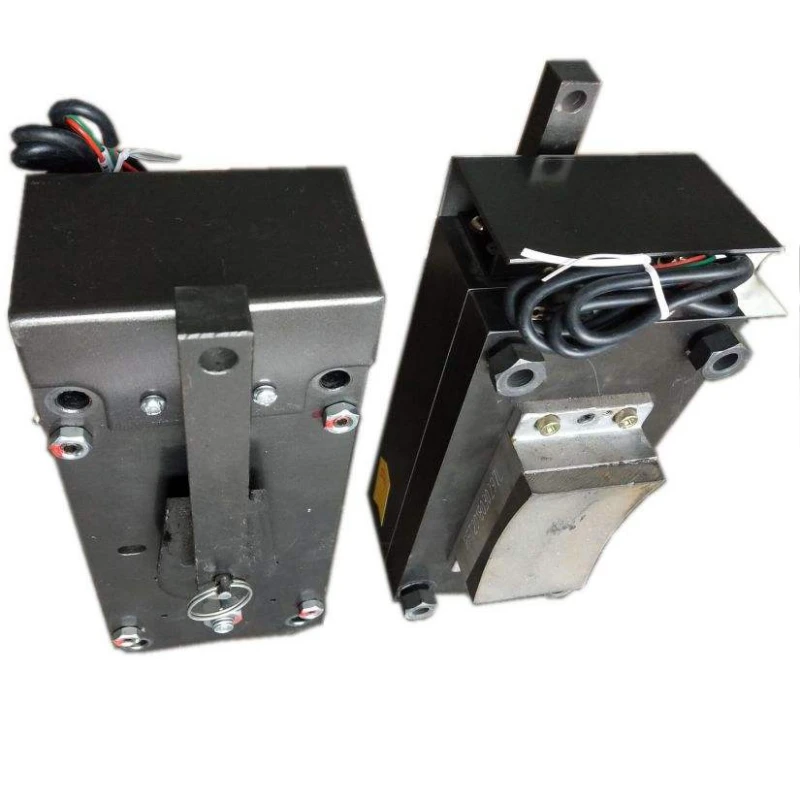

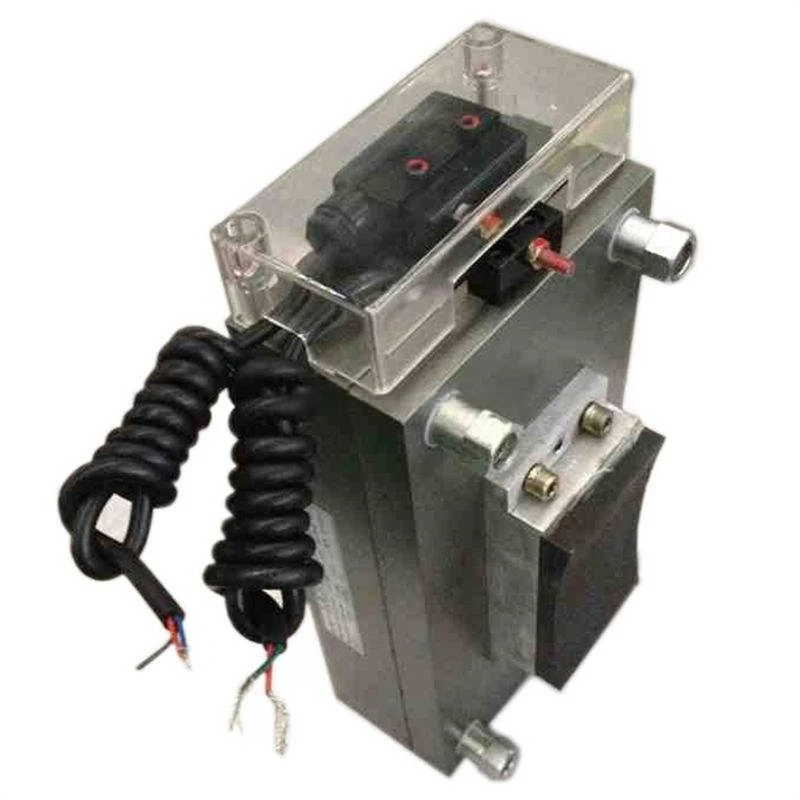

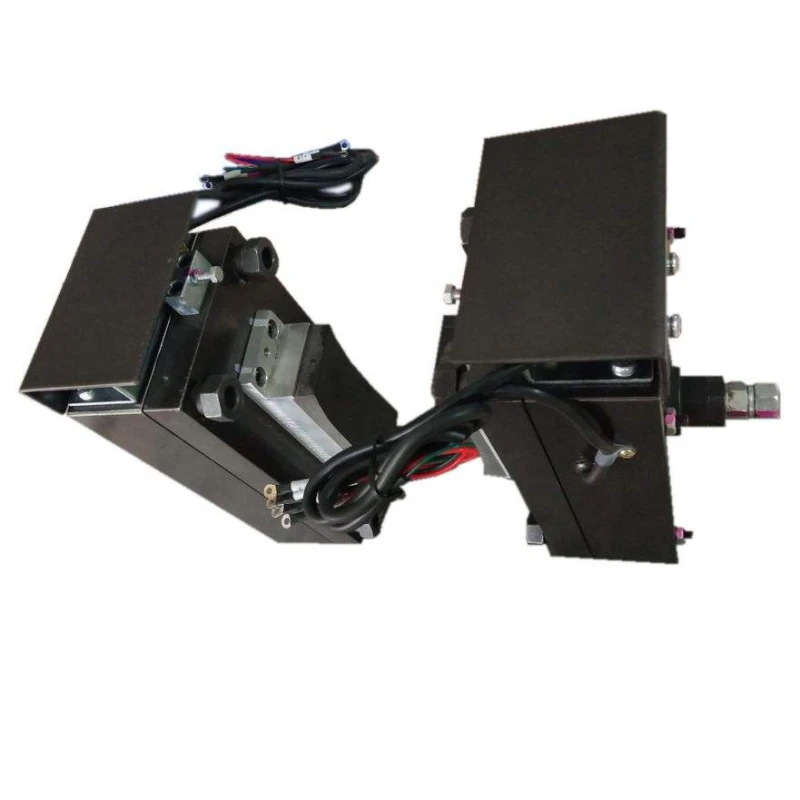

Residential Elevator Brake
| Technical Specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Working Voltage (DC) | Rated Power (W) | Initial Clearance δ₁ (mm) | Working Clearance (mm) | Braking Force (N) | Friction Wheel Diameter (mm) | Rated Braking Torque (N·m) | Braking Time (AC Cut/DC Cut, ms) | Duty Cycle | Max. Temp. Rise (K) | Noise (dB(A)) | Insulation Class | Protection Grade |
| SDZK-4800 | 110V | 120 | 1.0–1.1 | 0.25–0.4 | 4800 | 310 | 300 | 400/140 | S5-40% | ≤70K | 55 | F | IP43 |
| SDZK-5500A | 110V | 130 | 1.0–1.1 | 0.25–0.4 | 5500 | 386 | 425 | 420/165 | S5-40% | ≤70K | 55 | F | IP43 |
| SDZK-5500B | 110V | 130 | 1.0–1.1 | 0.25–0.4 | 5500 | 409 | 450 | 420/165 | S5-40% | ≤70K | 55 | F | IP43 |
| SDZK-5800 | 110V | 130 | 1.0–1.1 | 0.25–0.4 | 5800 | 380 | 450 | 420/165 | S5-40% | ≤70K | 55 | F | IP43 |
| SDZK-6000 | 110V | 140 | 1.0–1.1 | 0.25–0.4 | 6000 | 600 | 720 | 425/170 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-7000 | 110V | 140 | 1.0–1.1 | 0.25–0.4 | 7500 | 452 | 700 | 425/170 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500A | 110V | 140 | 1.0–1.1 | 0.25–0.4 | 8500 | 510 | 880 | 440/185 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500B | 110V | 140 | 1.0–1.1 | 0.25–0.4 | 8500 | 500 | 850 | 460/175 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500C | 110V | 140 | 1.0–1.1 | 0.25–0.4 | 8500 | 500 | 850 | 460/175 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500D | 110V | 140 | 1.0–1.1 | 0.25–0.4 | 8500 | 495 | 850 | 460/175 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500E | 110V | 140 | 1.0–1.1 | 0.25–0.4 | 8500 | 490 | 840 | 460/175 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500F | 110V | 140 | 1.0–1.1 | 0.25–0.4 | 8500 | 505 | 850 | 460/175 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-10000 | 110V | 140 | 1.0–1.1 | 0.25–0.4 | 10000 | 495 | 980 | 430/180 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-12000 | 110V | 180 | 1.0–1.1 | 0.25–0.4 | 12000 | 600 | 1450 | 480/192 | S5-40% | ≤80K | 60 | F | IP43 |
| SDZK-12000 | 110V | 180 | 1.0–1.1 | 0.25–0.4 | 12000 | 656 | 1600 | 480/192 | S5-40% | ≤80K | 60 | F | IP43 |
| SDZK-14000 | 110V | 180 | 1.0–1.1 | 0.25–0.4 | 12000 | 600 | 1750 | 480/192 | S5-40% | ≤80K | 60 | F | IP43 |
