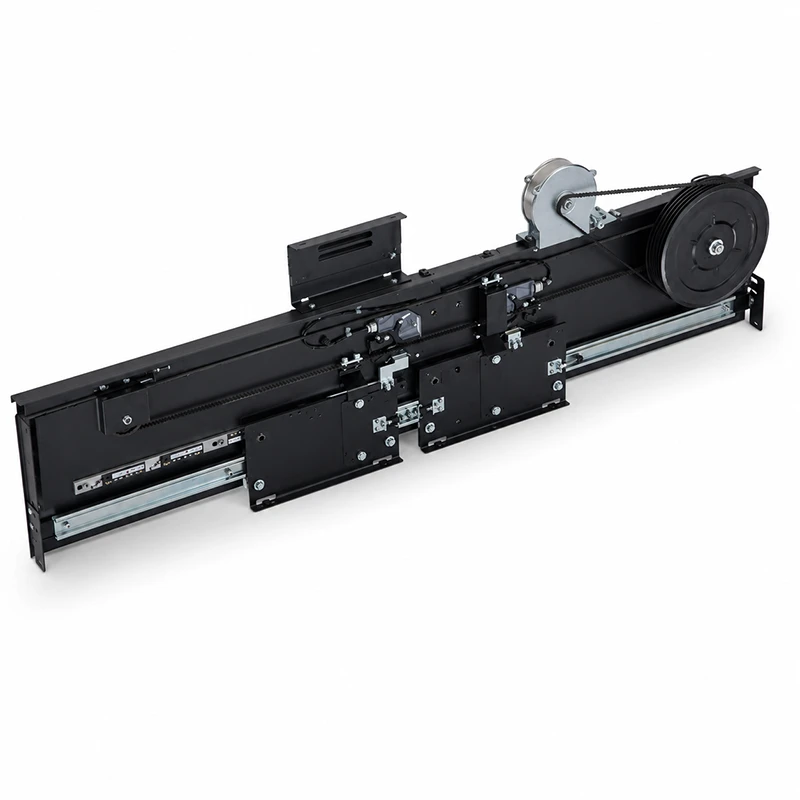

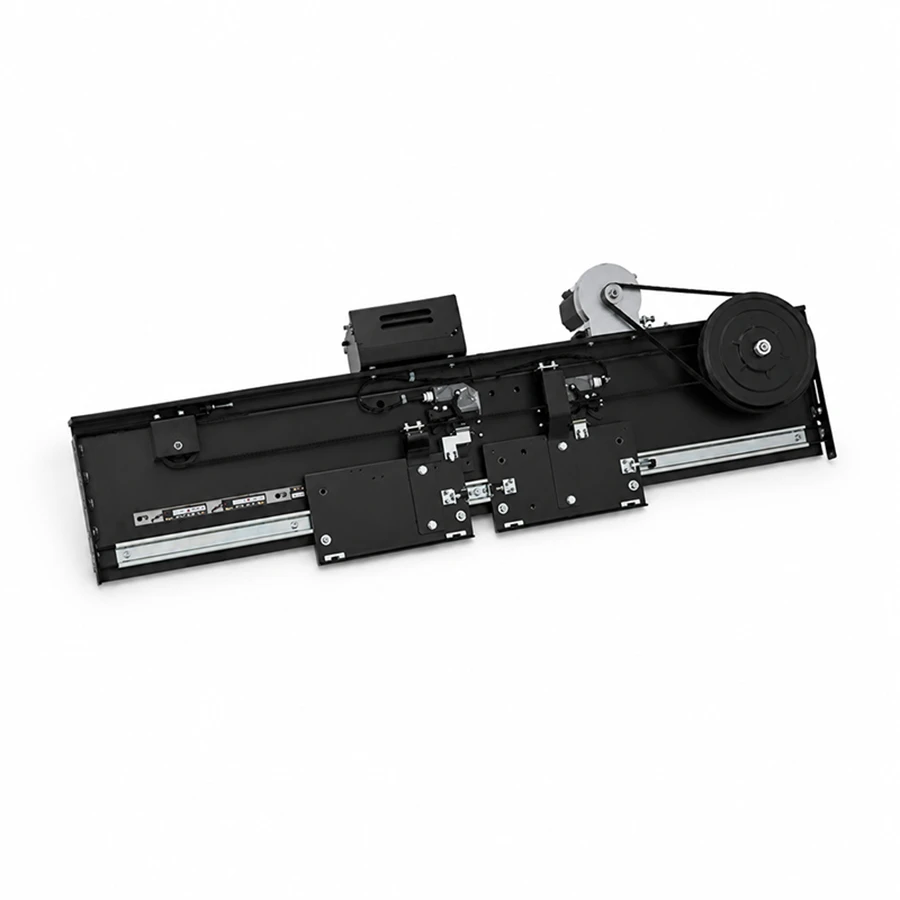

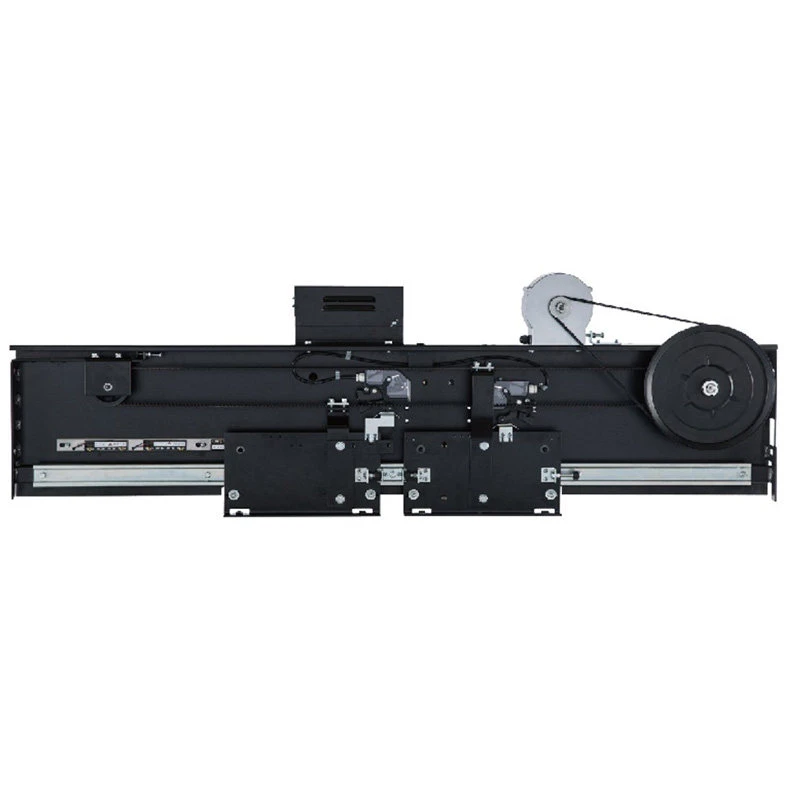

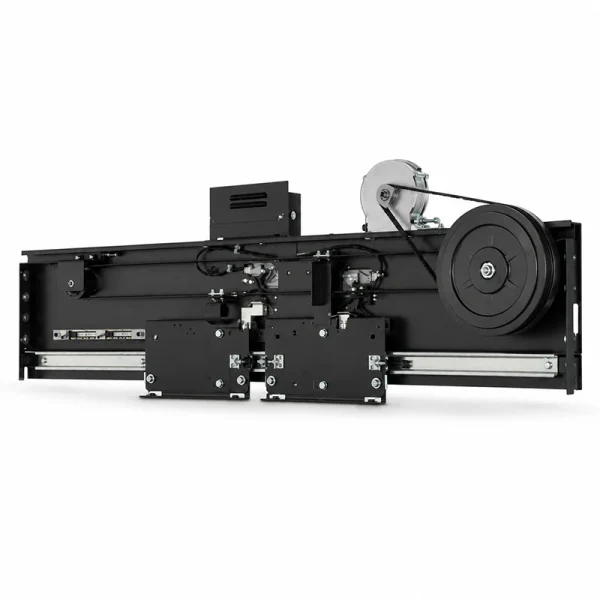

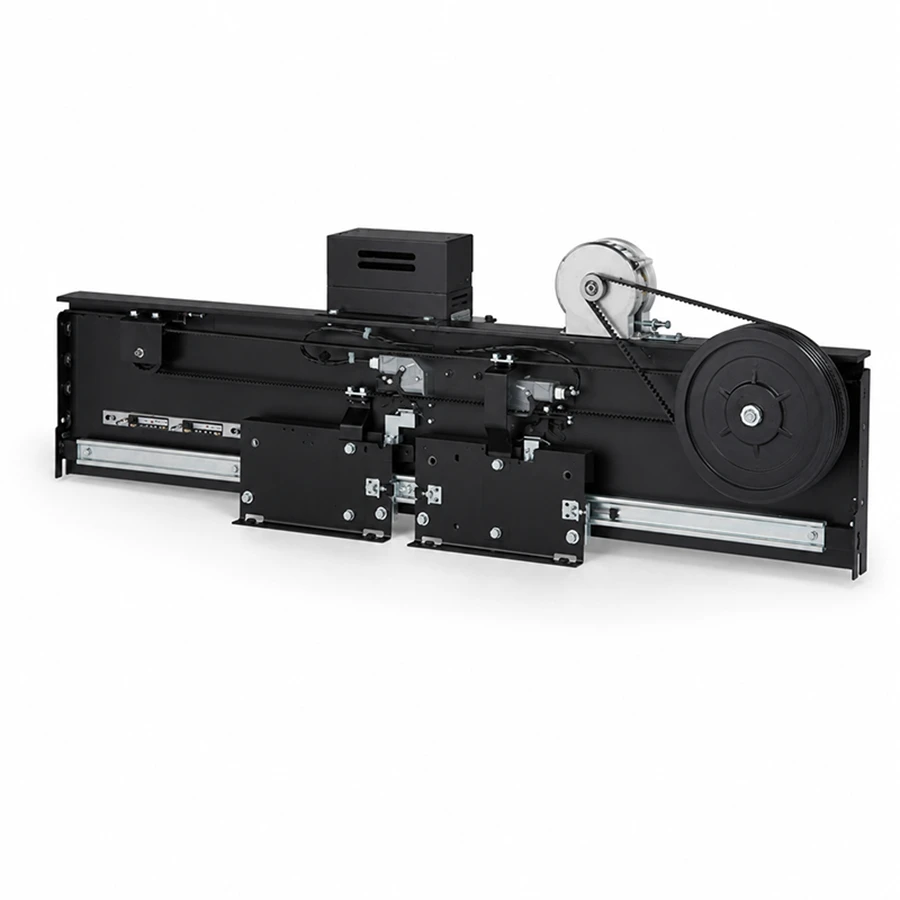

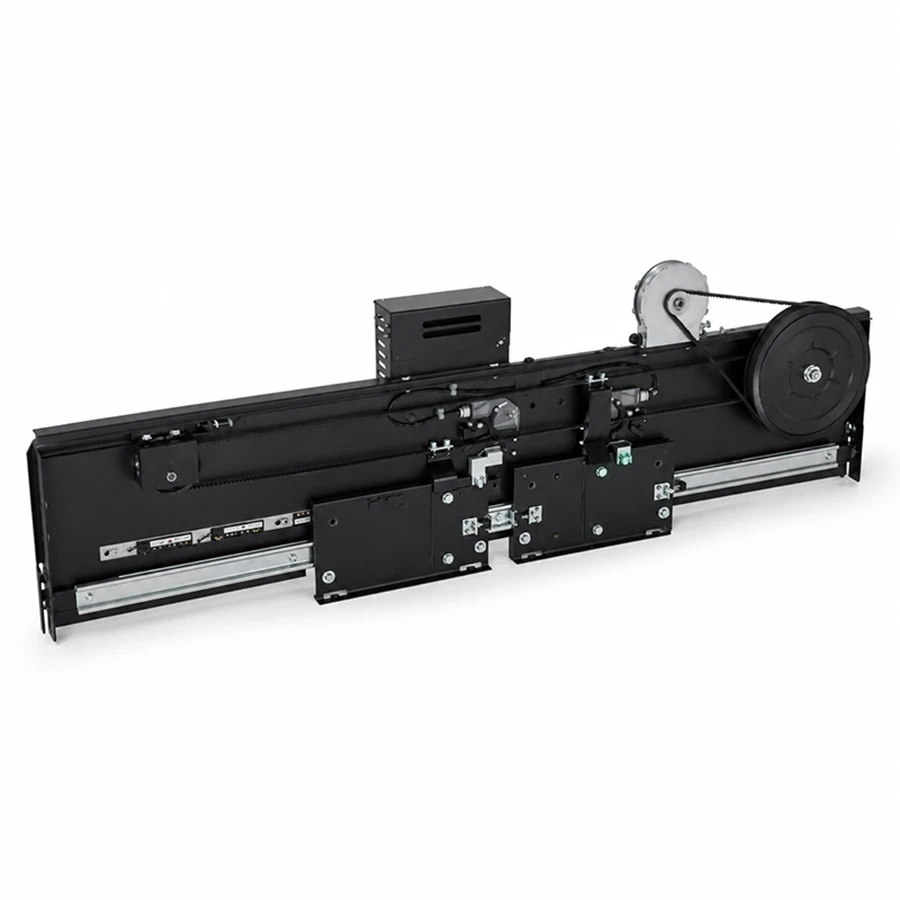

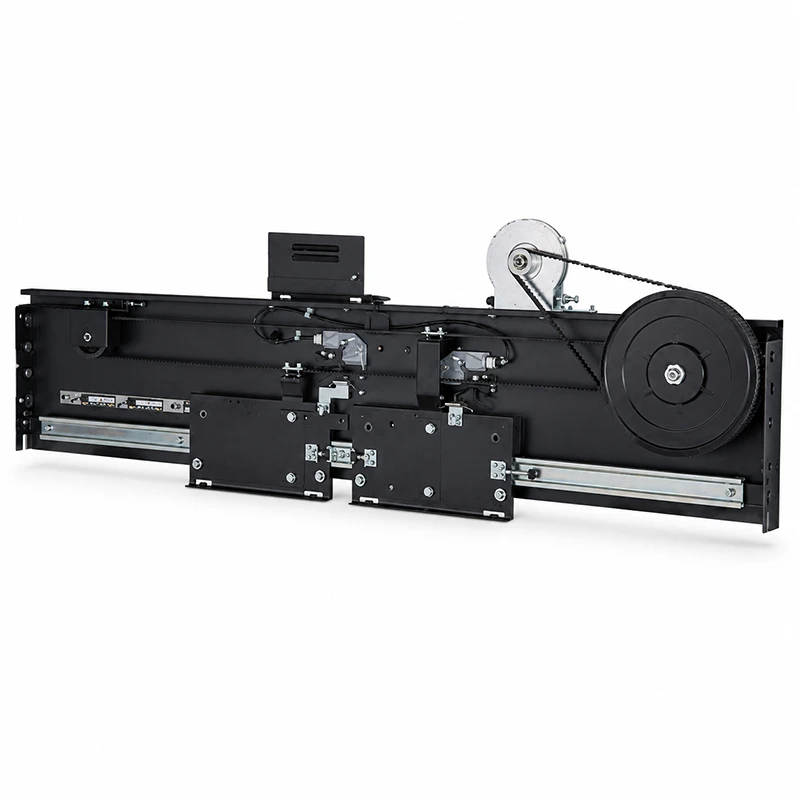

Shenling Door Operator
- Dual VVVF Control for Smooth and Precise Operation
- Low-Noise Synchronous Belt Drive with Long Service Life
- Flexible Car-Frame or Car-Roof Installation
- 650–1200 mm Full Opening Range, Supporting Up to 200 kg
- 200–250V, 50/60Hz Compatibility and GB7588 Compliance
| Elevator Car Door Operator Specification Sheet | ||
|---|---|---|
| Standard Parameter Table | ||
| Parameter | Description | Standard Values |
| JJ (Door Opening Width, mm) | – | 650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1200 |
| A1 (Door Height, mm) | – | 1360, 1460, 1560, 1660, 1760, 1860, 1960, 2060, 2160, 2260, 2460 |
| B1 (Structural Dimension, mm) | – | 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 475 |
| AS | Determined by the car sling inner dimension | Custom |
| EE | Determined by 1/2 of the car depth | Custom |
| B.b | Determined per customer requirements | Custom |
| HC | Car roof installation height, determined per customer requirements | Custom |
| Electrical Rating | Rated Voltage: AC230V, Rated Frequency: 50–60Hz, Rated Current: 2.0A | – |
| Key Mechanical Dimensions | |
|---|---|
| Dimension Item | Specification |
| Horizontal Reference | JJ ±25mm (door opening width with side clearance) |
| Center Section Dimension | 70mm (±1mm tolerance) |
| Structural Width | 131mm (from centerline) |
| Main Rail Height | 248mm |
| Pulley Outer Projection | 65mm (when car door lock is equipped and JJ ≤750; no projection if no lock) |
| Swing Arm Radius | 270mm |
| Vertical Clearance (Side View) | 30mm (bottom gap) |
| Motor Unit Dimensions | Width: 115/180mm, Height: 240mm |
| Car Sill / Landing Sill Line | Clearance: 7–16mm |
| Door Guide Profile | Width: 60mm, Depth: 40mm |
