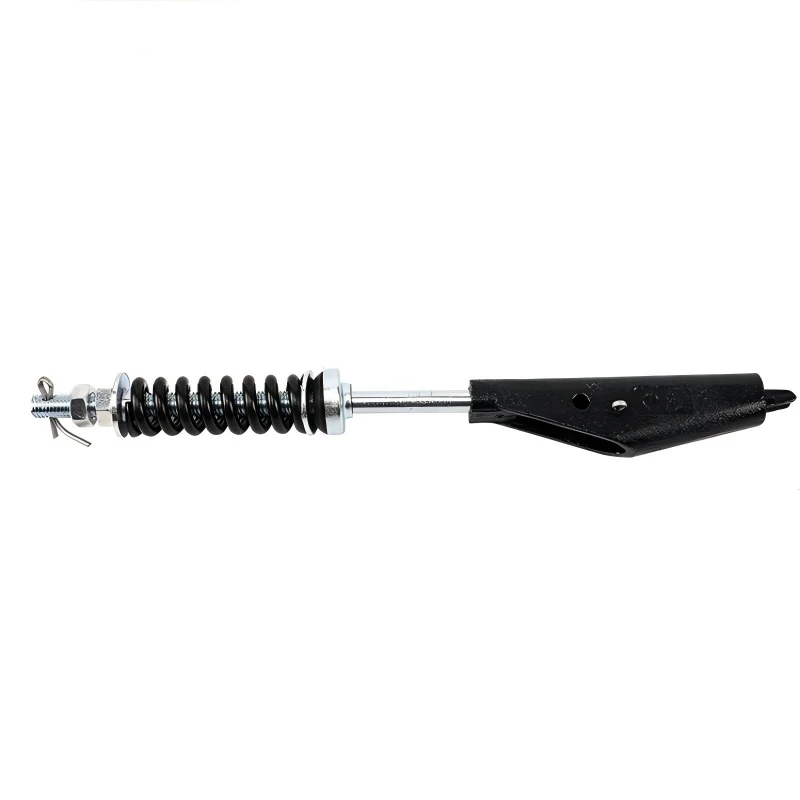

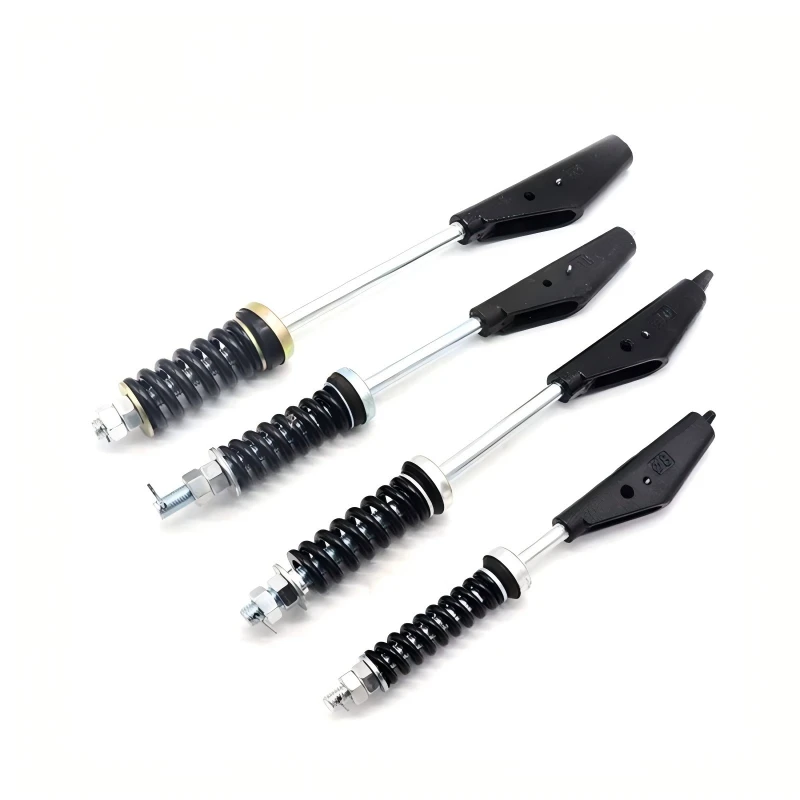

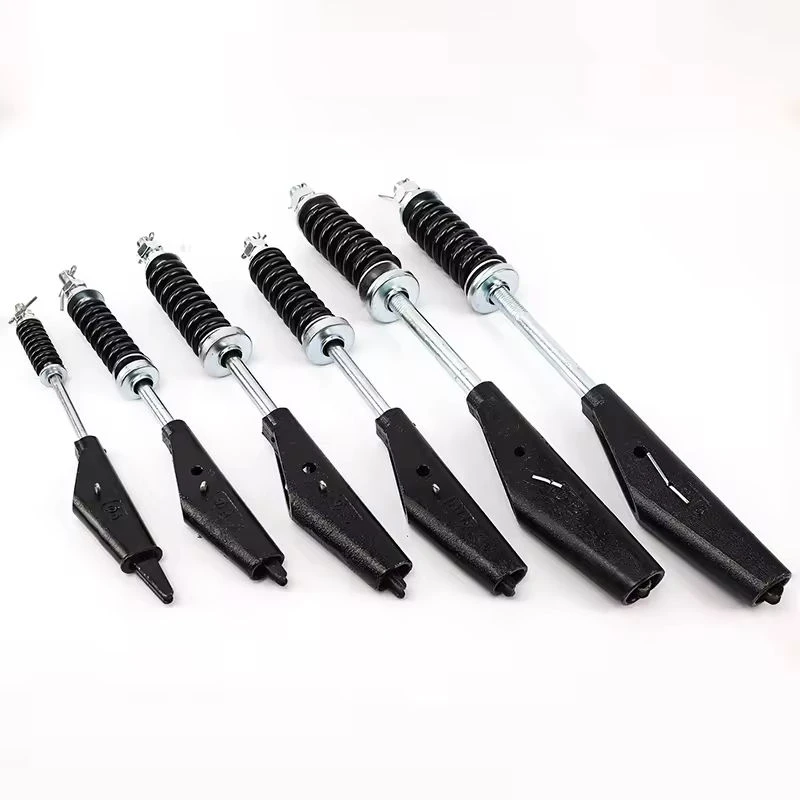

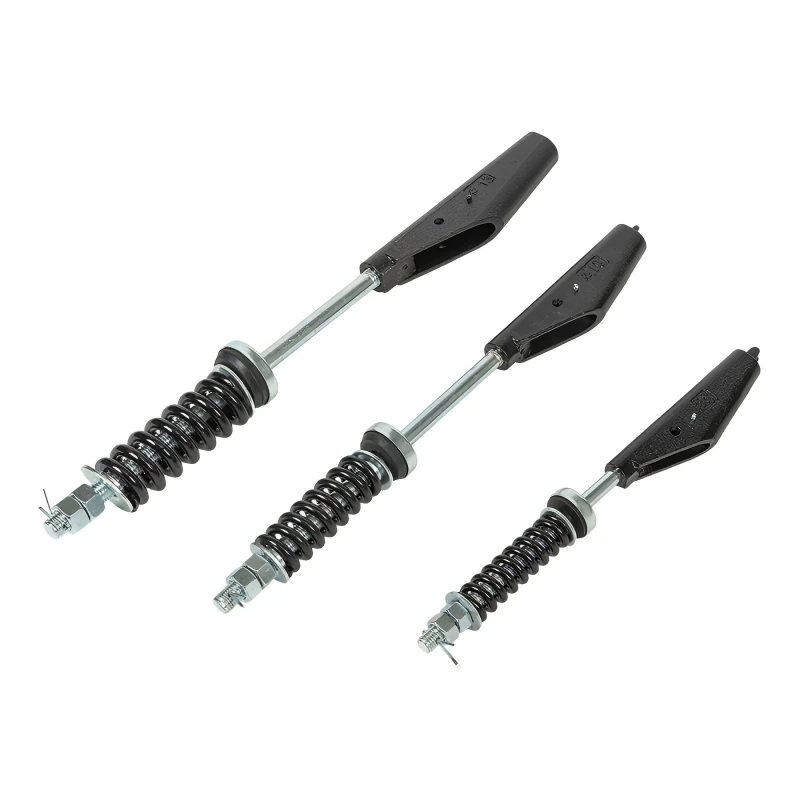

| Elevator Wire Rope Wedge Socket Assemblies Specification Sheet | ||||||
|---|---|---|---|---|---|---|
| Model Number | Rope Diameter (mm) | Total Length (mm) | Screw Thread | Mounting Hole Diameter (mm) | Taper Sleeve Dimensions (L × W × H, mm) | Spring Specifications (Wire Dia × OD × Length × Coils, mm) |
| SLBJ-1 | Φ16 | 615 | M20 | 22 | 185 × 71 × 38 | 12 × 52 × 172 × 10 |
| SLBJ-2/3 | Φ12 / Φ13 | 550 | M18 | 30 | 188 × 57 × 32 | 10 × 50 × 120 × 8.5 |
| SLBJ-4 | Φ10 | 490 | M16 | 26 | 178 × 54 × 28 | 8 × 40 × 95 × 8.5 |
| SLBJ-5 | Φ8 | 375 | M14 | 26 | 160 × 48 × 20 | 6 × 35 × 95 × 8.5 |
| QSD8W | Φ8 | 375 | M14 | 26 | 160 × 48 × 20 | 6 × 35 × 95 × 8.5 |
| QSD10W | Φ10 | 490 | M16 | 26 | 178 × 54 × 28 | 8 × 40 × 95 × 8.5 |
| QSD11W | Φ11 | 490 | M16 | 26 | 178 × 54 × 28 | 9 × 42 × 105 × 8.5 |
| QSD12W | Φ12 | 550 | M18 | 30 | 188 × 57 × 32 | 10 × 50 × 120 × 8.5 |
| QSD13W | Φ13 | 580 | M20 | 30 | 220 × 62 × 32 | 10 × 50 × 120 × 8.5 |
| QSD16W | Φ16 | 615 | M20 | 22 | 185 × 71 × 38 | 12 × 52 × 172 × 10 |
