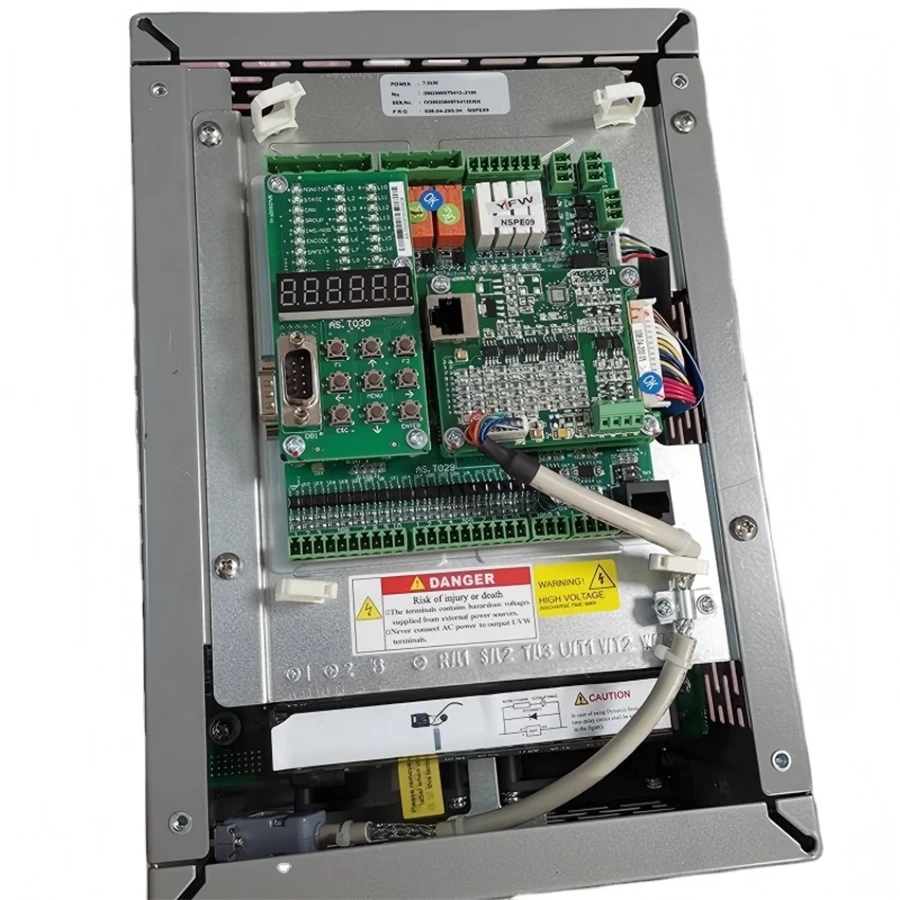

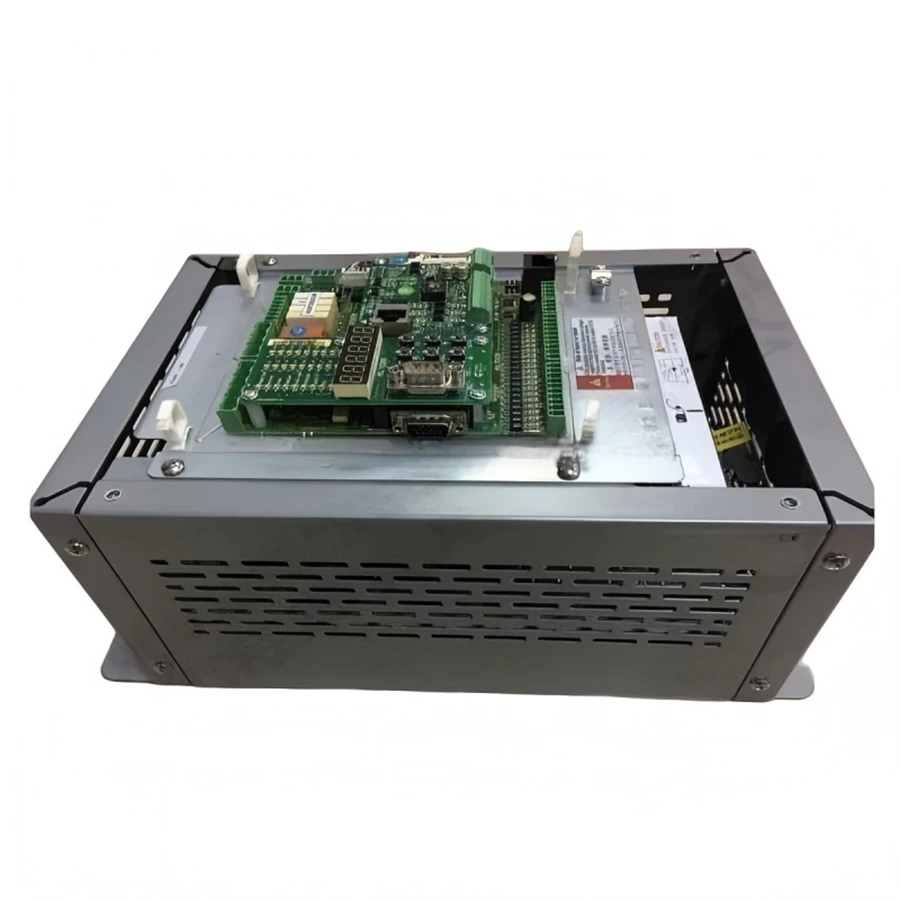

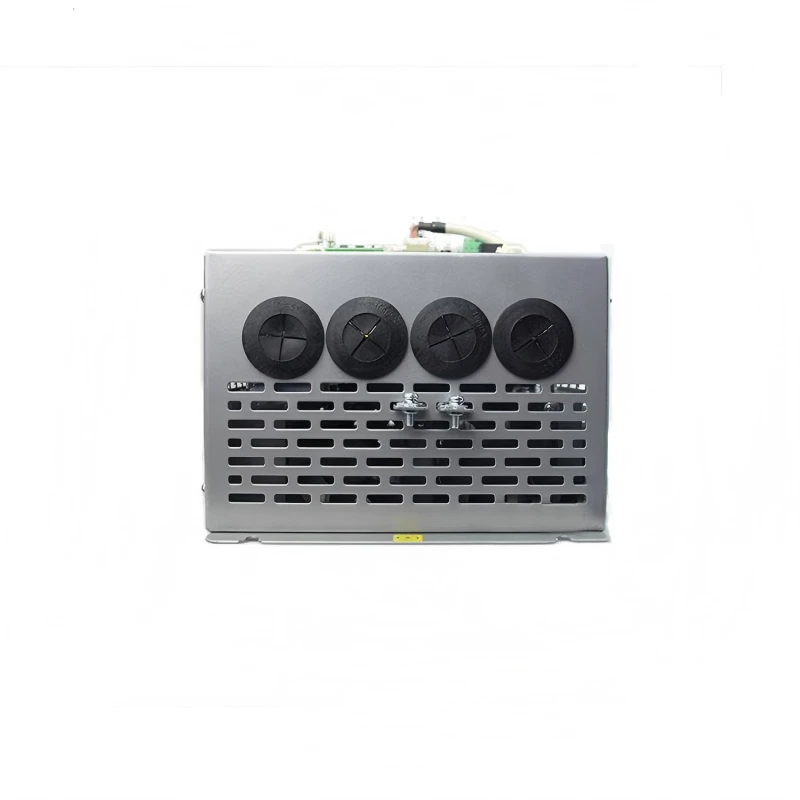

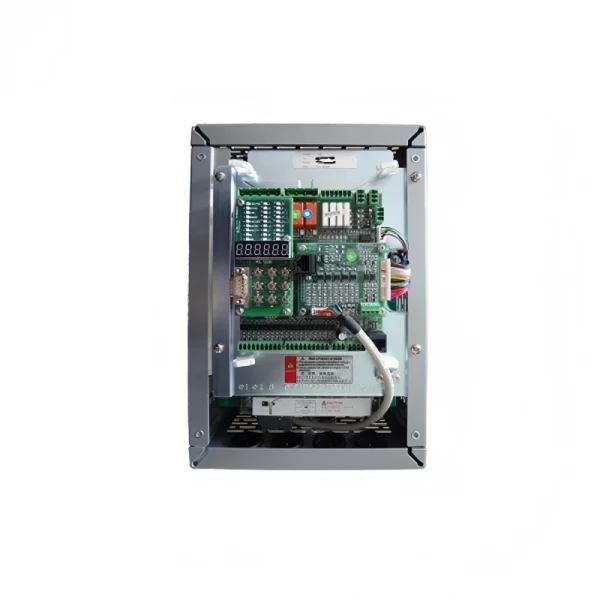

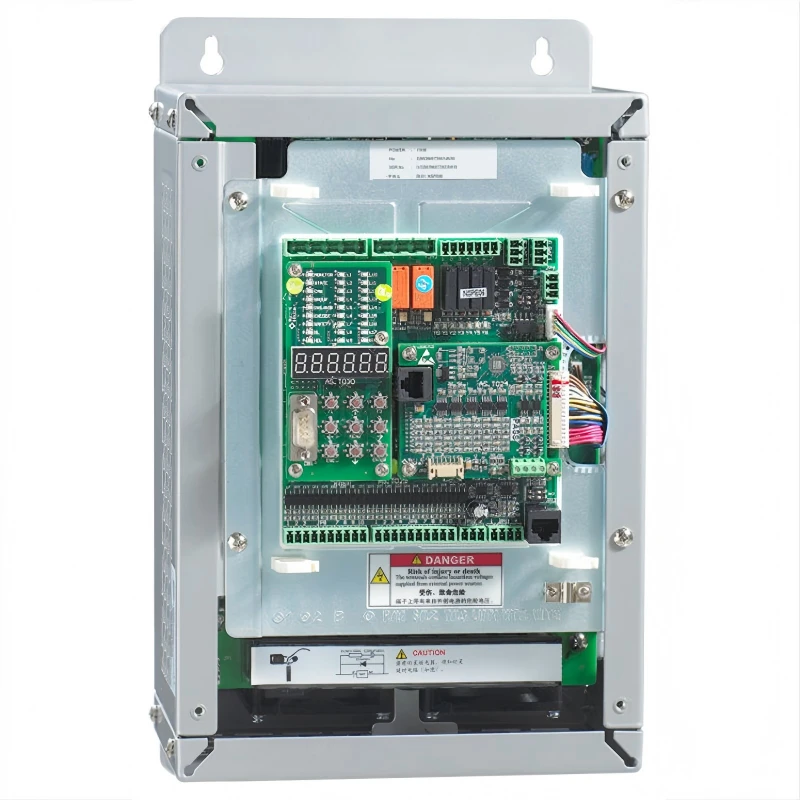

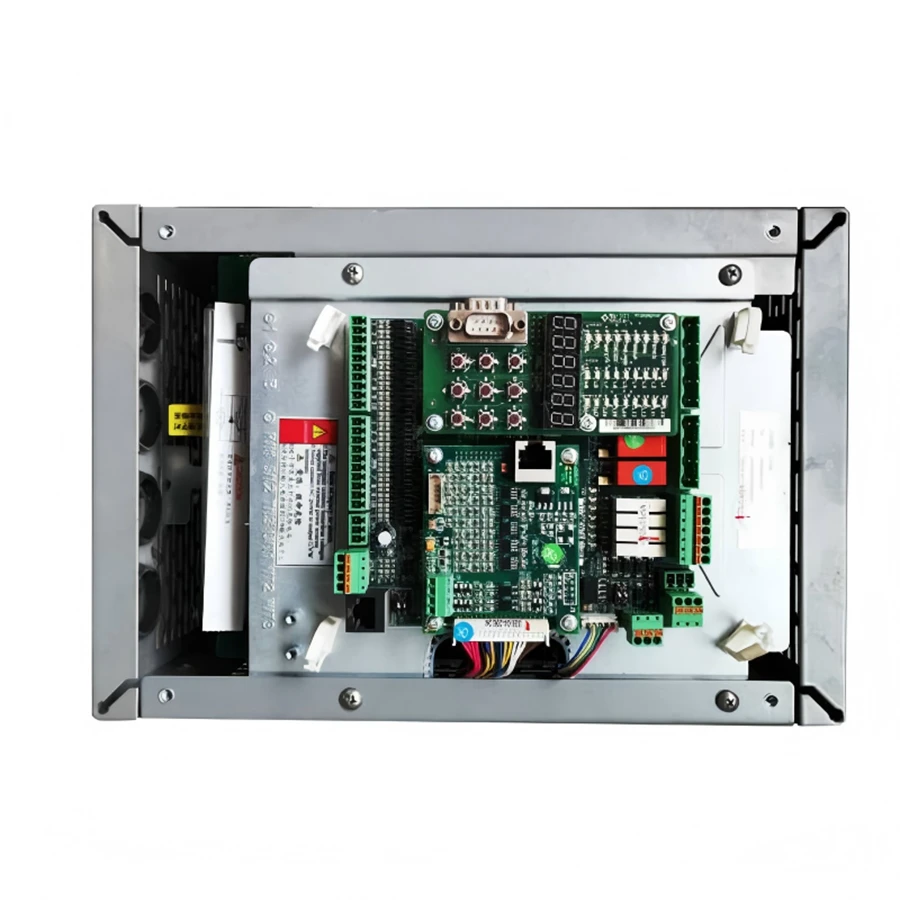

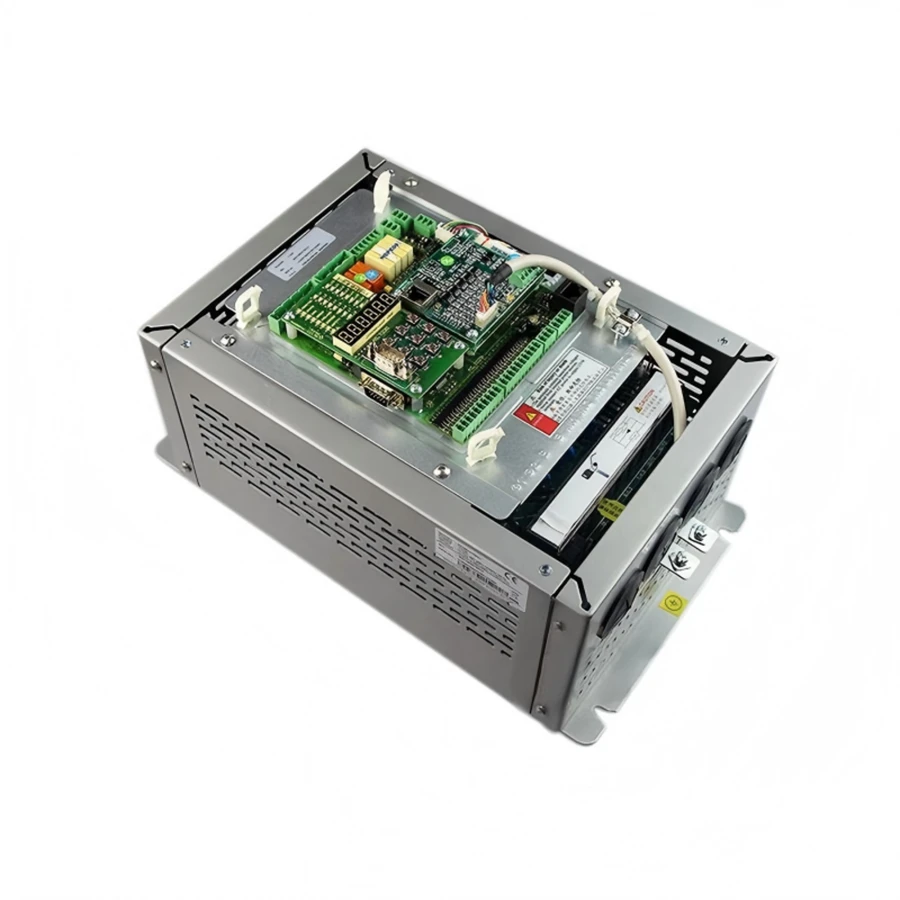

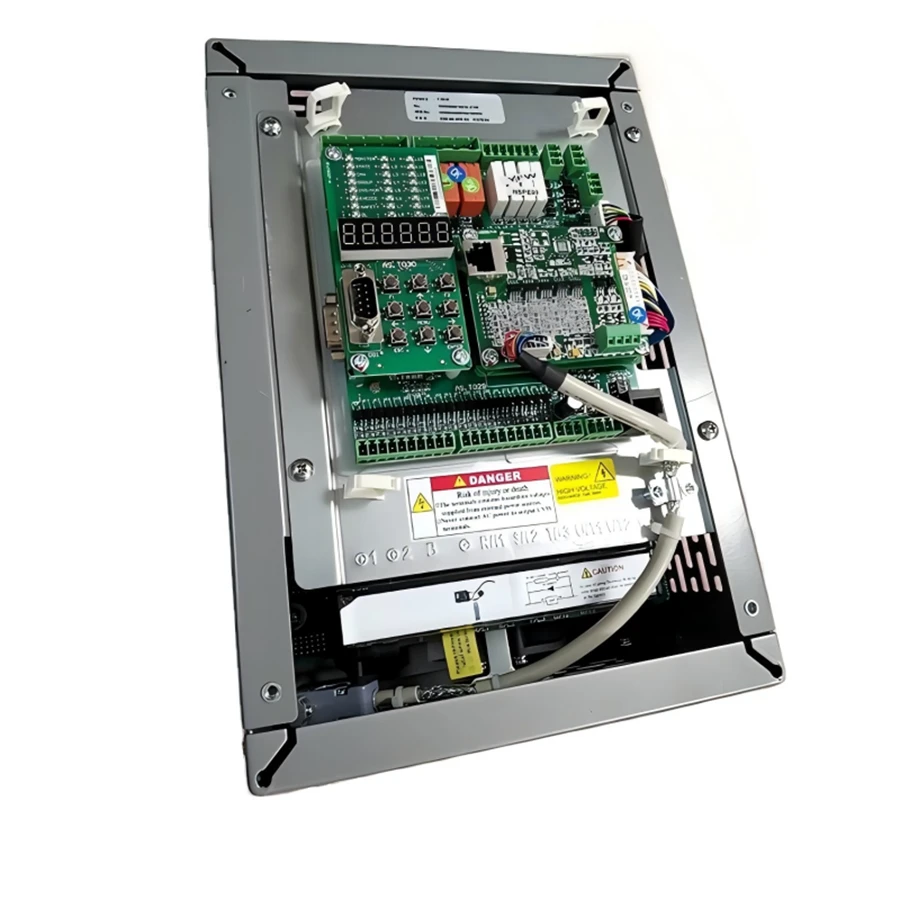

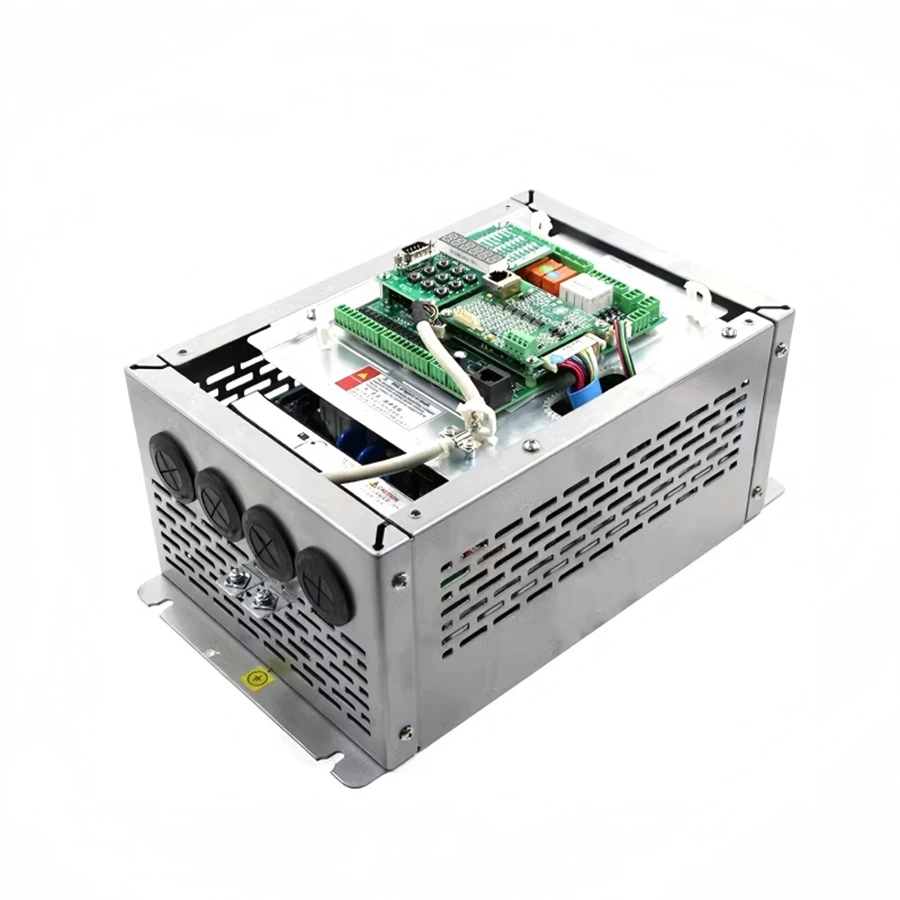

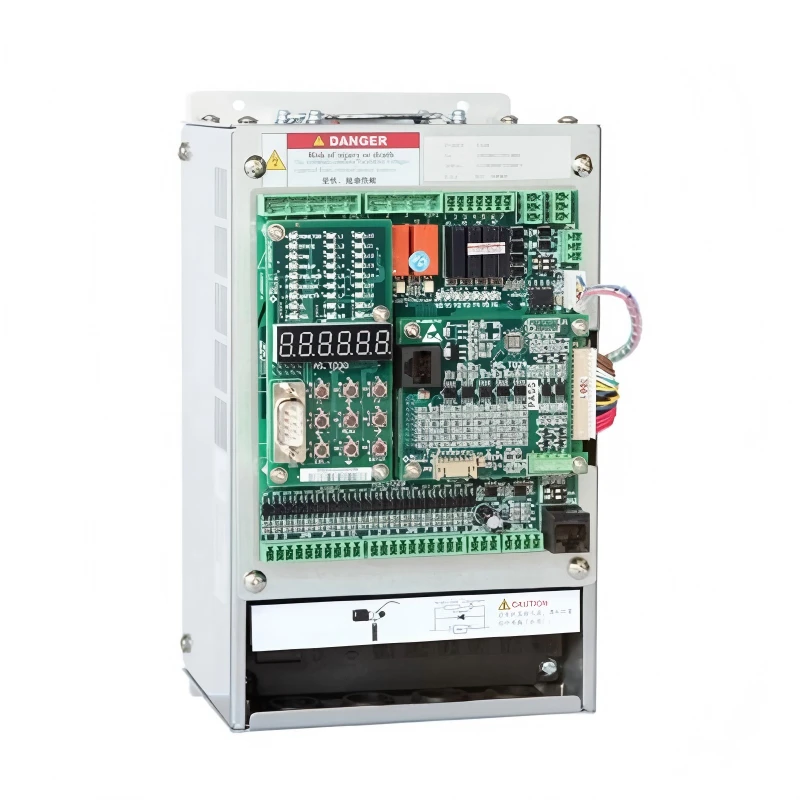

STEP AS380 All-in-one Elevator Inverter
| STEP AS380 Series Integrated Elevator Drive Controller English Specification | ||||
|---|---|---|---|---|
| Part 1: Main Electrical Parameter Specification | ||||
| Model No. | Rated Capacity (kVA) | Rated Output Current (A) | Matched Motor Power (kW) | Input Grade |
| 2S01P1 | 2.3 | 6.0 | 1.1 | Single-phase 200V |
| 2S02P5 | 4.6 | 12 | 2.2 | Single-phase 200V |
| 2S03P7 | 6.9 | 18 | 3.7 | Single-phase 200V |
| 4T02P2 | 4.7 | 6.2 | 2.2 | Three-phase 400V |
| 4T03P7 | 6.9 | 9 | 3.7 | Three-phase 400V |
| 4T05P5 | 8.5 | 13 | 5.5 | Three-phase 400V |
| 4T07P5 | 14 | 18 | 7.5 | Three-phase 400V |
| 4T0011 | 18 | 27 | 11 | Three-phase 400V |
| 4T0015 | 24 | 34 | 15 | Three-phase 400V |
| 4T18P5 | 29 | 41 | 18.5 | Three-phase 400V |
| 4T0022 | 34 | 48 | 22 | Three-phase 400V |
| 4T0030 | 50 | 65 | 30 | Three-phase 400V |
| 4T0037 | 61 | 80 | 37 | Three-phase 400V |
| 4T0045 | 74 | 97 | 45 | Three-phase 400V |
| 4T0055 | 98 | 128 | 55 | Three-phase 400V |
| 4T0075 | 130 | 165 | 75 | Three-phase 400V |
| Part 2: Brake Resistor Configuration Specification | ||||||
|---|---|---|---|---|---|---|
| 2.1 200V Integrated Device (2S Series) | ||||||
| Model | Motor (kW) | Min Resistance (Ω) | Max Resistance (Ω) | Recommended Resistance (Ω) | Sync Recommended Power (W) | Async Recommended Power (W) |
| 2S01P1 | 1.1 | 26 | 72 | 64 | 1000 | 1000 |
| 2S02P5 | 2.2 | 26 | 58 | 50 | 1000 | 1000 |
| 2S03P7 | 3.7 | 26 | 39 | 30 | 1600 | 1200 |
| 2.2 400V Integrated Device (4T Series) | ||||||
|---|---|---|---|---|---|---|
| Model | Motor (kW) | Min Resistance (Ω) | Max Resistance (Ω) | Recommended Resistance (Ω) | Sync Recommended Power (W) | Async Recommended Power (W) |
| 4T02P2 | 2.2 | 56 | 210 | 100 | 1000 | 1000 |
| 4T03P7 | 3.7 | 56 | 144 | 80 | 1600 | 1200 |
| 4T05P5 | 5.5 | 56 | 100 | 70 | 2000 | 1600 |
| 4T07P5 | 7.5 | 56 | 72 | 64 | 3200 | 2000 |
| 4T0011 | 11 | 34 | 48 | 40 | 4000 | 3200 |
| 4T0015 | 15 | 34 | 41 | 36 | 5000 | 4000 |
| 4T18P5 | 18.5 | 17 | 31 | 24 | 6400 | 5000 |
| 4T0022 | 22 | 17 | 27 | 20 | 8000 | 6400 |
| 4T0030 | 30 | 11 | 20 | 15 | 10000 | 8000 |
| 4T0037 | 37 | 8 | 16 | 12 | 12000 | 10000 |
| 4T0045 | 45 | 5 | 10 | 9 | 18000 | 15000 |
| 4T0055 | 55 | 5 | 8 | 8 | 22000 | 18000 |
| 4T0075 | 75 | 5 | 6 | 6 | 30000 | 25000 |
