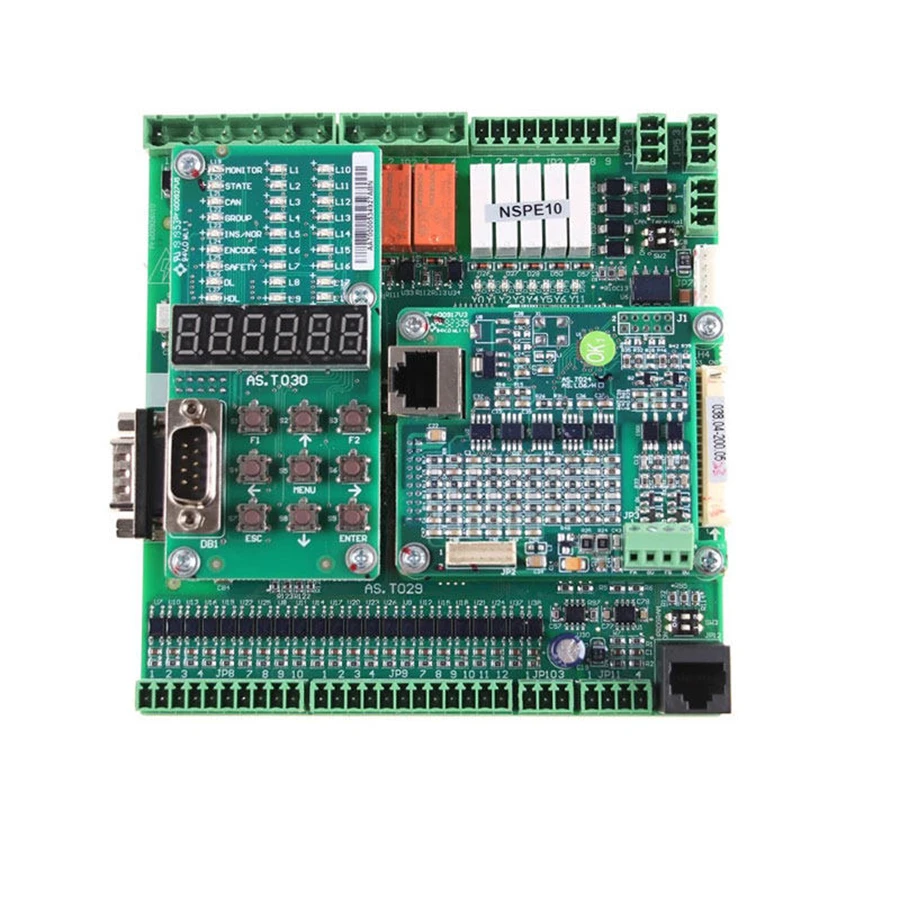

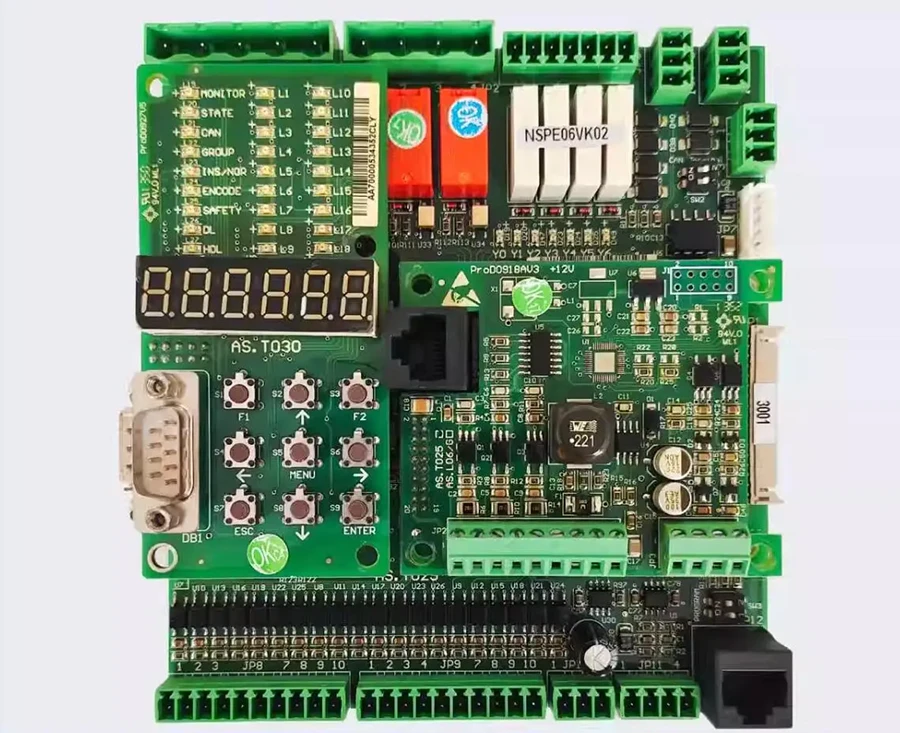

Step AS380 Main Control Board
Anti Interference STEP AS.T030 Display Board for Elevator Maintenance Debugging

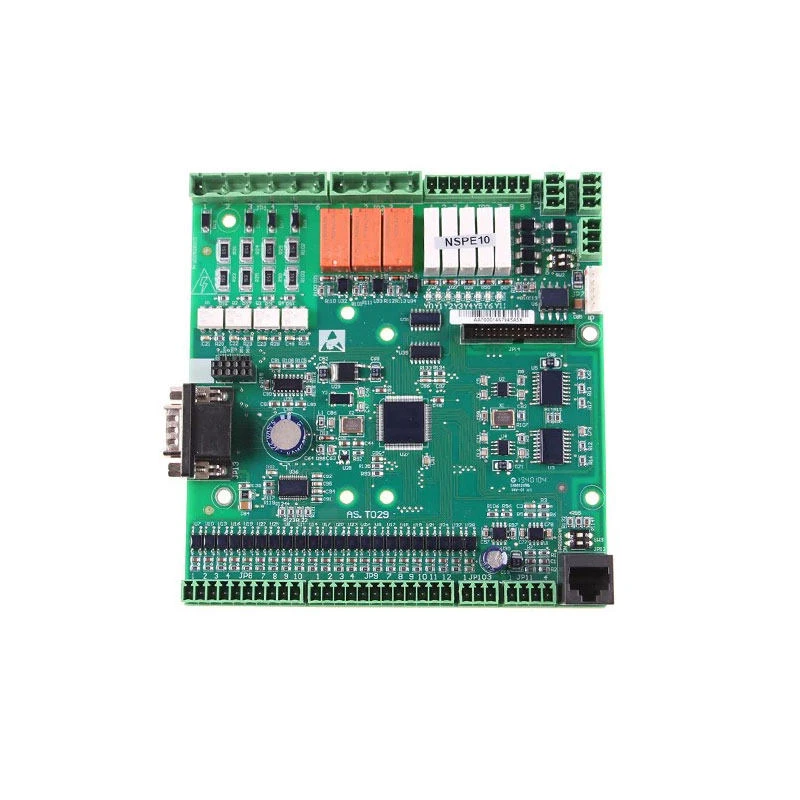

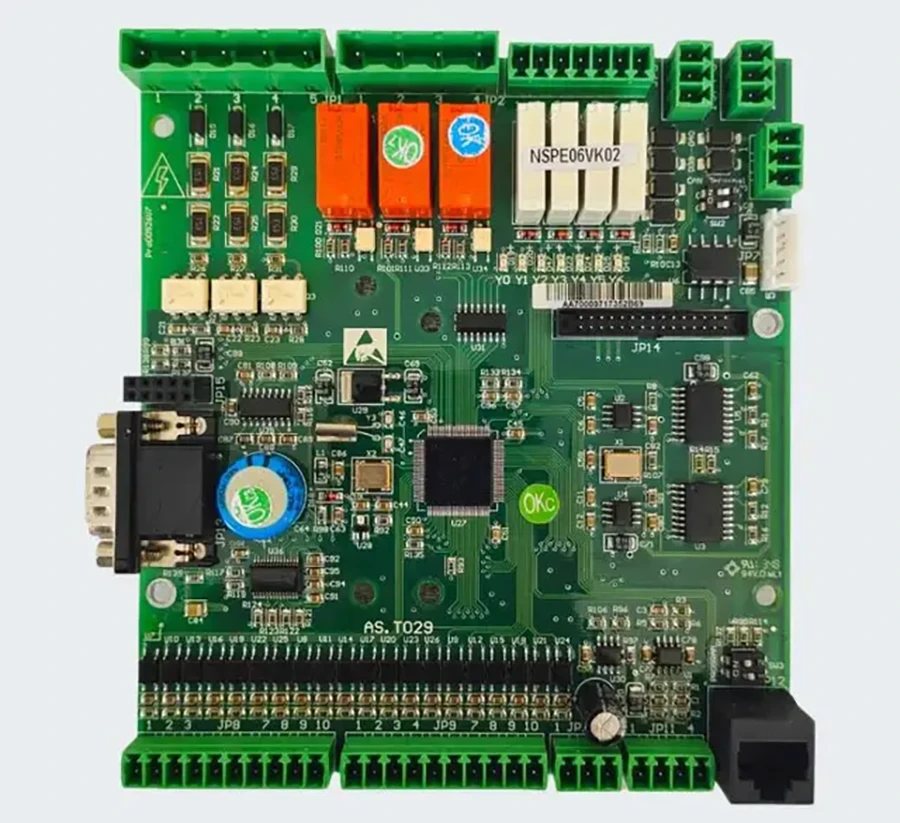

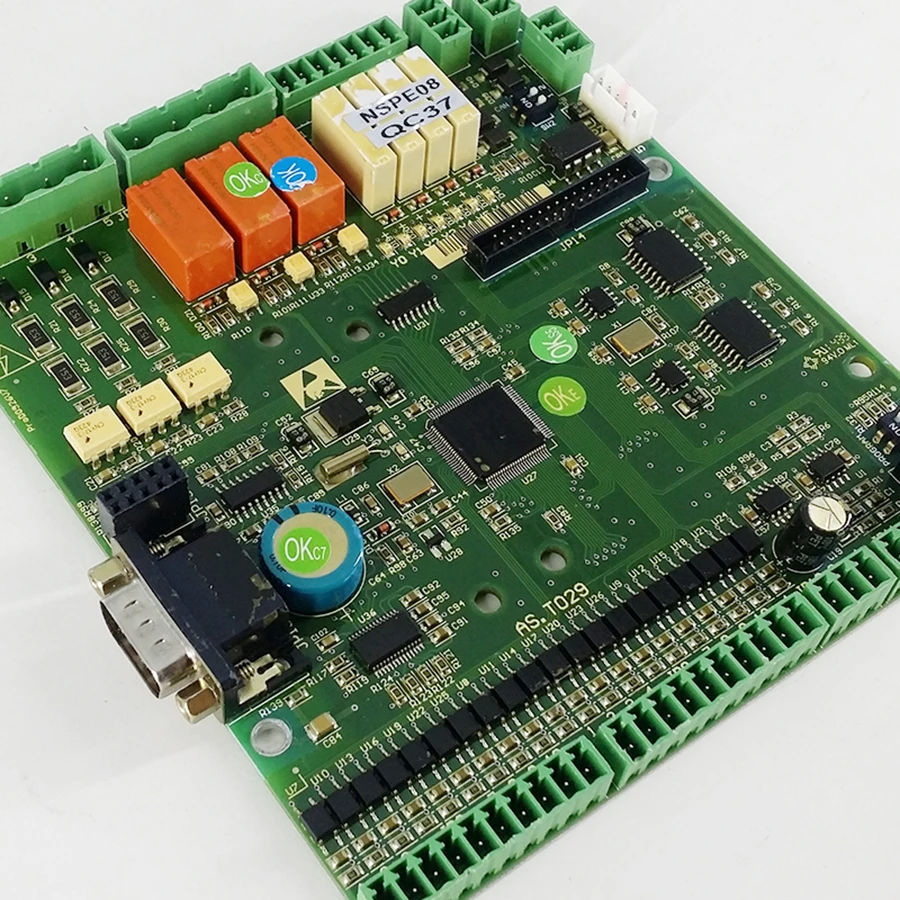

| Parameter Category | AS.T029 Main Control Board |
|---|---|
| Core Processor | 32-bit high-performance ARM MCU, fast computing speed, supports high-speed elevators |
| Installation Size | Standard original mounting holes (approx. 260 × 180 mm), direct replacement without modification |
| Interface Configuration | Multi-channel digital I/O terminals, safety circuit interface, door operator interface, call panel interface, floor display interface, encoder interface, RS232/RS485 debug interface, RJ45 port, CAN bus interface, clock battery |
| Input/Output Points | Standard 64-channel digital input, 32-channel digital output, expandable |
| Communication Protocol | Supports CAN bus, RS485, Modbus and other communication protocols |
| Compatible Encoder | Supports UVW incremental, SIN/COS, resolver and other types of encoders |
| Applicable Elevator Speed | ≤4.0 m/s, supports high-speed elevators |
| Applicable Load | ≤5000 kg, supports heavy-duty freight elevators |
| Function Expansion | Supports intelligent call, voice broadcast, IoT, remote debugging and other extended functions |
| Fault Diagnosis | Enhanced fault self-diagnosis, supports fault tracing, operation data recording, historical fault query |

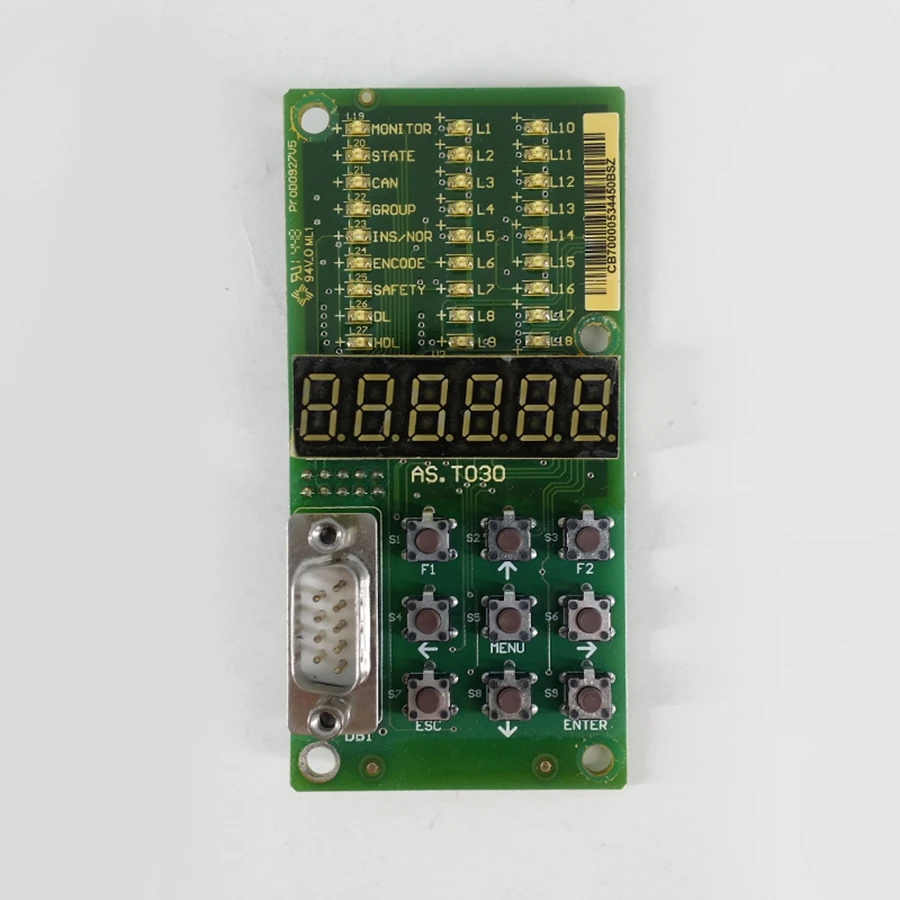

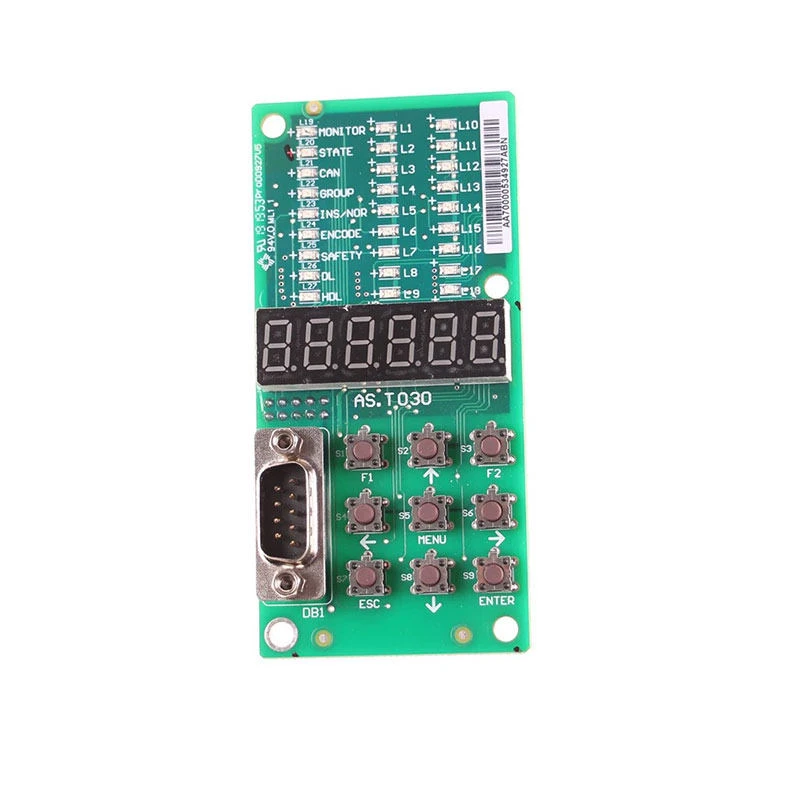

| Parameter Category | AS.T030 Debug Display Board |
|---|---|
| Display Type | 6-digit high-brightness LED digital display |
| Display Content | Elevator floor, operation parameters, fault codes, status information |
| Operation Buttons | 9-key panel (F1/F2, Up/Down/Left/Right, MENU, ENTER, ESC) |
| Status Indicators | 18-channel status indicators (MONITOR, STATE, CAN, GROUP, SAFETY, etc.) |
| Interface Type | DB9 serial port, direct connection with AS.T029 main control board |
| Installation Size | Standard original mounting holes, plug and play |
| Core Functions | On-site parameter configuration, fault diagnosis, program debugging, status monitoring |
