Schindler 3300 Program Board
Original Replacement Schindler SCPU 591887 FCT09 Elevator Program Board for Lift Mainten
| Item | Specification |
|---|---|
| Product Model | SCPU1.0B (ID.NR. 591887, FCT09) |
| Compatible Elevators | Schindler 3300, 3600 series passenger elevators, home elevators, commercial elevators |

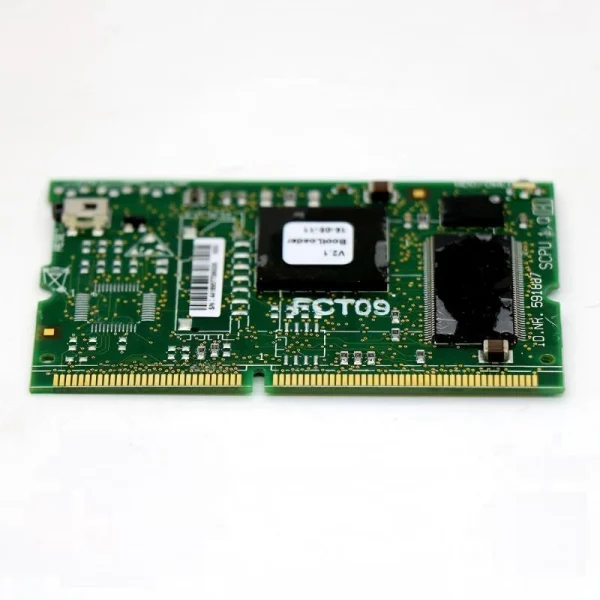

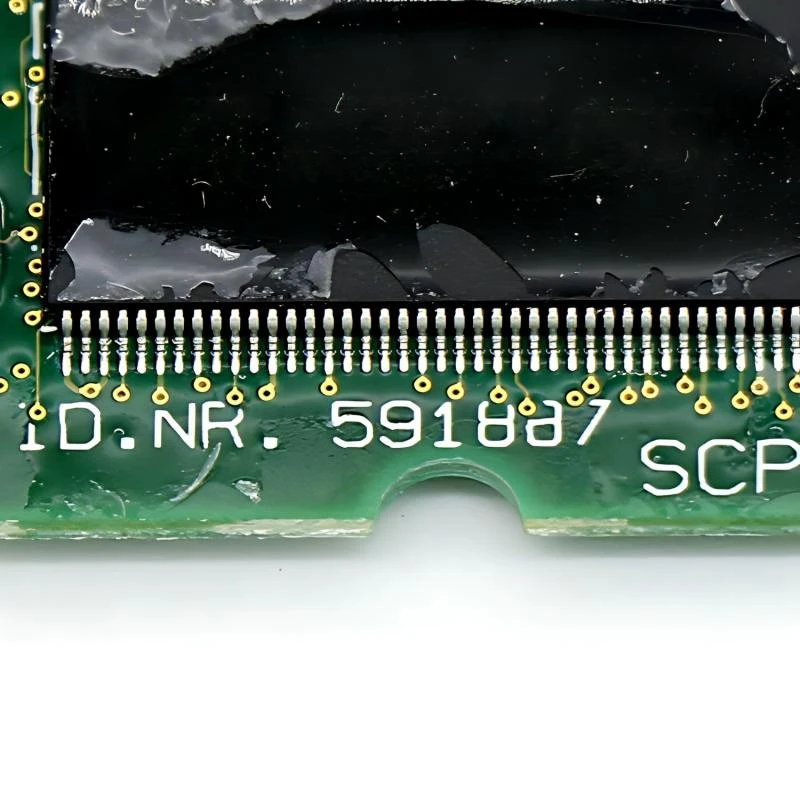

| Core Identification | Markings on PCB: FCT09, ID.NR. 591887, SCPU 1.0B |
| Program Version | BootLoader V2.1 (16-08-11) |
| Working Power Supply | DC 5V / 24V (powered by control cabinet mainboard, wide voltage adaptive) |
| Operating Temperature | -25°C ~ +85°C (industrial-grade wide temperature design) |
| Relative Humidity | ≤95% (non-condensing, no corrosive gas) |
| Anti-interference Level | Complies with EN 12015/12016 EMC standards, resistant to strong interference in elevator shafts |

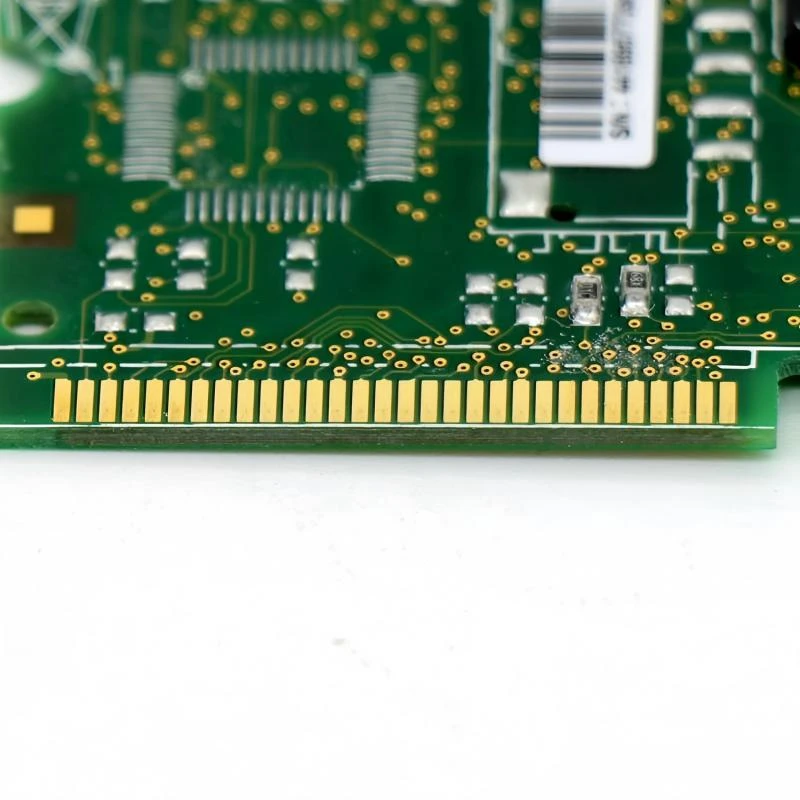

| Interface Type | High-speed gold finger communication interface (2 groups, total 120 pins), RESET button, status indicator interface |

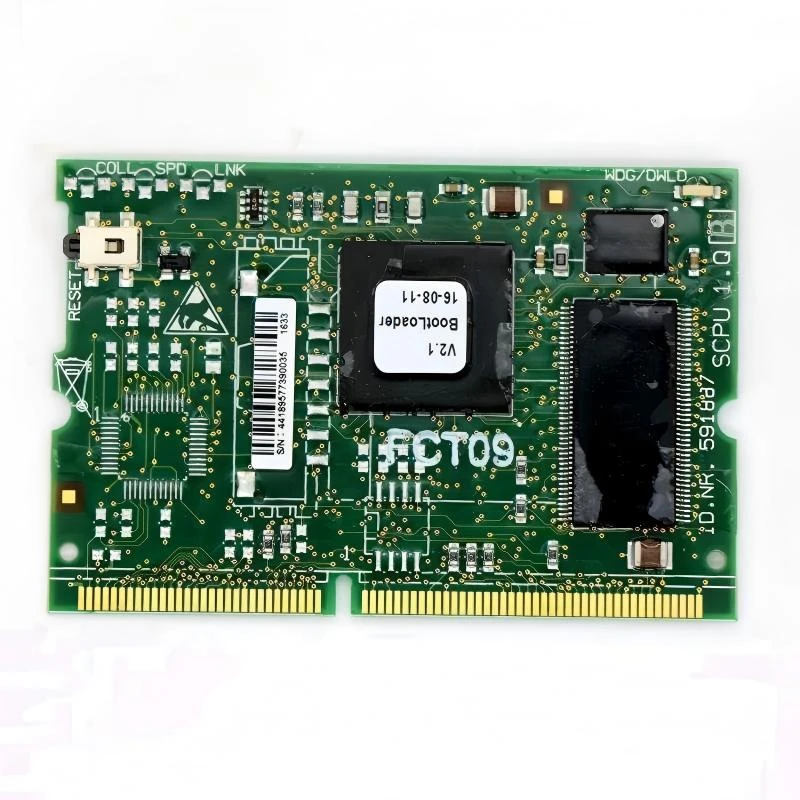

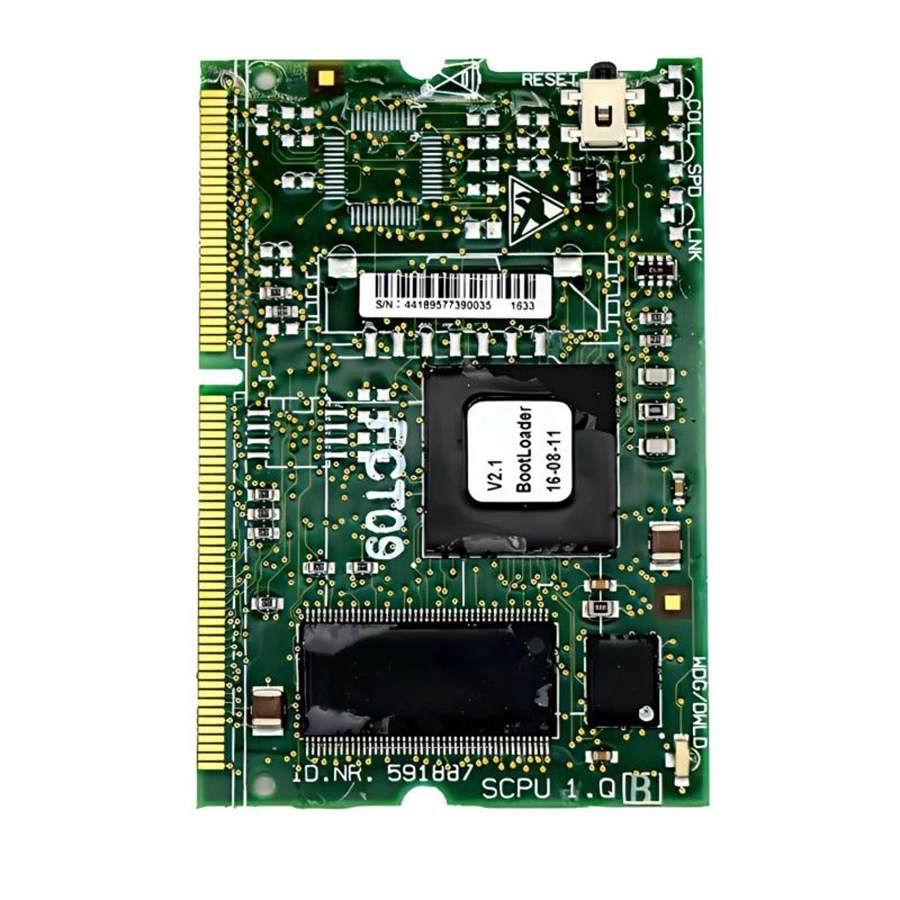

| Status Indicators | COLL (collision), SPD (speed), LNK (link), WDG (watchdog), DWLD (download) |
| Protection Level | IP20 (for installation inside control cabinet) |
| Installation Method | Direct plug into control cabinet mainboard slot, plug and play |
| Service Life | ≥10 years (industrial-grade design, meets 15-year elevator service standard) |
