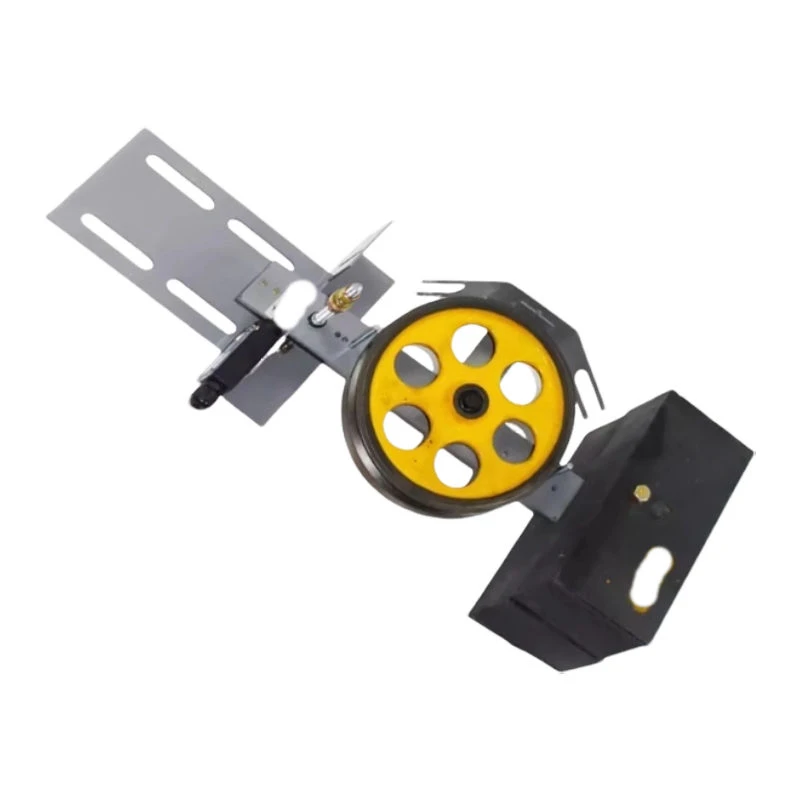

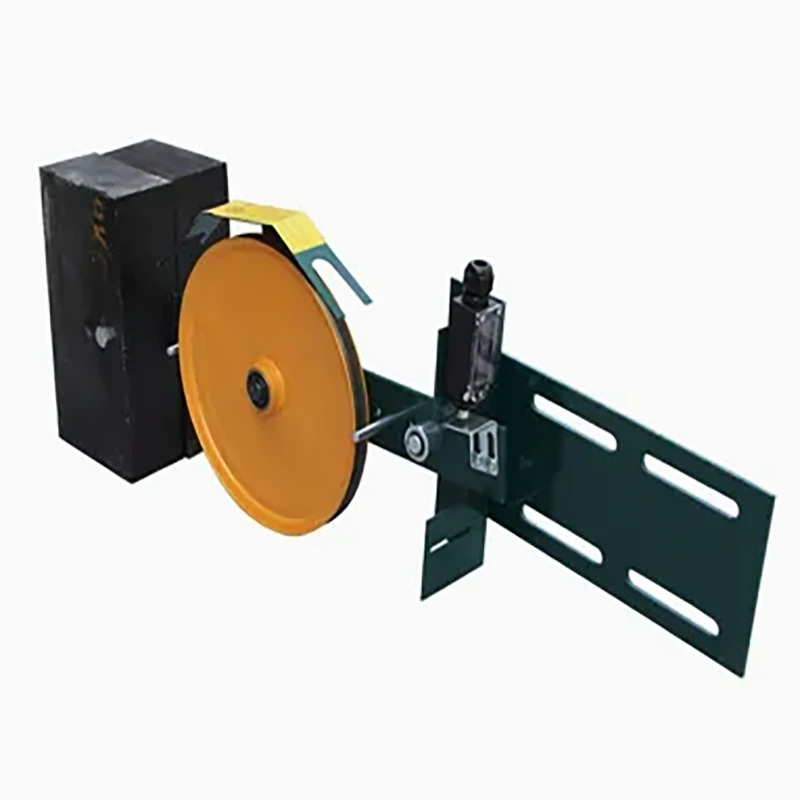

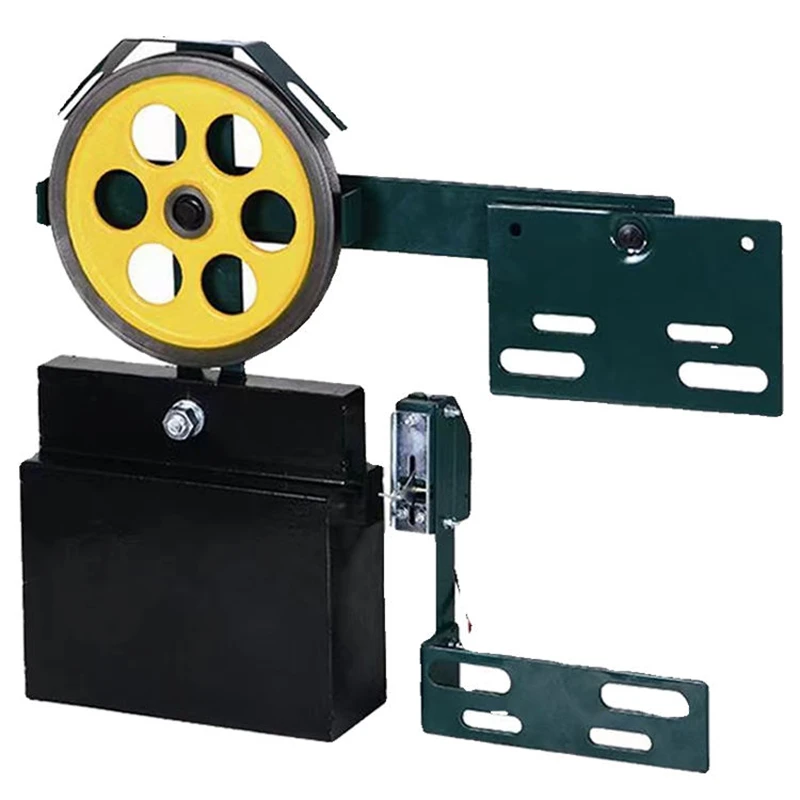

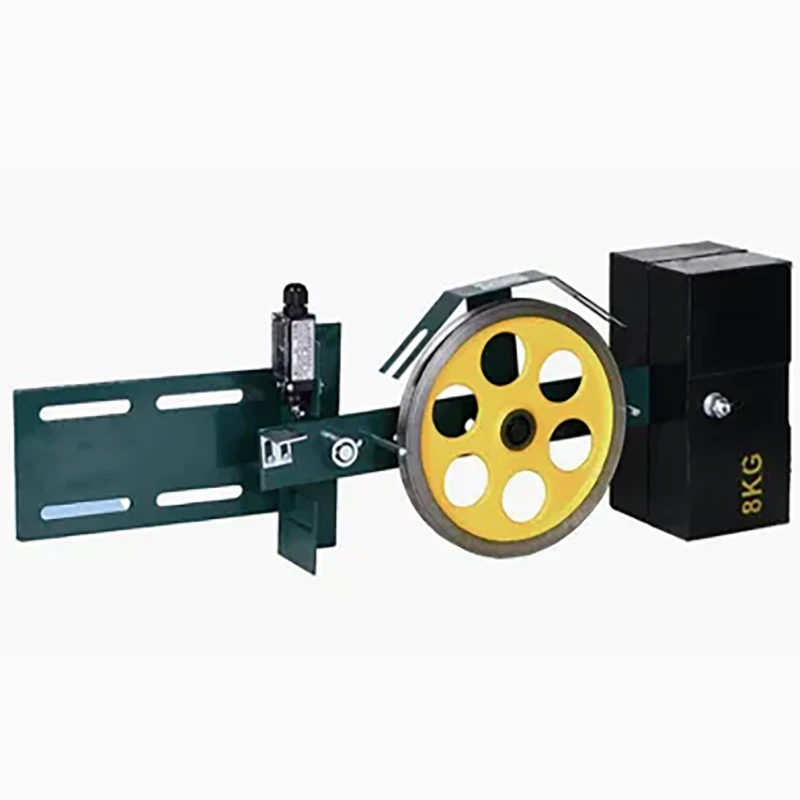

Tension Pulley
Reliable Integrated Bracket Elevator Tensioning Device Speed Limiter Matching Components
| CZ Series Rope Wheel Specifications | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Category/Type | Rope Wheel / Pulley Pitch Dia. (mm) | Diameter of Wire Rope (mm) | A | B | Quality of Balancing | Applicable State (Travel) | Weight Material | D | E | F | G | Rated Speed (m/s) | Rope Dia. (mm) | Travel (m) | Weight (kg) | Sheave Material | |
| A01 | Φ200 | Φ6 | 290; 350; 365; 405; 425 | 18 | 18 kg | ≤50 m | Cast Iron | 270 | 55 | 260 | 25 | – | – | – | – | – | |
| A01 | Φ200 | Φ6 | 290; 350; 365; 405; 425 | 18 | 18 kg | ≤50 m | Bante | 270 | 100 | 265 | 50 | – | – | – | – | – | |
| A02 | Φ200 | Φ6 | 290; 350; 365; 405; 425 | 18 | 30 kg | 50~100 m | Cast Iron | 250 | 70 | 275 | 35 | – | – | – | – | – | |
| A02 | Φ200 | Φ6 | 290; 350; 365; 405; 425 | 18 | 30 kg | 50~100 m | Bante | 300 | 140 | 305 | 70 | – | – | – | – | – | |
| A03 | Φ240 | Φ6, Φ8 | 290; 350; 365; 405; 425 | 18 | 18 kg | ≤50 m | Cast Iron | 270 | 55 | 260 | 25 | – | – | – | – | – | |
| A03 | Φ240 | Φ6, Φ8 | 290; 350; 365; 405; 425 | 18 | 18 kg | ≤50 m | Bante | 270 | 100 | 265 | 50 | – | – | – | – | – | |
| A04 | Φ240 | Φ6, Φ8 | 290; 350; 365; 405; 425 | 18 | 30 kg | 50~100 m | Cast Iron | 250 | 70 | 275 | 35 | – | – | – | – | – | |
| A04 | Φ240 | Φ6, Φ8 | 290; 350; 365; 405; 425 | 18 | 30 kg | 50~100 m | Bante | 300 | 140 | 305 | 70 | – | – | – | – | – | |
| CZ1 | Φ241 | – | – | – | – | – | – | – | – | – | – | ≤4 | Φ8 | ≤200 | 40~70 | Cast Iron | |
| CZ2 | Φ280 | – | – | – | – | – | – | – | – | – | – | ≤4 | Φ8 | ≤200 | 40~70 | Cast Iron | |
| CZ3 | Φ300 | – | – | – | – | – | – | – | – | – | – | ≤4 | Φ8 | ≤200 | 40~70 | Cast Iron | |
| CZ4 | Φ320 | – | – | – | – | – | – | – | – | – | – | ≤4 | Φ8 | ≤200 | 40~70 | Cast Iron | |
