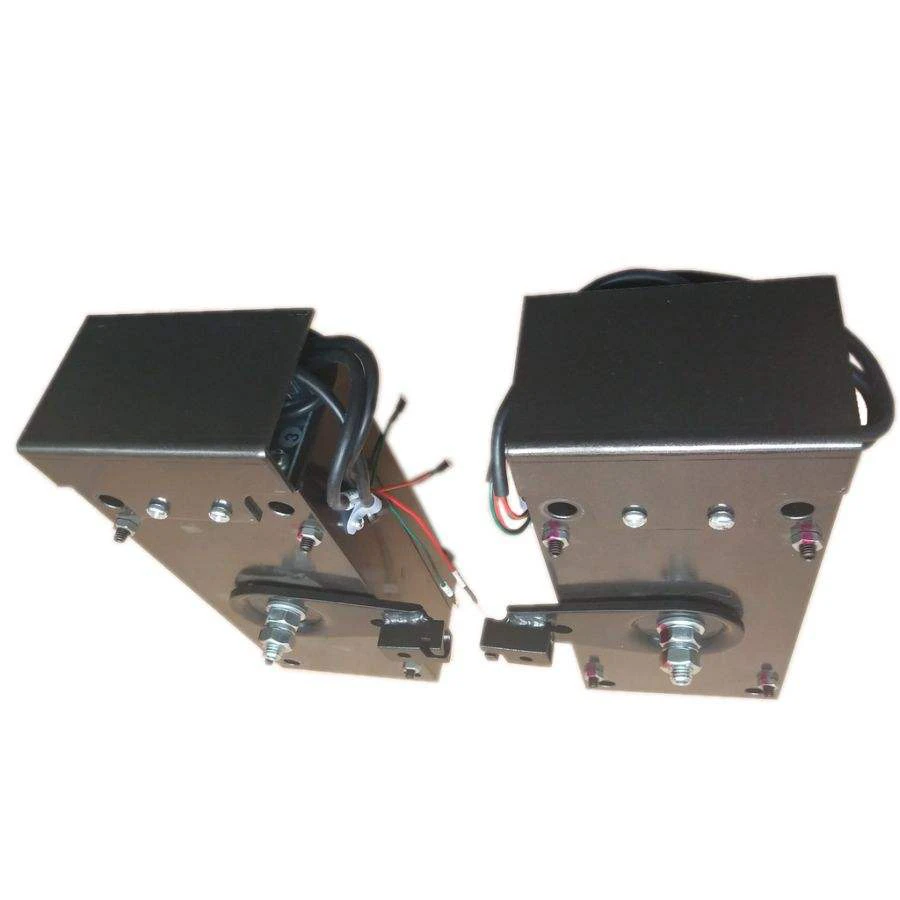

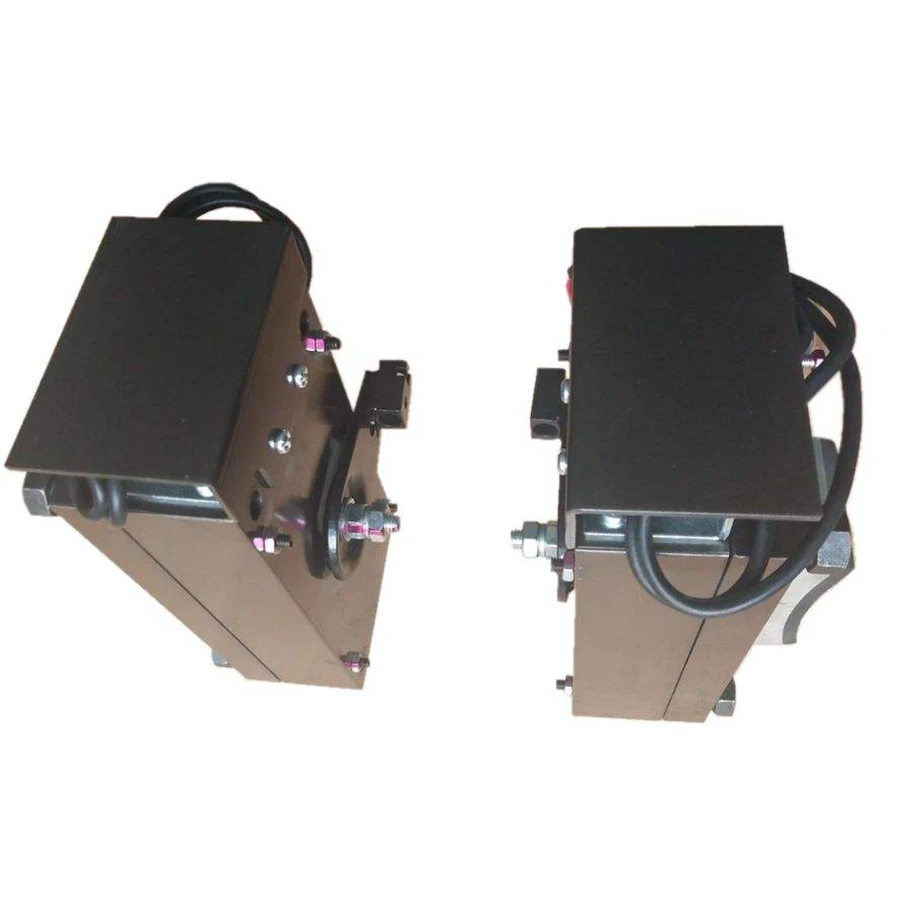

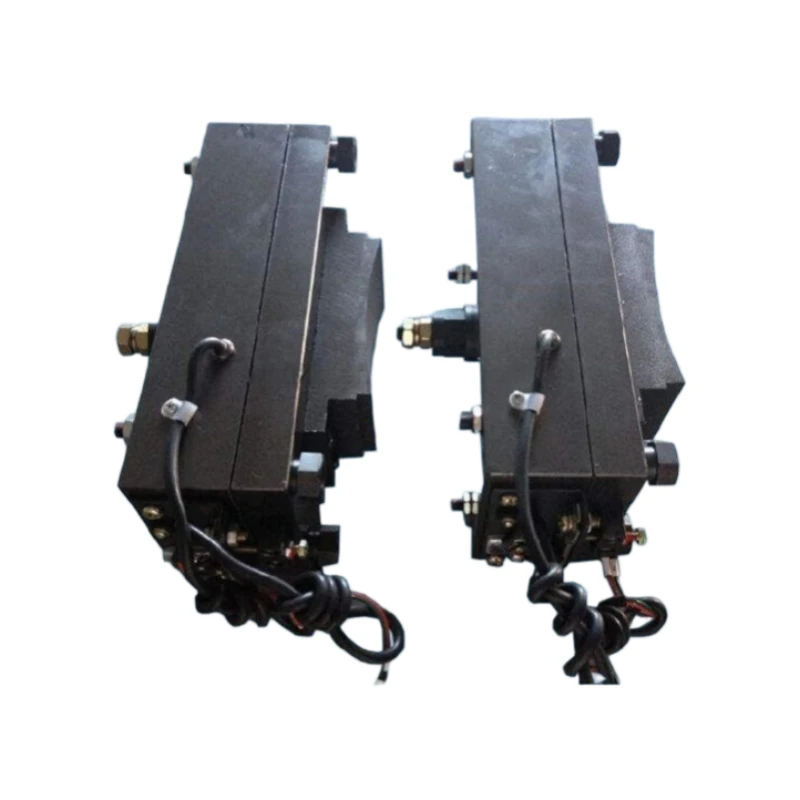

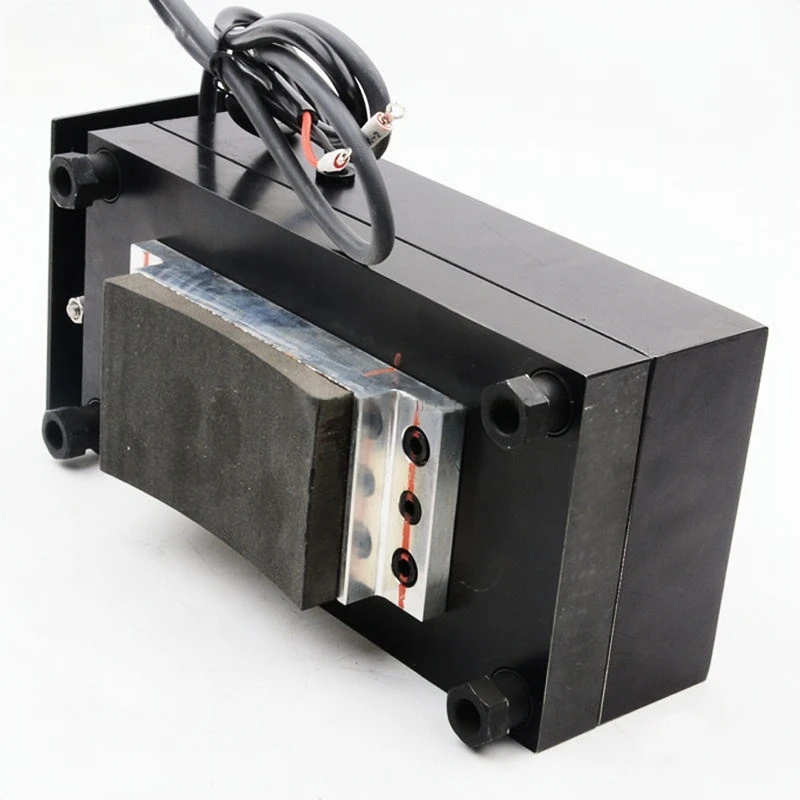

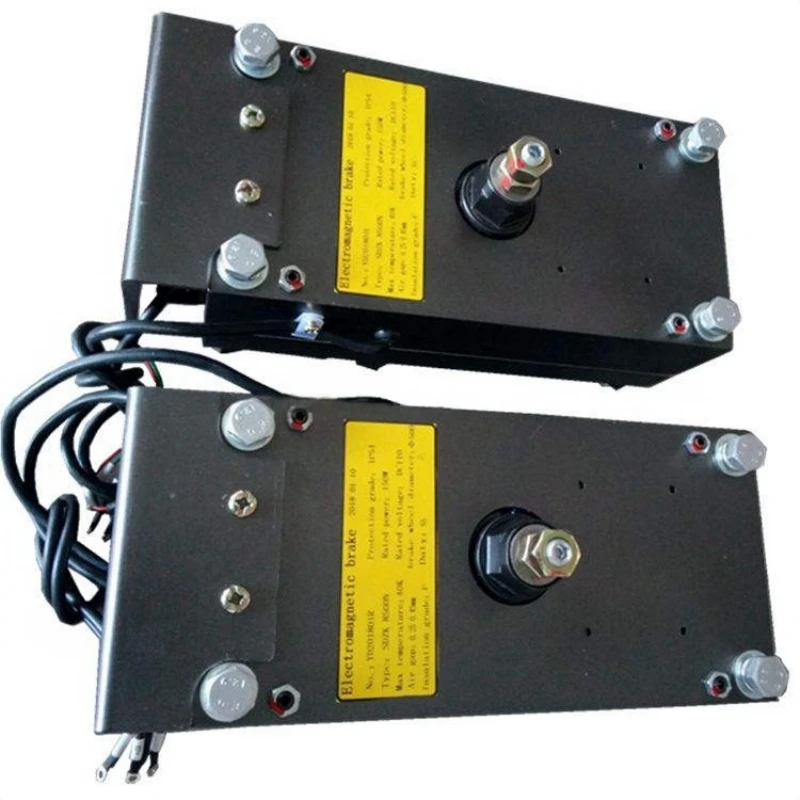

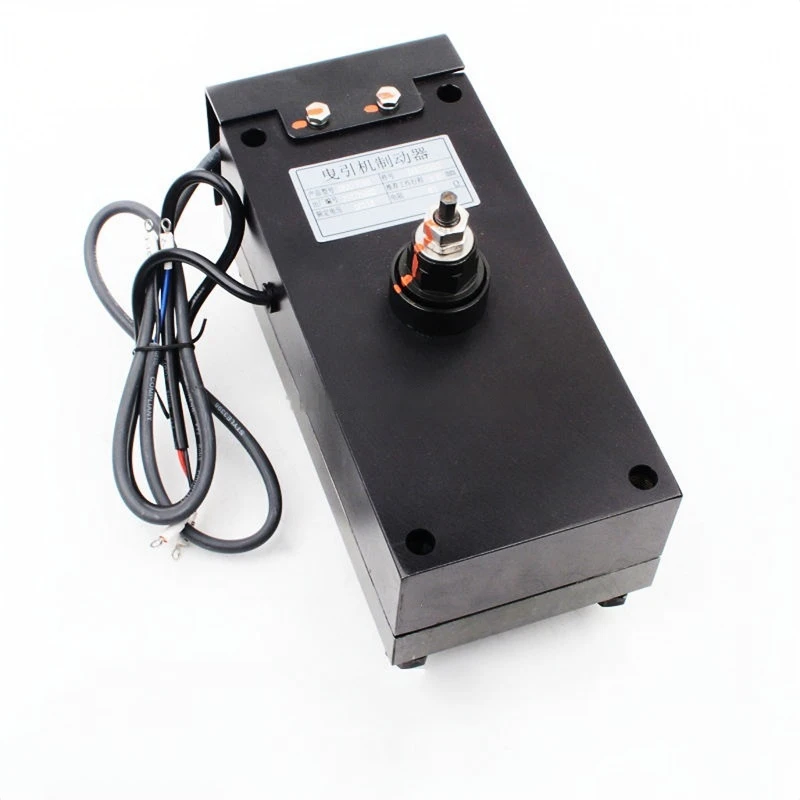

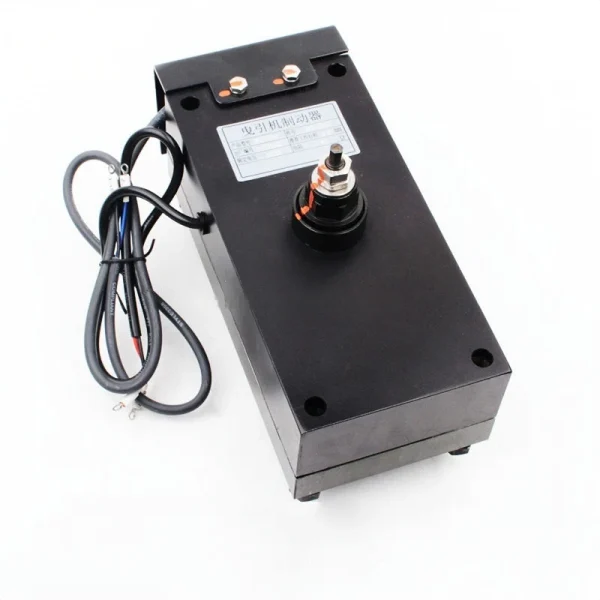

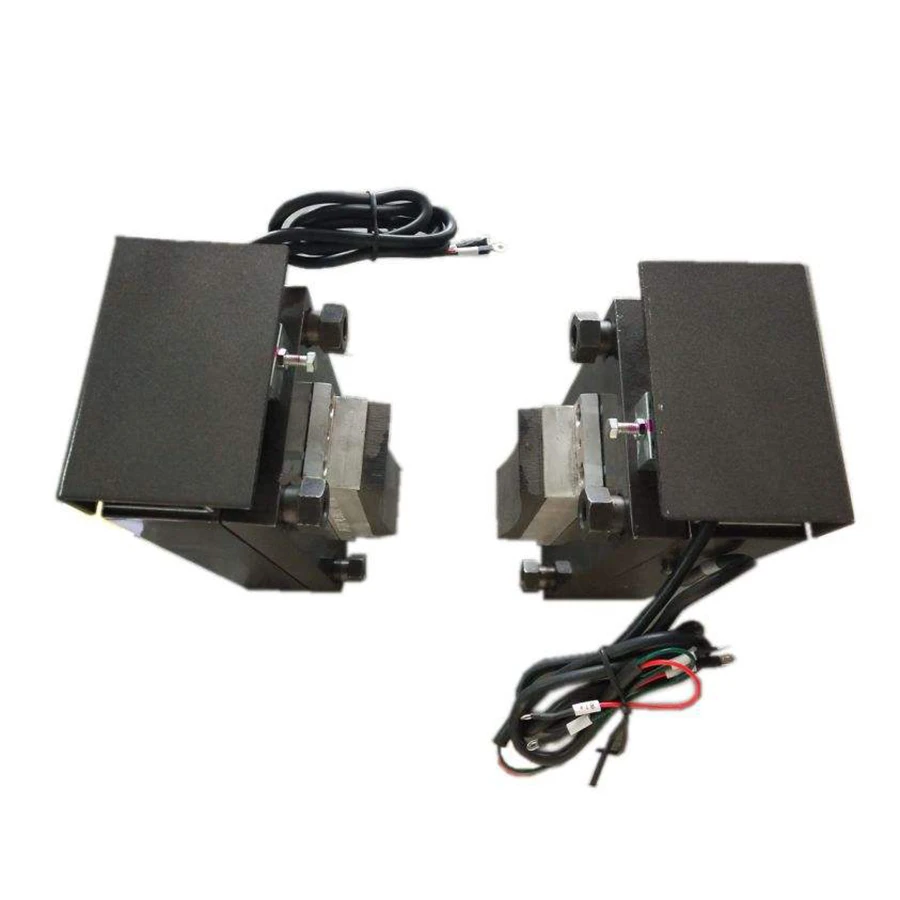

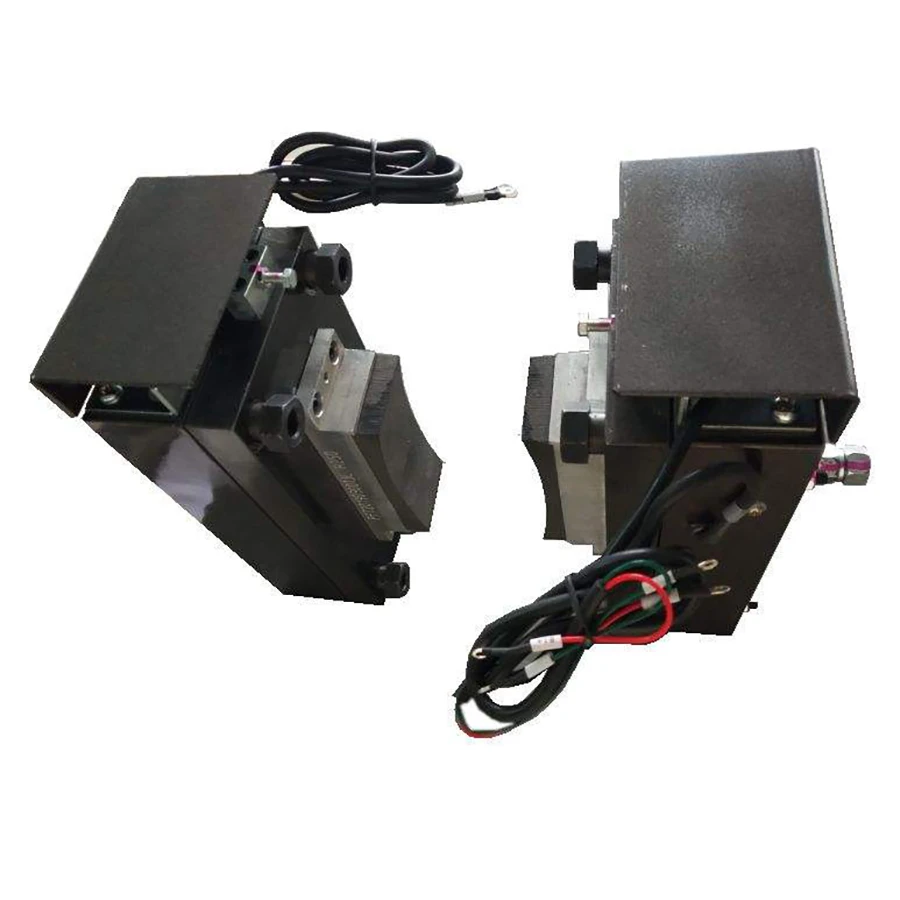

Villa Elevator Brake
- Electromagnetic brake is a core safety component for passenger and cargo elevators. Power-off braking design integrates drive, braking and signal feedback to prevent sliding and ensure stable landing.
- Compatible with traction elevators for machine room and machine roomless types, it delivers reliable holding and emergency braking performance.
| Model | Working Voltage (DC) | Rated Power (W) | Initial Clearance δ₁ (mm) | Working Clearance (mm) | Braking Force (N) | Friction Wheel Diameter (mm) | Rated Braking Torque (N·m) | Braking Time (AC cut/DC cut, ms) | Duty Cycle | Max. Temp. Rise (K) | Noise (dB(A)) | Insulation Class | Protection Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDZK-4800 | 110V | 120 | 1~1.1 | 0.25~0.4 | 4800 | 310 | 300 | 400/140 | S5-40% | ≤70K | 55 | F | IP43 |
| SDZK-5500A | 110V | 130 | 1~1.1 | 0.25~0.4 | 5500 | 386 | 425 | 420/165 | S5-40% | ≤70K | 55 | F | IP43 |
| SDZK-5500B | 110V | 130 | 1~1.1 | 0.25~0.4 | 5500 | 409 | 450 | 420/165 | S5-40% | ≤70K | 55 | F | IP43 |
| SDZK-5800 | 110V | 130 | 1~1.1 | 0.25~0.4 | 5800 | 380 | 450 | 420/165 | S5-40% | ≤70K | 55 | F | IP43 |
| SDZK-6000 | 110V | 140 | 1~1.1 | 0.25~0.4 | 6000 | 600 | 720 | 425/170 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-7000 | 110V | 140 | 1~1.1 | 0.25~0.4 | 7500 | 452 | 700 | 425/170 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500A | 110V | 140 | 1~1.1 | 0.25~0.4 | 8500 | 510 | 880 | 440/185 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500B | 110V | 140 | 1~1.1 | 0.25~0.4 | 8500 | 500 | 850 | 460/175 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500C | 110V | 140 | 1~1.1 | 0.25~0.4 | 8500 | 500 | 850 | 460/175 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500D | 110V | 140 | 1~1.1 | 0.25~0.4 | 8500 | 495 | 850 | 460/175 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500E | 110V | 140 | 1~1.1 | 0.25~0.4 | 8500 | 490 | 840 | 460/175 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-8500F | 110V | 140 | 1~1.1 | 0.25~0.4 | 8500 | 505 | 850 | 460/175 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-10000 | 110V | 140 | 1~1.1 | 0.25~0.4 | 10000 | 495 | 980 | 430/180 | S5-40% | ≤75K | 55 | F | IP43 |
| SDZK-12000 | 110V | 180 | 1~1.1 | 0.25~0.4 | 12000 | 600 | 1450 | 480/192 | S5-40% | ≤80K | 60 | F | IP43 |
| SDZK-12000 | 110V | 180 | 1~1.1 | 0.25~0.4 | 12000 | 656 | 1600 | 480/192 | S5-40% | ≤80K | 60 | F | IP43 |
| SDZK-14000 | 110V | 180 | 1~1.1 | 0.25~0.4 | 12000 | 600 | 1750 | 480/192 | S5-40% | ≤80K | 60 | F | IP43 |
| Model | A | B | H | Φ | Thread | A1 | A2 | A3 | A4 | B1 | B2 | H1 | H2 | H3 | H4 | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDZK-4800 | 175 | 85 | 30 | 310 | M10 | 200 | 130 | 100 | 30 | 110 | 60 | 70 | 16 | 40 | 10 | 500 |
| SDZK-5500A | 175 | 85 | 30 | 386 | M10 | 205 | 130 | 100 | 30 | 110 | 60 | 70 | 16 | 40 | 10 | 500 |
| SDZK-5500B | 175 | 85 | 30 | 409 | M10 | 205 | 130 | 100 | 30 | 110 | 60 | 70 | 16 | 40 | 10 | 500 |
| SDZK-5800 | 206 | 83 | 30 | 380 | M10 | 235 | 130 | 100 | 30 | 110 | 60 | 70 | 16 | 40 | 10 | 500 |
| SDZK-6000 | 220 | 85 | 42.5 | 600 | M10 | 250 | 170 | 135 | 30 | 120 | 65 | 70 | 25 | 40 | 10 | 600 |
| SDZK-7000 | 210 | 95 | 30 | 452 | M10 | 240 | 130 | 100 | 30 | 120 | 60 | 70 | 16 | 40 | 10 | 600 |
| SDZK-8500A | 220 | 95 | 31 | 510 | M10 | 250 | 152 | 110 | 32 | 130 | 68 | 73.5 | 16 | 40 | 10 | 600 |
| SDZK-8500B | 220 | 95 | 31 | 500 | M10 | 245 | 152 | 110 | 30 | 120 | 68 | 73.5 | 16 | 40 | 10 | 600 |
| SDZK-8500C | 210 | 95 | 34 | 500 | M10 | 245 | 152 | 110 | 30 | 121 | 68 | 73.5 | 16 | 40 | 10 | 600 |
| SDZK-8500D | 220 | 95 | 33 | 495 | M10 | 245 | 152 | 110 | 30 | 120 | 68 | 73.5 | 16 | 40 | 10 | 600 |
| SDZK-8500E | 220 | 95 | 33 | 490 | M10 | 245 | 152 | 110 | 30 | 120 | 68 | 73.5 | 16 | 40 | 10 | 600 |
| SDZK-8500F | 220 | 95 | 33 | 505 | M10 | 245 | 152 | 110 | 30 | 120 | 68 | 73.5 | 16 | 40 | 10 | 600 |
| SDZK-10000 | 220 | 95 | 31 | 495 | M10 | 250 | 152 | 110 | 32 | 130 | 68 | 73.5 | 16 | 40 | 10 | 600 |
| SDZK-12000 | 244 | 104 | 35 | 600 | M10 | 280 | 170 | 135 | 32 | 145 | 70 | 80 | 16 | 40 | 10 | 600 |
| SDZK-12000 | 244 | 104 | 45 | 656 | M10 | 280 | 170 | 135 | 32 | 145 | 70 | 80 | 16 | 40 | 10 | 600 |
| SDZK-14000 | 244 | 104 | 35 | 600 | M10 | 280 | 170 | 135 | 32 | 145 | 70 | 80 | 16 | 40 | 10 | 600 |
