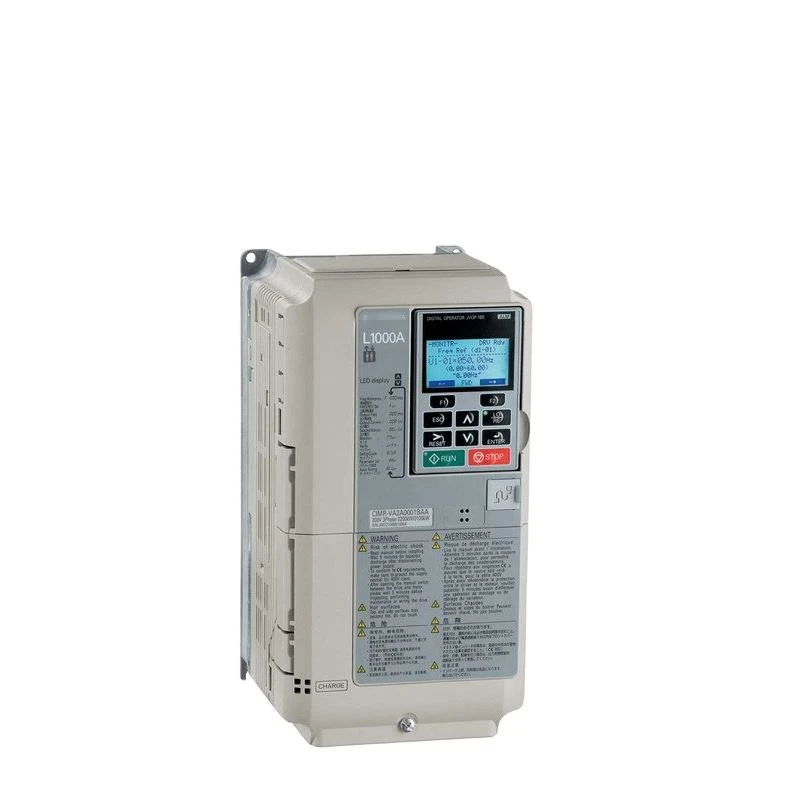

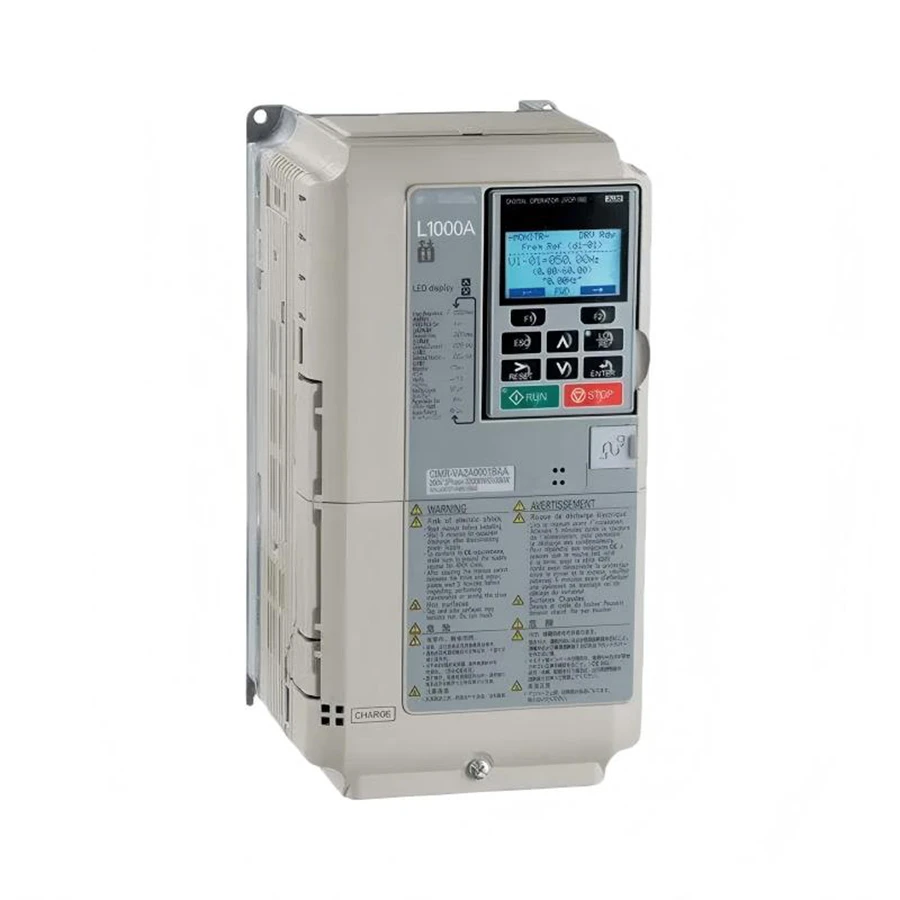

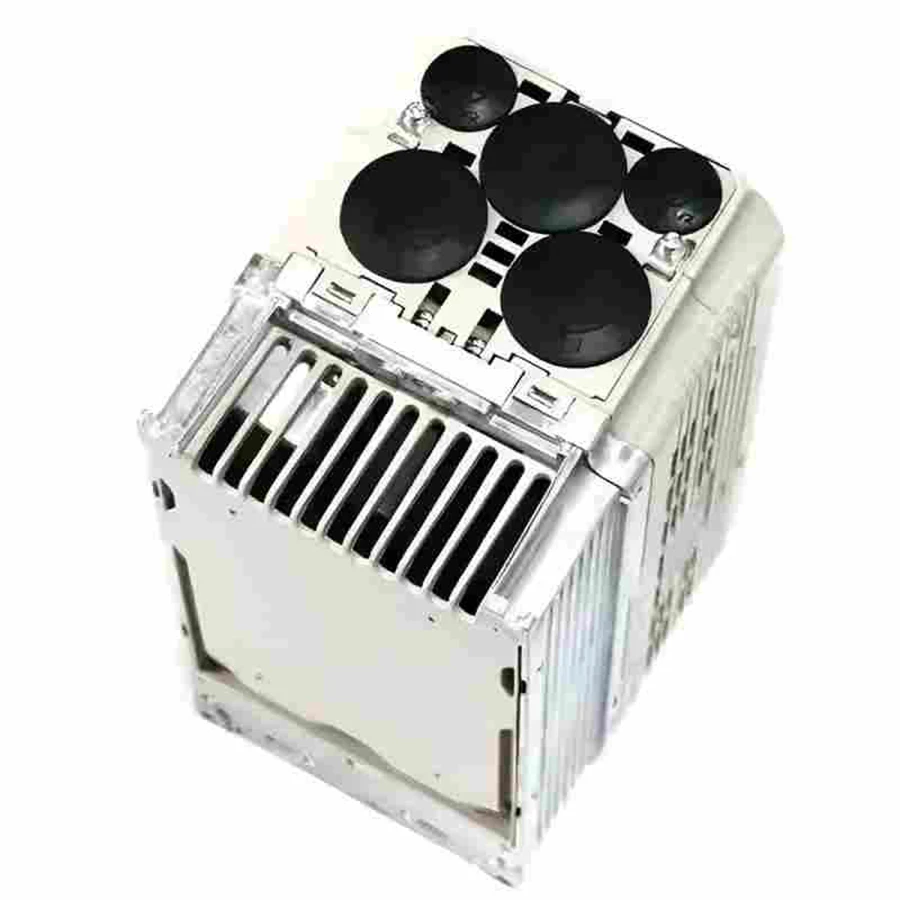

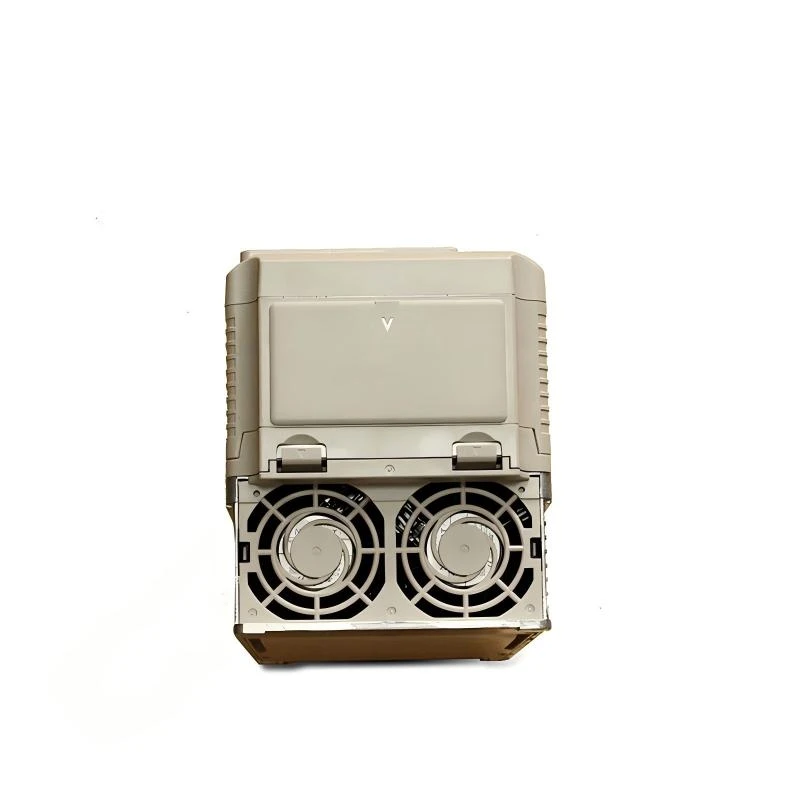

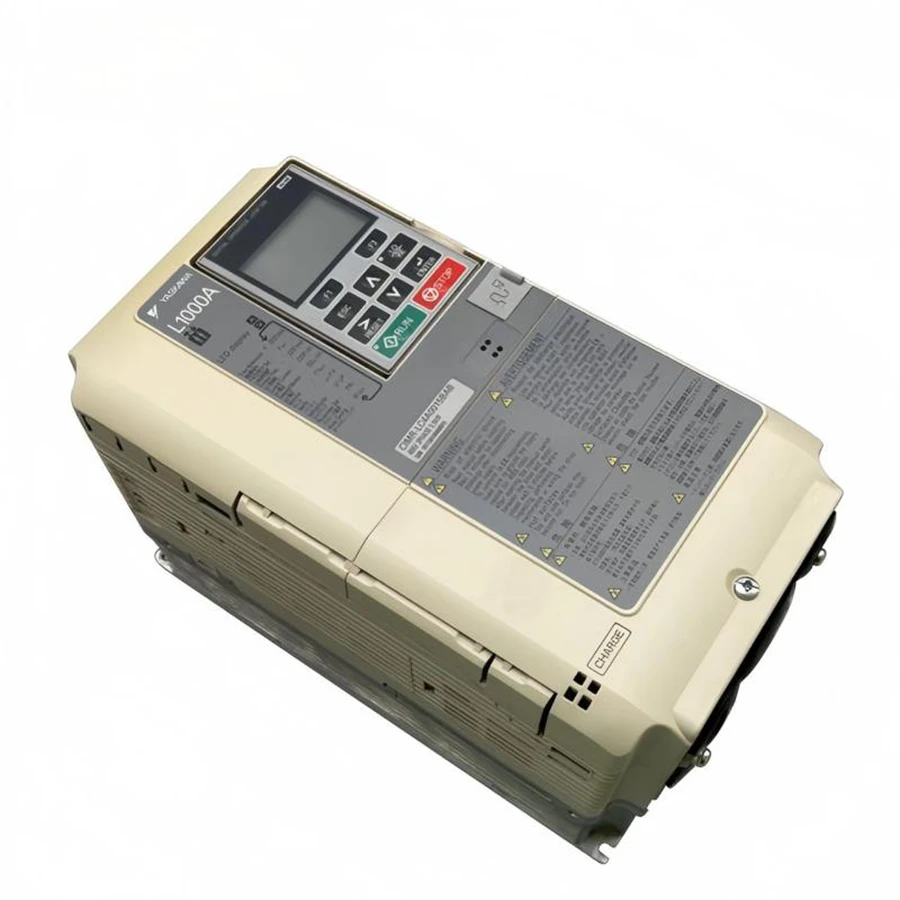

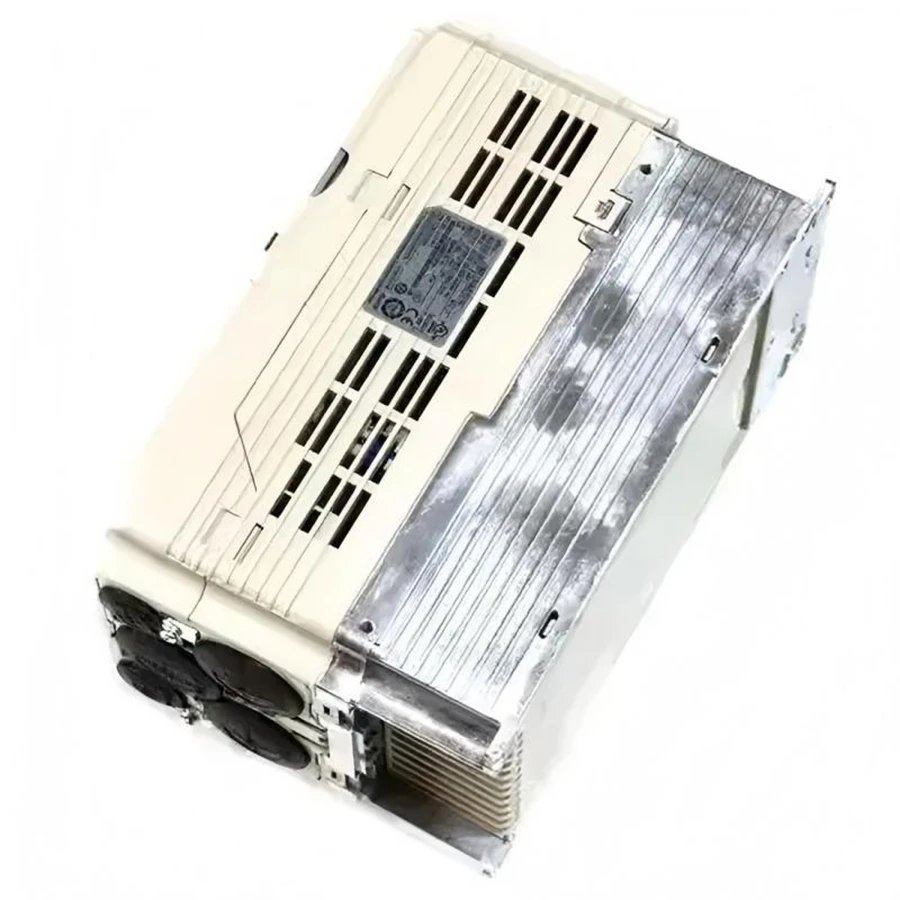

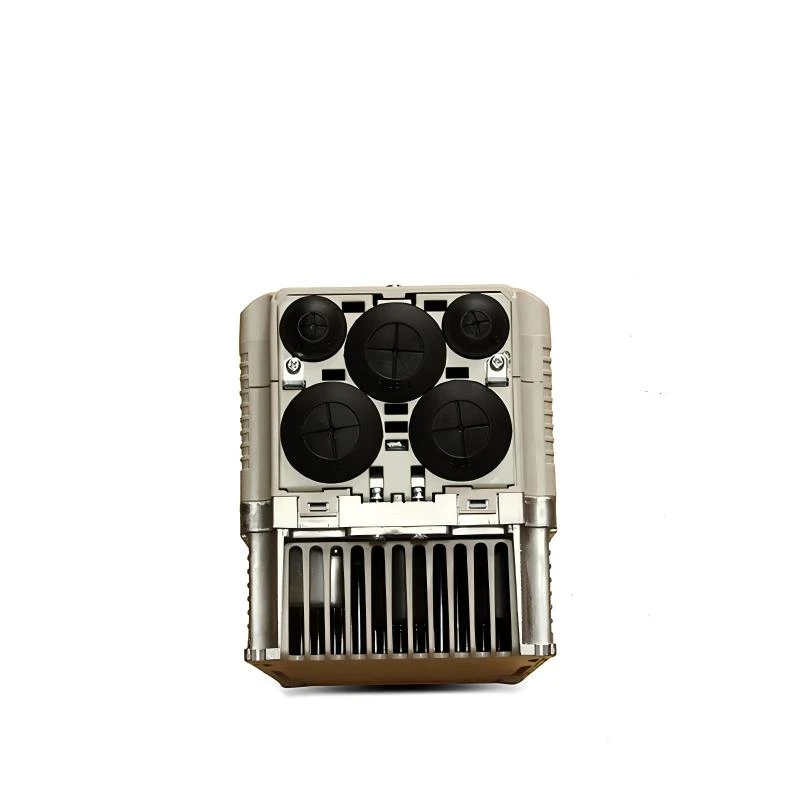

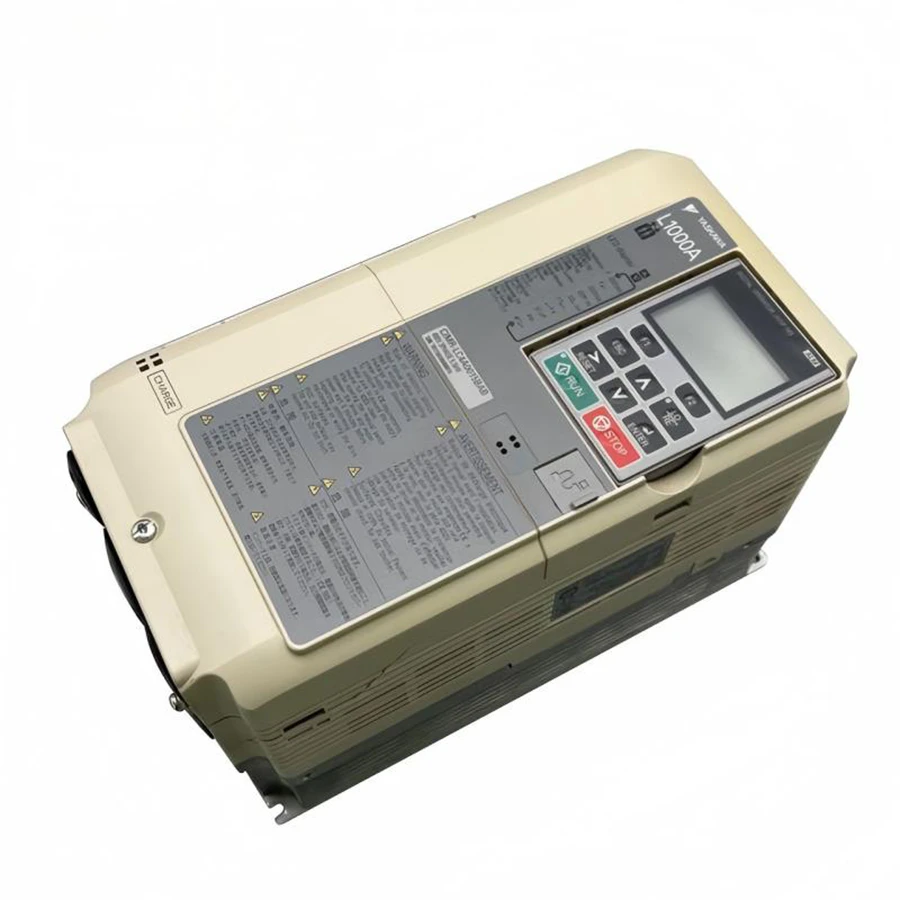

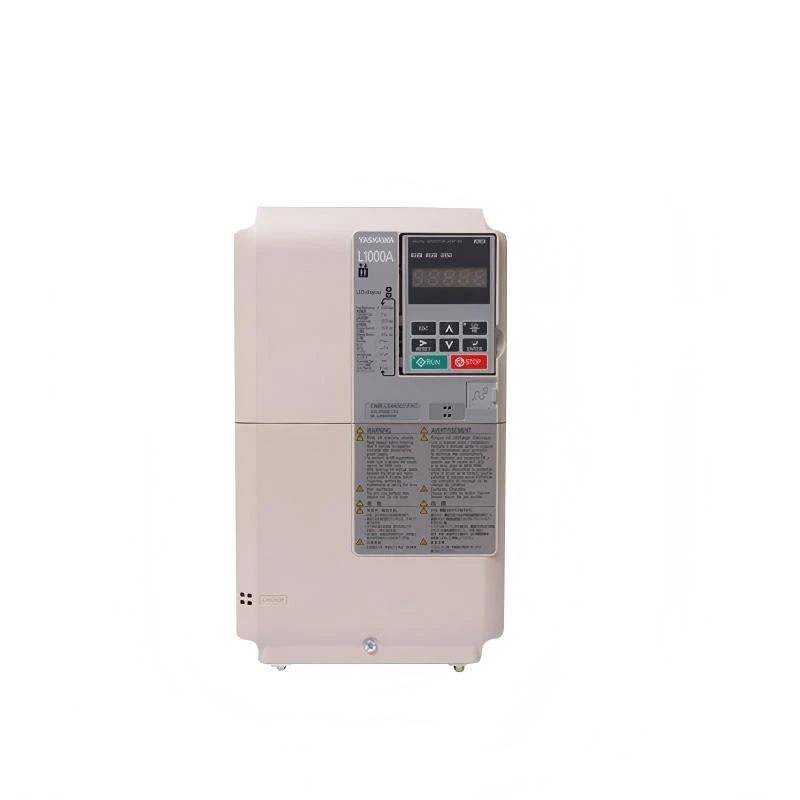

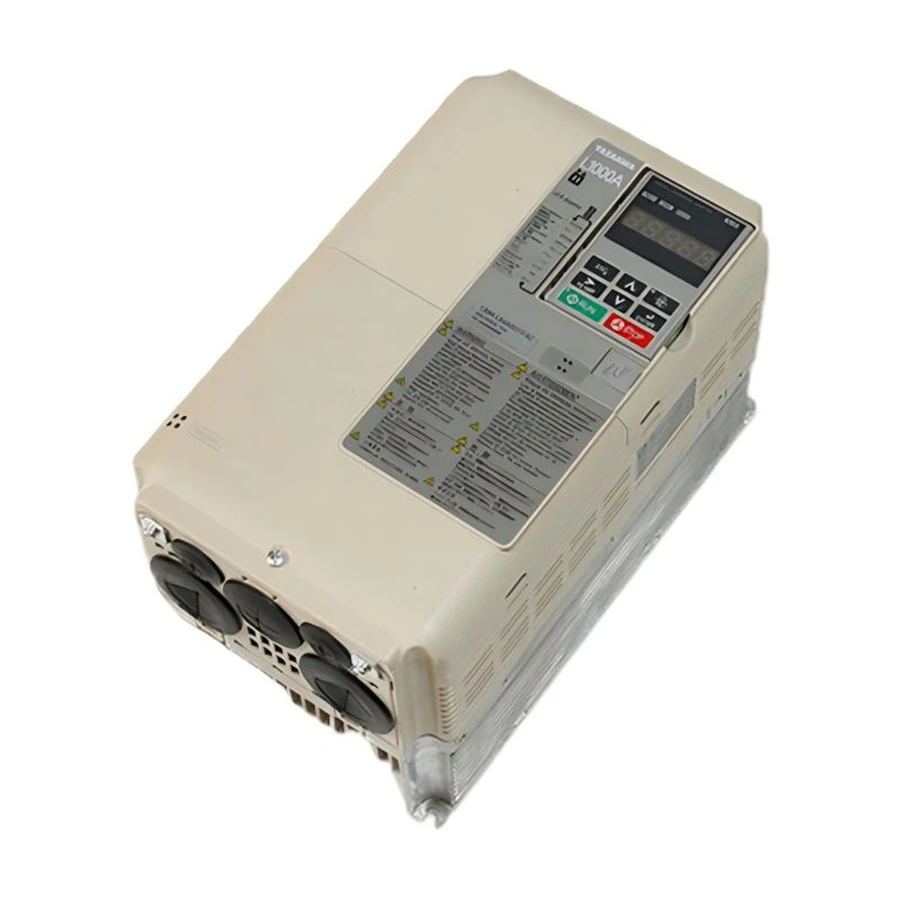

Yaskawa Inverter
- Special elevator vector algorithm ensures smooth ride and accurate leveling without shaking.
- Approved with UL, CE, TUV certificates, compliant with GB7588 for domestic & export elevators.
- Wide input voltage 380-480V, stable performance under unstable power and harsh environment.
- Complete multi-protection functions with real-time fault codes for easy troubleshooting.
| YASKAWA L1000A Series Elevator Inverter English Specification Sheet | ||||||
|---|---|---|---|---|---|---|
| 1. Three-phase 200V Class (CIMR-LB2A Series) Specification | ||||||
| Model No. | Maximum Applicable Motor Power (kW) | Rated Input Current (A) | Rated Output Capacity (kVA) | Rated Output Current (100% ED) (A) | Rated Output Current (3min 50% ED) (A) | Required Power Supply Capacity (kVA) |
| CIMR-LB2A0008 | 1.5 | 7.5 | 4.1 | 8.0 | 10 | 4.1 |
| CIMR-LB2A0011 | 2.2 | 11.0 | 5.8 | 11.0 | 13.8 | 5.8 |
| CIMR-LB2A0018 | 3.7 | 18.9 | 9.5 | 17.5 | 21.9 | 9.5 |
| CIMR-LB2A0025 | 5.5 | 28 | 14 | 25 | 31 | 14 |
| CIMR-LB2A0033 | 7.5 | 37 | 18 | 33 | 41 | 18 |
| CIMR-LB2A0047 | 11 | 52 | 27 | 47 | 59 | 27 |
| CIMR-LB2A0060 | 15 | 69 | 36 | 60 | 75 | 36 |
| CIMR-LB2A0075 | 18.5 | 80 | 44 | 75 | 94 | 44 |
| CIMR-LB2A0085 | 22 | 82 | 37 | 85 | 106 | 37 |
| CIMR-LB2A0115 | 30 | 111 | 51 | 115 | 144 | 51 |
| CIMR-LB2A0145 | 45 | 136 | 62 | 145 | 181 | 62 |
| CIMR-LB2A0180 | 69 | 164 | 75 | 180 | 225 | 75 |
| 2. Three-phase 400V Class (CIMR-LB4A Series) Specification | ||||||
| Model No. | Maximum Applicable Motor Power (kW) | Rated Input Current (A) | Rated Output Capacity (kVA) | Rated Output Current (100% ED) (A) | Rated Output Current (3min 50% ED) (A) | Required Power Supply Capacity (kVA) |
| CIMR-LB4A0005 | 1.5 | 4.4 | 3.7 | 4.8 | 6 | 4.3 |
| CIMR-LB4A0006 | 2.2 | 6.0 | 4.2 | 5.5 | 6.9 | 6.1 |
| CIMR-LB4A0009 | 3.7 | 10.4 | 9.2 | 11.3 | 11.5 | 10.0 |
| CIMR-LB4A0015 | 5.5 | 15 | 14.8 | 18 | 18.5 | 14.6 |
| CIMR-LB4A0018 | 7.5 | 20 | 18.7 | 24 | 23 | 19.2 |
| CIMR-LB4A0024 | 11 | 29 | 24 | 31 | 30 | 28.4 |
| CIMR-LB4A0031 | 15 | 39 | 30 | 39 | 39 | 37.5 |
| CIMR-LB4A0039 | 18.5 | 44 | 34 | 45 | 49 | 46.6 |
| CIMR-LB4A0045 | 22 | 43 | 38 | 48 | 56 | 39.3 |
| CIMR-LB4A0060 | 30 | 58 | 57 | 60 | 75 | 53.0 |
| CIMR-LB4A0075 | 37 | 71 | 69 | 75 | 94 | 64.9 |
| CIMR-LB4A0091 | 45 | 86 | 91 | 85 | 114 | 78.6 |
| CIMR-LB4A0112 | 55 | 105 | 112 | 110 | 140 | 96.0 |
| CIMR-LB4A0150 | 75 | 142 | 150 | 150 | 188 | 129.9 |
| CIMR-LB4A0180 | 90 | 170 | 180 | 137 | 225 | 155.5 |
| CIMR-LB4A0216 | 110 | 207 | 216 | 180 | 270 | 189.3 |
