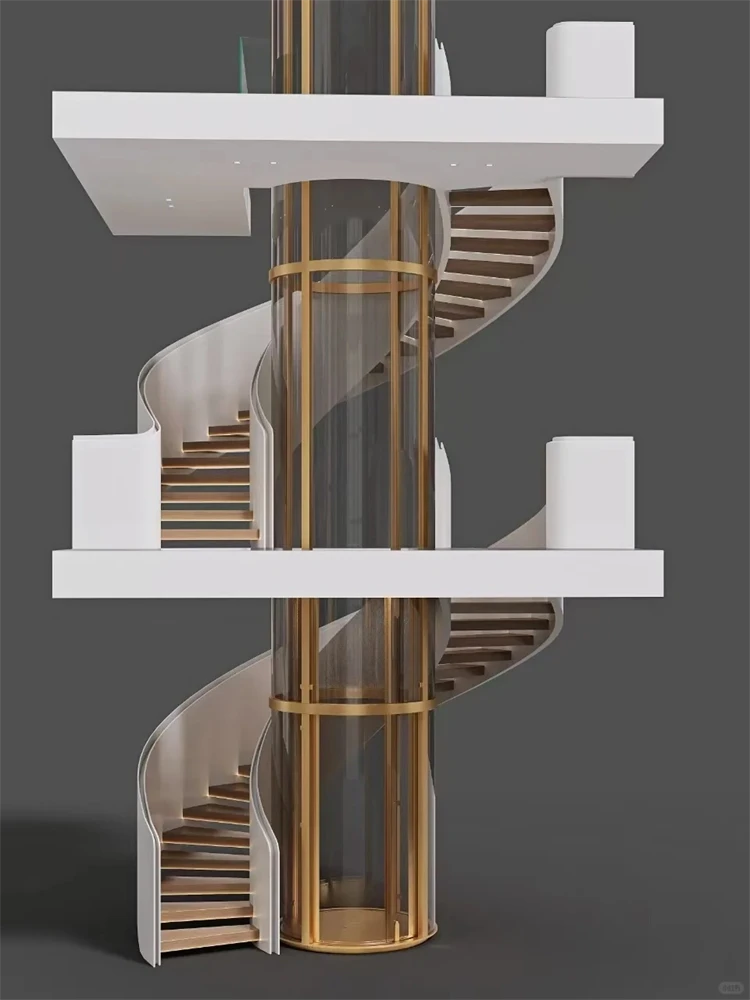

Installing a circular glass elevator in the center of a spiral staircase is the ultimate architectural statement for any luxury villa.
However, achieving a flawless, unobstructed view without sacrificing mechanical performance is more complex than it appears.

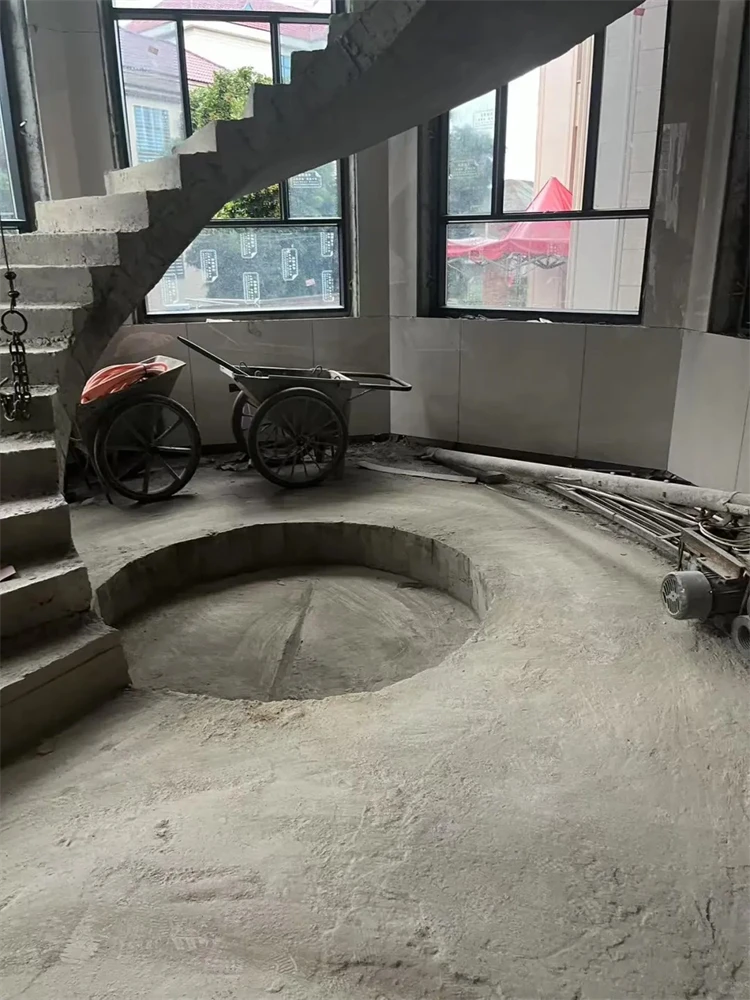

For this 4-story villa in the Philippines, the homeowner reserved a precise circular void within the staircase.
They wanted a centerpiece elevator that looked like a seamless glass tube.
The challenge was clear:
- Standard elevator systems rely on bulky counterweights
- These components block visibility and reduce the panoramic effect
Here is how our engineering team delivered a true 360-degree visual experience while maintaining smooth performance at 0.4m/s and a 400kg load capacity.
The Engineering Breakthrough: Removing the Counterweight
Circular home elevators typically use two structural approaches:
- Traction gantry systems (with counterweights)
- Forced drive systems (without counterweights)
To achieve a fully unobstructed view, we implemented a Forced-Drive (Positive Drive) system.
By eliminating:
- The counterweight
- Associated guide rails
We achieved a completely open panoramic structure.
Many manufacturers struggle with forced-drive systems and often reduce performance to maintain stability.
Our solution:
- Reinforced chassis design
- Premium drive motor configuration
This allows:
- Stable operation at 0.4m/s
- Reliable support for 400kg capacity (up to 5 people)
The result is a seamless combination of visual clarity and mechanical performance.
Aviation-Grade Aesthetics & Materials
A high-end circular elevator requires more than structural innovation—it must match luxury interior standards.
One-Piece Molded Aluminum Frame
Instead of welded steel structures, we used:
- Custom-extruded, one-piece aluminum alloy frames
Benefits:
- Smooth, seamless exterior
- Modern and refined appearance
5+5 Laminated Curved Tempered Glass
For both the shaft and cabin, we used:
- Custom 5+5mm double-layer laminated curved glass
This provides:
- Exceptional optical clarity
- High structural strength
- Shatter-resistant safety performance
Smart Safety & Eco-Friendly Features
A visually striking elevator must also deliver reliable safety and energy efficiency.
ARD (Automatic Rescue Device)
In case of a power outage:
- The ARD system activates automatically
- The elevator moves to the nearest floor
- Doors open safely for passenger exit
SIM-Enabled SOS Dialer
We integrated a SIM card slot directly into the control panel.
In emergencies:
- Passengers can press the SOS button
- A direct cellular voice call is initiated
Smart Eco-Mode
To optimize energy usage:
- Lights, fans, and displays turn off when idle
- The system reactivates instantly when called
Project Specs at a Glance
| Feature | Custom Project Details |
|---|---|
| Load Capacity & Speed | 400kg (approx. 5 persons) at 0.4m/s |
| Structure | Forced-Drive (No counterweight for 360° view) |
| Enclosure | 5+5 Laminated Curved Tempered Glass |
| Framework | Seamless One-Piece Molded Aluminum Alloy |
| Safety Tech | ARD System & SIM-Card SOS Voice Calling |
Elevate Your Home’s Architecture
If you have a staircase void and want a circular elevator that delivers both design and performance, standard solutions are not enough.
Avoid:
- Designs that block visibility
- Systems that compromise speed or capacity
Our factory specializes in:
- Counterweight-free panoramic elevators
- Fully customized structural designs
Let our team help you create a solution that integrates seamlessly into your home while delivering reliable performance.
