What Is Elevator Passenger Capacity?
Elevator passenger capacity calculation involves three related factors. Rated load establishes the elevator’s designed carrying load, available car area constrains passenger space, and handling capacity measures how many people the elevator system can transport during a specified period.
- Rated load is the designed carrying load, expressed in kilograms.
- Rated passenger capacity is the specified maximum number of passengers for the elevator configuration.
- Maximum available car area is the area limit associated with the rated load under the applicable standard.
- Handling capacity measures how many passengers an elevator or elevator group can transport within a defined period, often five minutes in traffic planning.
A weight-based calculation provides an initial estimate of passenger count, but it does not determine the final rated passenger capacity. The car must also satisfy applicable area limits, equipment specifications and safety requirements.
ISO 8100-32:2020 provides methods for planning and selecting passenger lifts in office, hotel and residential buildings. Its approach considers building population, passenger loading, round trip time and car dimensions rather than simply converting rated load into a number of people.
How to Calculate Elevator Passenger Capacity
Calculate Passenger Capacity by Rated Load
The basic weight-based formula estimates the number of passengers by dividing the elevator’s rated load by an assumed average passenger mass.
[
N_{\text{estimated}}=\frac{Q}{W}
]
Where:
- (N_{\text{estimated}}) is the preliminary passenger count.
- (Q) is the rated load in kilograms.
- (W) is the assumed average passenger mass in kilograms per person.
Different standards and planning methods may use different passenger weight assumptions. The selected value should be stated whenever a calculation is presented.
For example, consider a passenger elevator with a rated load of 630 kg and an assumed average passenger mass of 75 kg.
[
N_{\text{estimated}}=\frac{630}{75}=8.4
]
The calculation produces an estimate of 8.4 passengers by weight. It does not mean that the elevator can be assigned a rated capacity of 8.4 people or that the result can be rounded upward to nine passengers.
Verify the Rated Passenger Capacity
The estimated passenger count must be checked against the applicable rated passenger capacity and maximum available car area.
The following elevator capacity chart compares weight-based estimates with reference passenger ratings and maximum available car areas from the cited standards.
| Rated load | Estimate at 75 kg per person | Reference rated passenger capacity | Maximum available car area |
|---|---|---|---|
| 450 kg | 6.0 | 6 people | 1.30 m² |
| 630 kg | 8.4 | 8 people | 1.66 m² |
| 1,000 kg | 13.3 | 13 people | 2.40 m² |
| 1,600 kg | 21.3 | 21 people | 3.56 m² |
Reference note: Rated passenger capacities are drawn from the reference data associated with ISO 8100-30:2019. The maximum available car areas are from ISO 8100-1:2019, as reproduced in Elevator World’s technical discussion. ISO 8100-1:2019 has since been withdrawn and replaced by ISO 8100-1:2026. The area values are historical reference data, not confirmation of the current edition’s requirements. Verify the current standard and applicable local requirements before using this chart for equipment selection.
The table demonstrates why a weight-based estimate and a rated passenger capacity are not interchangeable. A 630 kg elevator produces an estimate of 8.4 people at 75 kg per person, while the reference specification lists eight passengers.
This distinction matters when comparing elevator systems for procurement. Rated load, passenger rating and available car area must be consistent with the selected equipment and applicable requirements.
How Car Area Affects Elevator Passenger Capacity
Rated load and maximum available car area impose separate constraints on elevator selection. Rated load addresses carrying mass, while the area limit prevents the car from being configured with more passenger space than the applicable requirements permit.
ISO 8100-1:2026 is the current edition of the safety standard for passenger and goods passenger lifts. ISO 8100-32:2020 provides planning and selection methods that consider passenger loading, rated load and available car area. The exact area limits used in a project must be checked against the applicable edition and jurisdiction.
Use Area Calculations as a Preliminary Estimate
A simple area-based estimate can help assess passenger space during early planning.
[
N_{\text{area estimate}}=\frac{A_{\text{car}}}{A_{\text{person}}}
]
Where:
- (A_{\text{car}}) is the available car area in square meters.
- (A_{\text{person}}) is the assumed area per passenger in square meters.
Consider a hypothetical car with 1.30 m² of available area. Dividing that area by an illustrative allowance of 0.21 m² per person produces the following result.
[
N_{\text{area estimate}}=\frac{1.30}{0.21}\approx6.19
]
This is only a preliminary space estimate. The 0.21 m² allowance is used as an example in ISO 8100-32:2020, but simple division alone does not complete the standard’s selection procedure.
Apply the ISO 8100-32 Area and Load Checks
Under the area-based calculation method described in ISO 8100-32:2020, the required available car area is related to the calculated average number of passengers and the assumed passenger area.
[
A_{\text{required}}\geq\frac{P_{\text{calc}}\times A_p}{0.8}
]
Where:
- (A_{\text{required}}) is the required available car area.
- (P_{\text{calc}}) is the average number of passengers in the car when it leaves the main entrance floor.
- (A_p) is the assumed average area per passenger.
- (0.8) is the loading factor used in this calculation method.
Using the illustrative values of 1.30 m² available area and 0.21 m² per passenger, the relationship can be rearranged to estimate the maximum average passenger count for this area assumption.
[
P_{\text{calc}}\leq\frac{1.30\times0.8}{0.21}\approx4.95
]
The result is approximately 4.95 average passengers under the stated assumptions. It is not the rated passenger capacity printed on the elevator’s identification plate.
The rated load must also be sufficient for the selected passenger loading. In the mass-based method, the calculation uses the assumed average passenger mass and the same 80% loading factor.
For example, with an average passenger mass of 75 kg and a calculated average of 19 passengers:
[
Q_{\text{mass}}=\frac{19\times75}{0.8}=1,781.25\text{ kg}
]
The next suitable rated load in the reference series is 1,800 kg.
The area-based method may produce a different result. Using the same 19-person example and an assumed average passenger area of 0.21 m²:
[
A_{\text{required}}=\frac{19\times0.21}{0.8}=4.9875\text{ m}^2
]
This means the selected car must provide at least approximately 4.99 m² of available area under the stated calculation assumptions.
Worked Example: Combining the Mass and Area Methods
The two methods should be checked together because they measure different constraints. The mass-based method addresses the load needed to carry the assumed passengers, while the area-based method addresses the space needed to accommodate them.
Consider a traffic analysis that calculates an average of 19 passengers leaving the main entrance floor. The example uses an average passenger mass of 75 kg, an average passenger area of 0.21 m² and a loading factor of 0.8.
| Selection check | Calculation | Result |
|---|---|---|
| Required rated load by mass | (19\times75/0.8) | 1,781.25 kg |
| Next rated load in the cited series | Round up to a suitable rated load | 1,800 kg |
| Required available car area | (19\times0.21/0.8) | 4.9875 m² |
| Maximum area at 2,000 kg in the 2019 reference table | Historical reference value | 4.20 m² |
| Maximum area at 2,500 kg in the 2019 reference table | Historical reference value | 5.00 m² |
Under the cited 2019 reference table, a 2,000 kg car provides only 4.20 m², below the calculated requirement of 4.9875 m². A 2,500 kg car provides 5.00 m² and meets that area threshold, while also exceeding the mass-based requirement.
For this illustrative example, the area-based check therefore leads to a 2,500 kg selection using the cited 2019 table, rather than the 1,800 kg result from the mass-based calculation alone.
This is not a final recommendation for a real installation. ISO 8100-1:2019 has been withdrawn and replaced by ISO 8100-1:2026. The current maximum available area table must be checked before making a project decision. The final configuration must satisfy the current standard, rated passenger capacity, actual car dimensions, local requirements and the results of the project’s traffic analysis.
The example illustrates a broader selection principle: where the mass-based and area-based methods produce different results, the chosen configuration must satisfy both sets of requirements. Selecting the lower rated load without completing the area check can lead to an unsuitable car configuration.
Understand the Maximum Available Area and Decorative Panels
The maximum available car area values in the cited 2019 reference table are measured for the car without decorative or protective panels. These panels reduce the space available to passengers.
ISO 8100-32:2020’s reference selection table assumes decorative or protective panels no thicker than 15 mm. Thicker panels, or client-specified internal car dimensions, can require a larger car to preserve the intended usable area.
For example, a car selected using a reference area of 5.00 m² may not retain 5.00 m² of usable passenger space after thick wall panels or protective linings are installed. The project team should confirm the finished internal dimensions and recheck the area requirement when panel thickness exceeds 15 mm or when the client specifies particular internal dimensions.
For current projects, the relevant maximum-area values must be verified against ISO 8100-1:2026 and any applicable national requirements. Historical reference values should not be used as a substitute for current compliance checks.
Account for Accessibility and Equipment Space
Hospitals may require space for stretchers, medical equipment and accompanying staff. Hotels may need room for luggage, while residential and public buildings may need to accommodate wheelchairs, mobility aids or strollers.
These requirements affect car width, depth, entrance width and door configuration. Projects with wheelchair access requirements should also consider suitable accessibility lifts and verify that the proposed car and entrance dimensions meet the applicable accessibility requirements.
In modernization projects, existing shaft dimensions, landing entrances and structural constraints can restrict the available options even when a different rated load appears desirable.
How to Calculate Elevator Handling Capacity
Rated load indicates how much weight an elevator is designed to carry. Handling capacity measures how many passengers the elevator or elevator group can transport during a specified period, making it a key consideration in building traffic planning.
A five-minute handling-capacity assessment compares expected peak demand with the number of passengers the proposed system can transport. The analysis requires a defined building population, traffic scenario, passenger loading assumption, round trip time (RTT) and number of elevators.
Step 1 — Determine Building Demand
Estimate the building population and the share of occupants expected to use the elevators during the design peak.
[
HC_{\text{required}}=P\times r
]
Where (P) is the estimated building population and (r) is the target five-minute handling capacity expressed as a decimal.
For a hypothetical office building with 500 occupants and an illustrative target of 12% of the population in five minutes:
[
HC_{\text{required}}=500\times0.12=60
]
The preliminary target is 60 passengers in five minutes. The 12% figure is an example planning assumption, not a universal requirement for every office building. The appropriate target depends on the selected planning method and project criteria.
Step 2 — Estimate Round Trip Time
Round trip time, or RTT, is the time required for an elevator to complete a defined operating cycle under the assumptions of the traffic-analysis method.
The estimate depends on the number of floors served, passenger loading, intermediate stops, rated speed, acceleration and deceleration, door operation, passenger transfer time and the return journey to the main entrance floor.
A higher rated speed does not necessarily improve handling capacity in direct proportion. In buildings with frequent stops, door operation and passenger transfer can consume a substantial part of each cycle. Where project height and traffic demand justify it, high-speed elevators may be evaluated alongside other configuration options, but speed alone does not determine handling capacity.
RTT should therefore be calculated using a consistent traffic-planning method rather than inferred from rated speed alone.
Step 3 — Estimate Five-Minute Handling Capacity
The simplified relationship in the technical reference supplied for this article is:
[
HC_{\text{estimated}}=\frac{300}{RTT}\times N\times0.8C
]
Where:
- (HC_{\text{estimated}}) is the estimated number of passengers transported in five minutes.
- (RTT) is round trip time in seconds.
- (N) is the number of elevators.
- (C) is the defined passenger capacity per car used by the method.
- (0.8) is the assumed loading factor.
- (300) represents five minutes in seconds.
This equation is a simplified estimate, not a universal elevator design formula. The meaning of (C), the loading assumption and the RTT calculation must be consistent with the chosen traffic-analysis method.
The 80% factor is a traffic-planning assumption in this example. It is not an overload protection threshold, nor does it replace the elevator’s rated load or rated passenger capacity.
Consider a hypothetical elevator group with two elevators, an RTT of 100 seconds and a calculation capacity of 10 passengers per car.
[
HC_{\text{estimated}}=\frac{300}{100}\times2\times0.8\times10
]
[
HC_{\text{estimated}}=48\text{ passengers per 5 minutes}
]
The estimated handling capacity is 48 passengers per five minutes. Compared with the illustrative target of 60, the group falls short by 12 passengers during the assessment period.
Step 4 — Compare the Result With Project Requirements
The shortfall means the proposed configuration requires further evaluation. It does not establish that increasing rated load alone will solve the problem.
The design team should compare alternative configurations using a consistent traffic-planning method. Possible options include increasing the number of elevators where shaft space permits, reviewing passenger capacity, assessing door operation and rated speed, or revisiting the distribution of service floors.
A more detailed calculation or simulation may be needed to assess passenger waiting times and the effects of the selected control system. Elevator control systems are relevant to operating logic and group performance, but the final configuration must still be verified against the project’s design criteria rather than approved from a single simplified calculation.
A 1,600 kg elevator does not automatically outperform two 1,000 kg elevators. The better configuration depends on passenger demand, shaft availability, traffic patterns, waiting-time criteria and lifecycle considerations.
For modernization projects, existing shafts, landing entrances and structural constraints may restrict the available solutions. These limitations should be assessed before deciding whether a change in rated load, elevator quantity or control system is practical. Where shaft space is a limiting factor, the available elevator shaft configurations should be reviewed alongside the proposed car dimensions and equipment layout.
How Building Type Affects Elevator Capacity Selection
Building use determines the passenger flow and space requirements that the elevator system must accommodate. Similar floor counts do not necessarily lead to similar capacity requirements.
Residential Buildings
Residential projects should be assessed using the expected population, number of floors served, peak departure and arrival patterns, and available shaft space. Morning departures and evening arrivals can create concentrated demand, while other trips may be distributed throughout the day.
The selection should balance rated load, elevator quantity and expected waiting times. Increasing rated load may carry more passengers per trip, but it will not necessarily resolve congestion caused by long travel distances or frequent stops.
For residential projects, indoor residential passenger elevators provide a relevant product reference when comparing configurations. The selected model must still be checked against the building’s shaft dimensions, passenger demand and applicable requirements.
Office Buildings and Hotels

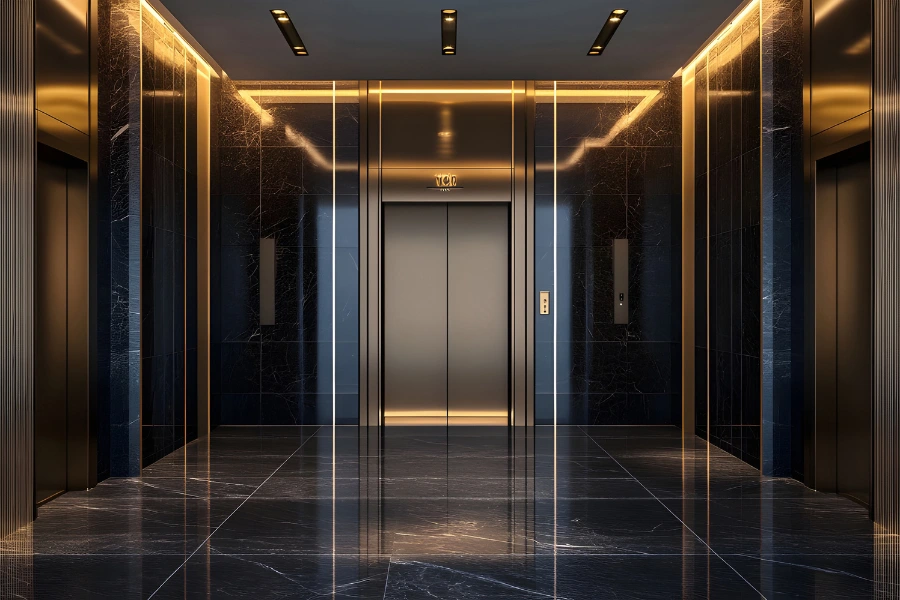

Office buildings often experience concentrated incoming traffic at the beginning of the working day and outgoing traffic near its end. Hotels have a more varied pattern involving guest arrivals, luggage, housekeeping and service activities.
For office buildings, handling capacity, RTT and destination distribution are central planning variables. For hotels, car dimensions and luggage space can also affect the practical passenger load per trip.
For commercial projects, commercial passenger elevators offer a relevant starting point for reviewing available configurations. Product selection should follow the traffic assessment rather than replace it.
ISO 8100-32:2020 provides planning and selection methods for passenger lifts in office, hotel and residential buildings. The selected method should reflect the installation’s complexity and the project’s traffic criteria.
Hospitals and Accessibility Projects

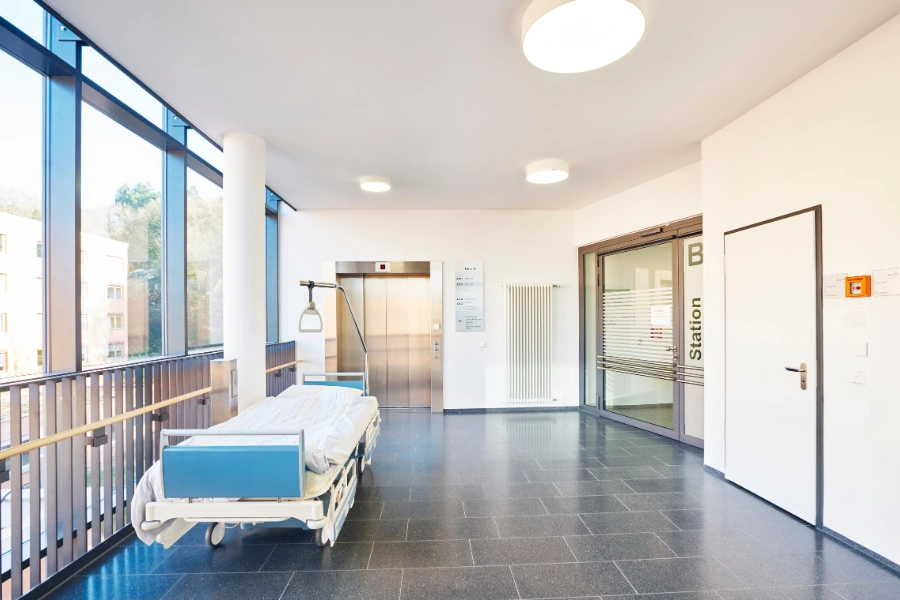

Hospital elevators may need to accommodate stretchers, medical equipment, wheelchairs and accompanying staff. The required car dimensions and entrance clearance may therefore be as important as the rated load.
The project team should verify the equipment envelope, access route and intended operating conditions before confirming the configuration. A car with sufficient rated load may still be unsuitable if its entrance width or internal dimensions do not support the required movement.
Medical passenger elevators are a relevant product category for reviewing hospital applications, but the rated load, internal dimensions and entrance clearance must be matched to the actual medical transport requirements.
Industrial and Infrastructure Projects
Industrial and infrastructure projects may involve equipment movement, heavy loads, specialized transport or passenger demand concentrated around shift changes. The first step is to establish whether the application requires a passenger elevator, freight elevator or another specialized lifting system.
For cargo and equipment, the selection should consider load dimensions, loading access, load distribution and duty requirements. For shift-based passenger traffic, demand should be assessed during the relevant peak period rather than using daily averages alone.
Industrial lifts provide a relevant starting point for reviewing equipment intended for industrial applications. The final selection should account for the load envelope, operating conditions and installation constraints.
Installation access, maintenance requirements and long-term component availability also affect the practical choice, particularly where equipment downtime could interrupt production or infrastructure operations.
From Calculation to Elevator Selection
A capacity estimate becomes useful when it informs a defined equipment decision. The following sequence links the calculation to the building’s actual requirements.
- Define building use. Establish the building type, expected population, service floors and passenger or equipment requirements.
- Estimate peak demand. Identify traffic direction and the required handling capacity during the design period.
- Calculate system performance. Estimate RTT and assess the proposed elevator group under the chosen traffic-analysis method.
- Select rated load. Compare configurations using the required passenger capacity and intended application.
- Verify car dimensions. Check available area, entrance width, accessibility and equipment requirements.
- Confirm installation conditions. Review shaft dimensions, pit depth, overhead clearance, electrical provisions and installation access.
- Assess lifecycle requirements. Consider maintenance access, component availability, modernization compatibility and long-term service needs.
This sequence prevents a common planning error: choosing rated load before checking whether the car and elevator group can satisfy the building’s physical and traffic constraints.
International projects may also require coordination of manufacturing specifications, export delivery, local compliance and component supply. These requirements should be reviewed alongside the engineering configuration rather than after equipment selection. When evaluating maintenance and long-term service needs, the available elevator parts can be reviewed as part of the wider equipment support plan.
Common Elevator Capacity Calculation Mistakes
- Treating the weight estimate as the final passenger rating. Rated load divided by assumed passenger mass provides a preliminary result, not approval for a particular passenger count.
- Ignoring available car area. The car must meet applicable area limits while providing the space required for its intended use.
- Using an outdated area table without checking the current edition. The 2019 reference values in this article should not be treated as current requirements after the publication of ISO 8100-1:2026.
- Using average traffic instead of peak demand. Daily averages can hide short periods of congestion.
- Assuming higher speed always increases handling capacity. Stops, door operation and passenger transfer can limit the benefit of faster travel.
- Confusing full-load operation with overload protection. Full-load functions affect responses to landing calls, while overload protection prevents operation when the permitted load is exceeded.
- Using test loads as normal operating capacity. Specific test procedures do not increase the rated load permitted during everyday use.
- Ignoring installation and lifecycle constraints. Shaft dimensions, entrance geometry, maintenance access and modernization compatibility can limit practical options.
A reliable selection must account for rated load, car dimensions, traffic demand and installation conditions together.
Elevator Capacity Planning Checklist
Use this checklist to collect the information required for a project assessment.
- Building type, expected population and service floors.
- Peak traffic direction and required five-minute handling capacity.
- Required rated load and rated passenger capacity.
- Car dimensions, available area and entrance width.
- Rated speed, estimated RTT and number of elevators.
- Space for wheelchairs, stretchers, luggage or equipment.
- Shaft limitations, pit depth, overhead clearance and installation access.
- Decorative panel thickness and required finished internal car dimensions.
- Maintenance access, spare parts and long-term service requirements.
- Applicable current standards and local codes.
EKCNE provides elevator products and system options for different building and project requirements. Reviewing the building constraints early helps align the proposed equipment with the required capacity, installation environment and maintenance needs.
FAQ
How do you calculate elevator passenger capacity?
Divide the rated load in kilograms by an assumed average passenger mass to obtain a preliminary estimate. Verify the rated passenger capacity, available car area and applicable requirements before confirming the final configuration.
What is the difference between rated load and passenger capacity?
Rated load is the mass in kilograms for which the elevator is designed. Rated passenger capacity is the specified maximum number of passengers for the elevator configuration under applicable requirements.
How many people can fit in a 1,000 kg elevator?
Using an assumed average passenger mass of 75 kg, a 1,000 kg rated load produces a preliminary estimate of about 13.3 people. The reference specification table lists 13 rated passengers for this load, but the applicable equipment specification and current standards must be checked for the actual project.
How do you calculate elevator handling capacity?
Handling capacity estimates the number of passengers an elevator or elevator group can transport during a specified period. The calculation depends on the chosen method and variables such as passenger loading, RTT, elevator quantity and traffic conditions.
