Escalator capacity is not simply the largest number of passengers a machine can theoretically move per hour. For project engineers, architects, developers, and procurement teams, the real objective is to determine whether an escalator system can handle peak passenger demand under actual operating and building conditions.
A reliable Escalator Capacity Calculation should connect passenger flow, peak traffic concentration, directional demand, step width, nominal speed, practical utilization, building constraints, and equipment availability. The calculation should ultimately answer two project questions: how much passenger handling capacity is required, and how many escalators are needed to provide it.
A practical capacity planning method follows this engineering logic:
Passenger Demand → Peak Period → Directional Distribution → Reference Capacity → Practical Capacity Adjustment → Escalator Quantity → Redundancy → Building Compatibility → Final Configuration
Quick Answer: How Is Escalator Capacity Calculated?
The theoretical capacity of an escalator can be estimated from the number of steps passing a fixed point and the assumed number of passengers occupying each step.
A simplified escalator capacity formula is:
C = 3600 × v ÷ p × n
Where:
- C is theoretical capacity in persons per hour.
- v is nominal escalator speed in meters per second.
- p is step pitch in meters.
- n is the assumed number of passengers per step.
For an escalator operating at 0.5 m/s with a 0.4 m step pitch and an ideal occupancy of two passengers per step:
C = 3600 × 0.5 ÷ 0.4 × 2 = 9,000 persons per hour
This result is an ideal geometric capacity. It assumes continuous boarding, complete step occupancy, no passenger hesitation, and unrestricted passenger discharge at the landing.
Real projects don’t operate under these assumptions. A complete Escalator Capacity Calculation must distinguish between theoretical capacity, standard reference maximum capacity, practical handling capacity, design capacity, and required handling capacity.
What Does Escalator Capacity Actually Mean?
The same escalator can be associated with several capacity figures because each value may be based on different passenger occupancy and traffic assumptions.
Understanding the capacity definition is essential before performing an escalator sizing calculation or comparing supplier specifications.
Ideal or Geometric Capacity
Ideal capacity describes how many passengers could pass a fixed point if all assumed passenger positions were continuously occupied.
It is useful for understanding the mathematical relationship between nominal speed, step frequency, step pitch, and passengers per step.
However, it is not a reliable value for determining escalator quantity because passengers don’t arrive uniformly or occupy every available step.
Standard Reference Maximum Capacity
Standards and engineering references provide maximum transportation capacity values for common combinations of nominal speed and step width.
| Step Width | 0.50 m/s | 0.65 m/s | 0.75 m/s |
|---|---|---|---|
| 600 mm | 3,600 persons/h | 4,400 persons/h | 4,900 persons/h |
| 800 mm | 4,800 persons/h | 5,900 persons/h | 6,600 persons/h |
| 1,000 mm | 6,000 persons/h | 7,300 persons/h | 8,200 persons/h |
These values provide a useful reference for preliminary escalator selection and capacity planning.
Capacity figures from formulas, standards, planning guides, and manufacturer documentation may differ because they can use different assumptions for step occupancy and passenger flow. Always verify the capacity definition before comparing values.
Practical Escalator Capacity
Practical escalator capacity represents passenger handling performance under actual operating conditions.
It is influenced by step occupancy, passenger arrival patterns, luggage, group movement, boarding behavior, entrance conditions, and landing circulation.
A 1,000 mm step may provide enough physical width for two passengers, but passengers may stand individually or leave empty steps. Wider equipment therefore doesn’t automatically produce proportional gains in actual passenger flow.
Design Capacity
Design capacity is the value adopted for project traffic calculations.
A simplified relationship is:
Design Capacity = Reference Capacity × Practical Utilization Factor
The utilization factor shouldn’t be treated as a universal percentage. Passenger characteristics and traffic patterns vary considerably between shopping malls, airports, hotels, commercial buildings, and metro stations.
Required Handling Capacity
Required escalator capacity starts from building traffic demand rather than equipment performance.
It identifies how many passengers must be transported during the critical design period and in each direction.
The purpose of Escalator Capacity Calculation is to compare this required handling capacity with realistic capacity per escalator and determine an appropriate system configuration.
Escalator Capacity Calculation Formula and Worked Example
The theoretical escalator traffic calculation begins with step frequency.
Steps per Second = Nominal Speed ÷ Step Pitch
The theoretical passenger flow is then:
Theoretical Capacity = Steps per Second × Passengers per Step × 3,600
Combining these relationships gives:
C = 3600 × v ÷ p × n
Consider a 1,000 mm escalator operating at 0.5 m/s with a 0.4 m step pitch.
If ideal occupancy is assumed to be two passengers per step, the geometric capacity is:
9,000 persons per hour
The standard reference maximum capacity for the same width and nominal speed is:
6,000 persons per hour
The practical design capacity may be lower again after actual traffic conditions are considered.
| Capacity Level | Example Value | Planning Use |
|---|---|---|
| Ideal Geometric Capacity | 9,000 persons/h | Mathematical capacity analysis |
| Standard Reference Maximum Capacity | 6,000 persons/h | Preliminary escalator selection |
| Practical Design Capacity | Project-specific | Passenger flow calculation and quantity selection |
The values aren’t interchangeable. The correct capacity depends on the purpose of the calculation and the assumptions behind the selected figure.

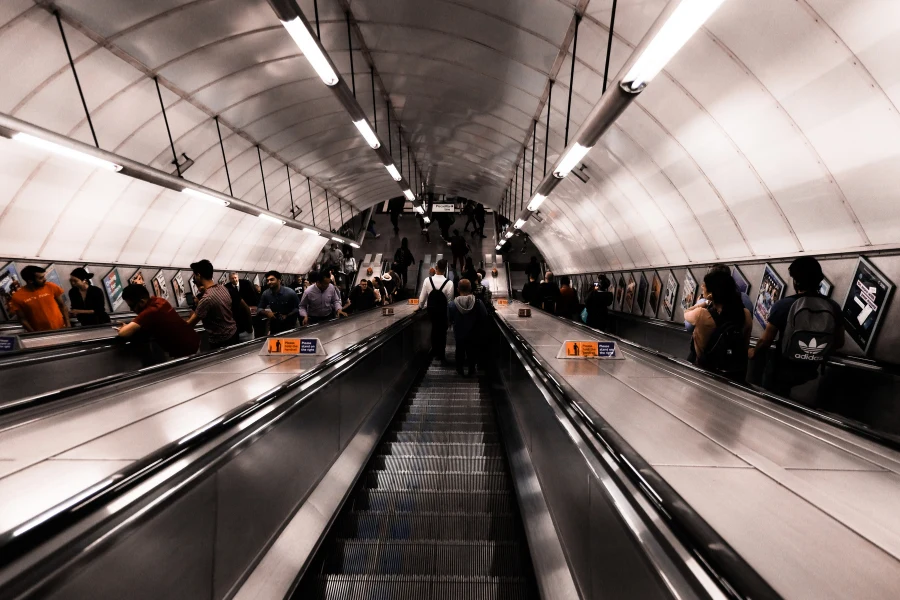

Why Theoretical Capacity Is Higher Than Practical Capacity
The difference between theoretical and practical capacity is mainly created by passenger behavior and the surrounding circulation environment.
Not every step is occupied. Passengers leave gaps because of personal space preferences, uneven arrivals, group movement, luggage, or uncertainty while boarding.
Passenger arrivals are also rarely uniform. In commercial projects, total building occupancy may appear manageable while the actual escalator bottleneck occurs during short-duration traffic concentration between specific floors.
The surrounding circulation path can impose another limit. Columns, narrow corridors, ticket gates, queues, retail displays, or inadequate landing clearance can restrict passenger access or discharge even when the escalator has sufficient mechanical capacity.
An escalator may therefore have adequate theoretical capacity while the building circulation system has insufficient passenger handling capacity.
Key Factors That Affect Escalator Capacity Planning
A reliable Escalator Capacity Calculation should evaluate equipment parameters and actual project conditions together.
Step Width and Passenger Occupancy
Common step widths are 600 mm, 800 mm, and 1,000 mm.
A 600 mm escalator is generally suitable for single-passenger standing and lower traffic demand. An 800 mm configuration provides additional space while limiting the equipment footprint, while 1,000 mm escalators are commonly selected for higher passenger volumes and public transportation projects.
Escalator sizing should consider available building space and actual passenger behavior rather than assuming the widest step always provides the best project result.
Nominal Speed
Common nominal speeds include 0.50 m/s, 0.65 m/s, and 0.75 m/s.
Higher speed increases the number of steps passing the landing and raises standard reference capacity. However, the practical benefit depends on passenger boarding efficiency and whether the building can accommodate the required escalator configuration.
In transit projects, increasing nominal speed may appear to solve a capacity shortage during preliminary calculations, but available horizontal transition space can prevent the higher-speed configuration from being used.
Peak Traffic Concentration
Average hourly passenger flow isn’t always an appropriate basis for escalator demand calculation.
A metro train, flight arrival, event dismissal, or shopping mall activity can release large passenger volumes within several minutes.
The selected design period should therefore represent the traffic condition that creates the greatest operational pressure.
Directional Passenger Flow
Upward and downward demand should be calculated separately.
An escalator system with sufficient total capacity can still perform poorly when most passengers move in one direction.
Directional distribution is especially important for office buildings, transit facilities, and commercial projects with time-dependent traffic patterns.
How to Calculate Required Escalator Capacity from Passenger Demand
A project-level Escalator Capacity Calculation should begin with passenger demand and work backward toward escalator selection.
Step 1 Determine the Critical Design Passenger Flow
Estimate passenger demand during the period that creates the highest traffic pressure.
Depending on the building, this may be:
- one hour
- 15 minutes
- five minutes
- one train arrival interval
- one flight arrival wave
- one event dismissal period
Passenger flow calculation based only on daily totals or average hourly traffic can hide short-duration congestion.
Step 2 Calculate Directional Demand
Assume peak passenger flow is 8,000 persons per hour.
If 70% of passengers travel upward and 30% downward:
Upward Demand = 8,000 × 70% = 5,600 persons/h
Downward Demand = 8,000 × 30% = 2,400 persons/h
This directional split becomes the basis for escalator quantity calculation.
Step 3 Select a Preliminary Escalator Configuration
Select the step width, nominal speed, escalator type, and operating intensity based on building usage and passenger demand.
Assume the preliminary escalator specification is:
- 1,000 mm step width
- 0.50 m/s nominal speed
- 6,000 persons/h standard reference maximum capacity
This becomes the reference point for practical capacity adjustment.
Step 4 Estimate Practical Handling Capacity
A simplified planning relationship is:
Practical Capacity = Reference Capacity × Utilization Factor
Suppose the project team adopts an illustrative 70% utilization factor after evaluating passenger behavior, traffic concentration, and circulation conditions.
Practical Capacity = 6,000 × 0.70 = 4,200 persons/h
The 70% factor is only an illustrative engineering assumption. Practical utilization should be selected from project-specific operating conditions rather than applied universally.
Step 5 Calculate Preliminary Escalator Quantity
Use:
N = Required Directional Capacity ÷ Practical Capacity per Escalator
For upward traffic:
5,600 ÷ 4,200 = 1.33
At least two upward escalators are required.
For downward traffic:
2,400 ÷ 4,200 = 0.57
At least one downward escalator is required.
The preliminary configuration is therefore:
2 Up Escalators + 1 Down Escalator
This result should still be reviewed for building compatibility, maintenance downtime, redundancy, and future passenger growth.
Worked Escalator Capacity Calculation for a Commercial Complex
Consider an illustrative commercial complex with the following project inputs.
| Project Input | Value |
|---|---|
| Peak Passenger Flow | 9,000 persons/h |
| Upward Traffic Share | 65% |
| Downward Traffic Share | 35% |
| Step Width | 1,000 mm |
| Nominal Speed | 0.50 m/s |
| Reference Capacity | 6,000 persons/h |
| Illustrative Utilization Factor | 70% |
The directional demand is:
Upward Demand = 9,000 × 65% = 5,850 persons/h
Downward Demand = 9,000 × 35% = 3,150 persons/h
Practical capacity per escalator is:
6,000 × 70% = 4,200 persons/h
The escalator quantity calculation gives:
Upward = 5,850 ÷ 4,200 = 1.39 → 2 escalators
Downward = 3,150 ÷ 4,200 = 0.75 → 1 escalator
The preliminary escalator configuration is three units.
However, if one upward escalator is unavailable, remaining upward capacity falls below design demand.
Project teams sometimes discover that an additional escalator provides more operational value through maintenance redundancy and directional flexibility than through its contribution to total theoretical capacity.
The final configuration could therefore include additional equipment, reversible operation, alternative circulation routes, or acceptance of temporary congestion during maintenance. The appropriate strategy depends on the consequences of reduced system availability.
How Building Constraints Affect Escalator Capacity Planning
Passenger demand may determine the required capacity, but the building determines whether the selected escalator system can actually be installed and operated effectively.
Building compatibility should therefore be evaluated before the escalator specification and quantity are finalized.
Floor Opening Dimensions
Wider escalators and larger escalator banks require larger floor openings.
Increasing the number of units after the structural design has been completed may require substantial changes to slab openings, edge beams, architectural finishes, and surrounding circulation space.
Early escalator system design reduces the risk of selecting a capacity solution that conflicts with the building structure.
Available Horizontal Projection
Higher-speed public transportation and heavy-duty escalators may require longer horizontal step sections and larger transition radii.
The available horizontal projection can therefore limit nominal speed selection even when a higher speed appears attractive in the initial escalator traffic calculation.
This is one reason capacity planning and building layout should be coordinated rather than completed separately.
Landing Clearance and Circulation Path
The landing area must receive and discharge passengers without creating congestion.
A narrow circulation path, intersecting pedestrian flow, queue, column, or nearby doorway can reduce practical escalator capacity.
In real projects, increasing landing clearance can sometimes improve passenger handling more effectively than increasing nominal escalator speed.
Escalator Bank Layout
Two, three, or four escalators can be arranged in different configurations.
The escalator bank layout affects passenger distribution, directional flexibility, maintenance redundancy, visibility, and circulation path design.
A three-unit arrangement may support two escalators in the dominant direction and one in the opposite direction, while reversible operation may provide additional flexibility for time-dependent traffic.
Structural Support Conditions and Installation Access
Additional escalators require larger openings, more support points, and greater coordination between structural and equipment design.
Project teams should also evaluate transportation routes, lifting conditions, assembly space, and installation access.
An escalator configuration that satisfies passenger flow calculation but can’t be transported, installed, or maintained efficiently is not a complete project solution.
Escalator Capacity Planning for Different Building Scenarios
Escalator Capacity Calculation should reflect how passengers actually move through the building.
Shopping Malls
Shopping mall traffic is usually bidirectional and distributed between multiple floors.
Weekend peaks, dining periods, promotional events, and anchor tenant locations can create localized traffic concentration.
Escalator selection should consider floor-to-floor passenger distribution, escalator visibility, circulation paths, and maintenance redundancy rather than simply maximizing nominal capacity.
Airports
Airport passengers often travel with luggage and move in groups according to flight schedules and processing stages.
These conditions can reduce boarding efficiency and create concentrated passenger arrival waves.
Escalator capacity planning should coordinate practical capacity, landing clearance, circulation width, and luggage conditions.
Metro and Railway Stations
Transit facilities can release hundreds of passengers toward an escalator bank within a short period.
Five-minute handling capacity or train-arrival passenger demand may be more important than average hourly flow.
High operating intensity, directional surges, maintenance availability, and heavy-duty escalator specifications should be evaluated together.
Hotels and Commercial Buildings
Hotels and commercial buildings often have lower continuous traffic demand but may experience short peaks during conferences, meal periods, office arrival times, or event dismissal.
The escalator system should handle these periods without creating unnecessary equipment investment during normal operating hours.
Why Increasing Escalator Speed Doesn’t Always Solve Capacity Problems
Higher nominal speed increases theoretical and standard reference capacity, but the improvement in practical passenger handling may be smaller.
Passenger boarding behavior, landing conditions, transition geometry, available horizontal projection, and building space can limit the benefit of higher speed.
Higher-speed escalators can also require longer horizontal sections and larger transition radii, particularly in public transportation and heavy-duty applications.
The engineering objective should therefore be to improve total building transportation performance rather than maximize a single equipment parameter.
Common Escalator Capacity Calculation Mistakes
Common planning errors include:
- using ideal geometric capacity directly as design capacity
- comparing capacity figures without checking their assumptions
- ignoring upward and downward traffic distribution
- using average hourly traffic instead of the critical peak period
- assuming every step is continuously occupied
- selecting speed and width without checking floor opening dimensions and horizontal projection
- ignoring landing clearance and surrounding circulation paths
- providing no strategy for maintenance downtime
- overlooking reasonable future passenger growth
Avoiding these mistakes improves escalator sizing, building compatibility, and long-term transportation reliability.
Escalator Capacity Selection Checklist
| Planning Item | Engineering Question |
|---|---|
| Building Usage | What passenger movement pattern does the project create? |
| Peak Passenger Flow | What is the demand during the critical design period? |
| Directional Split | How much traffic moves upward and downward? |
| Passenger Characteristics | Do passengers carry luggage or require additional boarding time? |
| Step Width | Which width balances capacity and available floor opening dimensions? |
| Nominal Speed | Which speed matches demand, passenger conditions, and available horizontal projection? |
| Reference Capacity | Which capacity definition is being used? |
| Practical Capacity | What utilization assumptions reflect actual operating conditions? |
| Escalator Quantity | How many units are required in each direction? |
| Escalator Bank Layout | How should equipment be arranged for passenger distribution and flexibility? |
| Structural Conditions | Can the building support the required openings and support points? |
| Installation Access | Can equipment be transported, assembled, and installed efficiently? |
| Redundancy Strategy | What happens when one escalator is unavailable? |
| Future Demand | Could passenger traffic increase during the project lifecycle? |
How EKCNE Approaches Escalator Capacity Calculation and Project Planning
A project-level Escalator Capacity Calculation should connect passenger demand with escalator sizing, equipment configuration, building integration, and long-term operation.
EKCNE evaluates building usage, passenger flow, peak traffic concentration, directional distribution, step width, nominal speed, operating intensity, floor opening dimensions, available horizontal projection, landing clearance, structural support conditions, escalator bank layout, installation access, and maintenance requirements.
These inputs help determine the suitable escalator type, technical specification, quantity, layout, and operational strategy for commercial buildings, public transportation facilities, infrastructure projects, and other high-traffic environments.
For global projects, capacity planning can also be coordinated with customized manufacturing, project deployment, export delivery, installation compatibility, component supply continuity, and lifecycle maintenance requirements.
The objective isn’t to maximize capacity on paper. It is to develop an escalator configuration that handles realistic passenger demand, fits the building, remains maintainable, and supports long-term transportation performance.
Project owners, contractors, distributors, and engineering teams can discuss passenger flow requirements, building conditions, and project constraints with EKCNE to evaluate a suitable escalator configuration.
FAQ
How do you calculate escalator capacity?
The theoretical capacity of an escalator can be estimated by multiplying the number of steps passing a fixed point per hour by the assumed number of passengers occupying each step.
A simplified formula is C = 3600 × v ÷ p × n, where speed, step pitch, and assumed passenger occupancy determine ideal geometric capacity. Practical project capacity should then be evaluated using reference capacity, passenger behavior, traffic concentration, and building conditions.
How many people can an escalator carry per hour?
The answer depends on step width, nominal speed, passenger occupancy, and the capacity definition being used.
Standard maximum transportation capacity values for common escalators range from approximately 3,600 persons per hour for a 600 mm escalator operating at 0.5 m/s to approximately 8,200 persons per hour for a 1,000 mm escalator operating at 0.75 m/s. Actual project handling capacity may be lower.
What is the capacity of a 1,000 mm escalator?
A 1,000 mm escalator has a standard maximum transportation capacity of approximately 6,000 persons per hour at 0.5 m/s, 7,300 persons per hour at 0.65 m/s, and 8,200 persons per hour at 0.75 m/s.
The practical capacity used for project planning depends on passenger behavior, traffic concentration, luggage conditions, entrance layout, and other operating factors.
