An elevator encoder improves accuracy by providing the drive and control system with continuous feedback about actual motion. This feedback allows the system to compare commanded movement with measured movement and make corrections during acceleration, travel, deceleration, and final leveling.
However, encoder accuracy is not the same as elevator leveling accuracy. Final stopping performance depends on how the encoder, drive, position references, traction system, brake, and mechanical components work together.
What Does an Elevator Encoder Actually Measure?
An elevator encoder converts mechanical motion into electrical feedback that the drive or controller can process. Depending on the encoder and control architecture, this feedback can represent rotational speed, direction, relative movement, or coded position.

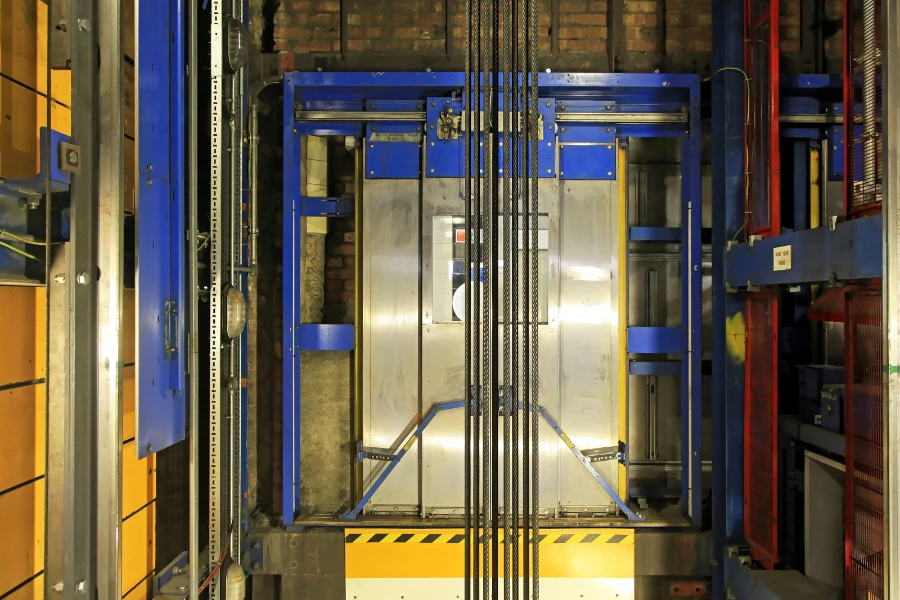

On a traction elevator, an encoder is commonly associated with the motor or drive system. When mounted on the motor shaft, it primarily measures motor rotation rather than directly measuring the linear position of the elevator car.
That distinction affects how the control system interprets the signal. Motor rotation can be converted into an estimate of car movement through the elevator’s traction and control architecture, but conditions such as traction slip can affect the relationship between shaft rotation and actual car displacement.
A simplified feedback path is:
Motor motion → Encoder signal → Drive/controller → Motion correction
The encoder measures actual motion. The drive and controller use that information to determine whether correction is required.
For a basic explanation of how elevator encoders work, see our separate guide.
How Encoder Feedback Improves Elevator Accuracy
Encoder feedback affects accuracy throughout the elevator’s motion profile, not only during the final stopping phase.
Closed-Loop Speed Control
In closed-loop operation, the elevator drive has both a commanded speed and measured feedback. In a VVVF drive (variable voltage variable frequency drive), the encoder can provide the feedback needed to compare actual motor behavior with the intended speed profile.
If the motor rotates faster or slower than expected, the drive can detect the deviation and adjust motor control accordingly. This supports controlled acceleration, stable travel, and predictable deceleration.
The basic feedback loop is:
Commanded speed → Motor response → Encoder feedback → Error comparison → Drive correction
The encoder doesn’t physically slow or reposition the elevator. It provides the motion information that allows the control system to make those corrections.
Controlled Deceleration Before the Landing
Accurate leveling starts before the elevator reaches the leveling zone.
As the car approaches its destination, the drive reduces speed according to the intended deceleration profile. Encoder feedback allows the system to compare actual motor behavior with the expected profile and correct deviations before the final stopping phase.
A typical sequence is:
Travel speed → Deceleration → Low-speed approach → Leveling zone → Stop
If the car enters the final approach too quickly or decelerates inconsistently, the control system has less opportunity to achieve a repeatable stop. Feedback during deceleration therefore contributes to final positioning performance.
This also explains why a leveling problem isn’t necessarily caused by the final leveling signal. An error introduced during speed reduction can carry into the stopping phase.
Position Feedback and Floor Leveling
Encoder signals can contribute to position tracking. Incremental feedback can be counted relative to an established reference, while absolute feedback can provide coded position information according to the system design.
As the elevator approaches a floor, the controller combines encoder feedback and other available position references with the motion-control strategy to reduce speed and bring the car into the required landing position.
The final reference may involve leveling sensors, door-zone signals, shaft-position information, or other elements of the control architecture. The encoder therefore provides precision feedback within the positioning system rather than independently determining floor position.
Releveling After Load Changes
Passenger or cargo movement can cause a change in car position, particularly when the elevator handles significant load variation. Where the system supports releveling, the control system can detect that the car has moved outside the permitted landing position and command corrective movement.
Encoder feedback may support this process, while other position references can also be involved depending on the control architecture. The releveling response therefore depends on how the complete positioning system is configured.
Encoder Resolution Is Not the Same as Elevator Accuracy
Understanding elevator encoder accuracy requires separating resolution, measurement accuracy, repeatability, and final leveling performance.
| Term | What It Describes |
|---|---|
| Encoder resolution | The smallest motion increment the encoder can distinguish |
| Encoder accuracy | How closely the encoder’s measurement represents the actual motion being measured |
| Repeatability | How consistently the same measurement or operating result can be reproduced |
| Elevator leveling accuracy | How closely the elevator car floor aligns with the landing |
A higher-resolution encoder provides finer motion information, which can support more precise control. It doesn’t automatically mean that the elevator will stop more accurately.
Repeatability is also important in elevator operation. If a car reaches the same floor at the same load condition but stops at noticeably different positions on successive trips, the problem is different from a system that consistently stops at nearly the same offset.
Encoder resolution cannot compensate for unstable drive tuning, an inaccurate leveling reference, brake variation, or mechanical problems. Real-world leveling performance is therefore influenced by:
Encoder feedback + Signal integrity + Drive control + Position references + Traction + Brake + Mechanical condition
This distinction matters when comparing encoder specifications. Resolution determines how finely motion information can be represented, while encoder accuracy and repeatability describe different aspects of measurement and system behavior.
Do Incremental and Absolute Encoders Improve Accuracy Differently?
Incremental and absolute encoders provide different forms of feedback, but it isn’t accurate to assume that one type always produces a more accurate elevator.
| Factor | Incremental Encoder | Absolute Encoder |
|---|---|---|
| Motion feedback | Well suited | Well suited |
| Speed feedback | Common application | Depends on system design |
| Position information | Relative to a reference | Coded position information |
| Reference requirement | Usually requires an established reference for position tracking | Position can be available without the same reference recovery process |
| Control architecture | Often relatively straightforward | Can support more advanced position-feedback architectures |
Incremental encoders are widely used for closed-loop speed control and can also provide relative position information through pulse counting. They shouldn’t be described as devices that measure only speed.
Absolute encoders provide position information differently and can be useful where the control system needs an immediately available positional reference. This can be valuable after a power interruption or in more advanced positioning architectures.
However, absolute doesn’t automatically mean better leveling. Encoder selection should match the motor, drive, controller, feedback interface, and overall positioning strategy.
Why Can an Elevator Still Level Inaccurately With a Precise Encoder?
When an elevator stops above or below the landing, the encoder is only one possible source of the problem.
| Condition | Possible Effect |
|---|---|
| Poor encoder mounting or loose coupling | Inconsistent relationship between shaft motion and feedback |
| Electrical interference | Unstable or corrupted feedback signals |
| Poor shielding or grounding | Increased signal noise |
| Incorrect drive tuning | Overshoot or unstable low-speed response |
| Traction slip | Motor rotation may not correspond exactly to car displacement |
| Incorrect leveling reference | Inaccurate final landing reference |
| Brake inconsistency | Variation in final stopping position |
| Mechanical wear or adjustment problems | Less repeatable system response |
Traction slip illustrates why encoder location matters. A motor-mounted encoder can accurately report motor shaft rotation while actual car displacement differs because of conditions elsewhere in the traction system.
An absolute motor encoder doesn’t automatically eliminate this difference. Detecting actual car displacement independently requires a positioning architecture capable of measuring or referencing car or shaft position separately.
For troubleshooting, poor leveling shouldn’t automatically lead to encoder replacement. A useful diagnostic sequence is to verify the encoder signal first, then examine feedback wiring and mounting, drive parameters, position references, brake behavior, and relevant mechanical conditions.
Why Encoder Signal Quality Matters as Much as Resolution
Encoder specifications only provide their intended value when the feedback signal reaches the drive reliably.
Electrical noise, poor grounding, damaged connectors, inadequate shielding, or inappropriate cable routing can interfere with encoder feedback. A high-resolution encoder operating with unstable feedback may therefore provide less useful information to the control system than its specification suggests.
Installation should follow the requirements of the encoder, drive, and elevator control system, particularly where high-power motor wiring and switching equipment can introduce electrical interference.
What Should Engineers Check When Selecting an Elevator Encoder?
Encoder selection should begin with system compatibility rather than resolution alone.
Engineers and maintenance teams should evaluate:
- Motor and drive compatibility
- Incremental or absolute feedback architecture
- Electrical interface and signal format
- Resolution and accuracy requirements
- Shaft size and mounting arrangement
- Cable, shielding, and grounding requirements
- Operating environment
- Controller compatibility
- Replacement and modernization compatibility
A replacement encoder with better specifications can still be unsuitable if its signal format, electrical characteristics, mounting arrangement, or communication interface doesn’t match the existing drive.
For modernization projects, compatibility with the existing motor, drive, controller, and feedback architecture is therefore more important than comparing resolution in isolation.
Accuracy Comes From the Complete Feedback System
Elevator encoders improve accuracy by giving the drive and controller reliable information about actual motion. That feedback supports speed correction, controlled deceleration, position tracking, and repeatable stopping.
For new installations, replacement work, or modernization projects, encoder requirements should be evaluated within the wider elevator control and motion architecture so that the feedback system matches the actual operating conditions.
FAQ
How Accurate Are Elevator Encoders?
There isn’t one accuracy figure that applies to all elevator encoders. Encoder resolution and measurement accuracy depend on the encoder design, while actual elevator leveling accuracy also depends on the drive, controller, position references, brake, traction system, and mechanical condition.
Does a Higher-Resolution Encoder Improve Elevator Leveling?
It can provide finer feedback and support more precise motion control, but it doesn’t automatically improve final leveling. Drive tuning, signal quality, position references, brake behavior, and mechanical conditions can all limit the result.
Do Absolute Encoders Make Elevators More Accurate?
Not automatically. Absolute encoders can provide immediately available coded position information, but final elevator accuracy still depends on the complete control and positioning architecture.
What Causes an Elevator Encoder to Give Unreliable Feedback?
Common causes include loose mounting, coupling problems, damaged wiring, poor connections, electrical interference, inadequate shielding or grounding, contamination, physical damage, and encoder-drive incompatibility.
